Specificatii Tehnice
Carcasa
##
Masa neta
0,32 kg/m
Temperatura maxima a mediului ambiant
60 °C
Terminale externe CAD
1
Accesorii optionale
MGX20006--;MGX20306--;MGX20406--
Clasa de precizie
##
PROMO CODE CH
7051-0032-08
Rated current primary side Ipr
600 A
PROMO CODE GER INDUSTRY
7051-00016-54
Intended use
for copper bars up to 50 x 30mm;for copper bars up to 60 x 10mm
Clasa
0,5
Unitate de ambalare
1 m.
Winding secondary side
Screw terminals M4;Faston 4,8x0,8mm
Curent primar
600 A
Fabricant
Schrack
COD PROMO
7051-0019-29
Nota
The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side.
COD COMANDA
MG956060-A
Temperatura minima a mediului ambiant
-25 °C
DESCRIERE2

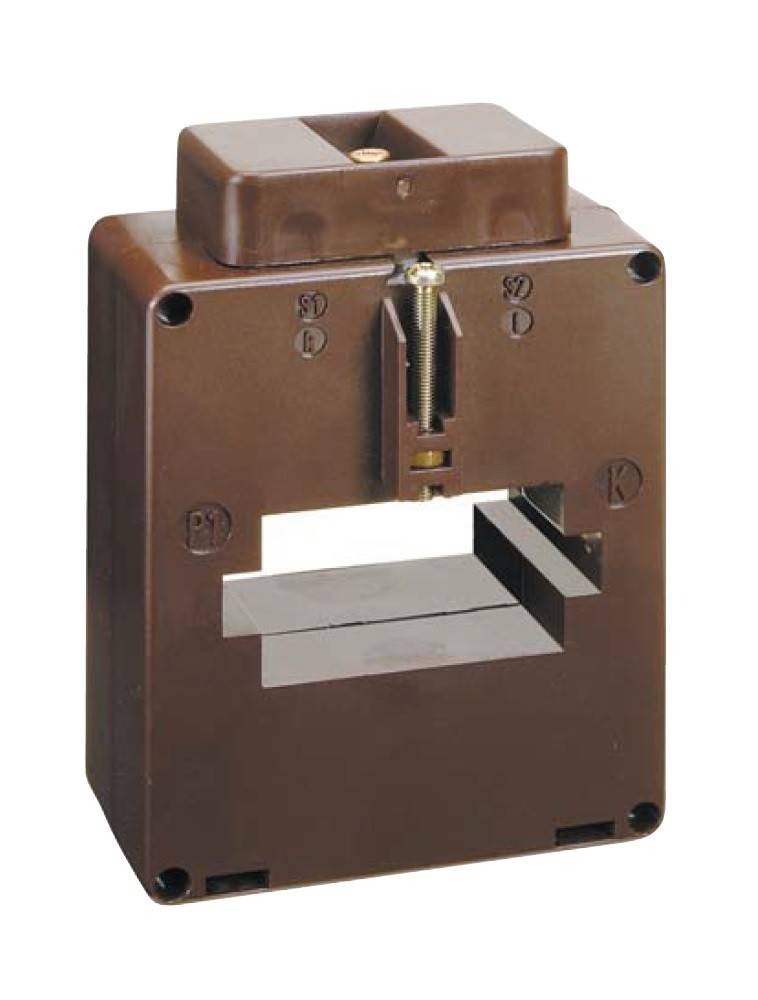

Transformator de curent 600/5A
LxBxH mm
61x70x95
grad de protectie
IP00 terminals;IP20 with terminal cover
Simbol CAD
P
Masa g
500
disipare
16,00 W
Descriere electrica CAD
600/5A, 50x20mm
Rated frequency
50 Hz
Standard produs
EN 61869-2
Decupaj mm
50x30;60x10 mm
Bare colectoare maxim
60x10
DECUPAJ mm
50x30
Ardere
Class 0.5 (4VA);Class 1 (6VA);Class 3 (8VA)
Montaj
by fixing screws on the busbar
Tip
Prin transformator de curent
Materialul carcasei
Policarbonat, cu autostingere
Conexiune
##
Rated current secondary side Isr
5A
PREG
2330
| Lungime | 60.5 mm |
| Latime | 70 mm |
| Inaltime | 95 mm |
| Greutate | 0.32 kg |
