Specificatii Tehnice
PREG
2330
Carcasa
##
Temperatura maxima a mediului ambiant
60 °C
COD COMANDA
MG956160-A
PROMO CODE CH
9111-0049-80
Clasa de precizie
##
Ardere
Class 0.5 (10VA);Class 1 (12VA);Class 3 (15VA)
COD PROMO
9111-0030-02
Intended use
for copper bars up to 50 x 30mm;for copper bars up to 60 x 10mm
Clasa
0,5
Masa neta
0,47 kg/m
Unitate de ambalare
1 m.
Winding secondary side
Screw terminals M4;Faston 4,8x0,8mm
DESCRIERE2

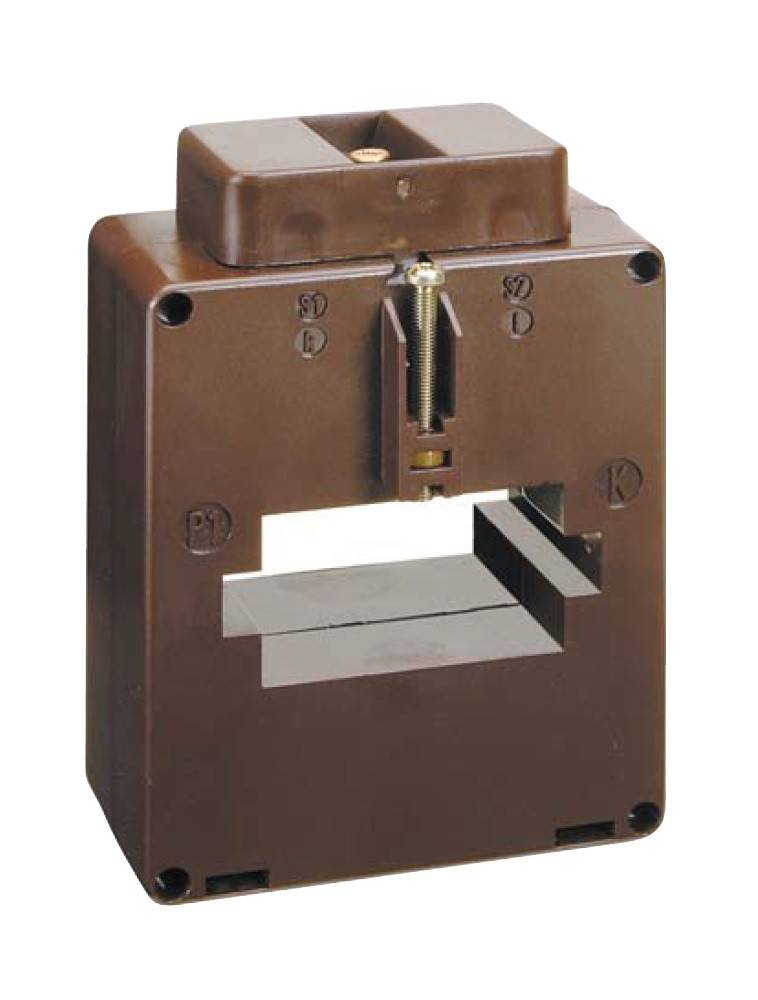

Transformator de curent 1600/5A
Fabricant
Schrack
Curent primar
1600 A
Nota
The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side.
Temperatura minima a mediului ambiant
-25 °C
grad de protectie
IP00 terminals;IP20 with terminal cover
Rated current primary side Ipr
1600 A
Masa g
500
disipare
16,00 W
Rated frequency
50 Hz
Standard produs
EN 61869-2
Decupaj mm
50x30;60x10 mm
Bare colectoare maxim
60x10
DECUPAJ mm
50x30
Montaj
by fixing screws on the busbar
Tip
Prin transformator de curent
LxIxA mm
90x130x48
Materialul carcasei
Policarbonat, cu autostingere
PROMO CODE GER INDUSTRY
9111-00027-28
Conexiune
##
HxBxT mm
130x90x48
Rated current secondary side Isr
5A
| Lungime | 48 mm |
| Latime | 90 mm |
| Inaltime | 130 mm |
| Greutate | 0.47 kg |
