Specificatii Tehnice
Carcasa
##
Temperatura maxima a mediului ambiant
60 °C
Clasa de precizie
##
COD PROMO
9098-0024-22
PROMO CODE GER INDUSTRY
9098-00022-06
Intended use
for copper bars up to 50 x 30mm;for copper bars up to 60 x 10mm
Ardere
Class 0.5 (6VA);Class 1 (8VA);Class 3 (10VA)
Clasa
0,5
Masa neta
0,47 kg/m
Unitate de ambalare
1 m.
Winding secondary side
Screw terminals M4;Faston 4,8x0,8mm
PROMO CODE CH
9098-0040-28
Fabricant
Schrack
Nota
The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side.
Temperatura minima a mediului ambiant
-25 °C
grad de protectie
IP00 terminals;IP20 with terminal cover
Masa g
500
disipare
16,00 W
Curent primar
800 A
DESCRIERE2

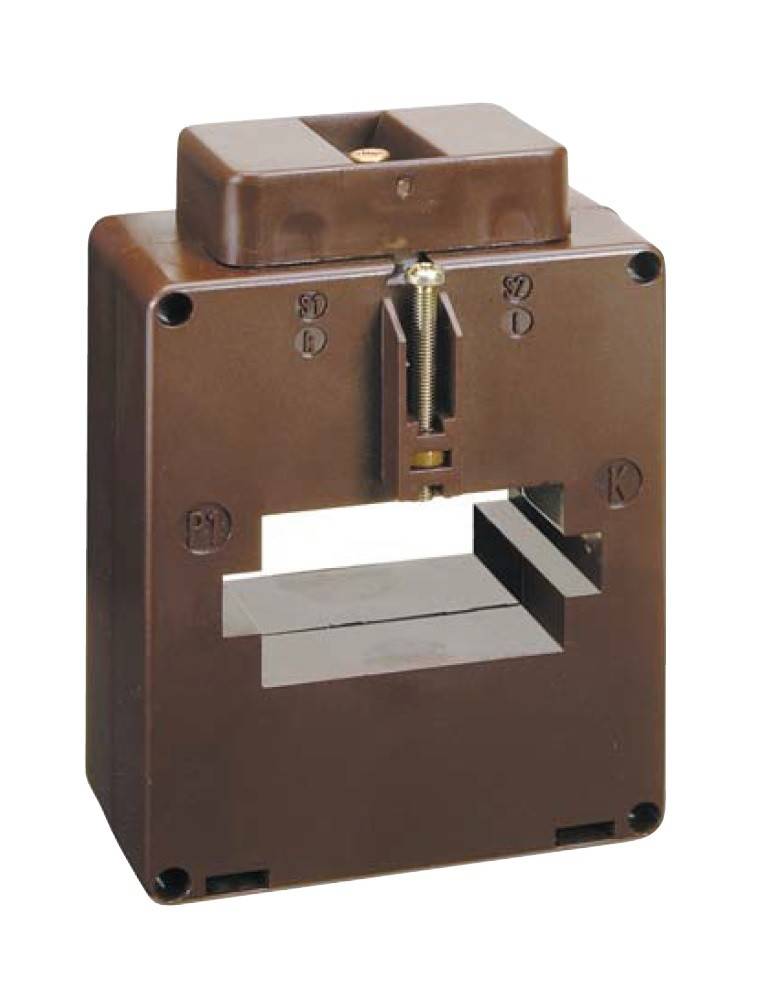

Transformator de curent 800/5A
Rated frequency
50 Hz
Standard produs
EN 61869-2
Decupaj mm
50x30;60x10 mm
Bare colectoare maxim
60x10
DECUPAJ mm
50x30
Montaj
by fixing screws on the busbar
Tip
Prin transformator de curent
LxIxA mm
90x130x48
Materialul carcasei
Policarbonat, cu autostingere
Conexiune
##
Rated current primary side Ipr
800 A
HxBxT mm
130x90x48
Rated current secondary side Isr
5A
COD COMANDA
MG956080-A
PREG
2330
| Lungime | 48 mm |
| Latime | 90 mm |
| Inaltime | 130 mm |
| Greutate | 0.47 kg |
