Specificatii Tehnice
Frecventa
47-63 Hz
Descriere electrica CAD
/, 20A (50°C)
disipare
62,00 W
Versiune
sursa alimentare in comutatie
COD PROMO
4669-0149-45
Terminale externe CAD
1
Incarcare maxima
20 A
Isolation
Input/output isolation: 3 kV AC / 60 s;Input/ground insulation: 2 kV AC / 60 s;Output/ground insulation: 0.5 kV AC / 60 s
LxBxH mm
66x129x125
Masa neta
1,50 kg/m
Power loss (depending on input voltage)
48.99 W (115VAC) / 35.17 W (230VAC)
Temperatura maxima a mediului ambiant
70 °C
PREG
2320
Technical data
##
Tensiune DC la iesire
24 V
Temperatura de functionare
-20°C…+70°C (derating -12 W/°C >50°C)
grad de protectie
IP20
Grad de poluare
2
PROMO CODE CH
4669-0225-08
Conexiune
4mmp / 4mmp
Unitate de ambalare
1 m.
Tensiune de intrare DC
127-370 V
Simbol CAD
T
Factor de putere
>0,94
Adancime montaj
13,50 mm
Putere
480 W
Tensiunea de alimentare
24 DC V
COD COMANDA
LPC12420
PROMO CODE GER INDUSTRY
4669-00134-54
Fabricant
Schrack
Functie
surse alimentare
Hold up time
16 ms (115VAC) / 16 ms (230VAC)
Categoria de supratensiune
3
Current consumption
5 A (115VAC) / 2.4 A (230VAC)
Intrare
##
-
Sommeroffer
Marime fuzibil
Internal protective fuse: T 8 A;External fuse on AC line: MCB: C-8 A / Fuse: T 8 A
Montaj

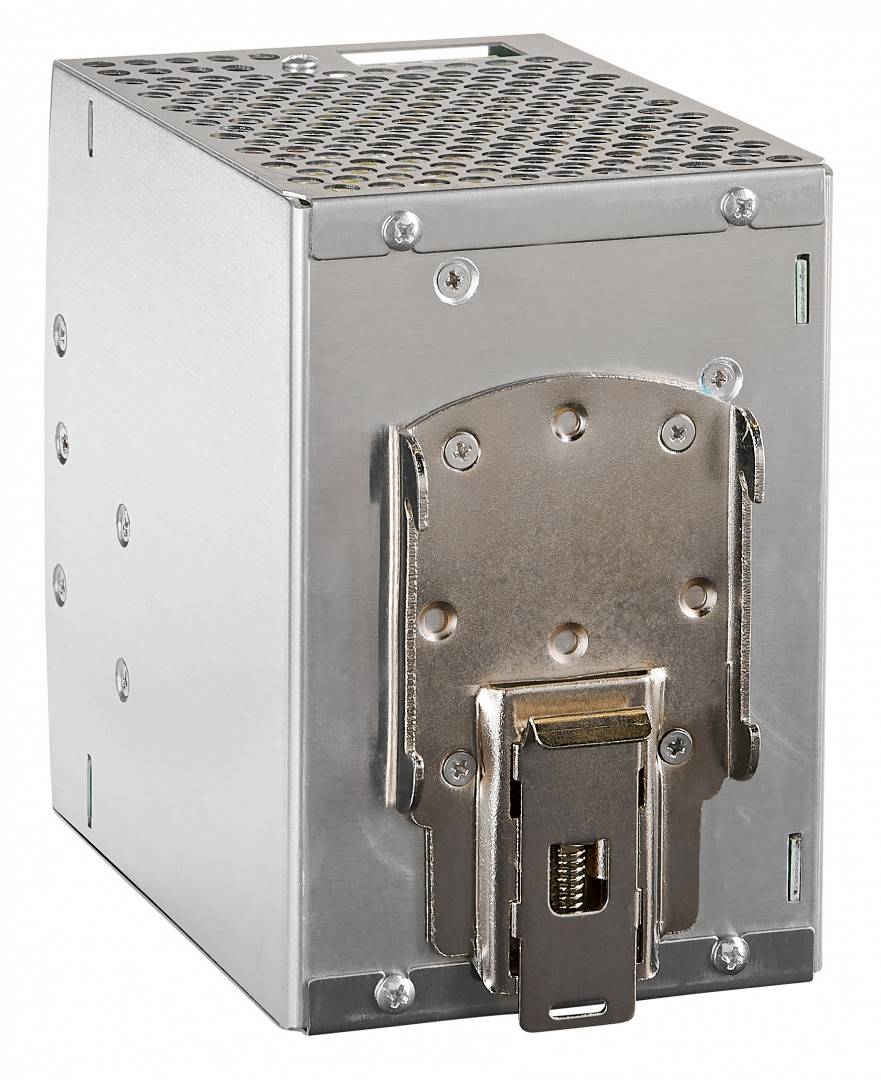

On DIN rail according to EN 60715 (35mm) via quick mounting clip
Temperatura minima a mediului ambiant
-25 °C
Status LEDs

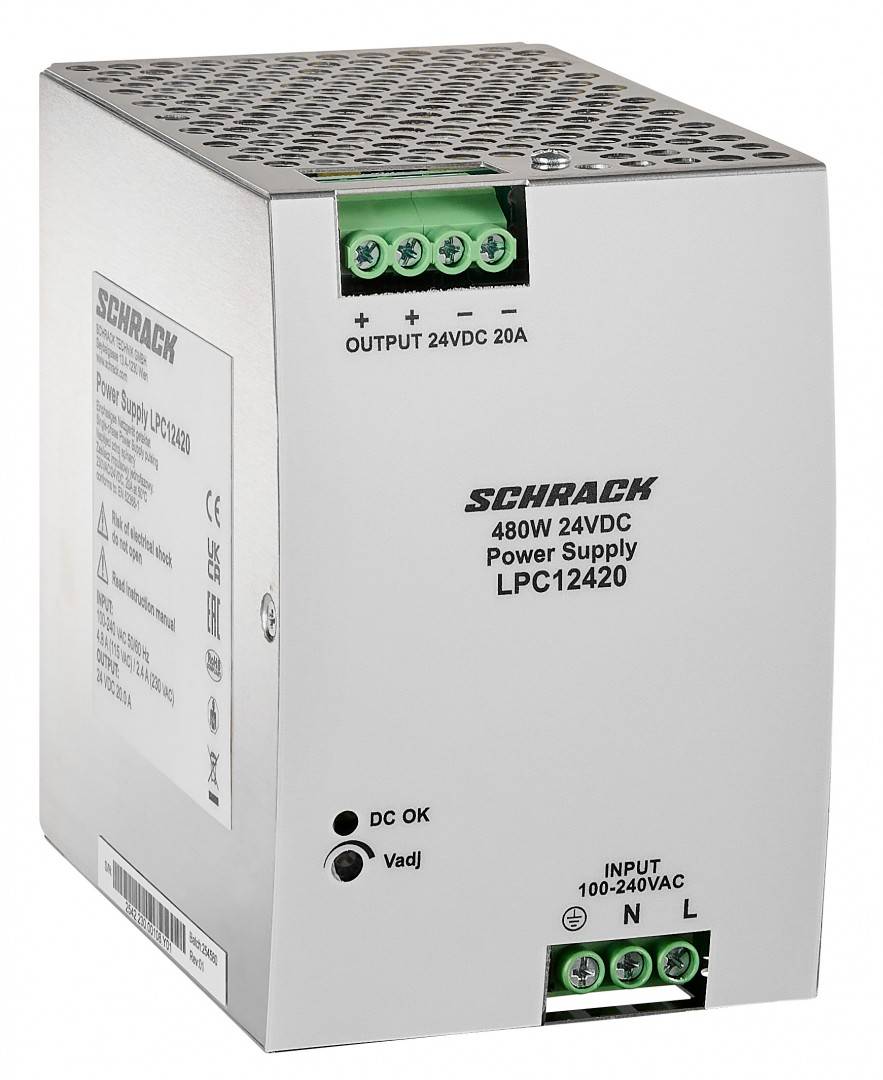

LED "DC OK"
Ripple at nominal ratings
150 mVpp
Efficiency (depending on input voltage)
91% (115VAC) / 92.5% (230VAC)
Masa aprox.
1,50 kg/km
Tensiune nominala
120-230VAC
Standard
EN 62368-1;EN 55032;EN 55035;EN 61000-3-2;EN 61000-3-3;EN 61000-4-2;EN 61000-4-3;EN 61000-4-4;EN 61000-4-5;EN 61000-4-6;EN 61000-4-11
Iesire
##
Curent de scurtcircuit
50 A for 10 ms
Curent la pornire
20 A (115VAC)/ 35 A (230VAC)
Forma constructiva
carcasa pentru aparatura modulara
Dimensiuni externe
65.5 x 125 x 129 mm
Toleranta tensiune
20 A für >3sek.
Tensiune intrare AC
90-264 V
Materialul carcasei
Aluminiu;Otel
Redundant parallel connection
Possible with external ORing diode
| Lungime | 65.5 mm |
| Latime | 129 mm |
| Inaltime | 125 mm |
| Greutate | 1.5 kg |
