Specificatii Tehnice
Materialul carcasei
Aluminiu;Otel
Redundant parallel connection
Possible with external ORing diode
Isolation
Input/output isolation: 4.7 kV AC / 60 s;Input/ground insulation: 2.4 kV AC / 60 s;Output/ground insulation: 0.5 kV AC / 60 s
Power loss (depending on input voltage)
39 W (400VAC) / 32 W (500VAC)
Frecventa
47-63 Hz
Descriere electrica CAD
/, 20A (50°C)
Efficiency (depending on input voltage)
92.5% (400VAC) / 93% (500VAC)
Versiune
sursa alimentare in comutatie
Categoria de supratensiune
2
LxBxH mm
85x129x125
Terminale externe CAD
1
Tensiune nominala
3x400-500VAC
Factor de putere
>0,9
Incarcare maxima
20 A
Standard
EN 61010-1;EN 55032;EN 55035;EN 61000-3-2;EN 61000-3-3;EN 61000-4-2;EN 61000-4-3;EN 61000-4-4;EN 61000-4-5;EN 61000-4-6;EN 61000-4-11
Marime fuzibil
Internal protective fuse: T 4 A;External fuse on AC line: MCB: C-4 A / Fuse: T 4 A
Temperatura maxima a mediului ambiant
70 °C
PREG
2320
Technical data
##
Tensiune DC la iesire
24 V
Tensiune de intrare DC
480-780 V
Masa neta
1,38 kg/m
grad de protectie
IP20
Grad de poluare
2
Temperatura de functionare
-30°C…+70°C (derating -12 W/°C >50°C)
PROMO CODE GER INDUSTRY
4683-00134-54
Conexiune
4mmp / 4mmp
COD PROMO
4683-0149-45
Current consumption
1.5 A (400VAC) / 1.2 A (500VAC)
Unitate de ambalare
1 m.
Simbol CAD
T
Adancime montaj
13,50 mm
PROMO CODE CH
4683-0225-08
Putere
480 W
Tensiunea de alimentare
24 DC V
Masa aprox.
1,38 kg/km
Hold up time
20 ms (400VAC) / 20 ms (500VAC)
Curent la pornire
50 A (400VAC)
COD COMANDA
LPC32420
Fabricant
Schrack
Contacte
dry contact, max. 1 A
Functie
surse alimentare
Intrare
##
-
Sommeroffer

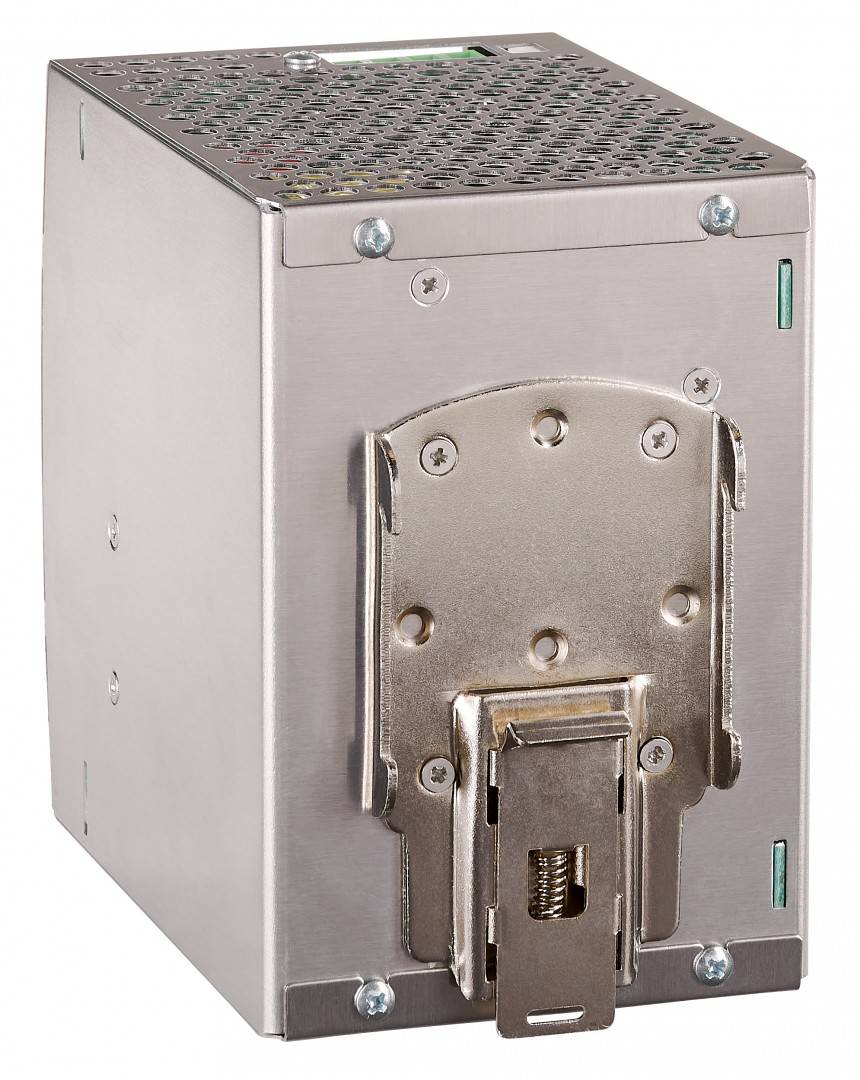

Montaj
On DIN rail according to EN 60715 (35mm) via quick mounting clip
Temperatura minima a mediului ambiant
-25 °C
Status LEDs
LED "DC OK"
Ripple at nominal ratings
150 mVpp
disipare
54,00 W
Curent de scurtcircuit
50 A for >3 sec.
Iesire
##
Tensiune intrare AC
340-550 V
Dimensiuni externe
85.5 x 125.2 x 128.5 mm
Forma constructiva
carcasa pentru aparatura modulara
Toleranta tensiune
20 A für >3sek.
| Lungime | 85 mm |
| Latime | 128.5 mm |
| Inaltime | 125.2 mm |
| Greutate | 1.38 kg |
