Specificatii Tehnice
Frecventa
47-63 Hz
Versiune
sursa alimentare in comutatie
COD PROMO
4732-0104-44
PROMO CODE CH
4732-0151-04
Putere
240 W
Terminale externe CAD
1
Temperatura de functionare
-20°C…+70°C (derating -6 W/°C >50°C)
Isolation
Input/output isolation: 3 kV AC / 60 s;Input/ground insulation: 2 kV AC / 60 s;Output/ground insulation: 0.5 kV AC / 60 s
Marime fuzibil
Internal protective fuse: T 5 A;External fuse on AC line: MCB: C-5 / Fuse: T 5 A
Temperatura maxima a mediului ambiant
70 °C
PREG
2320
Technical data
##
Tensiune DC la iesire
24 V
Toleranta tensiune
12.0 A
grad de protectie
IP20
Grad de poluare
2
Incarcare maxima
10 A
Conexiune
4mmp / 4mmp
Hold up time
22 ms (115VAC) / 28 ms (230VAC)
LxBxH mm
63x114x125
Adancime montaj
12,50 mm
Unitate de ambalare
1 m.
Tensiune de intrare DC
127-370 V
Simbol CAD
T
Masa neta
0,90 kg/m
Tensiunea de alimentare
24 DC V
Curent la pornire
25 A (115VAC)/ 35 A (230VAC)
Fabricant
Schrack
Functie
surse alimentare
disipare
42,00 W
Dimensiuni externe
63 x 125 x 113.5 mm
Categoria de supratensiune
3
Intrare
##
-
Sommeroffer
Montaj

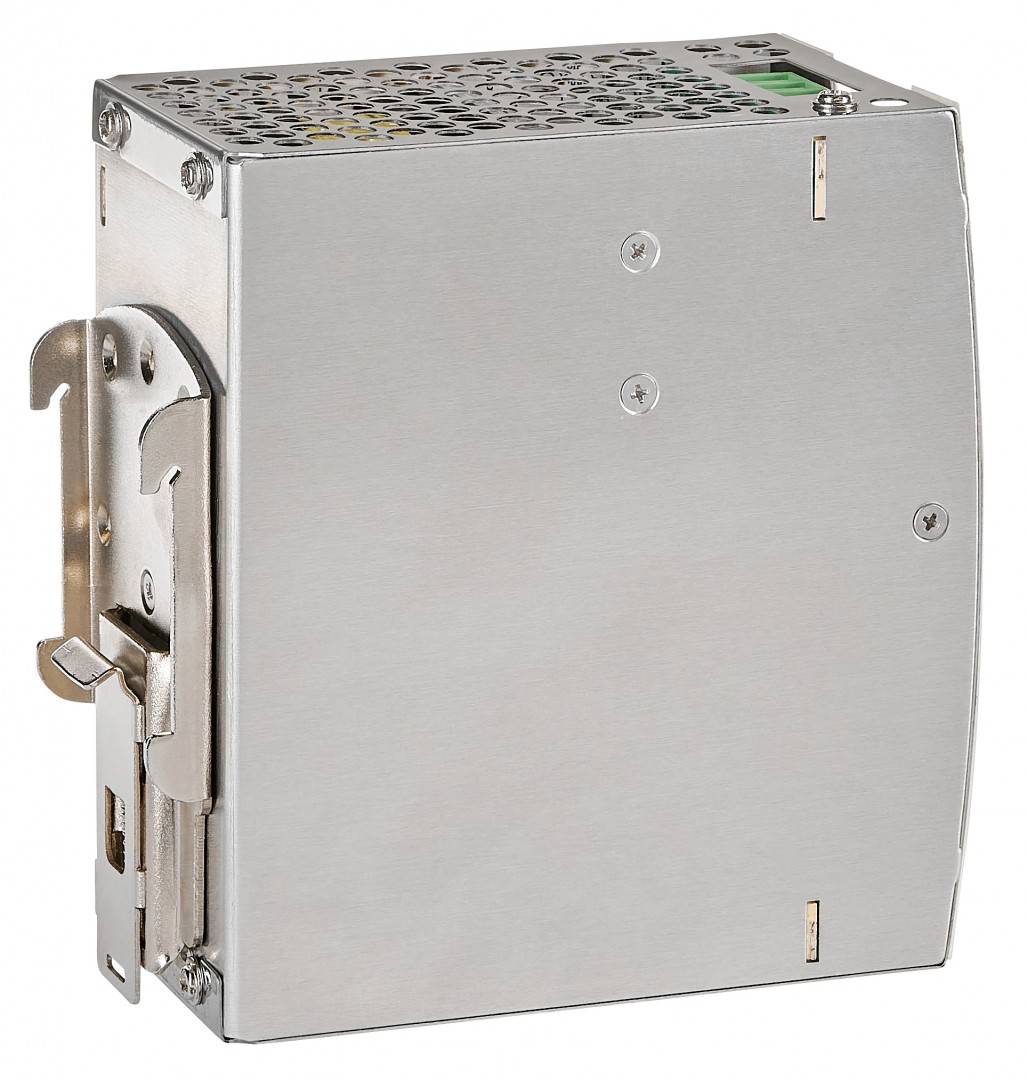

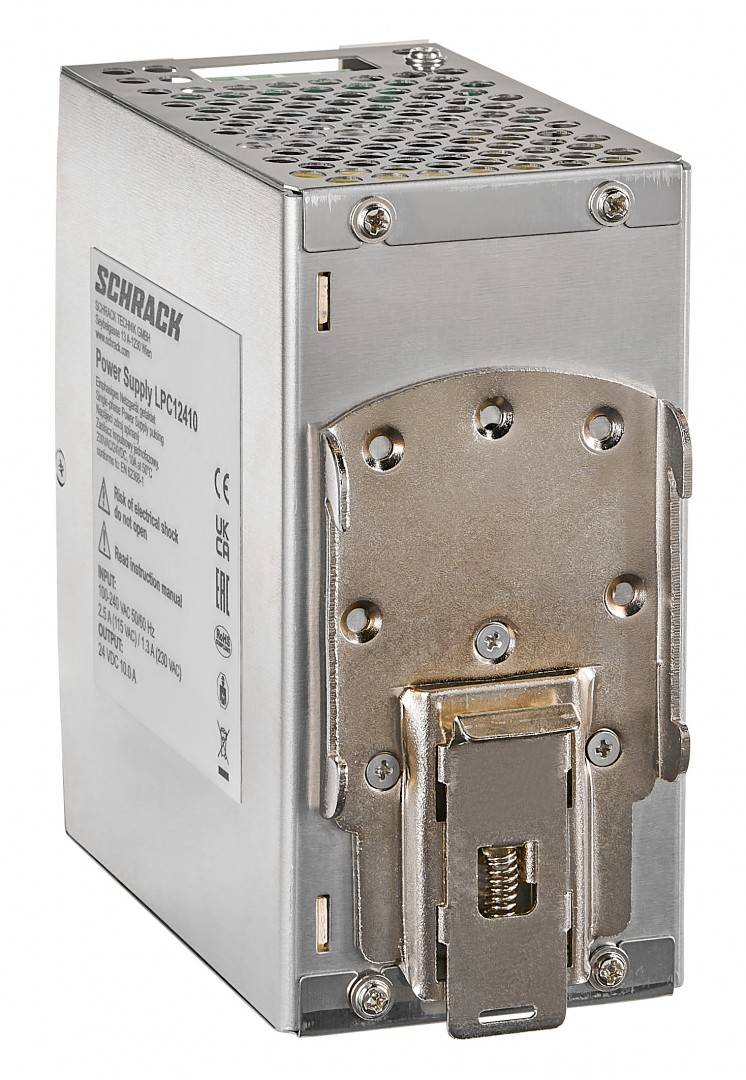

On DIN rail according to EN 60715 (35mm) via quick mounting clip
PROMO CODE GER INDUSTRY
4732-00093-89
Temperatura minima a mediului ambiant
-25 °C
Masa aprox.
0,90 kg/km
Status LEDs

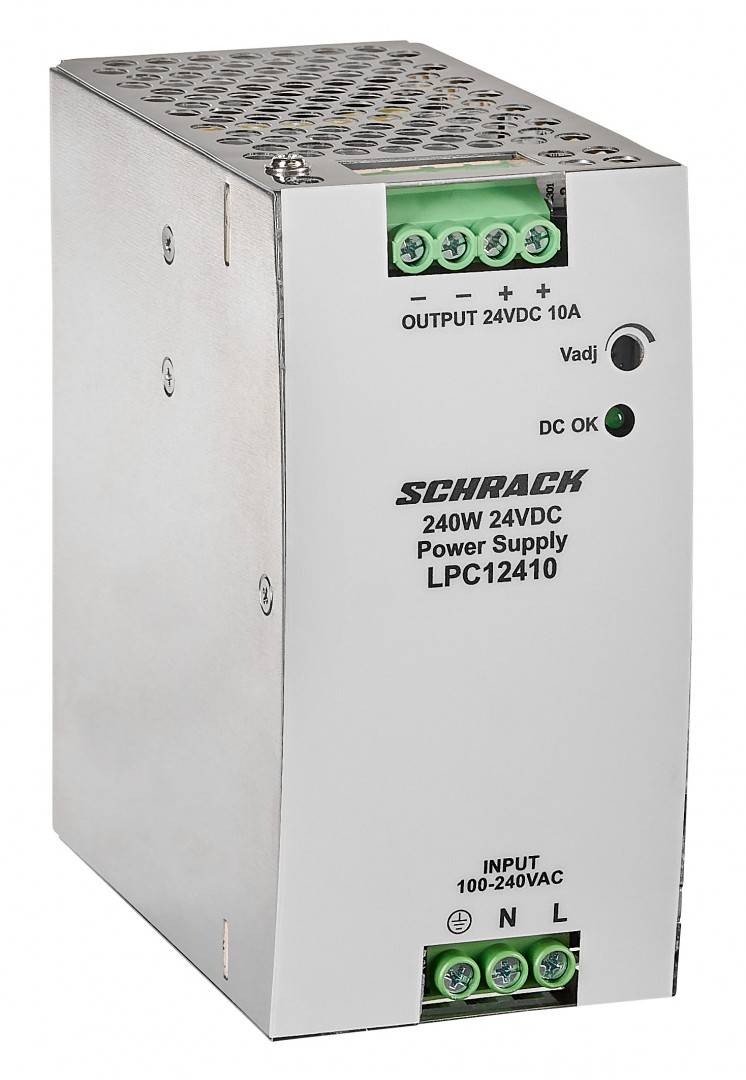

LED "DC OK"
Ripple at nominal ratings
150 mVpp
Curent de scurtcircuit
30 A for 100 ms
Factor de putere
>0,95
Current consumption
2.5 A (115VAC) / 1.3 A (230VAC)
Tensiune nominala
120-230VAC
Standard
EN 62368-1;EN 55032;EN 55035;EN 61000-3-2;EN 61000-3-3;EN 61000-4-2;EN 61000-4-3;EN 61000-4-4;EN 61000-4-5;EN 61000-4-6;EN 61000-4-8;EN 61000-4-11
Efficiency (depending on input voltage)
86.5% (115VAC) / 88.5% (230VAC)
Iesire
##
COD COMANDA
LPC12410
Power loss (depending on input voltage)
38.2 W (115VAC) / 29.38 W (230VAC)
Forma constructiva
carcasa pentru aparatura modulara
Descriere electrica CAD
/, 10A (50°C)
Tensiune intrare AC
90-264 V
Materialul carcasei
Aluminiu;Otel
Redundant parallel connection
Possible with external ORing diode
| Lungime | 63 mm |
| Latime | 113.5 mm |
| Inaltime | 125 mm |
| Greutate | 0.9 kg |
