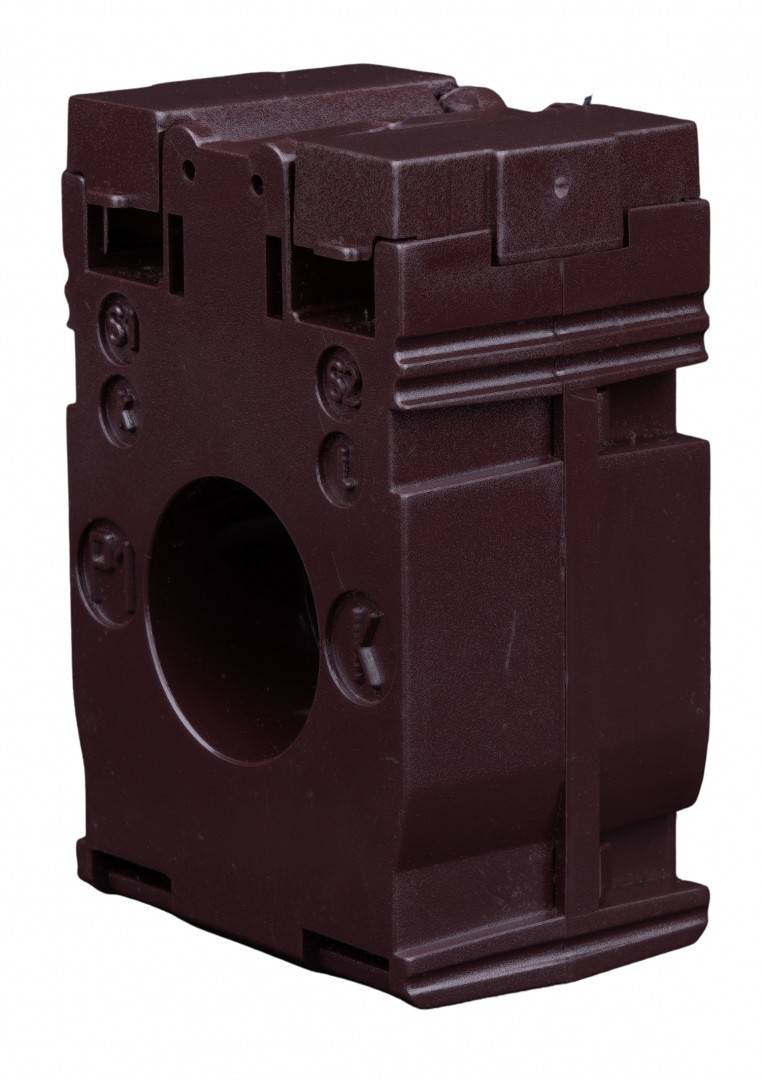

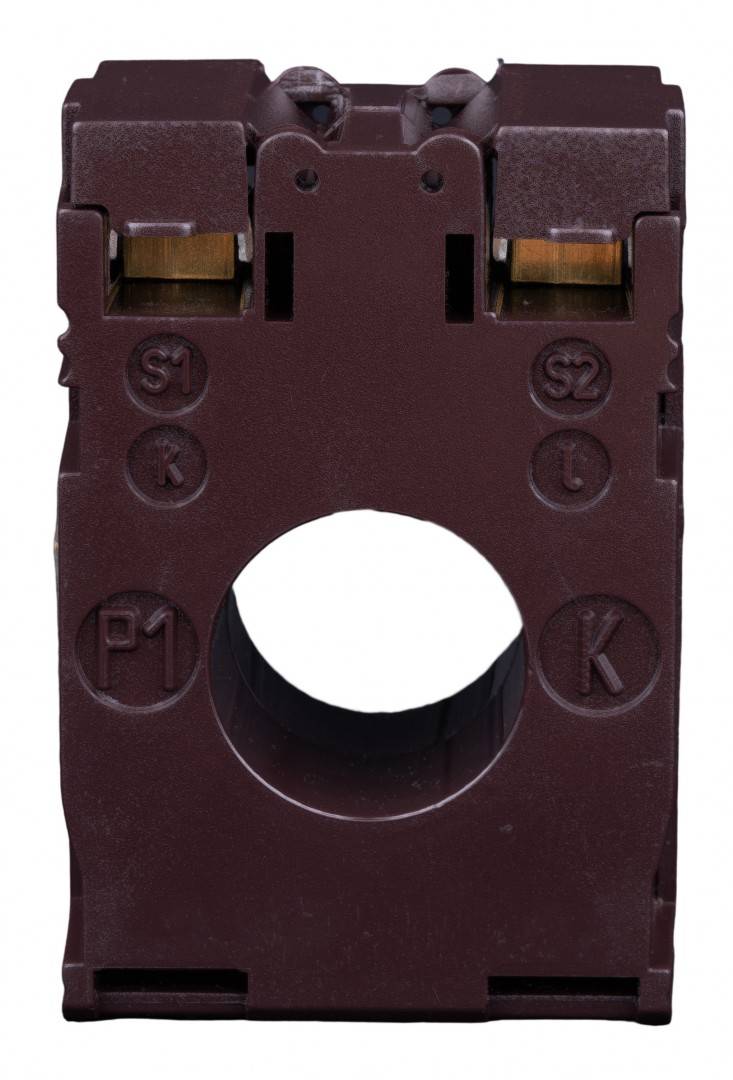

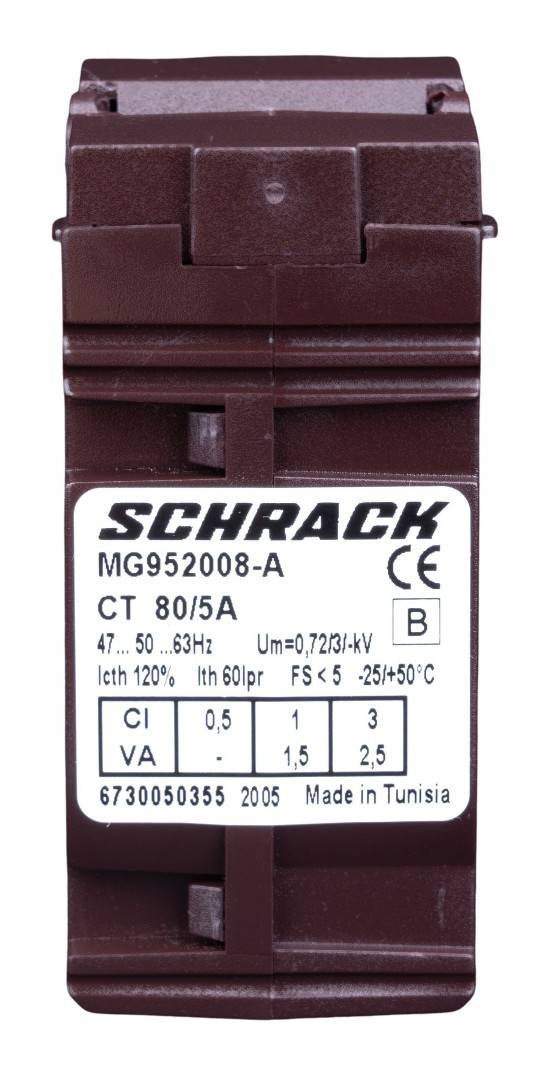

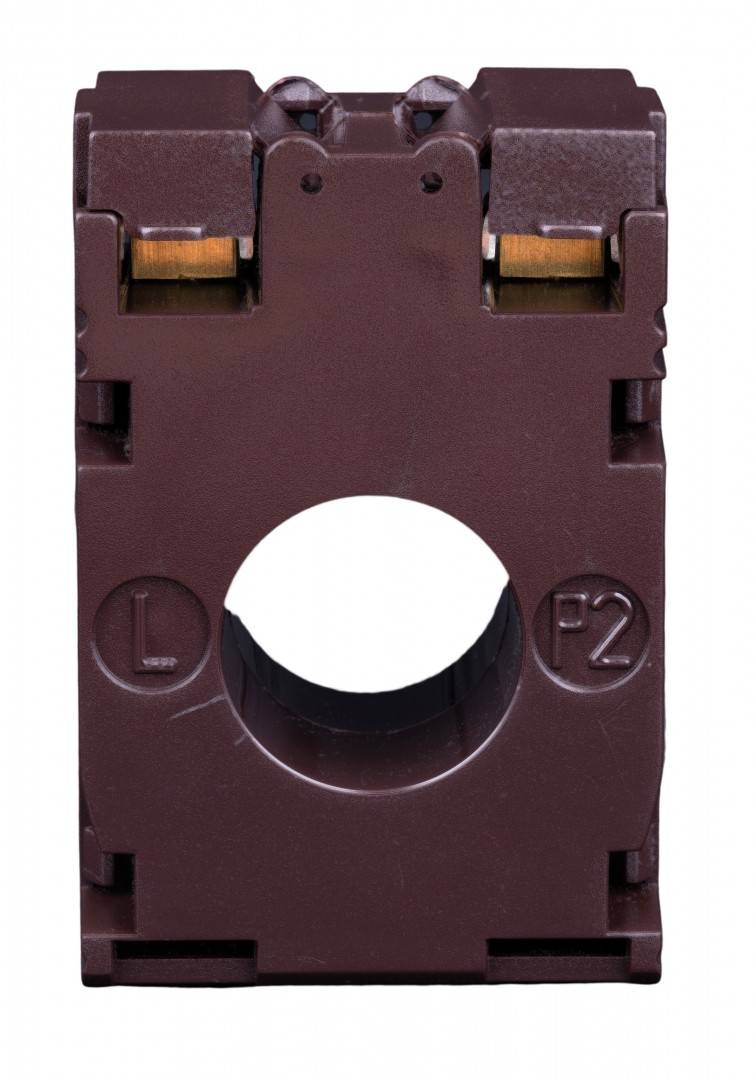

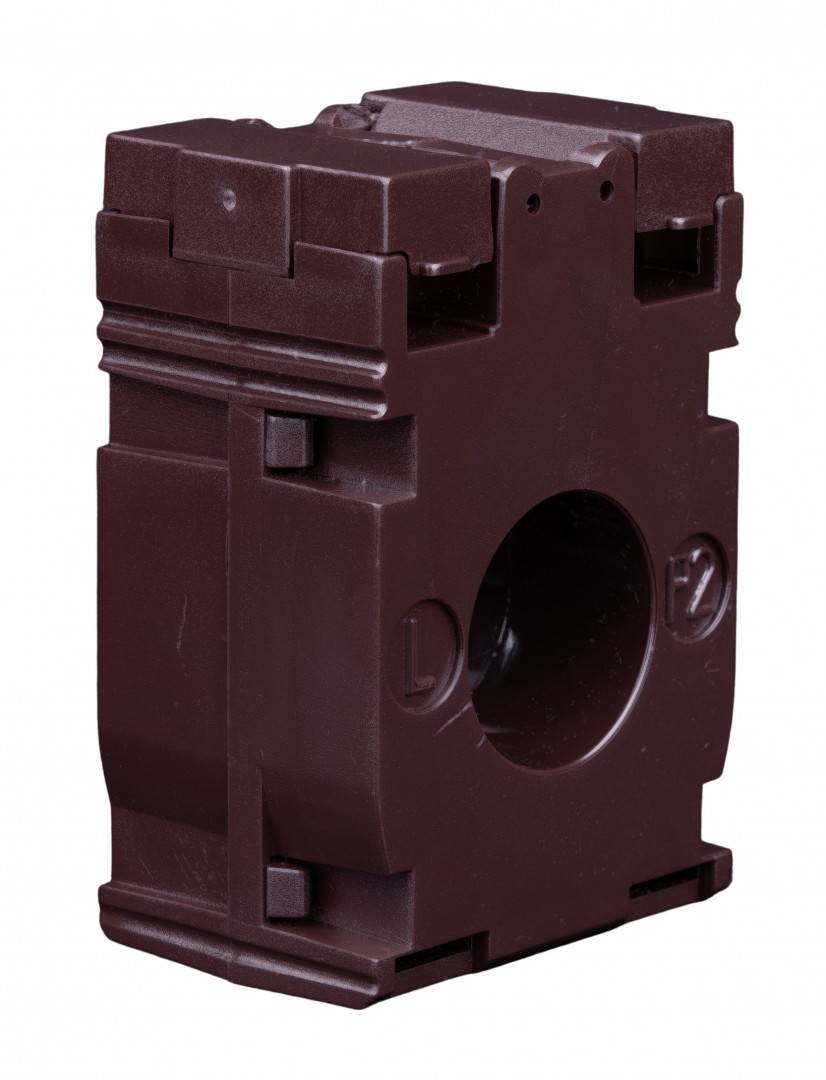

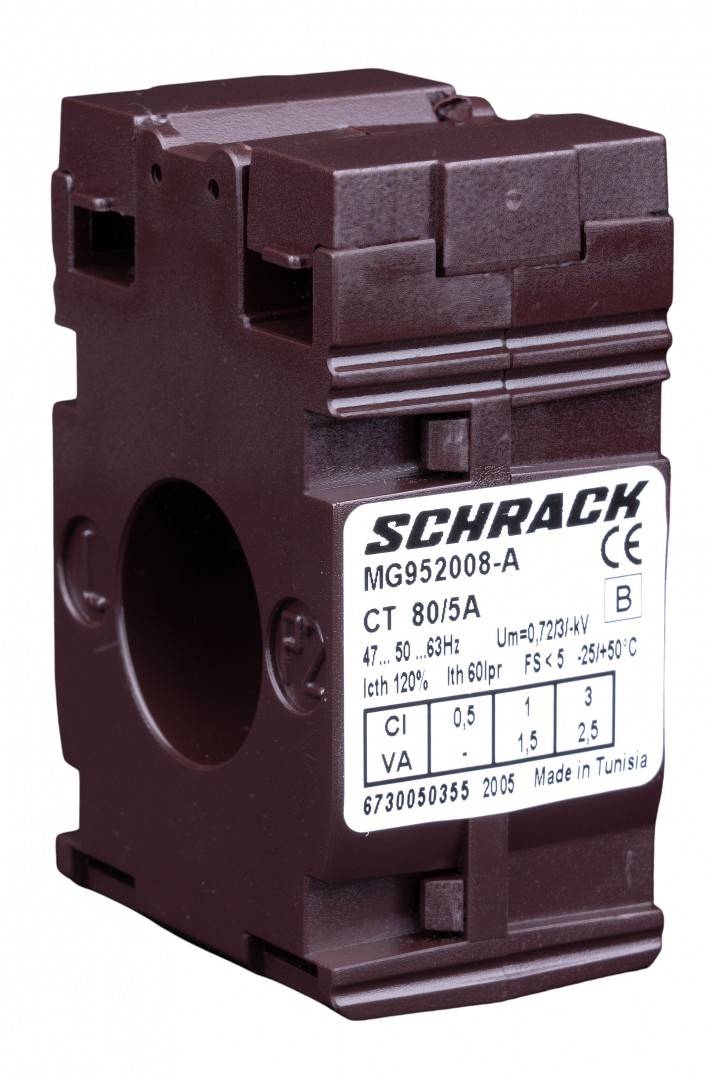

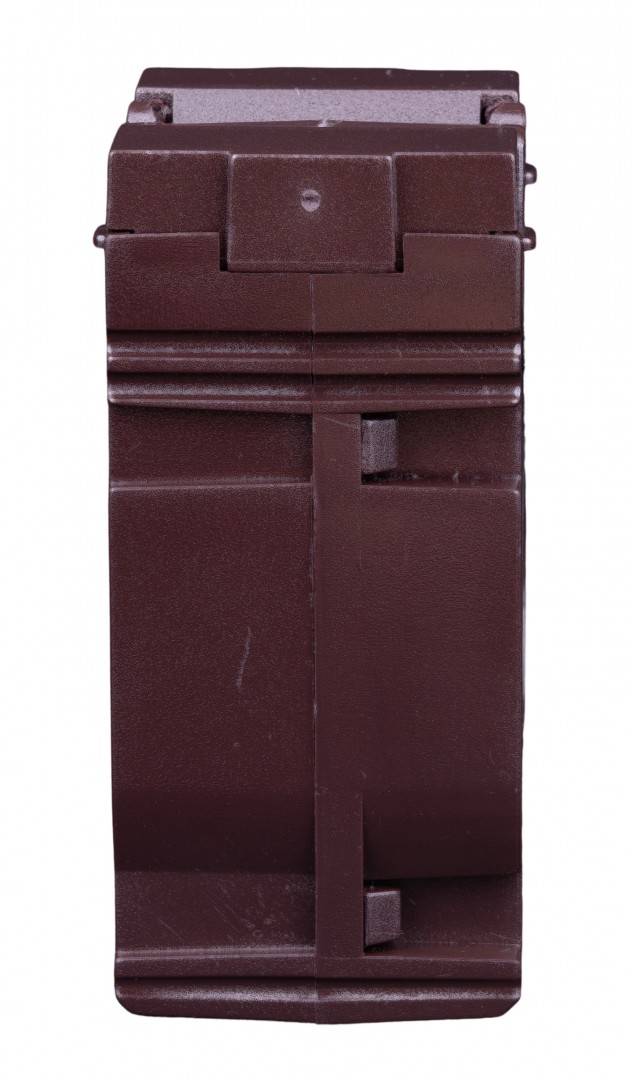

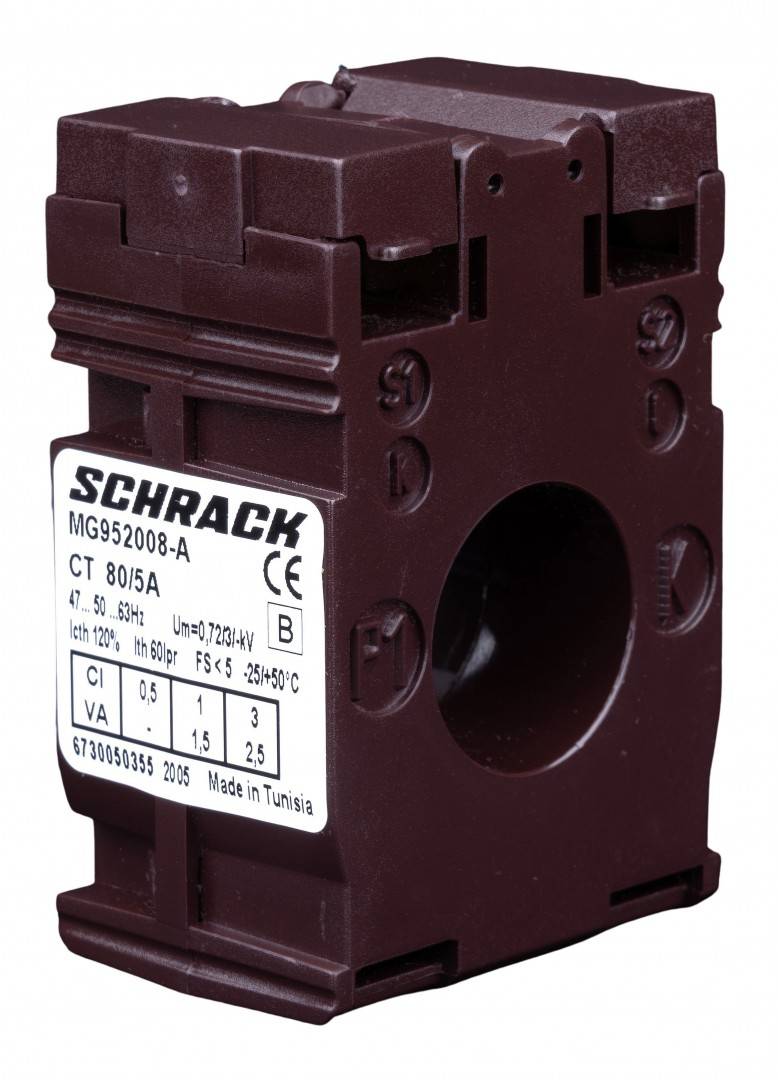

Transformator de curent 80/5A, D=21mm, , clasa 1
Cod produs: MG952008-A
Marca: SCHRACK TECHNIK
Pret cu TVA: 70.83 Lei / buc.
|
|
|
|
|
|
Comanda instant - Transformator de curent 80/5A, D=21mm, , clasa 1
|
Transformator de curent 80/5A, D=21mm, , clasa 1
|
|
Specificatii Tehnice Carcasa ## DECUPAJ mm Ø24 Decupaj mm Ø24 mm Temperatura maxima a mediului ambiant 60 °C PROMO CODE GER INDUSTRY 6008-00007-26 Masa g 180 Diametru maxim conductor 21 mm Accesorii optionale MGX20006--;MGX20306--;MGX20406-- Descriere electrica CAD 80/5A Clasa de precizie ## Masa neta 0,18 kg/m Standard produs EN 61869-2;BS3938;BS7626 grad de protectie IP20 Unitate de ambalare 1 m. Winding secondary side max. 2 separate wires 2,5mm²;Screw terminals Intended use for cables up to diameter 21mm Materialul carcasei Policarbonat, cu autostingere;Clasa V0 conform cu UL-94 PROMO CODE CH 6008-0014-13 Fabricant Schrack Nota The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side. disipare 3,00 W Temperatura minima a mediului ambiant -25 °C COD PROMO 6008-0008-55 Simbol CAD P Tip Transformator de curent pentru cabluri Ardere Class 1 (1.5VA);Class 3 (2.5VA) Rated current primary side Ipr 80 A Specifications ## COD COMANDA MG952008-A LxBxH mm 30x44x65 Conexiune ## Rated current secondary side Isr 5A Curent primar 80 A Clasa 1 PREG 2330 | Lungime | 30 mm | | Latime | 44 mm | | Inaltime | 65 mm | | Greutate | 0.18 kg |
|
|
|
|
|
