Specificatii Tehnice
Carcasa
##
Temperatura maxima a mediului ambiant
60 °C
Descriere electrica CAD
50/5A
Masa g
180
Diametru maxim conductor
21 mm
Accesorii optionale
MGX20006--;MGX20306--;MGX20406--
COD COMANDA
MG952005-A
Clasa de precizie
##
Masa neta
0,18 kg/m
Standard produs
EN 61869-2;BS3938;BS7626
grad de protectie
IP20
COD PROMO
6900-0008-55
Decupaj mm
Ø22 mm
Unitate de ambalare
1 m.
Rated current primary side Ipr
50 A
Winding secondary side
max. 2 separate wires 2,5mm²;Screw terminals
Intended use
for cables up to diameter 21mm
Materialul carcasei
Policarbonat, cu autostingere;Clasa V0 conform cu UL-94
Fabricant
Schrack
PROMO CODE GER INDUSTRY
6900-00007-26
Nota
The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side.
DECUPAJ mm
Ø22
disipare
3,00 W
Temperatura minima a mediului ambiant
-25 °C
Ardere
Class 1 (1VA);Class 3 (1.5VA)
Simbol CAD
P
Tip

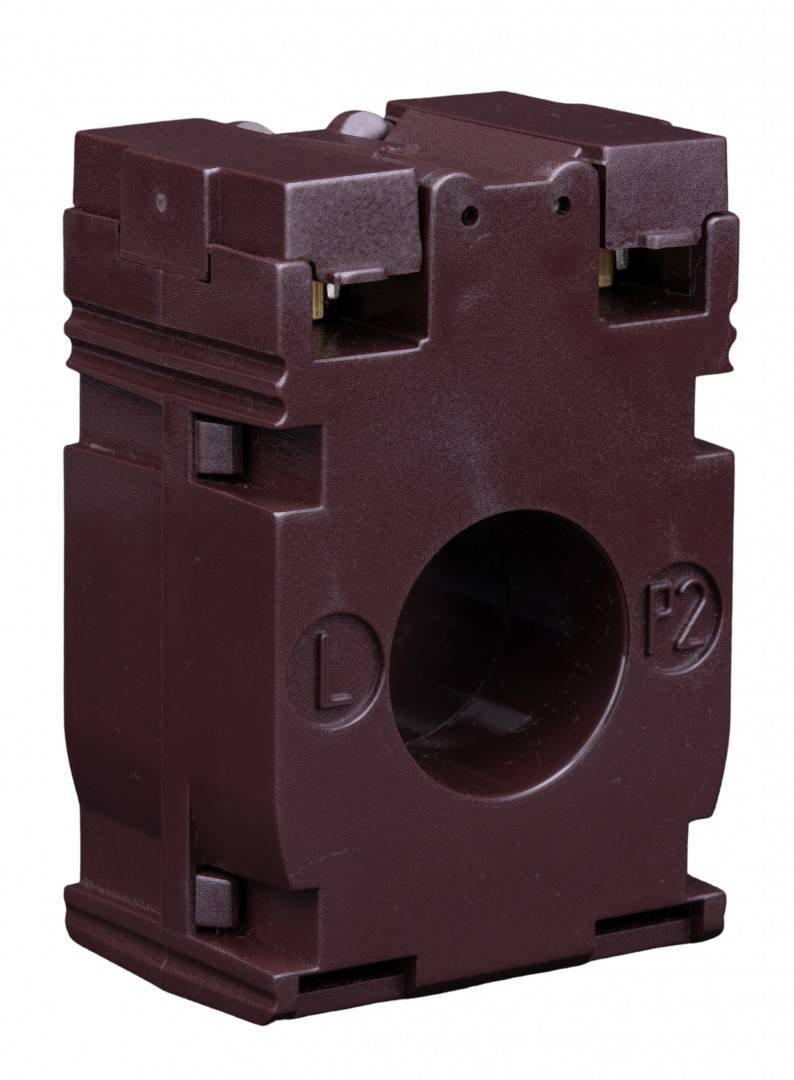

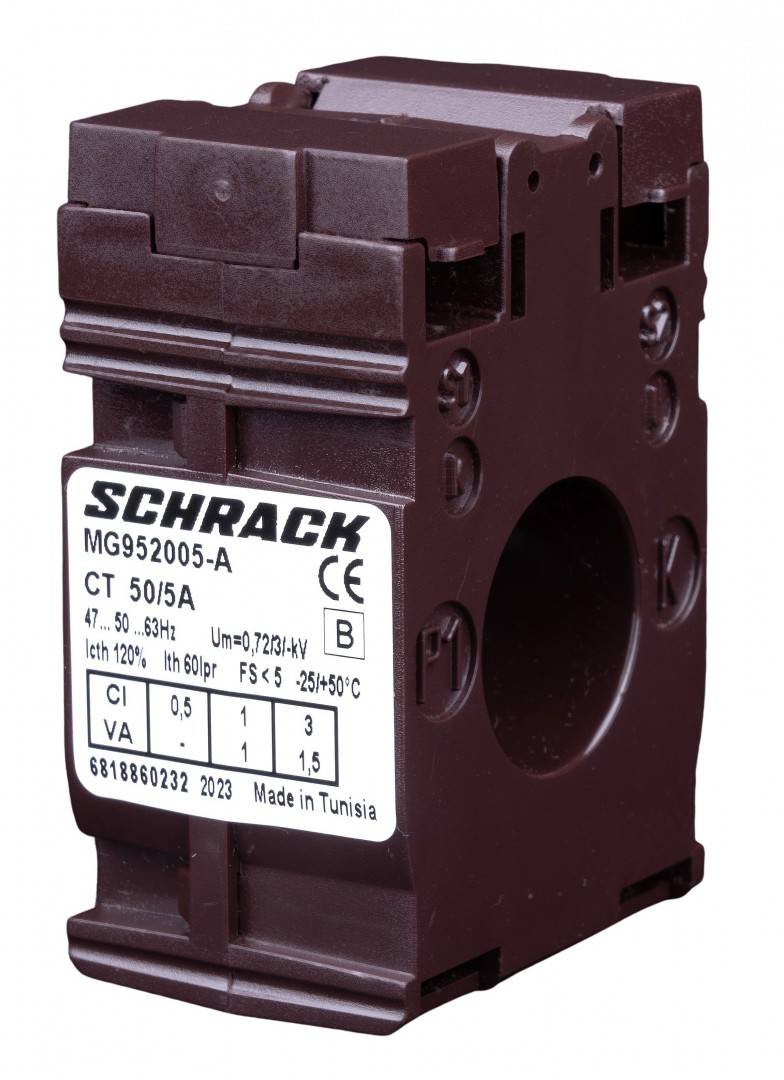

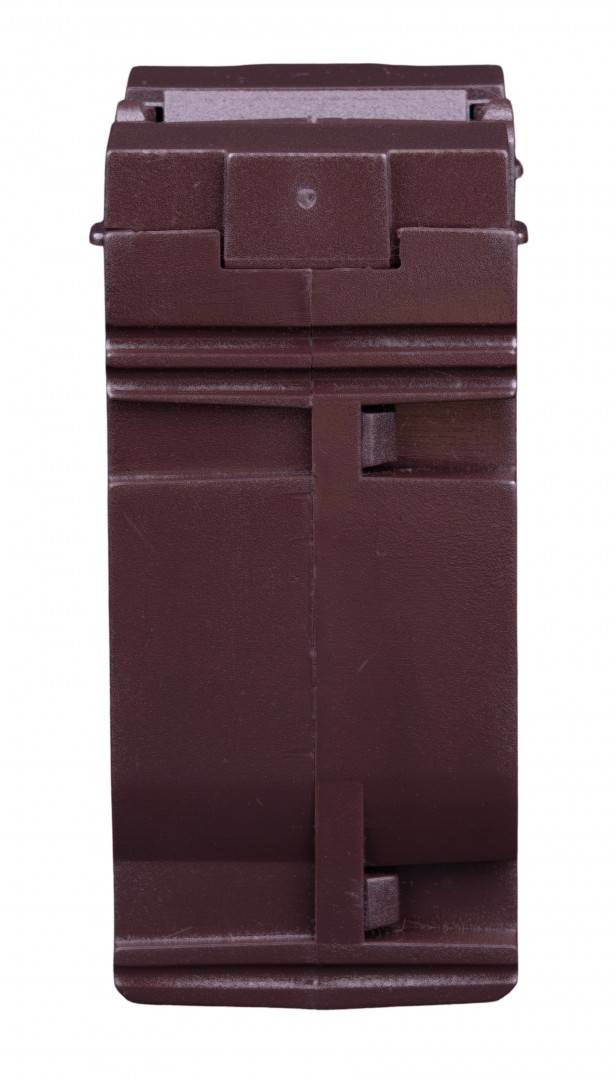

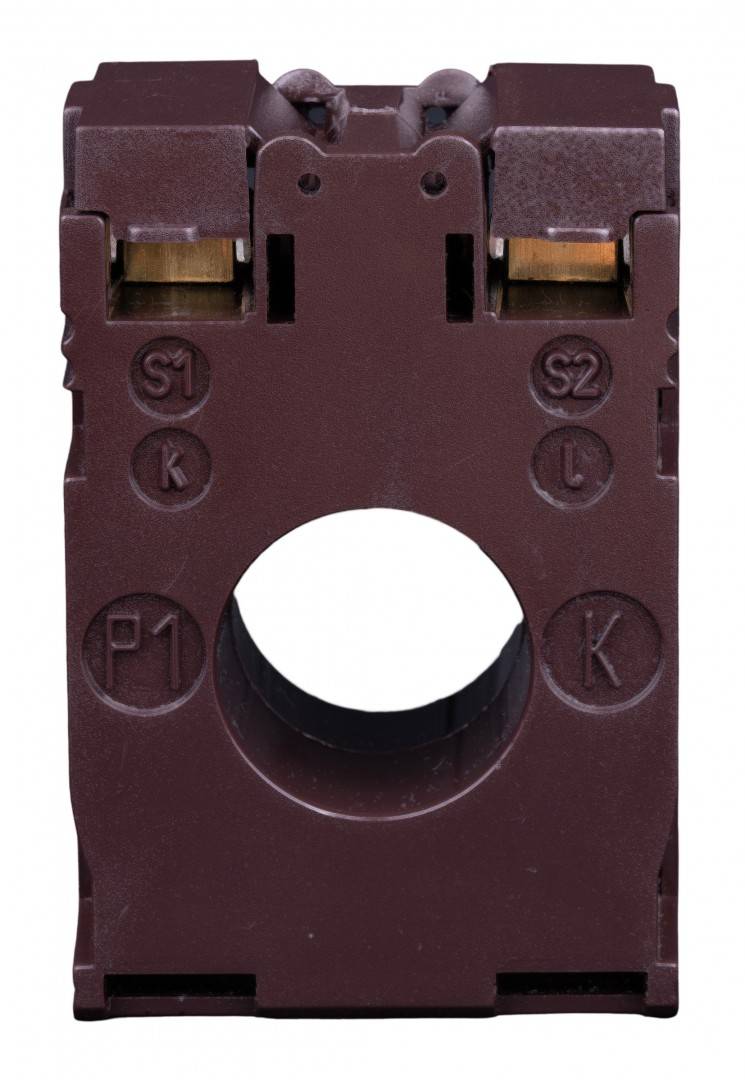

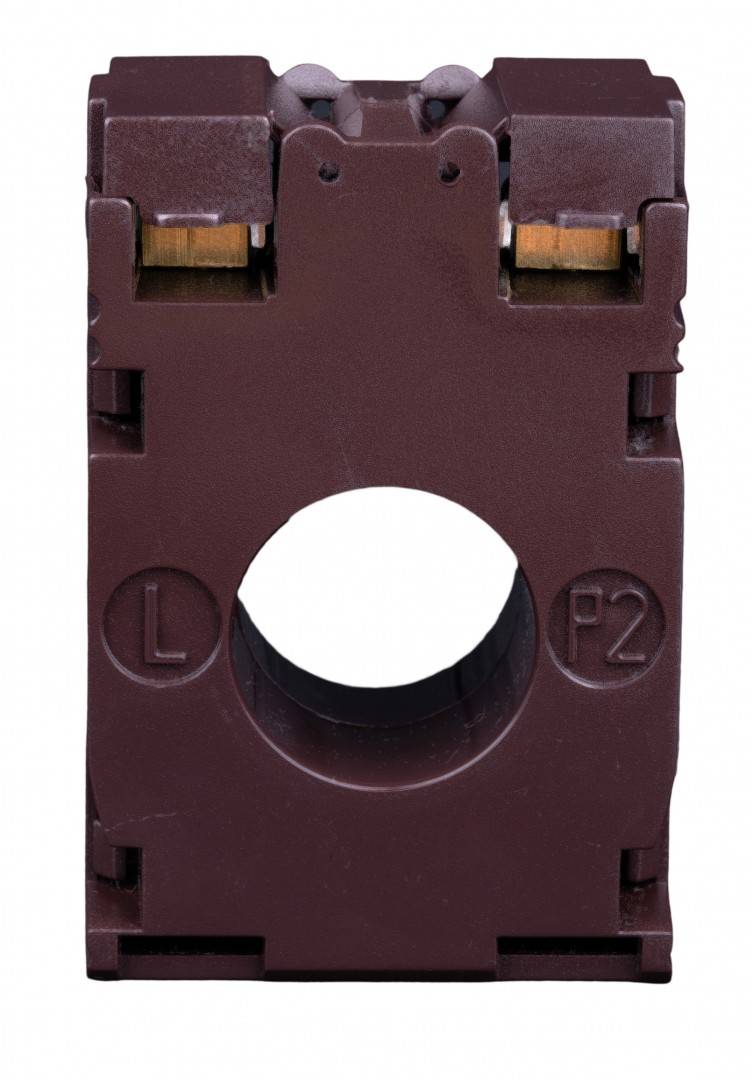

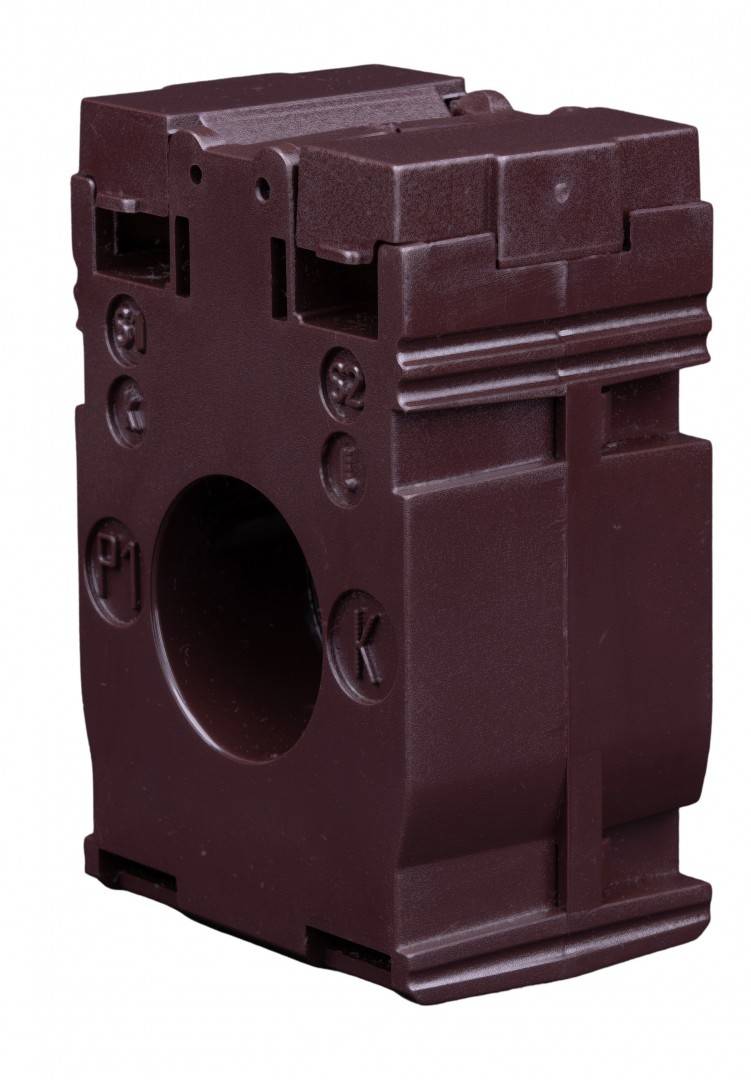

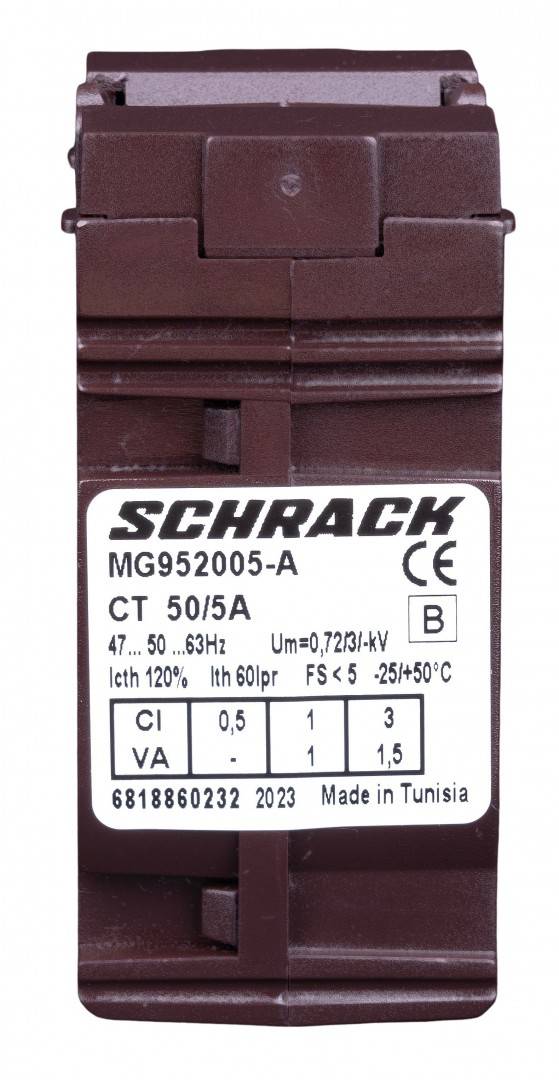

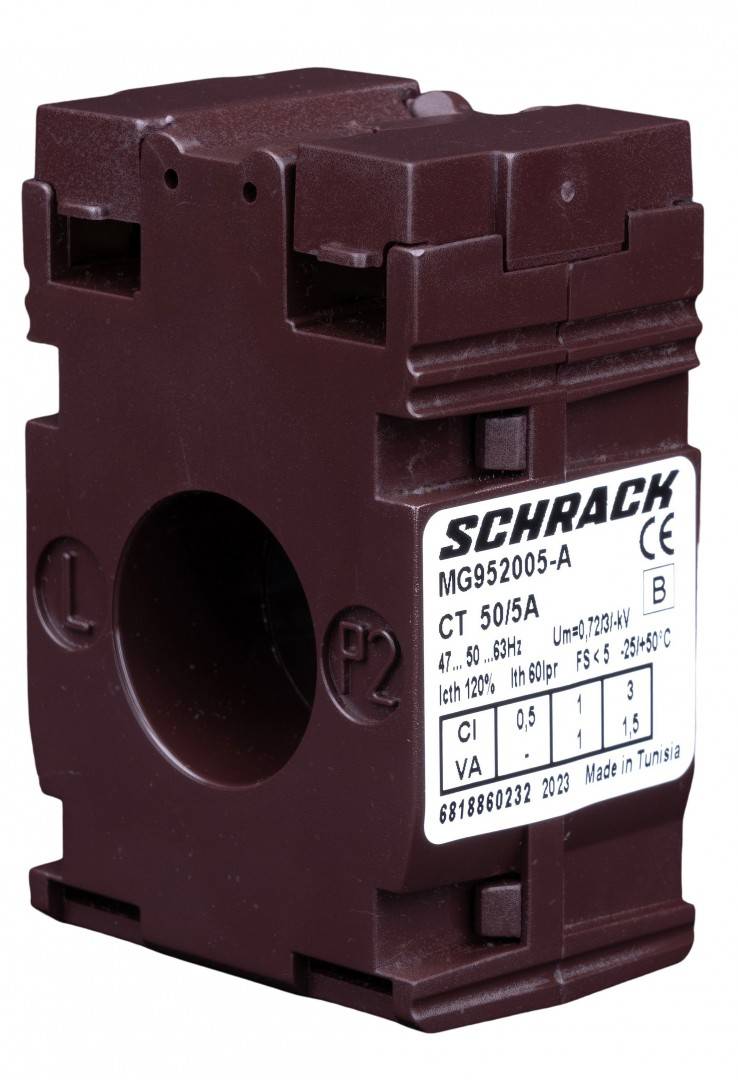

Transformator de curent pentru cabluri
Specifications
##
LxBxH mm
30x44x65
Conexiune
##
PROMO CODE CH
6900-0014-13
Curent primar
50 A
Rated current secondary side Isr
5A
Clasa
1
PREG
2330
| Lungime | 30 mm |
| Latime | 44 mm |
| Inaltime | 65 mm |
| Greutate | 0.18 kg |
