Specificatii Tehnice
Carcasa
##
Temperatura maxima a mediului ambiant
60 °C
Terminale externe CAD
1
Masa g
180
Diametru maxim conductor
21 mm
Accesorii optionale
MGX20006--;MGX20306--;MGX20406--
Clasa de precizie
##
Masa neta
0,18 kg/m
PROMO CODE GER INDUSTRY
5988-00007-26
Standard produs
EN 61869-2;BS3938;BS7626
grad de protectie
IP20
Ardere
Class 3 (1VA)
COD PROMO
5988-0008-55
COD COMANDA
MG952004-A
Unitate de ambalare
1 m.
Winding secondary side
max. 2 separate wires 2,5mm²;Screw terminals
PROMO CODE CH
5988-0014-13
Intended use
for cables up to diameter 21mm
Materialul carcasei
Policarbonat, cu autostingere;Clasa V0 conform cu UL-94
Fabricant
Schrack
Descriere electrica CAD
40/5A
Metoda de montaj
Optional: adaptor de montaj pe sina (EN50022);Montaj cu suruburi pe panou
Nota
The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side.
disipare
3,00 W
Temperatura minima a mediului ambiant
-25 °C
DECUPAJ mm
Ø21
Rated current primary side Ipr
40 A
Clasa
3
Simbol CAD
P
Tip

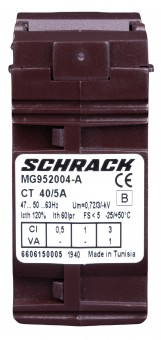

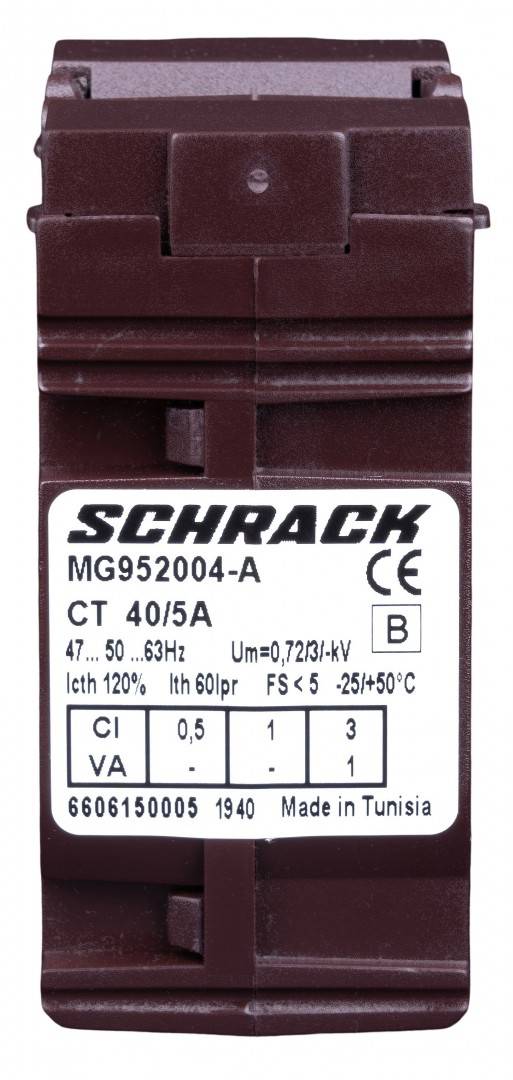

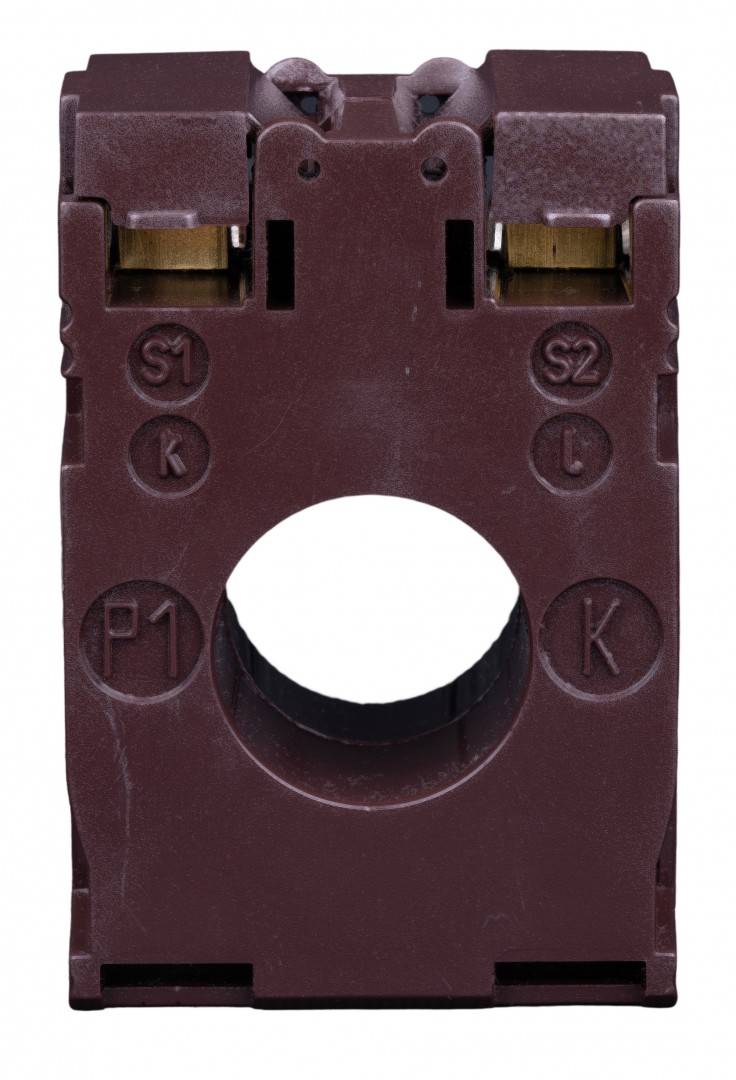

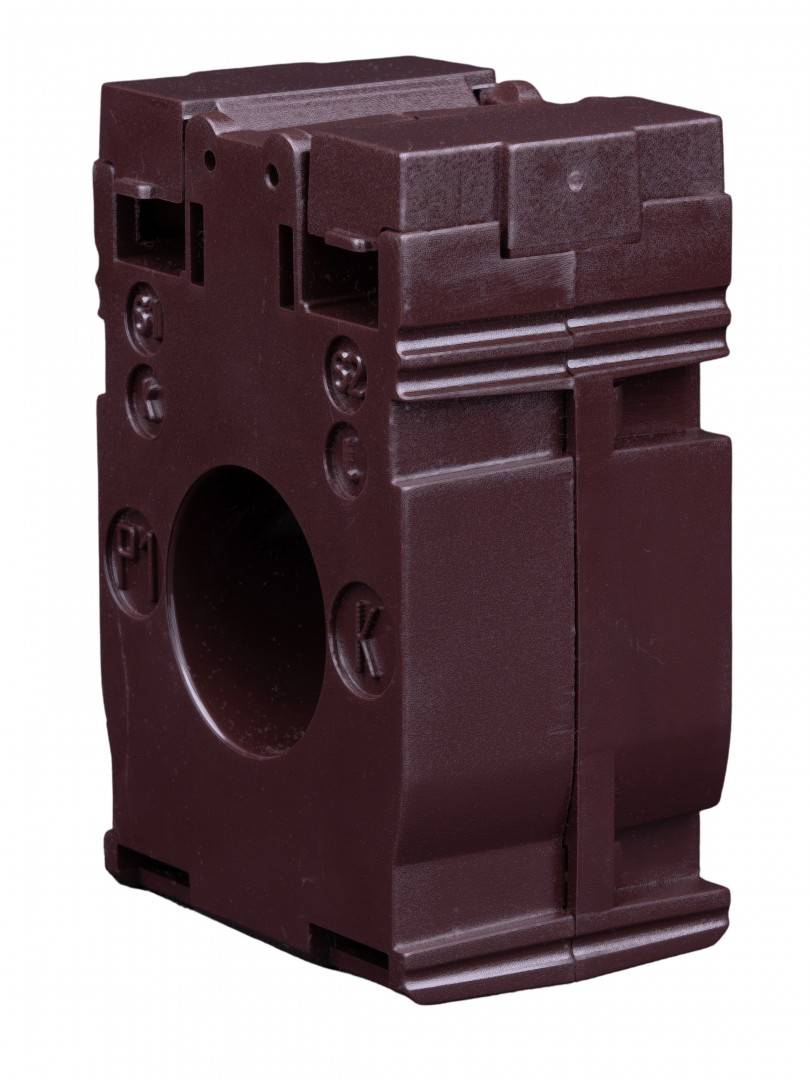

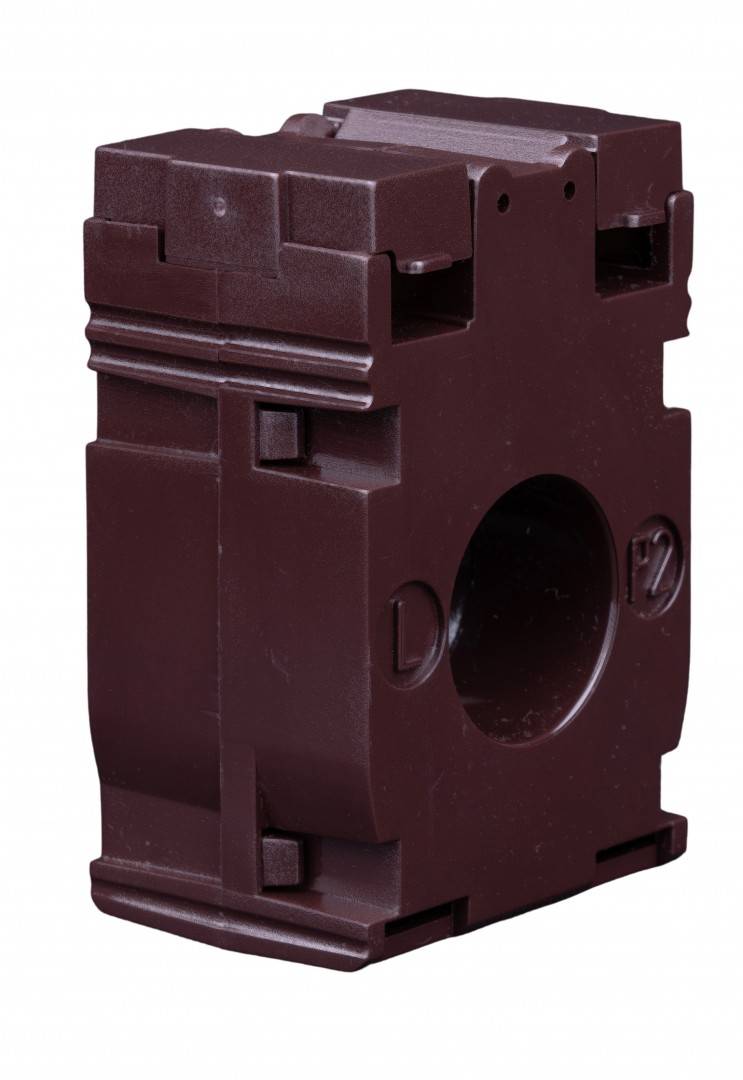

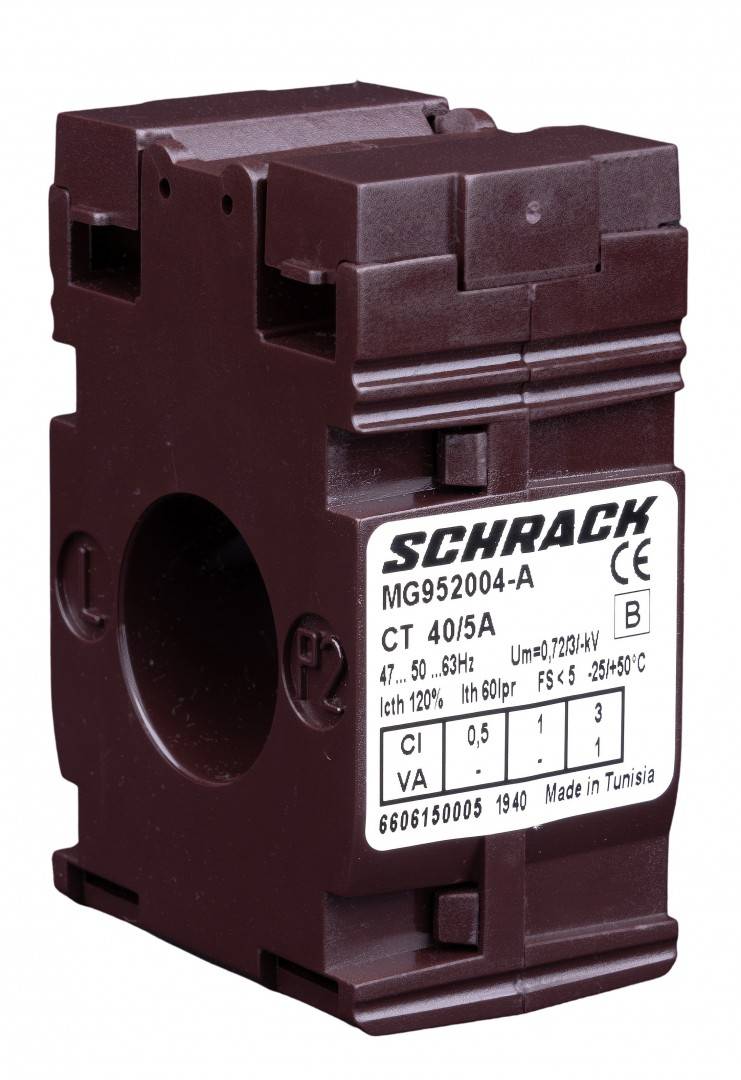

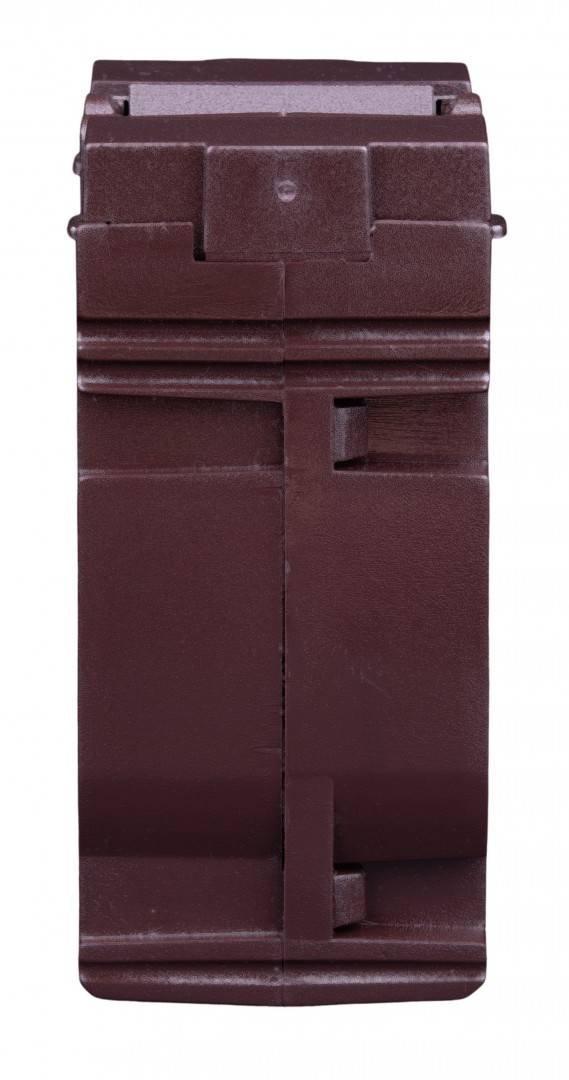

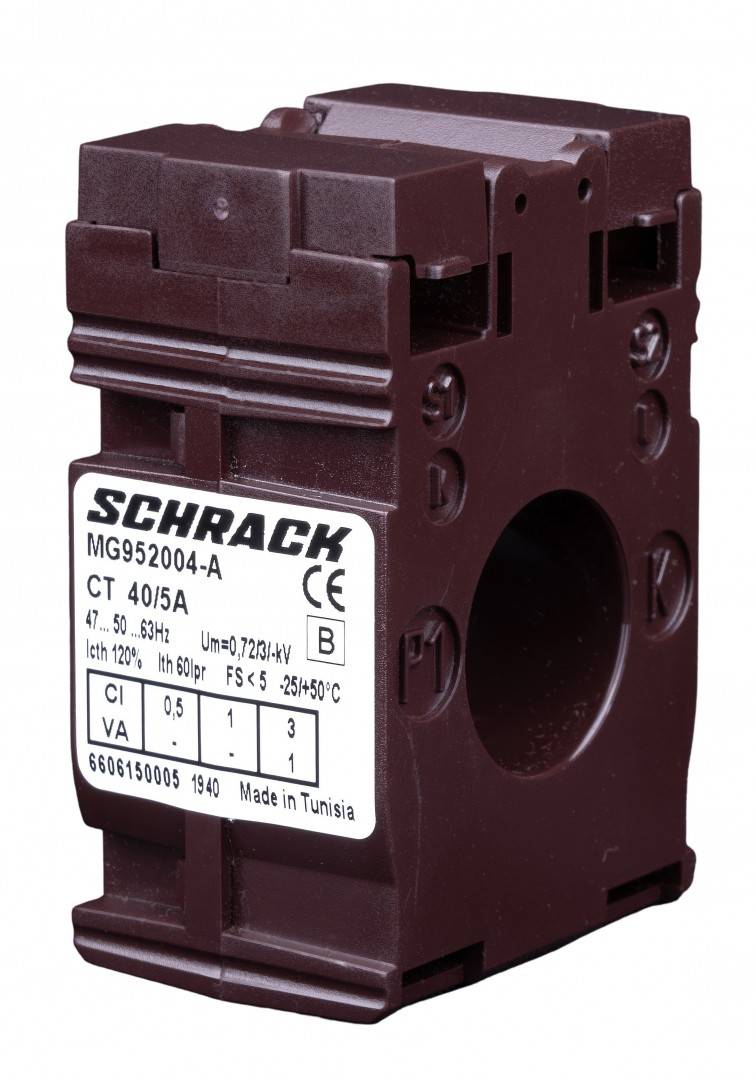

Transformator de curent pentru cabluri
Specifications
##
LxBxH mm
30x44x65
Conexiune
##
Rated current secondary side Isr
5A
Curent primar
40 A
Decupaj mm
Ø21 mm
PREG
2330
| Lungime | 30 mm |
| Latime | 44 mm |
| Inaltime | 65 mm |
| Greutate | 0.18 kg |
