Specificatii Tehnice
Carcasa
##
Rated current primary side Ipr
1000 A
Temperatura maxima a mediului ambiant
60 °C
PROMO CODE GER INDUSTRY
9104-00022-30
Clasa de precizie
##
Intended use
for copper bars up to 50 x 30mm;for copper bars up to 60 x 10mm
Clasa
0,5
Masa neta
0,47 kg/m
Unitate de ambalare
1 m.
Winding secondary side
Screw terminals M4;Faston 4,8x0,8mm
COD COMANDA
MG956100-A
COD PROMO
9104-0024-53
Fabricant
Schrack
Nota
The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side.
PROMO CODE CH
9104-0040-72
Temperatura minima a mediului ambiant
-25 °C
Ardere
Class 0.5 (8VA);Class 1 (10VA);Class 3 (12VA)
grad de protectie
IP00 terminals;IP20 with terminal cover
DESCRIERE2

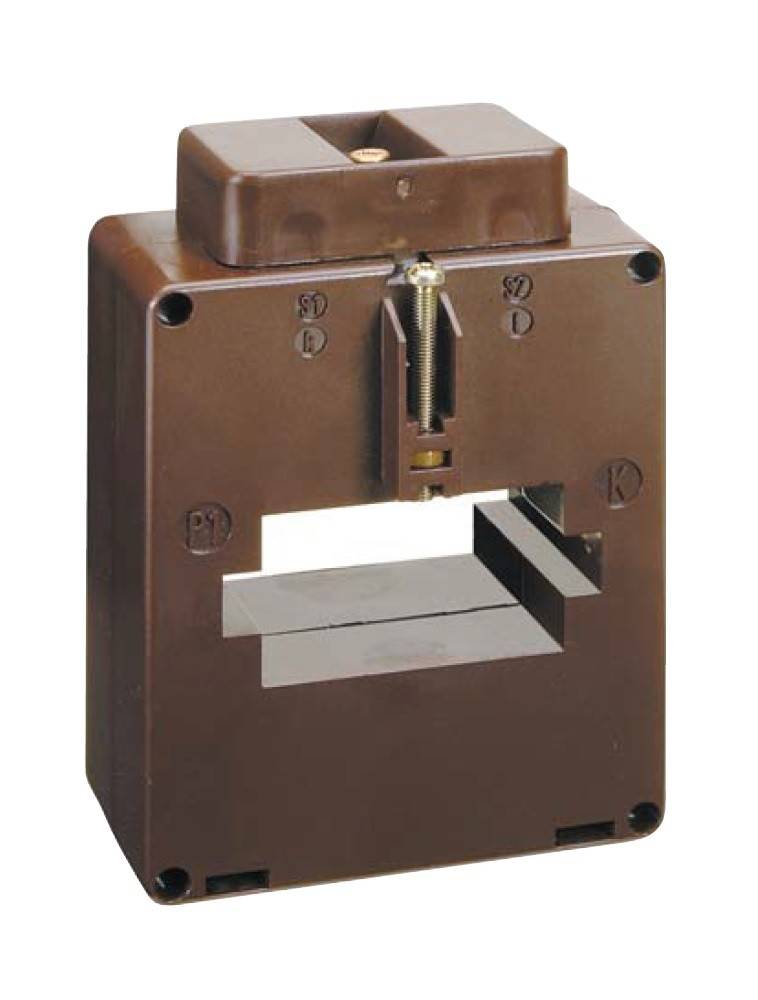

Transformator de curent 1000/5A
Masa g
500
disipare
16,00 W
Rated frequency
50 Hz
Standard produs
EN 61869-2
Decupaj mm
50x30;60x10 mm
Specifications
##
Bare colectoare maxim
60x10
DECUPAJ mm
50x30
Montaj
by fixing screws on the busbar
Tip
Prin transformator de curent
LxIxA mm
90x130x48
Materialul carcasei
Policarbonat, cu autostingere
Conexiune
##
HxBxT mm
130x90x48
Curent primar
1000 A
Rated current secondary side Isr
5A
PREG
2330
| Lungime | 48 mm |
| Latime | 90 mm |
| Inaltime | 130 mm |
| Greutate | 0.47 kg |
