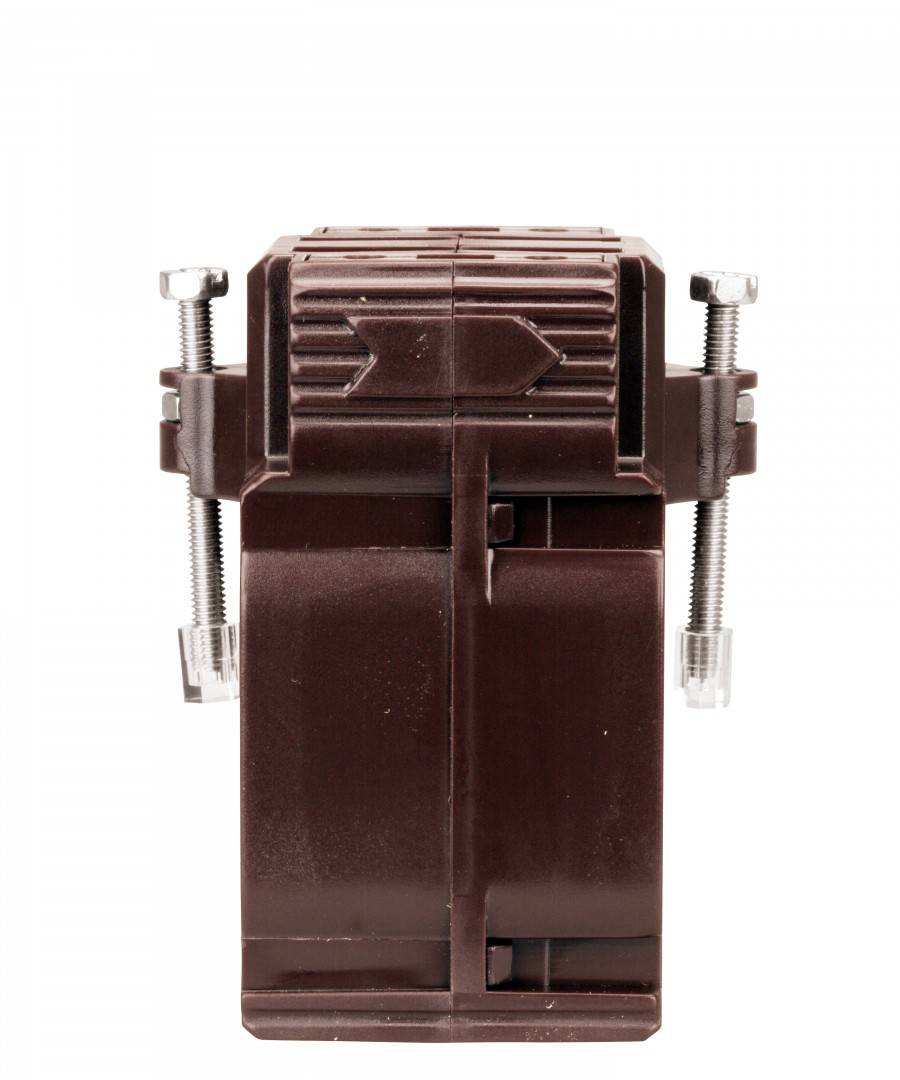

Specificatii Tehnice
PROMO CODE CH
6924-0014-73
Bare colectoare maxim
30x10
Rated frequency
50 Hz
Standard produs
EN 61869-2
Umiditate relativa
≤ 85 %
Specifications
##
Tip
Prin transformator de curent
Conexiune
##
Curent primar
50 A
Curent nominal dinamic Idyn
2,5Ith
Rated current secondary side Isr
5A
Versiune
Dry type transformer, air insulation
DECUPAJ mm
30x10
Reference temperature
23°C ±1°C °C
Eroare curent de sarcina
Pentru clasa 3 si 100% In: ±3%;Pentru clasa 3 si 120% In: ±3%
PREG
2330
Masa g
260
Carcasa
##
Daily average temperature
≤ 30°C
Winding primary side
Continuous cable
Decupaj mm
30x10 mm
Domeniul de frecventa
47 - 63Hz
Intended use
for copper bars up to 30 x 10mm;for cables up to diameter 27mm
Terminale externe CAD
1
Isolation
Class B (EN60044-1)
Descriere electrica CAD
50/5A, 30x10mm
Cuplu
Fixare bare: 0,2Nm
Winding secondary side
Screw terminals
Accesorii optionale
MGX20006--;MGX20306--;MGX20406--
Clasa de precizie
##
Masa neta
0,26 kg/m
Thermal rated continuous current according to EN60044-1
##
Categorie produs
Normal installation (DIN EN 61869-2)
grad de protectie
IP20
DIN rail
TH35-15 (EN60715)
Short-time current Ith
< 60Ipr

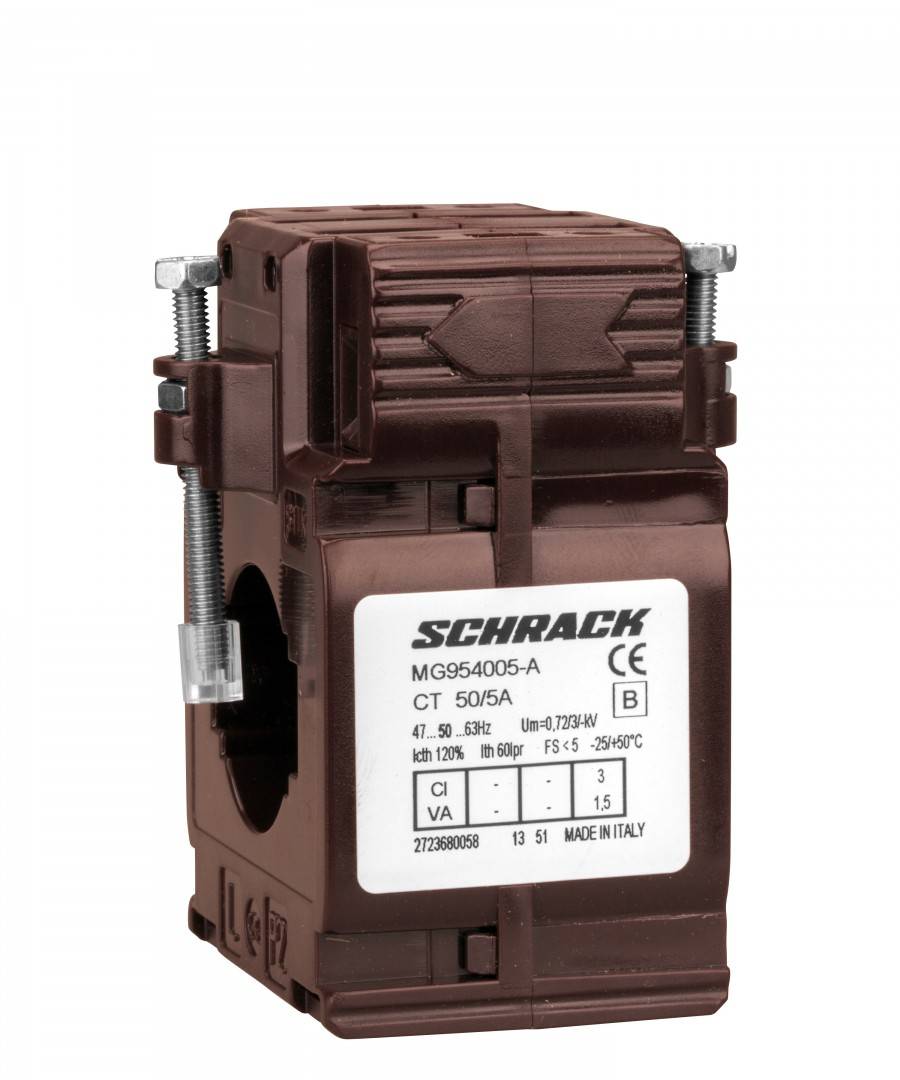

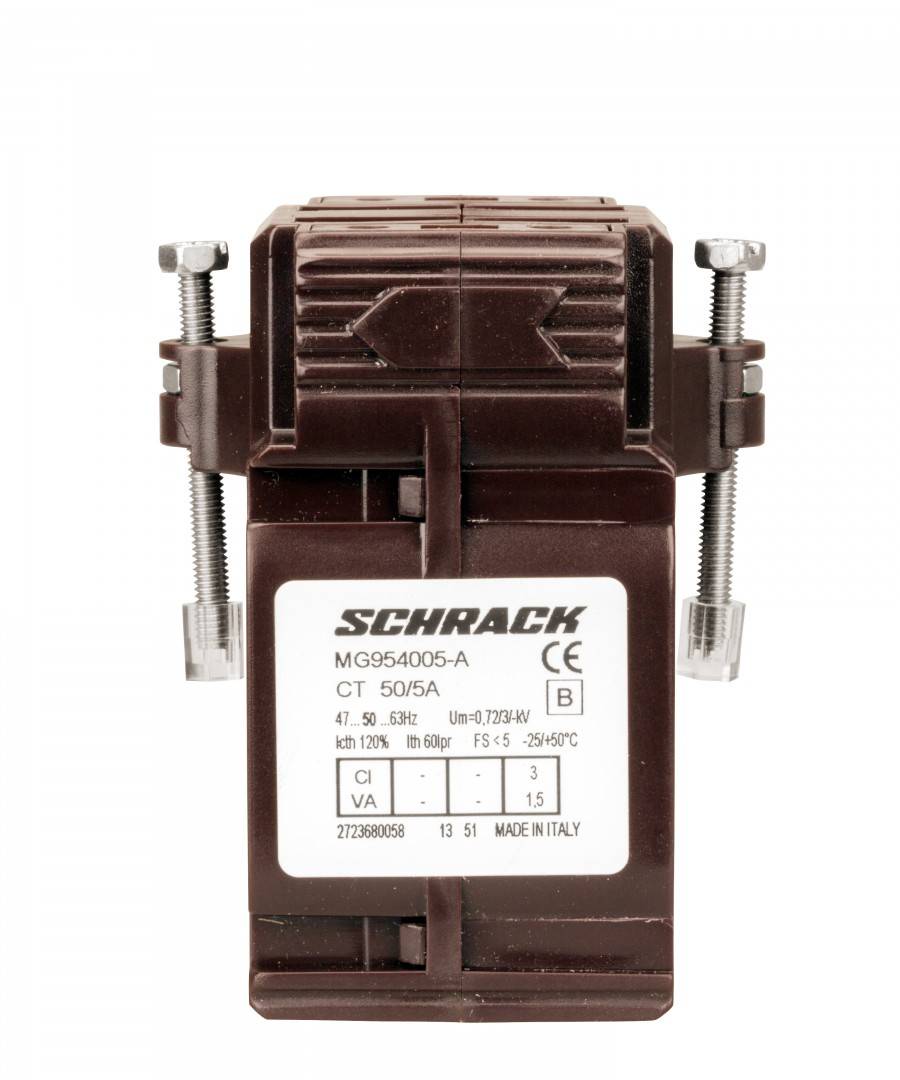

COD COMANDA
MG954005-A
Conditii de lucru
##
Gama de temperatura - Transport/Depozitare
-40 to +85 °C
Metoda de montaj
Montare cu inclichetare pentru sina 35 mm;Montaj cu suruburi pe perete
Unitate de ambalare
1 m.
COD PROMO
6924-0008-86
Ardere
Class 3 (2.5VA)
Max. Operating voltage Um
0.72kV r.m.s.
PROMO CODE GER INDUSTRY
6924-00007-49
Conditii climatice
Suitable for tropical climate
Thermal power loss
≤ 7W at Icth;125°C Maximum temperature cable/busbar.
Rated current primary side Ipr
50 A
Materialul carcasei
Policarbonat, cu autostingere;Clasa V0 conform cu UL-94
Gama de temperatura - Functionare
-25 la +50 °C
Fabricant
Schrack
Nota
The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side.
Simbolizare borne

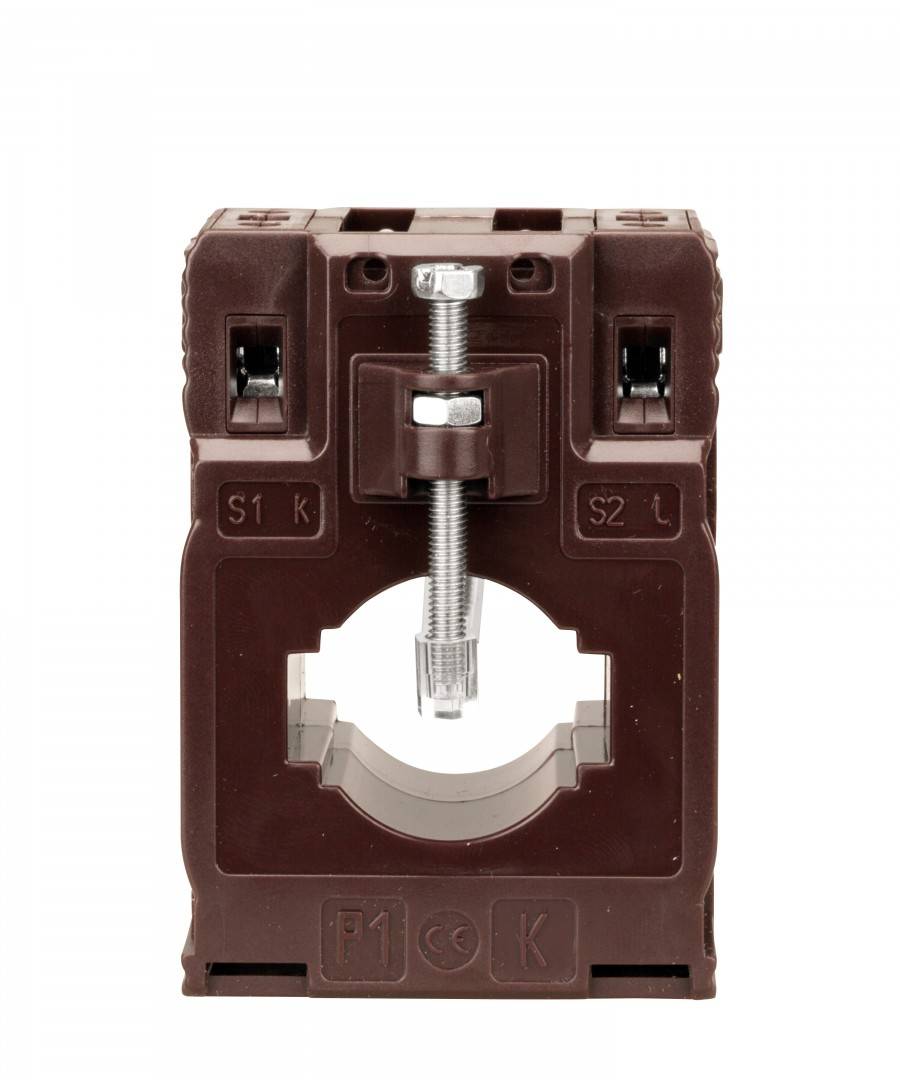

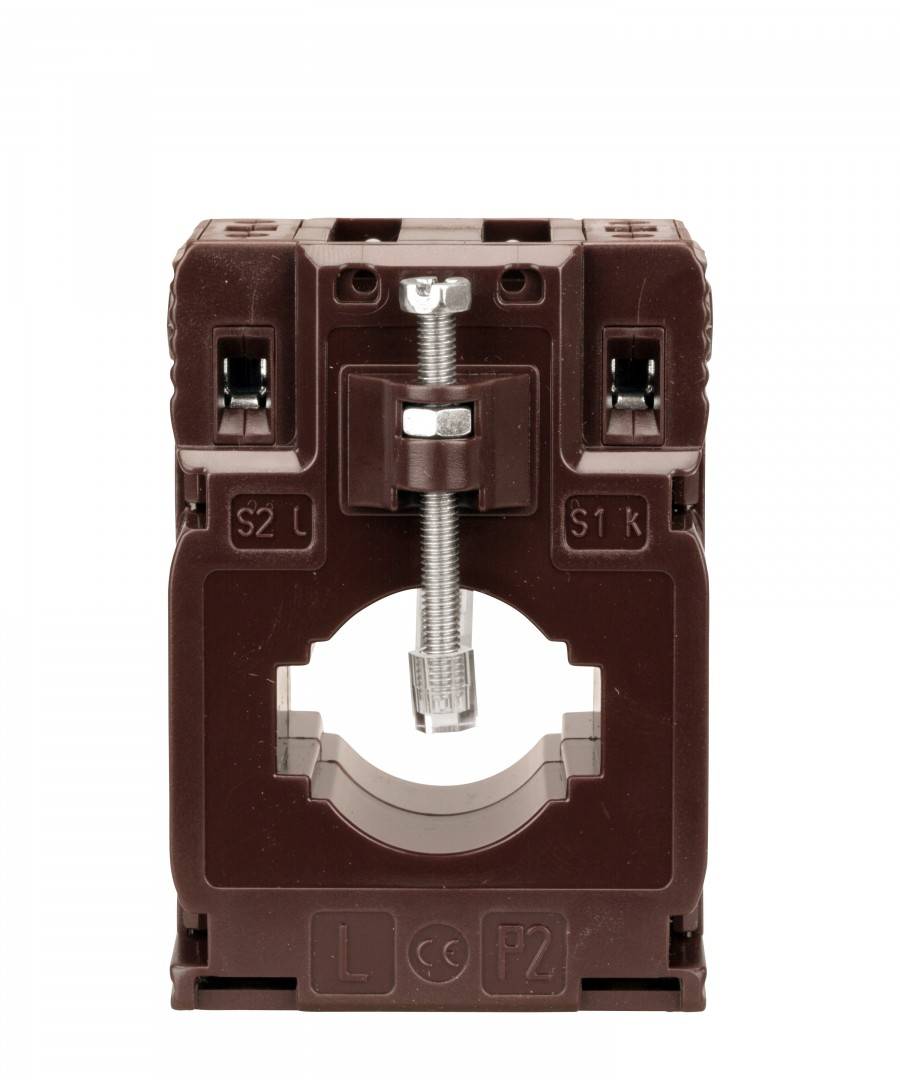

Winding primary side P1(K) - P2(L);Winding secondary side s1(k) - s2(l)
Temperatura minima a mediului ambiant
-25 °C
Insulation requirements
##
LxBxH mm
61x56x80
Temperatura maxima a mediului ambiant
85 °C
Isolation test voltage
3 kV R.M.S. 50 Hz/1min
Clasa
3
Simbol CAD
P
Safety factor
≤ 5
disipare
7,00 W
| Lungime | 60.5 mm |
| Latime | 56 mm |
| Inaltime | 80 mm |
| Greutate | 0.26 kg |
