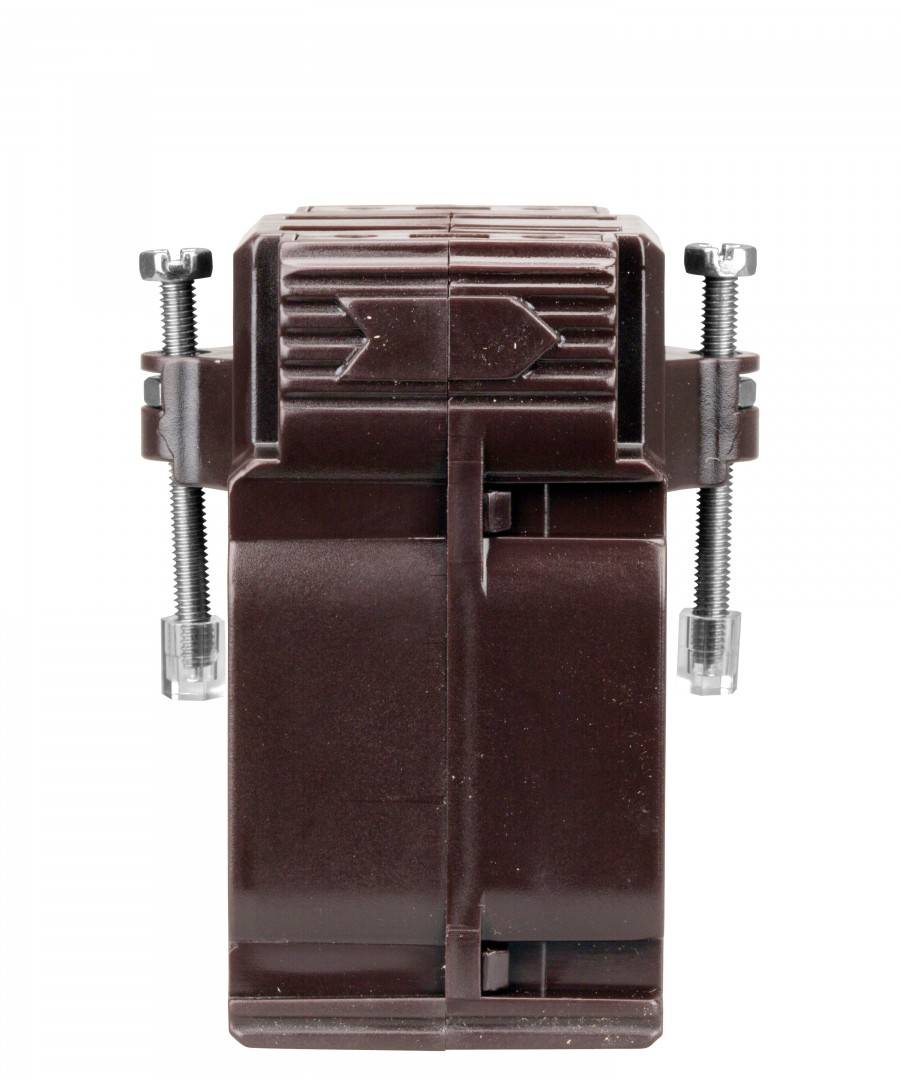

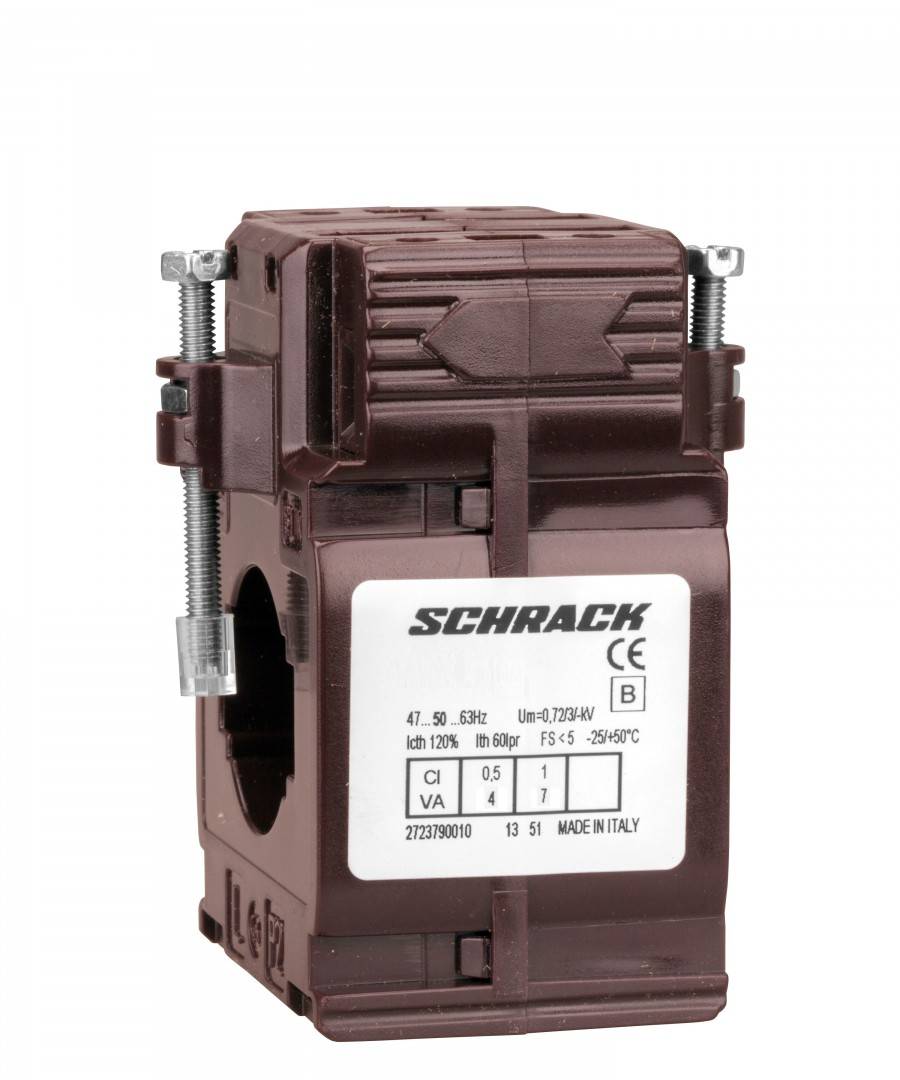

Transformator de curent 200/5A, 30x10, clasa 0,5

##

2,5Ith

5A

7006-0008-86

Dry type transformer, air insulation

200/5A, 30x10mm

30x10

23°C ±1°C °C

2330

260

##

≤ 30°C

Continuous cable

30x10 mm

Pentru clasa 0.5 si 5% In: ±1.5%;Pentru clasa 0.5 si 20% In: ±0.75%;Pentru clasa 0.5 si 100% In: ±0.5%;Pentru clasa 0.5 si 120% In: ±0.5%;Pentru clasa 1 si 5% In: ±3%;Pentru clasa 1 si 20% In: ±1.5%;Pentru clasa 1 si 100% In: ±1%;Pentru clasa 1 si 120% In: ±1%

47 - 63Hz

for copper bars up to 30 x 10mm;for cables up to diameter 27mm

1

Class B (EN60044-1)

Fixare bare: 0,2Nm

Screw terminals

MGX20006--;MGX20306--;MGX20406--

##

0,26 kg/m

##

Normal installation (DIN EN 61869-2)

IP20

TH35-15 (EN60715)

< 60Ipr

7006-0014-73

64

##

-40 to +85 °C

0,5

200 A

Montare cu inclichetare pentru sina 35 mm;Montaj cu suruburi pe perete

200 A

1 m.

0.72kV r.m.s.

Suitable for tropical climate

≤ 7W at Icth;125°C Maximum temperature cable/busbar.

MG954020-A

Policarbonat, cu autostingere;Clasa V0 conform cu UL-94

-25 la +50 °C

Schrack

Class 0.5 (4VA);Class 1 (7VA)

The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side.

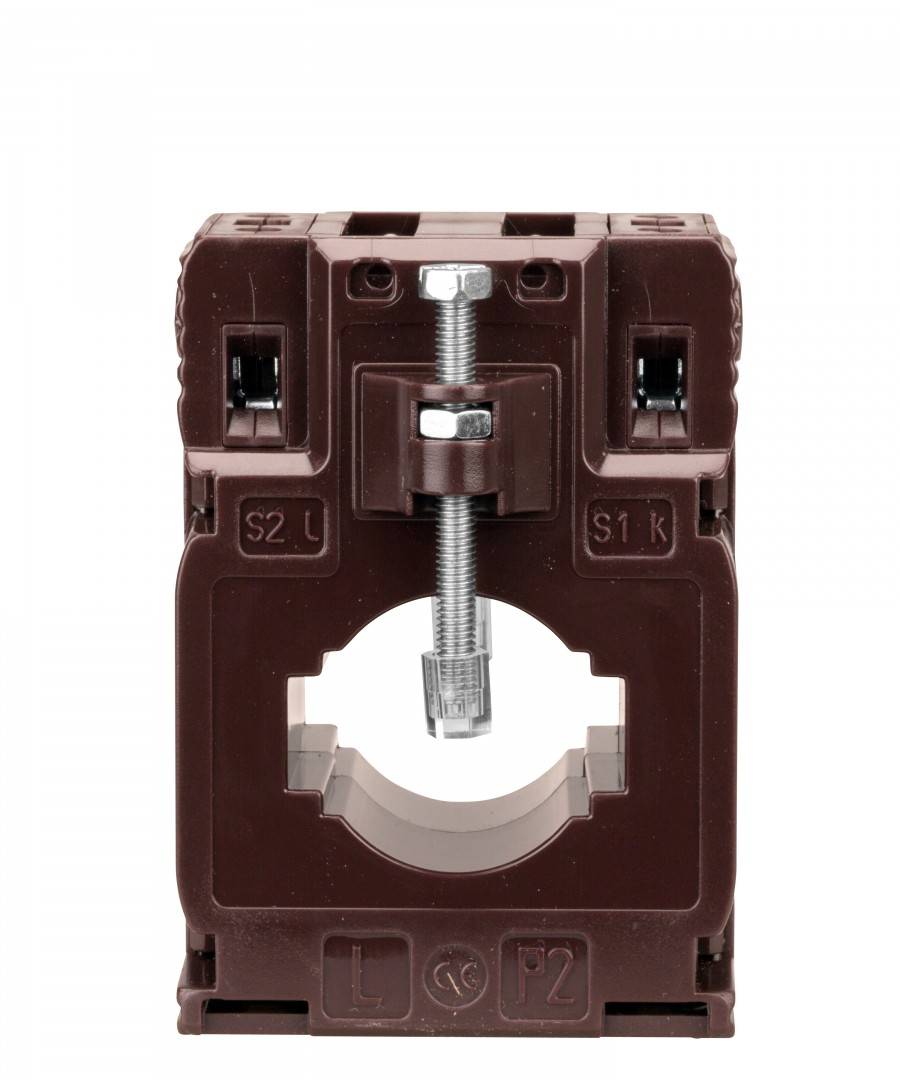

Winding primary side P1(K) - P2(L);Winding secondary side s1(k) - s2(l)

-25 °C

##

61x56x80

85 °C

3 kV R.M.S. 50 Hz/1min

P

≤ 5

7,00 W

30x10

50 Hz

EN 61869-2

≤ 85 %

##

7006-00007-48

Prin transformator de curent
