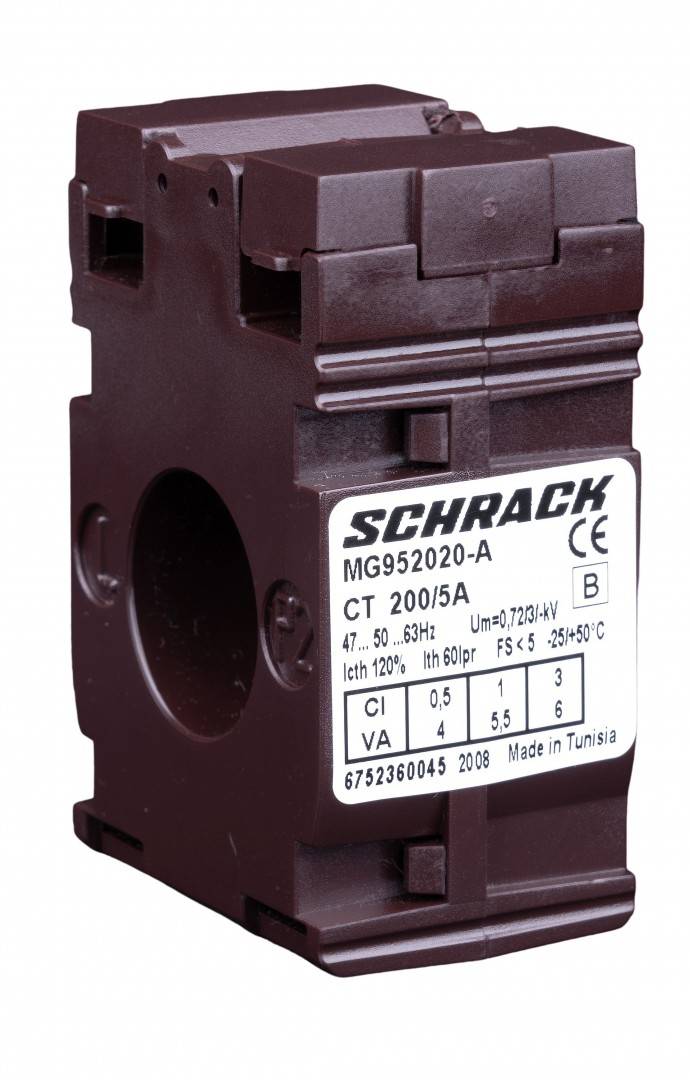

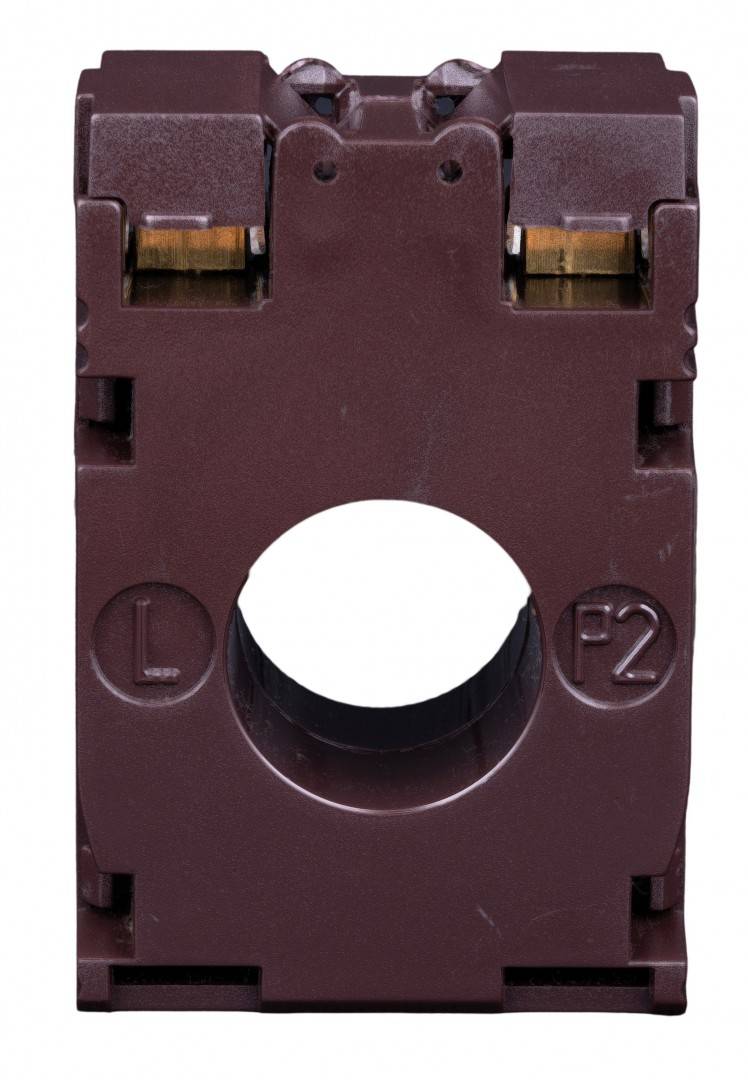

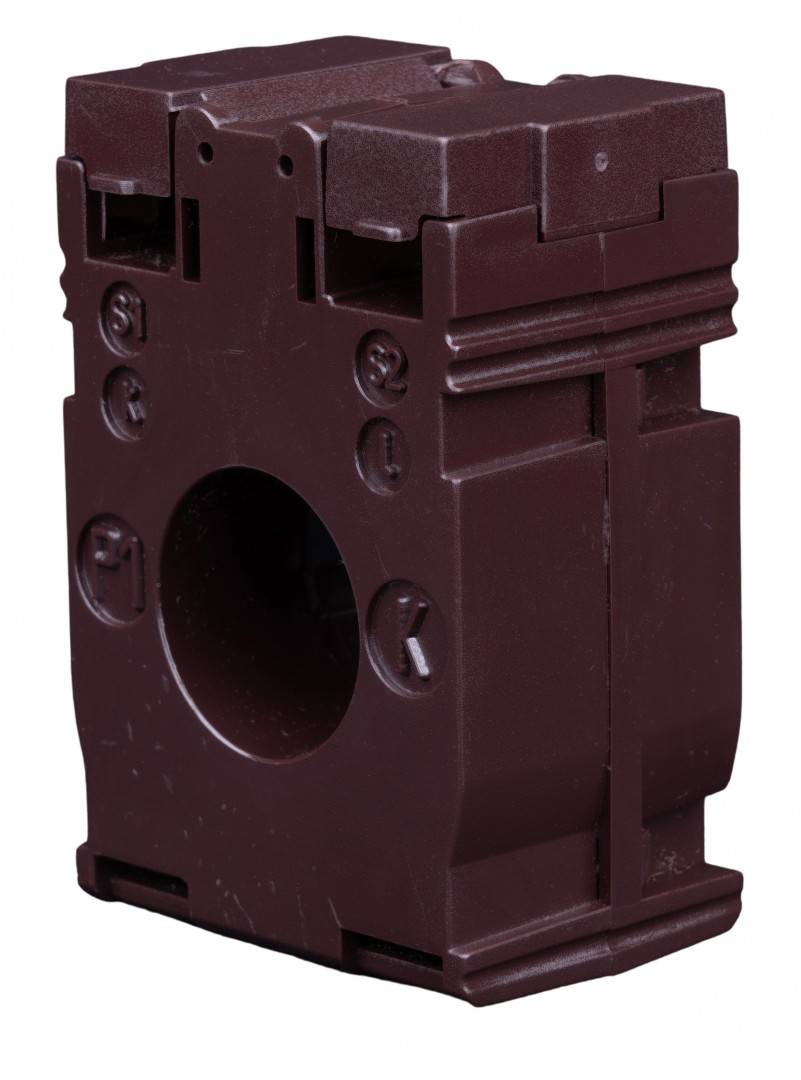

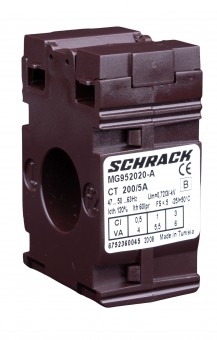

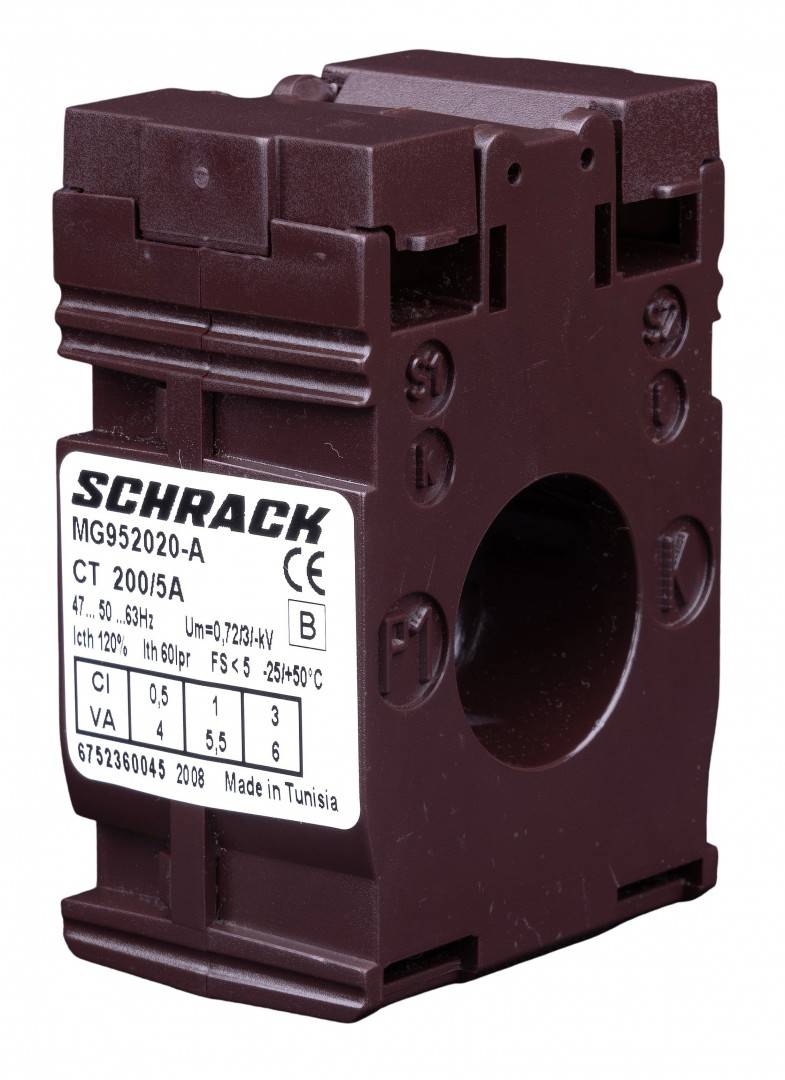

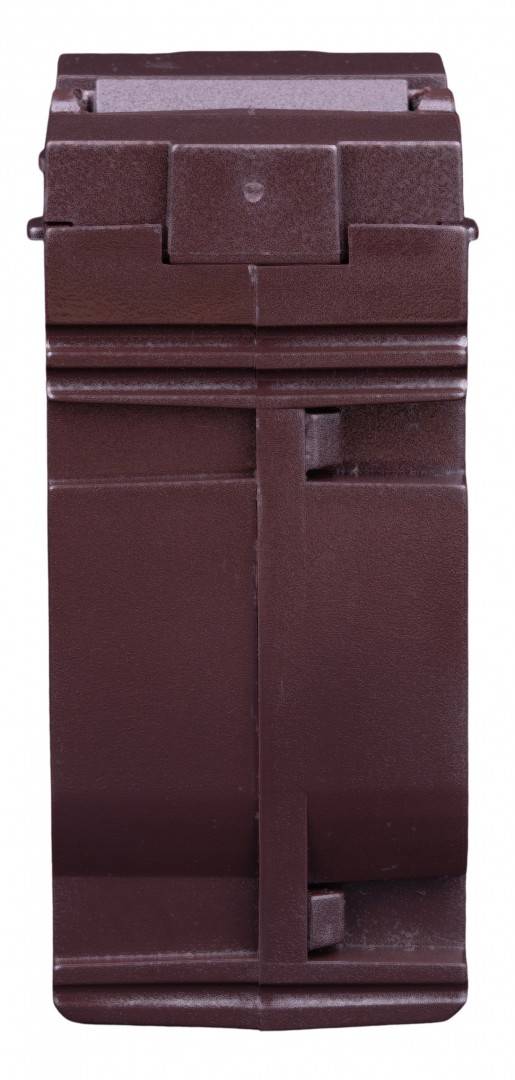

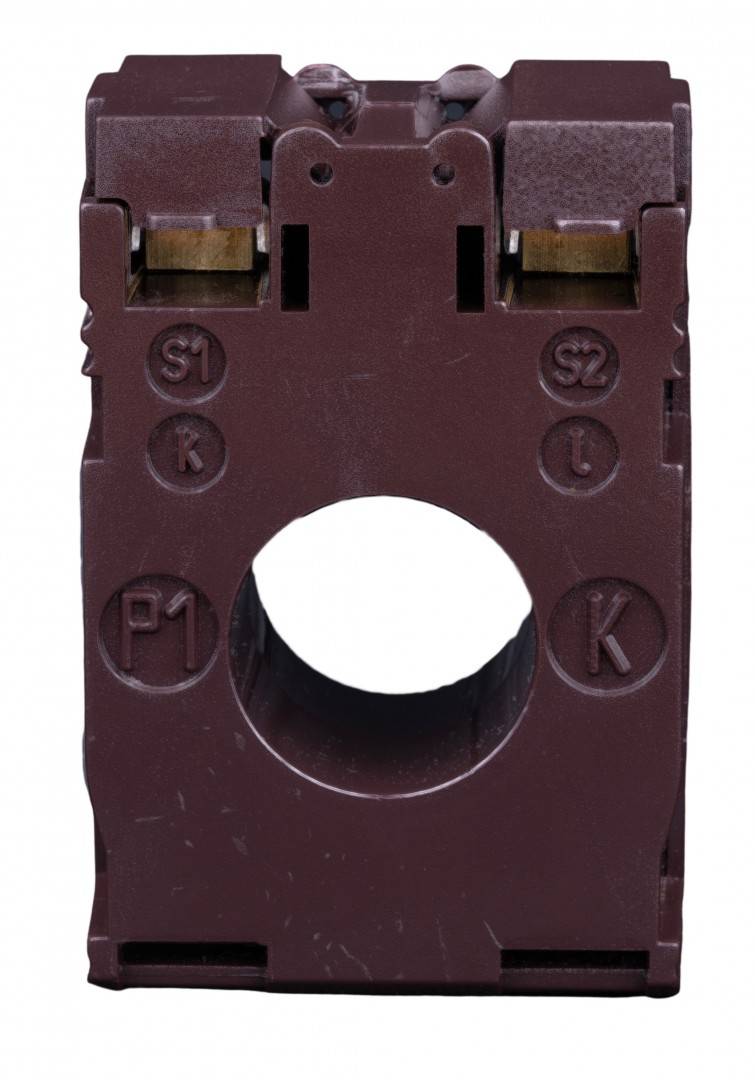

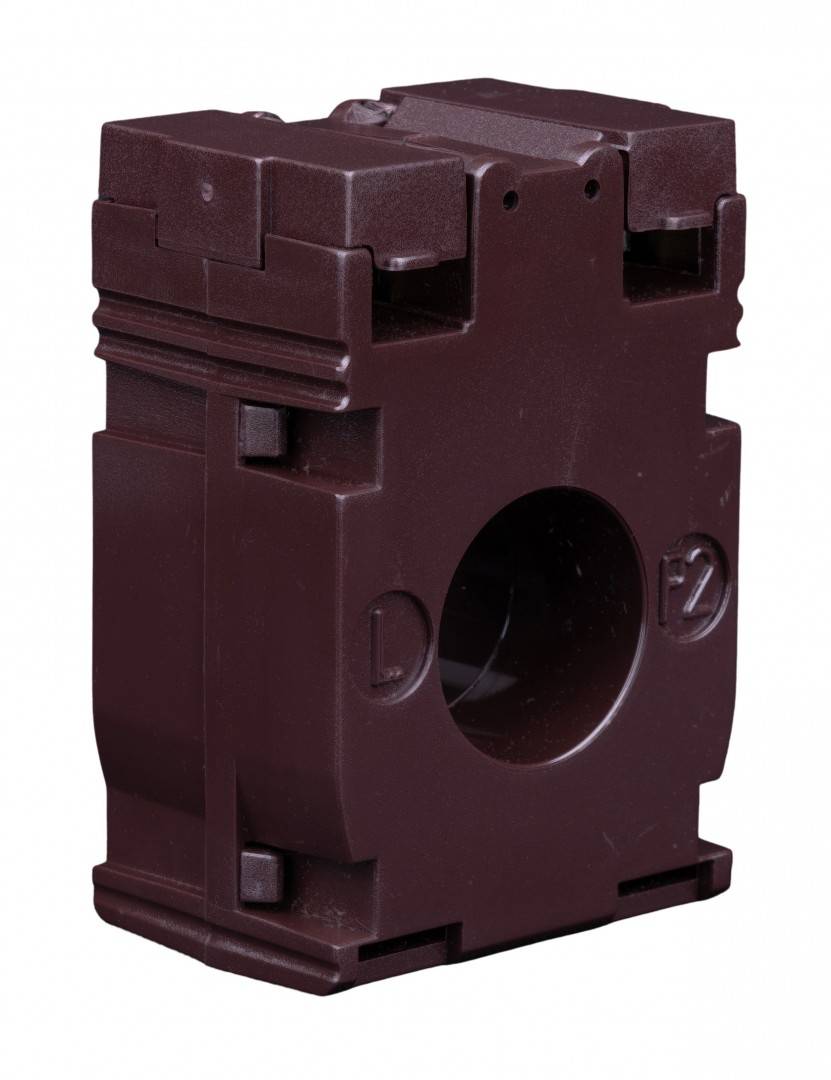

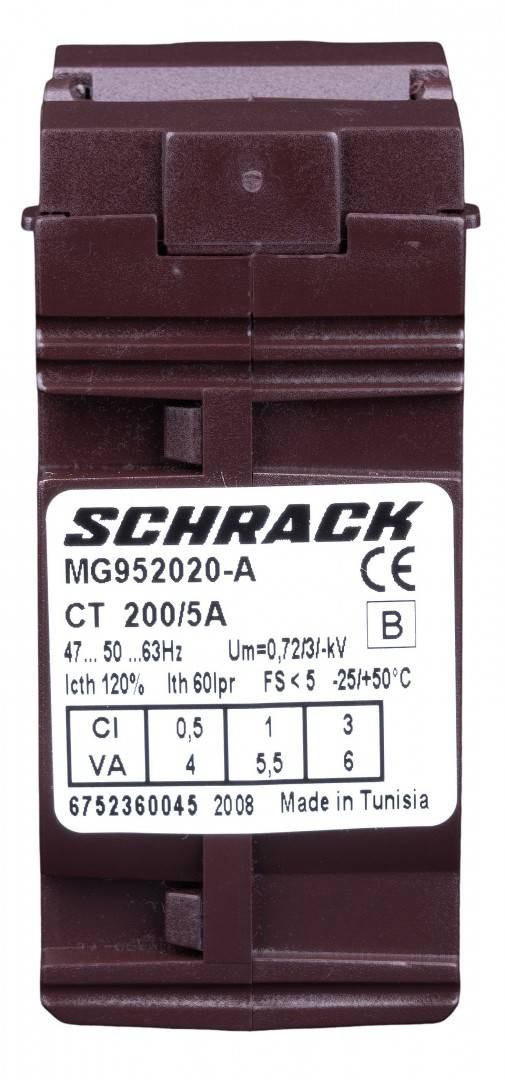

Transformator de curent 200/5A, D=21mm, clasa 0,5
Cod produs: MG952020-A
Marca: SCHRACK TECHNIK
Pret cu TVA: 70.83 Lei / buc.
|
|
|
|
|
|
Comanda instant - Transformator de curent 200/5A, D=21mm, clasa 0,5
|
Transformator de curent 200/5A, D=21mm, clasa 0,5
|
|
Specificatii Tehnice Carcasa ## Temperatura maxima a mediului ambiant 60 °C COD PROMO 7020-0008-55 Masa g 180 Diametru maxim conductor 21 mm Accesorii optionale MGX20006--;MGX20306--;MGX20406-- Clasa de precizie ## Masa neta 0,18 kg/m Standard produs EN 61869-2;BS3938;BS7626 grad de protectie IP20 Ardere Class 0.5 (4VA);Class 1 (5.5VA) Decupaj mm Ø27 mm Clasa 0,5 Curent primar 200 A Rated current primary side Ipr 200 A Unitate de ambalare 1 m. Winding secondary side max. 2 separate wires 2,5mm²;Screw terminals Intended use for cables up to diameter 21mm Materialul carcasei Policarbonat, cu autostingere;Clasa V0 conform cu UL-94 PROMO CODE CH 7020-0014-13 Fabricant Schrack PROMO CODE GER INDUSTRY 7020-00007-48 Nota The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side. disipare 3,00 W Temperatura minima a mediului ambiant -25 °C COD COMANDA MG952020-A Simbol CAD P Tip Transformator de curent pentru cabluri DECUPAJ mm Ø27 Specifications ## LxBxH mm 30x44x65 Conexiune ## Descriere electrica CAD 200/5A Rated current secondary side Isr 5A PREG 2330 | Lungime | 30 mm | | Latime | 44 mm | | Inaltime | 65 mm | | Greutate | 0.18 kg |
|
|
|
|
|
