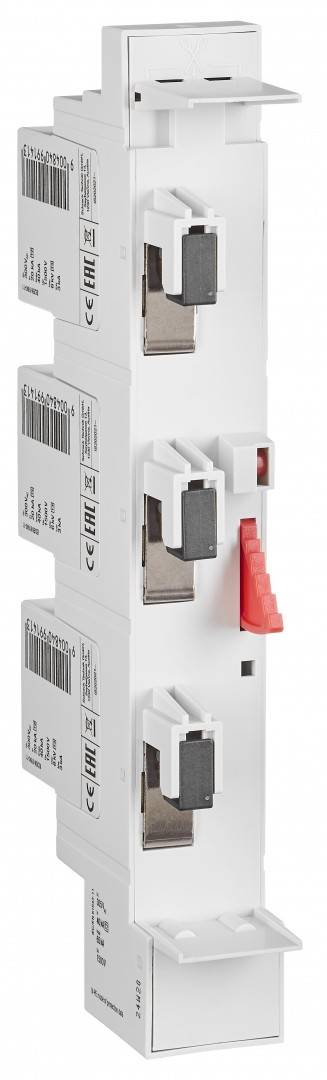

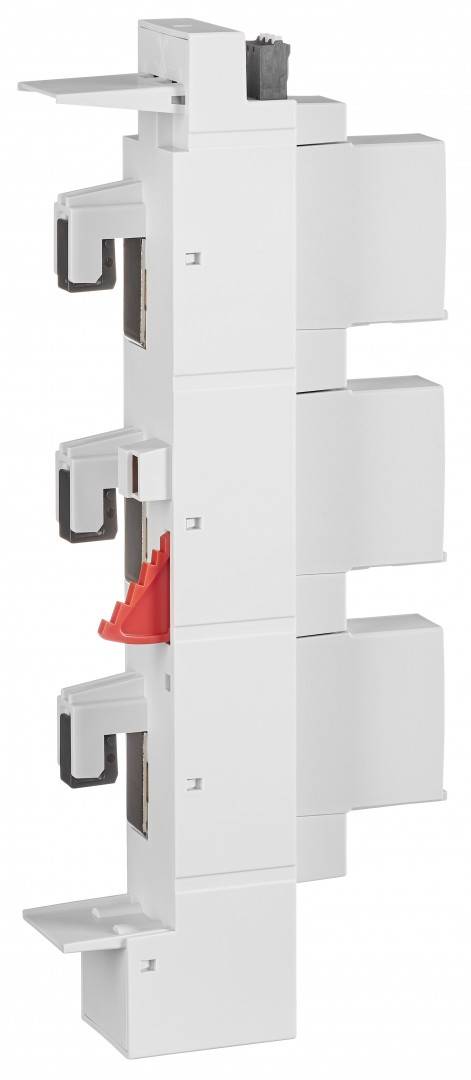

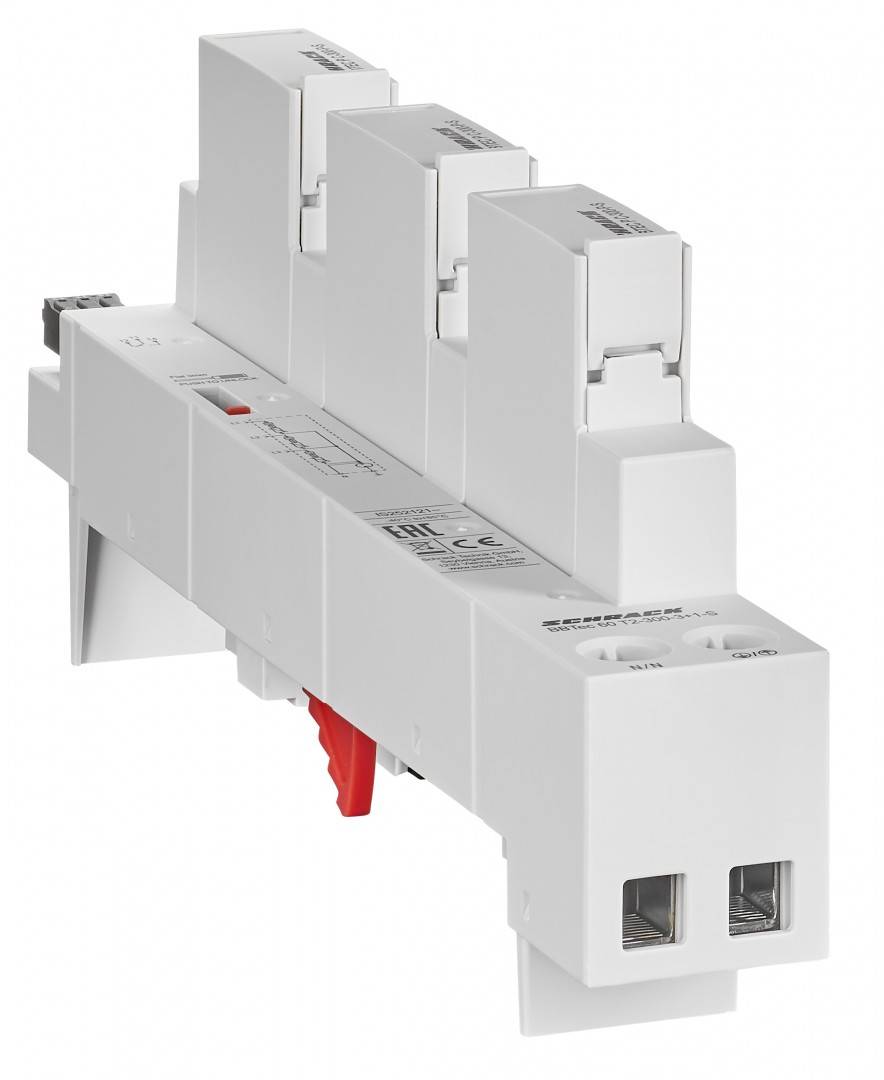

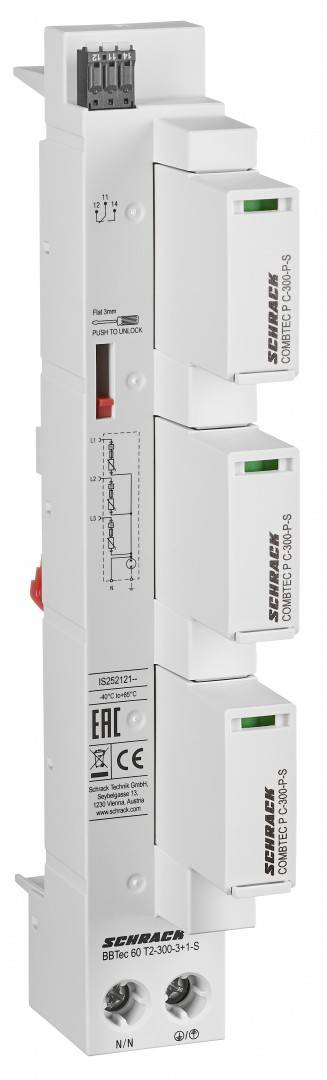

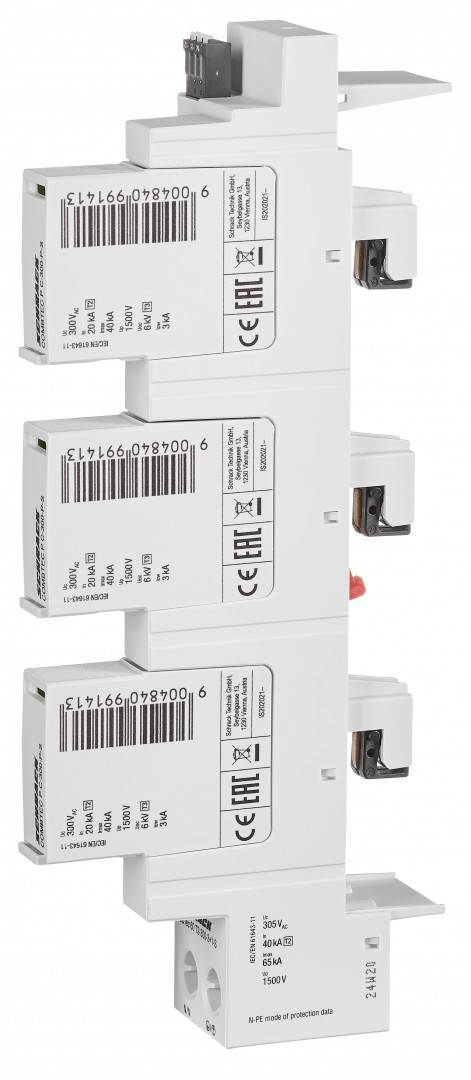

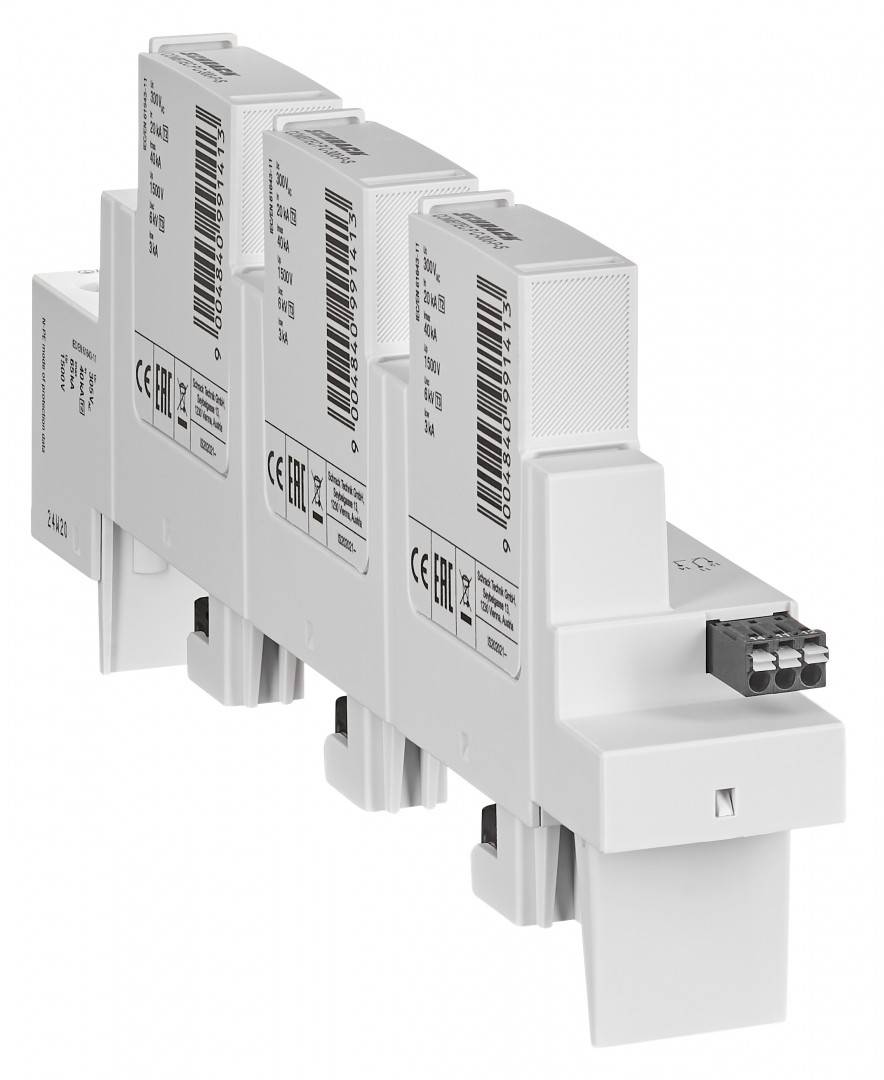

Surge Arrester for 60mm System 3+1 AX+F, TT/TN-S, Class 2(C)
Cod produs: IS252121--
Marca: SCHRACK TECHNIK
Pret cu TVA: 2219.73 Lei / buc.
|
|
|
|
|
|
Comanda instant - Surge Arrester for 60mm System 3+1 AX+F, TT/TN-S, Class 2(C)
|
Surge Arrester for 60mm System 3+1 AX+F, TT/TN-S, Class 2(C)
|
|
Specificatii Tehnice Tensiune nominala maxima AC 300 VAC Rezistenta la scurtcircuit 100 kA PREG 1400 Curent descarcare nominal 20/40 kA Timp de raspuns <25/<100 ns TOV SafeFail 120min (L-N) 442 V Curent descarcat maxim 40/65 kA disipare 0,16 W Leakage current free Yes PU 20 Open Circuit Voltage of Combination Wave Generator (1,2/50μs) 6 kV Tensiune nominala 240VAC Short Circuit Current of Combination Wave Generator (8/20μs) 3 kA Masa neta 0,51 kg/m Simbol CAD F Unitate de ambalare 1 m. TOV Withstand 200ms (N-PE) 1200 V Capacitate de comutare a curentului de urmarire 100 A Fabricant Schrack Clasa de protectie TII/C Temperatura maxima a mediului ambiant 85 °C Nivel de protectie 1,5 kV TOV Withstand 5s (L-N) 337 V Temperatura minima a mediului ambiant -40 °C LxBxH mm 245x36x107 COD COMANDA IS252121 Circuit 3+1 Contact semnalizare da Overcurrent Protection (max) nicht notwendig A gG | Lungime | 244.5 mm | | Latime | 36 mm | | Inaltime | 106.9 mm | | Greutate | 0.51 kg |
|
|
|
|
|
