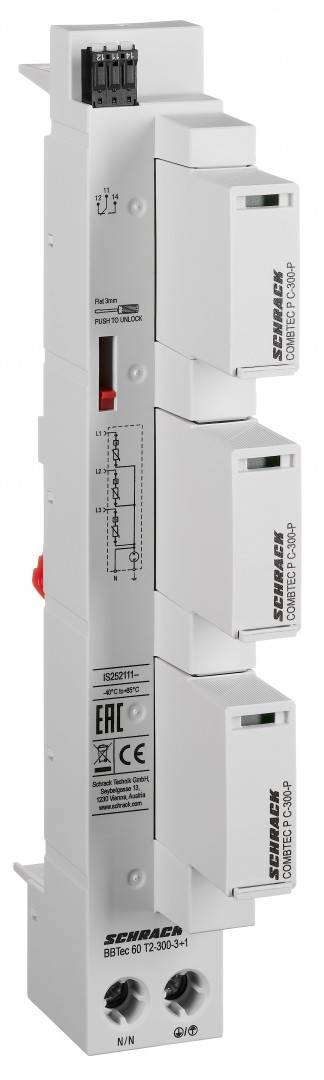

Surge Arrester for 60mm System 3+0 AX+LF TN-C, Class 1+2(BC)
Cod produs: IS234231--
Marca: SCHRACK TECHNIK
Pret cu TVA: 2197.38 Lei / buc.
|
|
|
|
Comanda instant - Surge Arrester for 60mm System 3+0 AX+LF TN-C, Class 1+2(BC)
|
Surge Arrester for 60mm System 3+0 AX+LF TN-C, Class 1+2(BC)
|
|
Specificatii Tehnice PREG 1400 TOV SafeFail 120min (L-N) 442 V disipare 0,16 W Leakage current free Yes Clasa de protectie TI+TII/B+C PU 20 Tensiune nominala 240VAC Timp de raspuns <25 ns Simbol CAD F Specific Energy 39 kJ/Ω Curent descarcat maxim 65 kA Unitate de ambalare 1 m. Charge 6,25 As Fabricant Schrack Impuls de curent 12,50 kA Temperatura maxima a mediului ambiant 85 °C Circuit 3+0 Nivel de protectie 1,5 kV TOV Withstand 5s (L-N) 442 V Masa neta 0,57 kg/m LxBxH mm 245x36x123 Overcurrent Protection (max) 315 A gG Temperatura minima a mediului ambiant -40 °C COD COMANDA IS234231 Curent descarcare nominal 20 kA Rezistenta la scurtcircuit 25 kA Contact semnalizare da Tensiune nominala maxima AC 300 VAC | Lungime | 244.5 mm | | Latime | 36 mm | | Inaltime | 123.3 mm | | Greutate | 0.57 kg |
|
|
|
|
|
