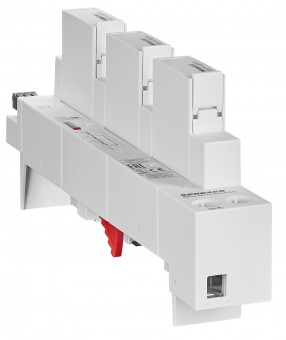

Surge Arrester for 60mm System 3+0 AX+F TN-C, Class 2(C)
Cod produs: IS232221--
Marca: SCHRACK TECHNIK
Pret cu TVA: 2064.96 Lei / buc.
|
|
|
|
|
|
Comanda instant - Surge Arrester for 60mm System 3+0 AX+F TN-C, Class 2(C)
|
Surge Arrester for 60mm System 3+0 AX+F TN-C, Class 2(C)
|
|
Specificatii Tehnice Tensiune nominala maxima AC 300 VAC Rezistenta la scurtcircuit 100 kA PREG 1400 TOV SafeFail 120min (L-N) 442 V disipare 0,16 W Leakage current free Yes Open Circuit Voltage of Combination Wave Generator (1,2/50μs) 6 kV Tensiune nominala 240VAC Short Circuit Current of Combination Wave Generator (8/20μs) 3 kA Timp de raspuns <25 ns Simbol CAD F Masa neta 0,47 kg/m Unitate de ambalare 1 m. COD COMANDA IS232221 PU 10 Fabricant Schrack Clasa de protectie TII/C Temperatura maxima a mediului ambiant 85 °C Circuit 3+0 Nivel de protectie 1,5 kV Curent descarcat maxim 40 kA TOV Withstand 5s (L-N) 337 V Temperatura minima a mediului ambiant -40 °C LxBxH mm 245x36x107 Curent descarcare nominal 20 kA Contact semnalizare da Overcurrent Protection (max) nicht notwendig A gG | Lungime | 244.5 mm | | Latime | 36 mm | | Inaltime | 106.9 mm | | Greutate | 0.47 kg |
|
|
|
|
|
