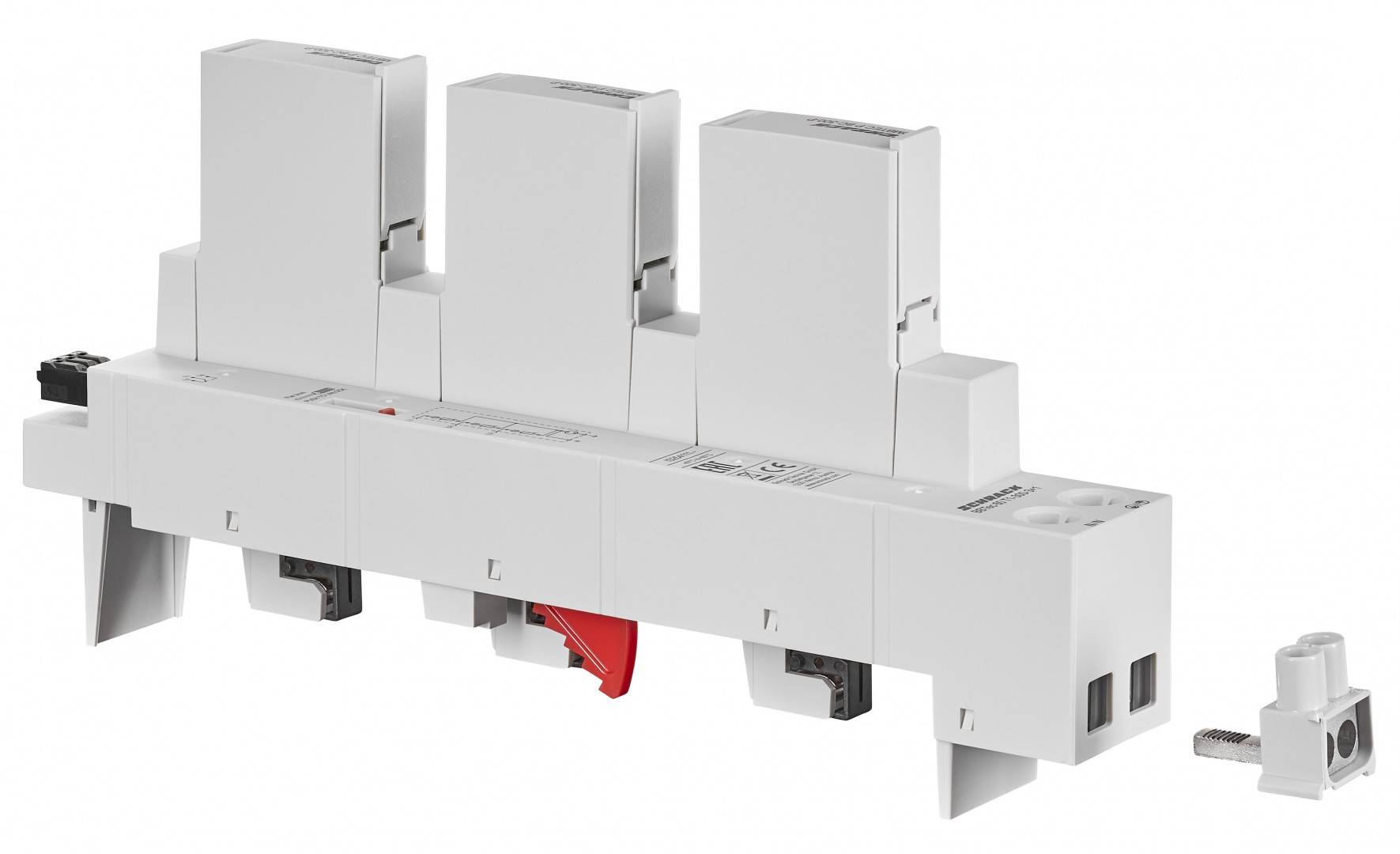

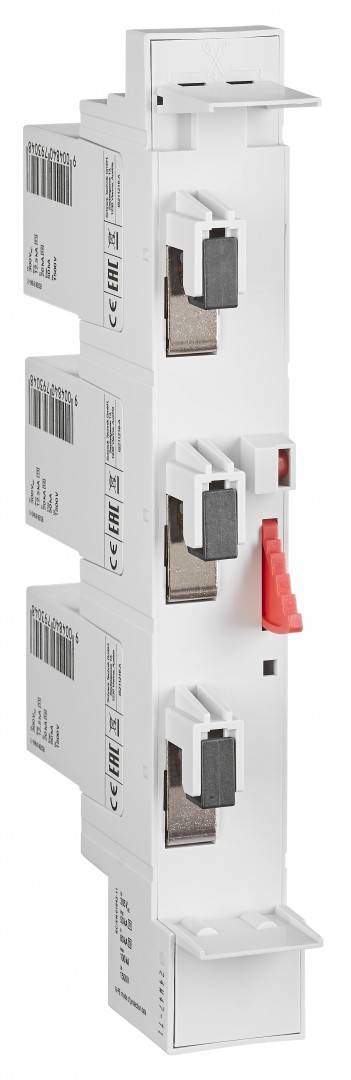

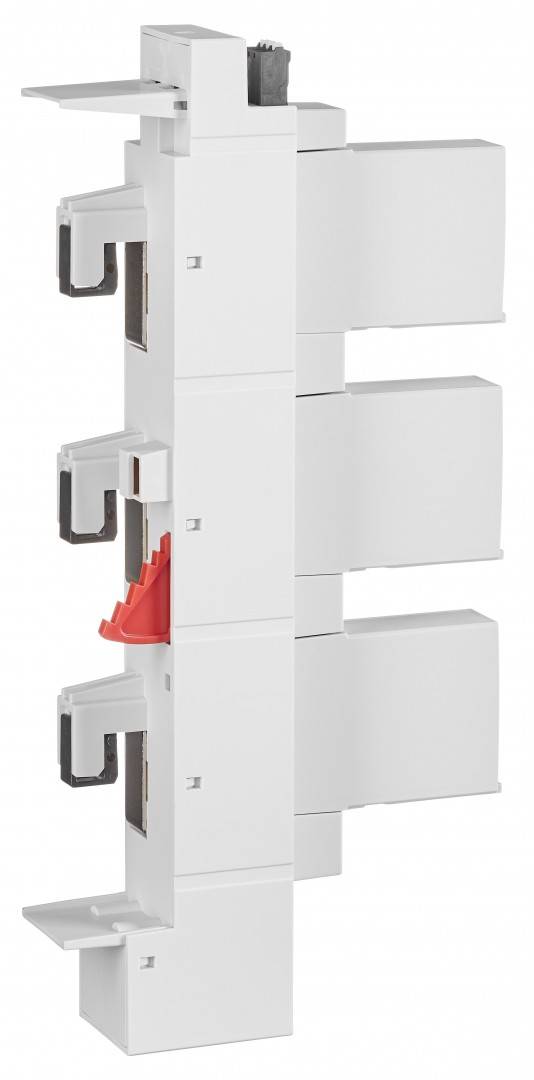

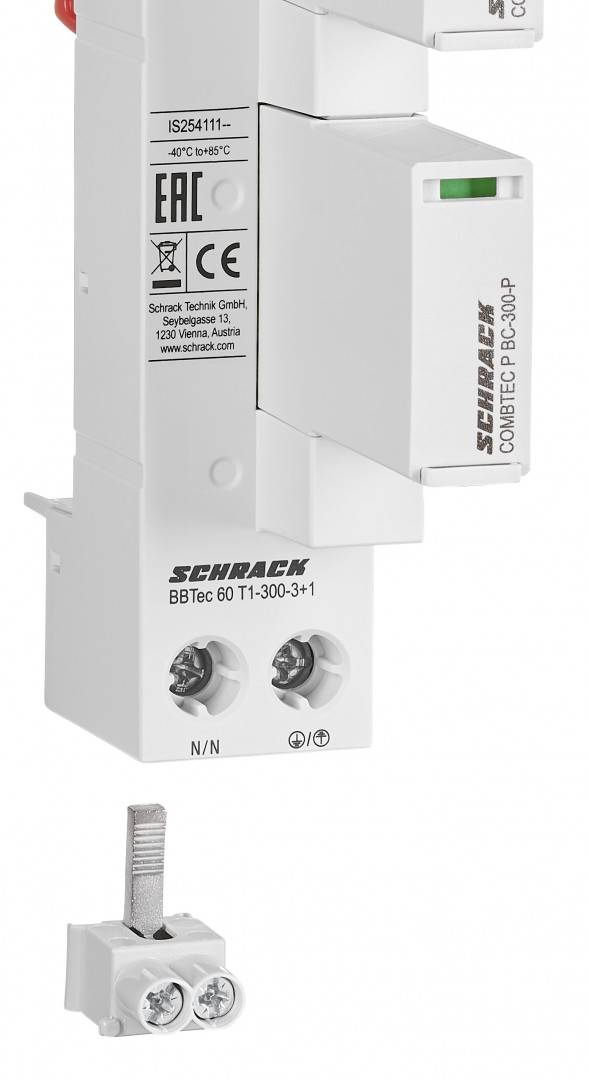

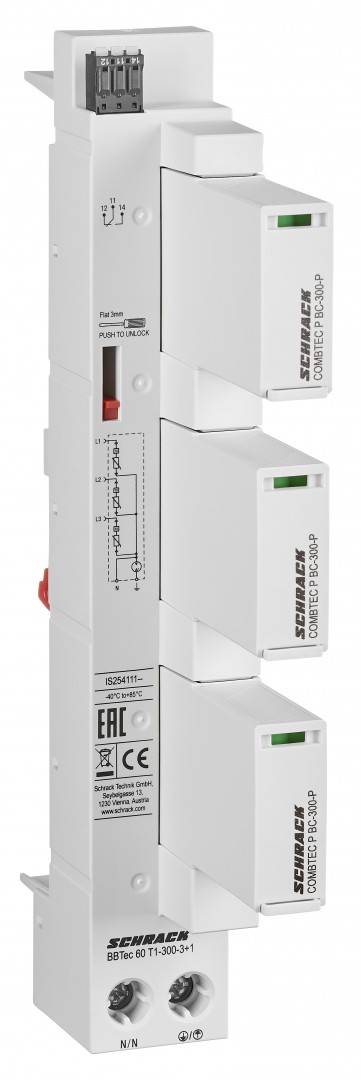

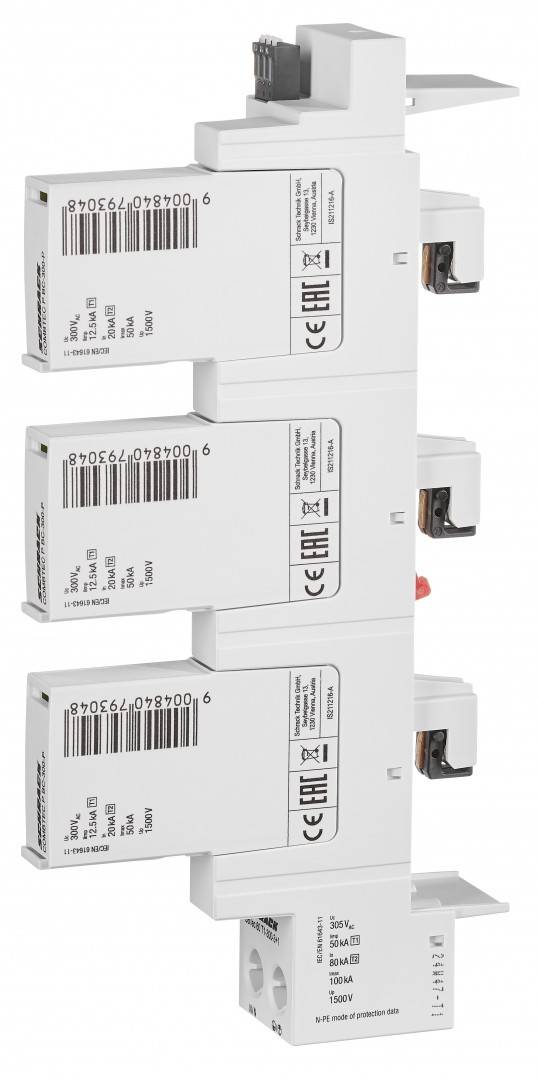

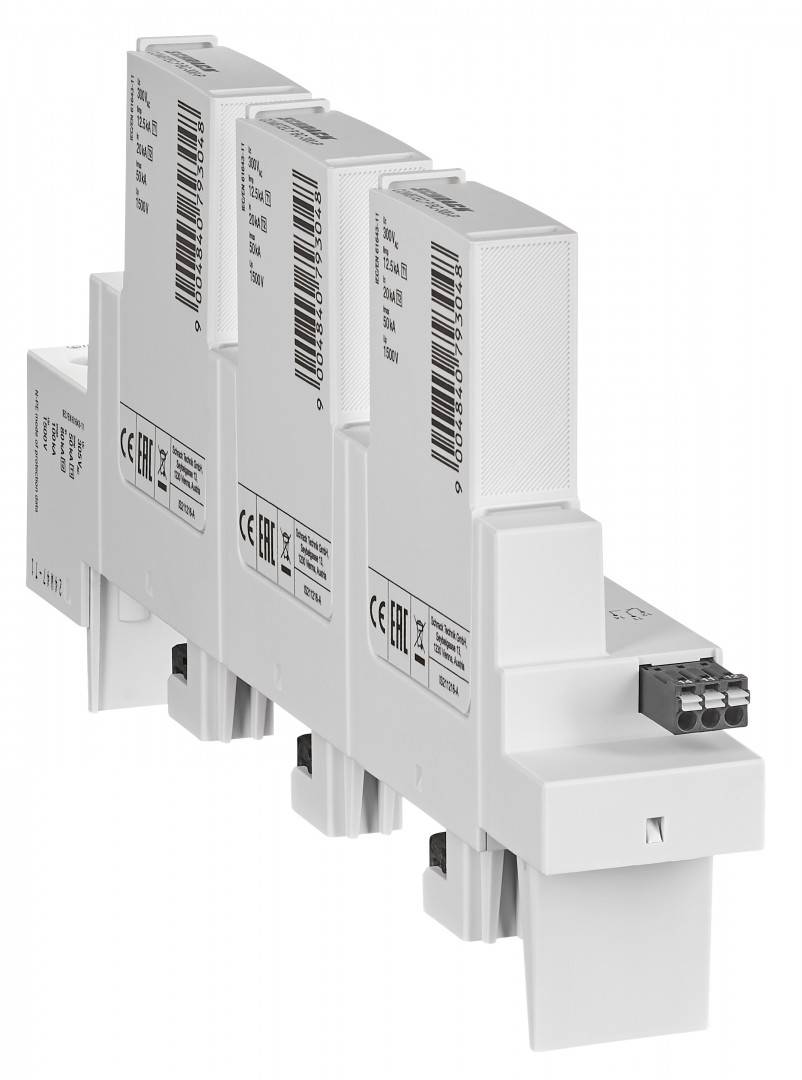

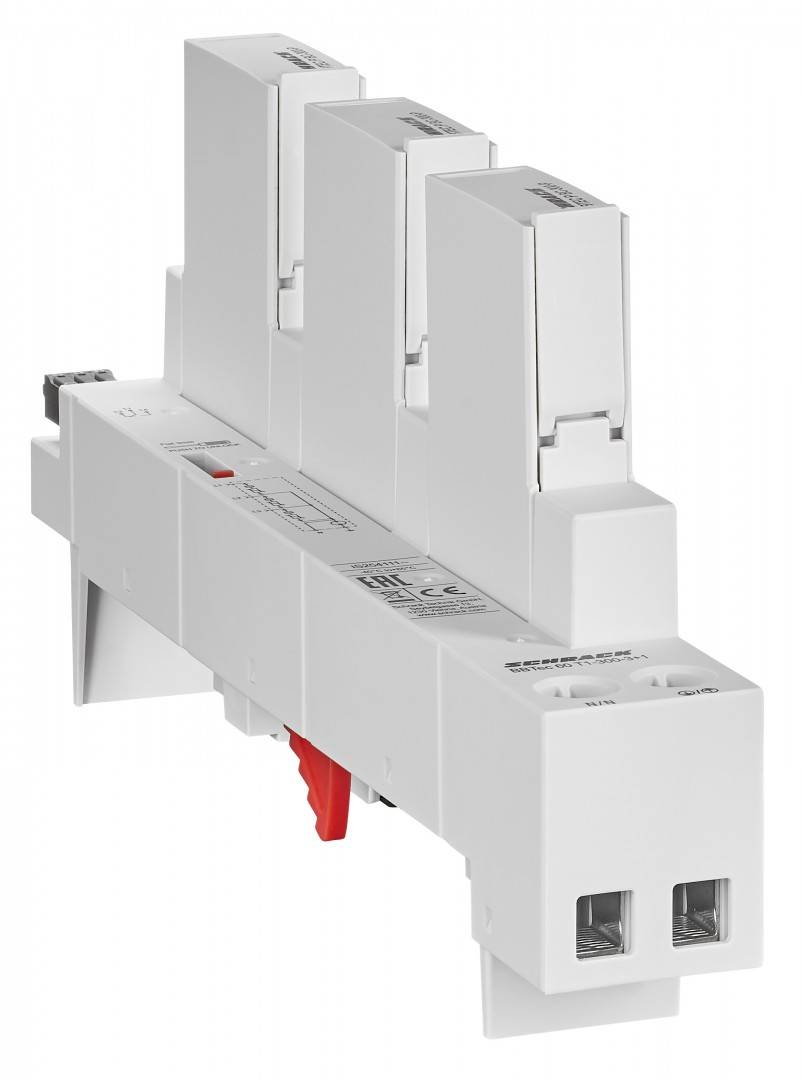

Surge Arrester f.60mm System 3+1, AX, TT/TN-S, Class 1+2(BC)
Cod produs: IS254111--
Marca: SCHRACK TECHNIK
Pret cu TVA: 1954.05 Lei / buc.
|
|
|
|
|
|
Comanda instant - Surge Arrester f.60mm System 3+1, AX, TT/TN-S, Class 1+2(BC)
|
Surge Arrester f.60mm System 3+1, AX, TT/TN-S, Class 1+2(BC)
|
|
Specificatii Tehnice PREG 1400 Specific Energy 39/625 kJ/Ω Timp de raspuns <25/<100 ns Charge 6,25/25 As TOV SafeFail 120min (L-N) 442 V disipare 0,16 W Leakage current free Yes Impuls de curent 12,50/50 kA Clasa de protectie TI+TII/B+C PU 20 Curent descarcare nominal 20/80 kA Tensiune nominala 240VAC Simbol CAD F Unitate de ambalare 1 m. Curent descarcat maxim 50/100 kA TOV Withstand 200ms (N-PE) 1200 V Capacitate de comutare a curentului de urmarire 100 A Masa neta 0,62 kg/m COD COMANDA IS254111 Fabricant Schrack Temperatura maxima a mediului ambiant 85 °C Nivel de protectie 1,5 kV LxBxH mm 245x36x123 TOV Withstand 5s (L-N) 337 V Overcurrent Protection (max) 315 A gG Temperatura minima a mediului ambiant -40 °C Rezistenta la scurtcircuit 25 kA Circuit 3+1 Contact semnalizare da Tensiune nominala maxima AC 300 VAC | Lungime | 244.5 mm | | Latime | 36 mm | | Inaltime | 123.3 mm | | Greutate | 0.62 kg |
|
|
|
|
|
