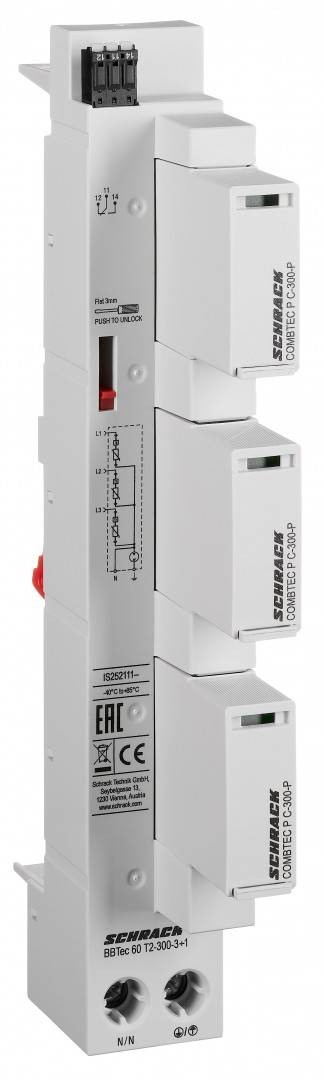

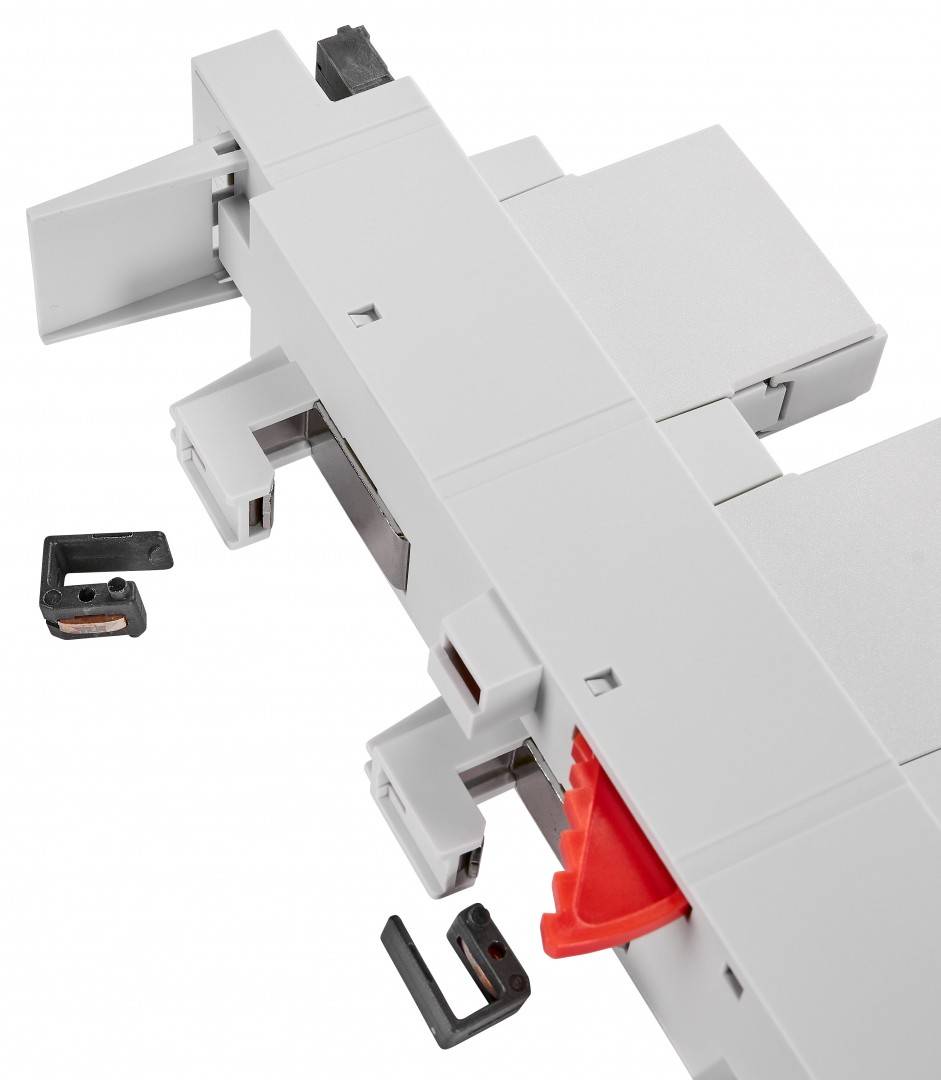

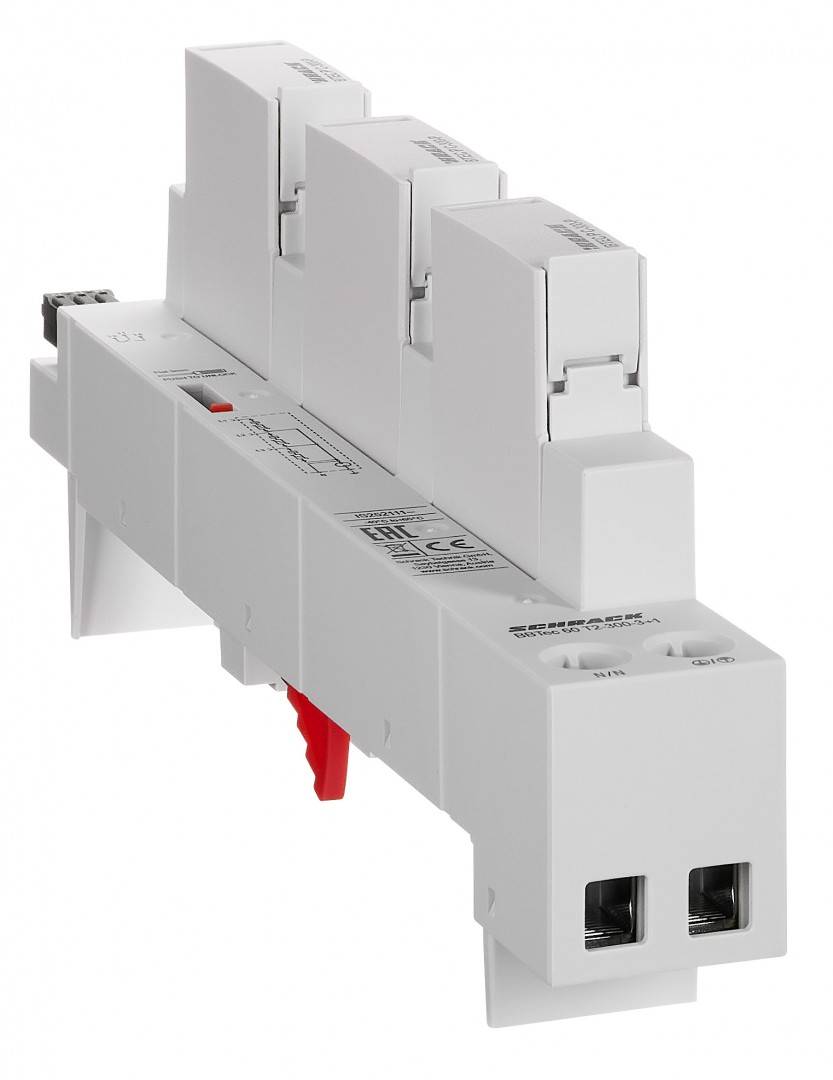

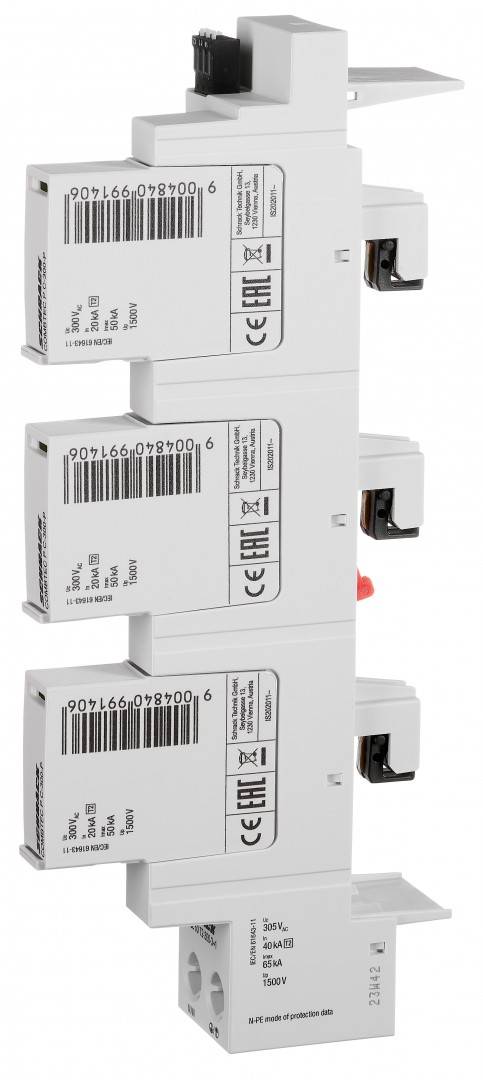

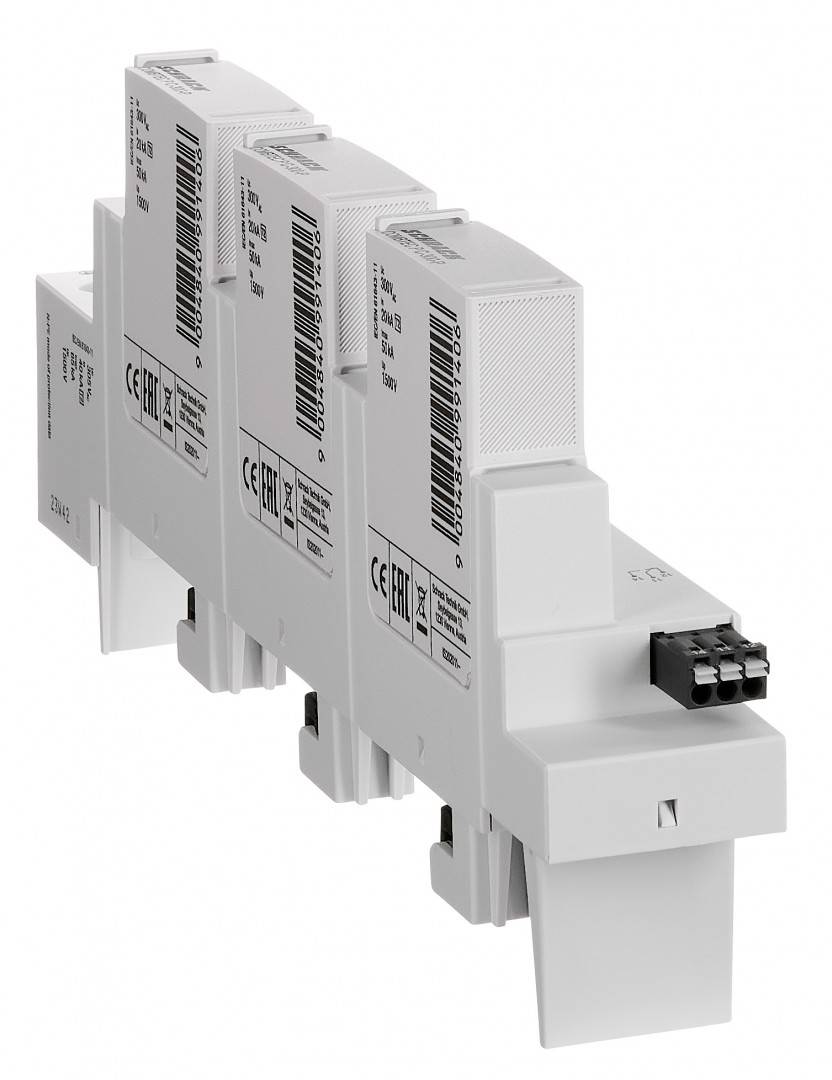

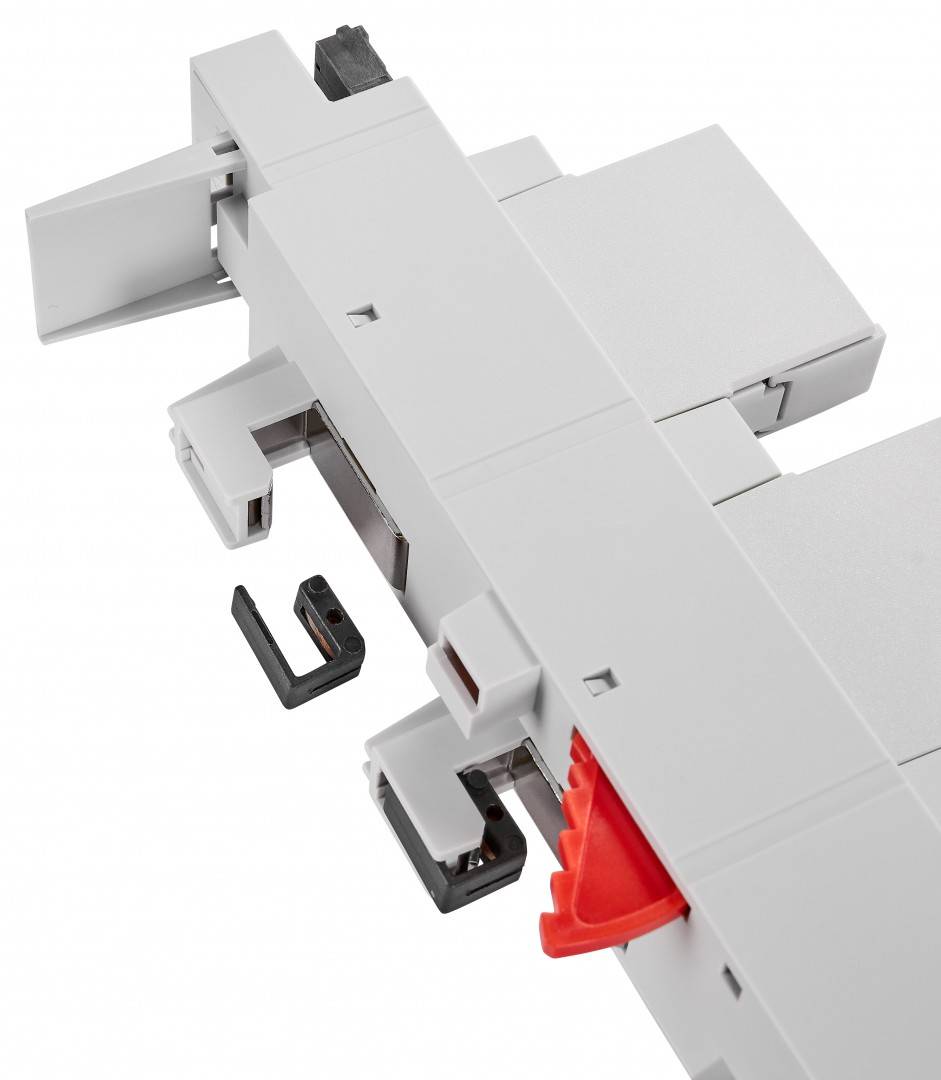

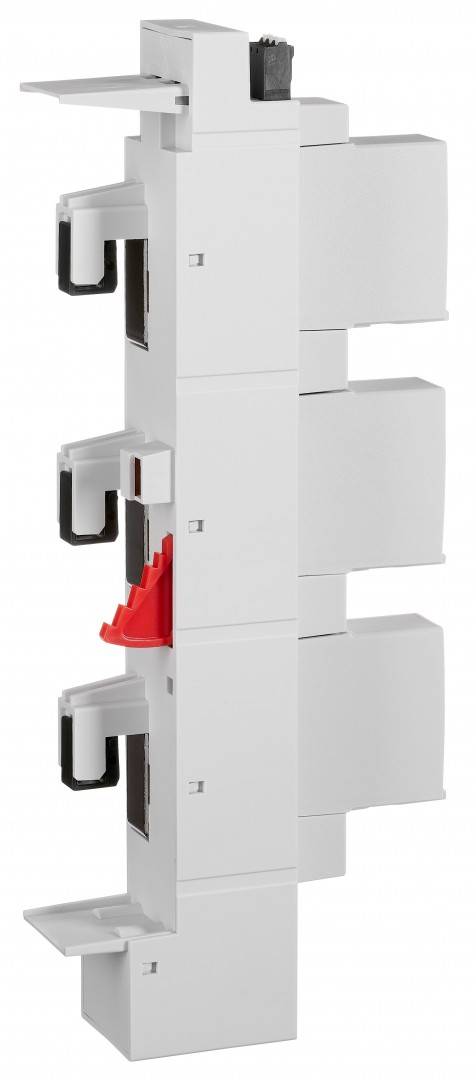

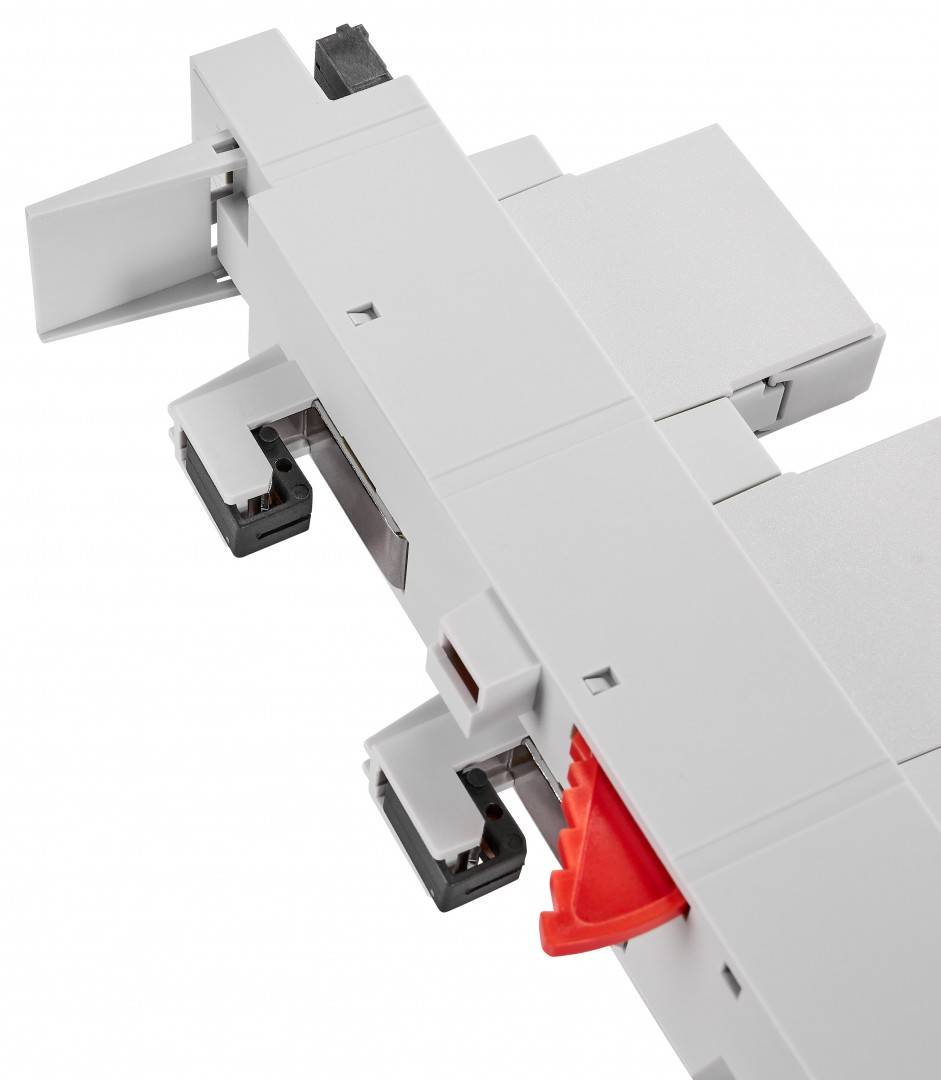

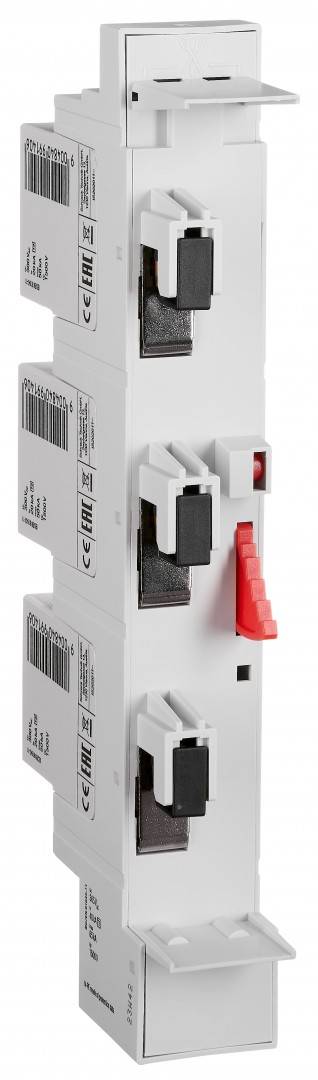

Surge Arrester for 60mm System 3+1, AX, TT/TN-S, Class 2(C)
Cod produs: IS252111--
Marca: SCHRACK TECHNIK
Pret cu TVA: 1531.96 Lei / buc.
|
|
|
|
|
|
Comanda instant - Surge Arrester for 60mm System 3+1, AX, TT/TN-S, Class 2(C)
|
Surge Arrester for 60mm System 3+1, AX, TT/TN-S, Class 2(C)
|
|
Specificatii Tehnice Tensiune nominala maxima AC 300 VAC COD COMANDA IS252111 Curent descarcat maxim 50/65 kA Masa neta 0,48 kg/m PREG 1400 Curent descarcare nominal 20/40 kA Timp de raspuns <25/<100 ns TOV SafeFail 120min (L-N) 442 V disipare 0,16 W Leakage current free Yes PU 20 Tensiune nominala 240VAC Simbol CAD F Unitate de ambalare 1 m. TOV Withstand 200ms (N-PE) 1200 V Capacitate de comutare a curentului de urmarire 100 A Fabricant Schrack Clasa de protectie TII/C Temperatura maxima a mediului ambiant 85 °C Nivel de protectie 1,5 kV TOV Withstand 5s (L-N) 337 V Overcurrent Protection (max) 315 A gG Temperatura minima a mediului ambiant -40 °C LxBxH mm 245x36x107 Rezistenta la scurtcircuit 25 kA Circuit 3+1 Contact semnalizare da | Lungime | 244.5 mm | | Latime | 36 mm | | Inaltime | 106.9 mm | | Greutate | 0.48 kg |
|
|
|
|
|
