Specificatii Tehnice
Frecventa
47-63 Hz
Dimensiuni externe
40 x 125 x 113.5 mm
Versiune
sursa alimentare in comutatie
Masa neta
0,55 kg/m
Masa aprox.
0,55 kg/km
Terminale externe CAD
1
Efficiency (depending on input voltage)
87% (115VAC) / 88% (230VAC)
Isolation
Input/output isolation: 3 kV AC / 60 s;Input/ground insulation: 2 kV AC / 60 s;Output/ground insulation: 0.5 kV AC / 60 s
Marime fuzibil
Internal protective fuse: T 5 A;External fuse on AC line: MCB: C-5 / Fuse: T 5 A
Temperatura maxima a mediului ambiant
70 °C
PREG
2320
Technical data
##
Factor de putere
>0,43
Tensiune DC la iesire
24 V
Incarcare maxima
5 A
grad de protectie
IP20
Grad de poluare
2
Toleranta tensiune
6.0 A
Conexiune
4mmp / 4mmp
PROMO CODE CH
4676-0076-28
Power loss (depending on input voltage)
18.77 W (115VAC) / 14.02 W (230VAC)
Adancime montaj
12,50 mm
Unitate de ambalare
1 m.
Tensiune de intrare DC
127-370 V
Simbol CAD
T
COD PROMO
4676-0050-27
COD COMANDA
LPC12405
Tensiunea de alimentare
24 DC V
Curent la pornire
25 A (115VAC)/ 35 A (230VAC)
Temperatura de functionare
-20°C…+70°C (derating -3 W/°C >50°C)
Fabricant
Schrack
Functie
surse alimentare
LxBxH mm
40x114x125
Categoria de supratensiune
3
Intrare
##
-
Sommeroffer
Montaj

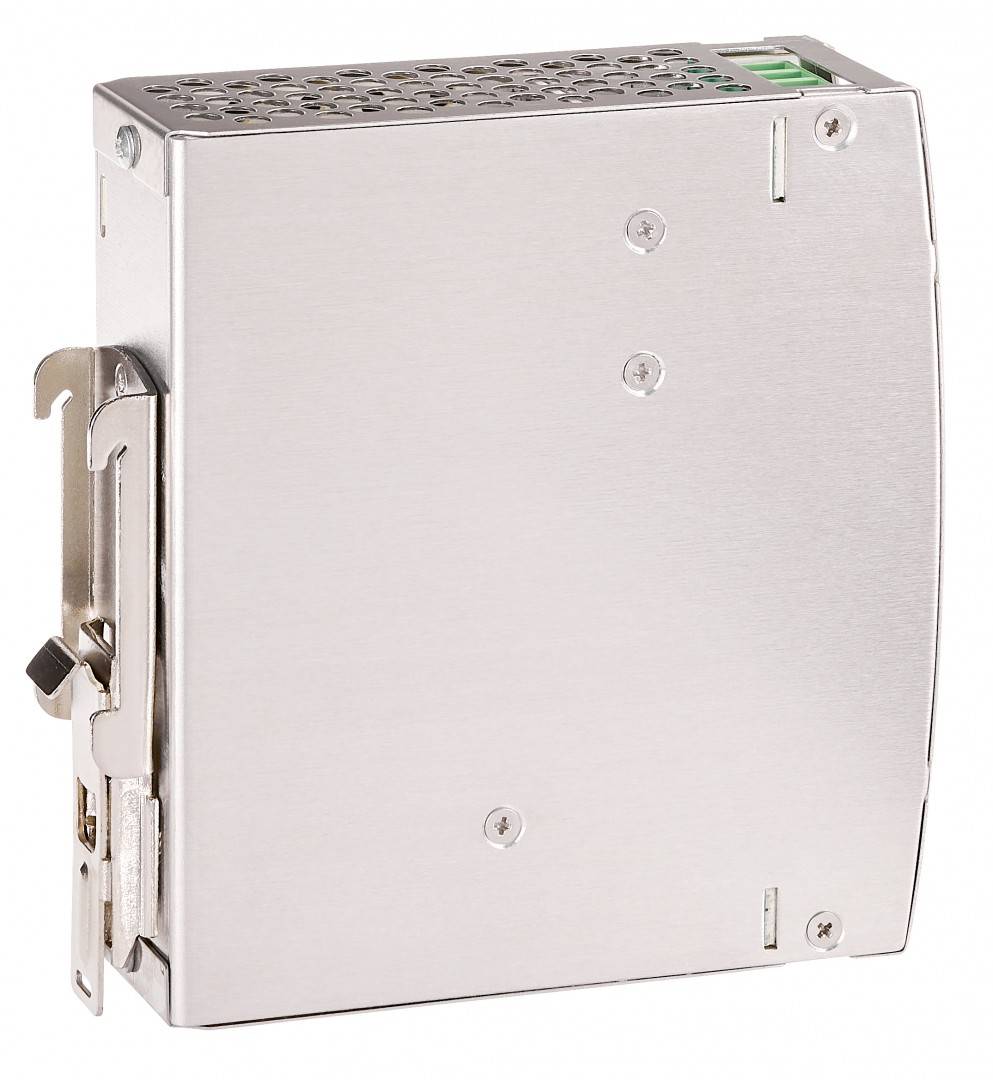

On DIN rail according to EN 60715 (35mm) via quick mounting clip
PROMO CODE GER INDUSTRY
4676-00042-89
Temperatura minima a mediului ambiant
-25 °C

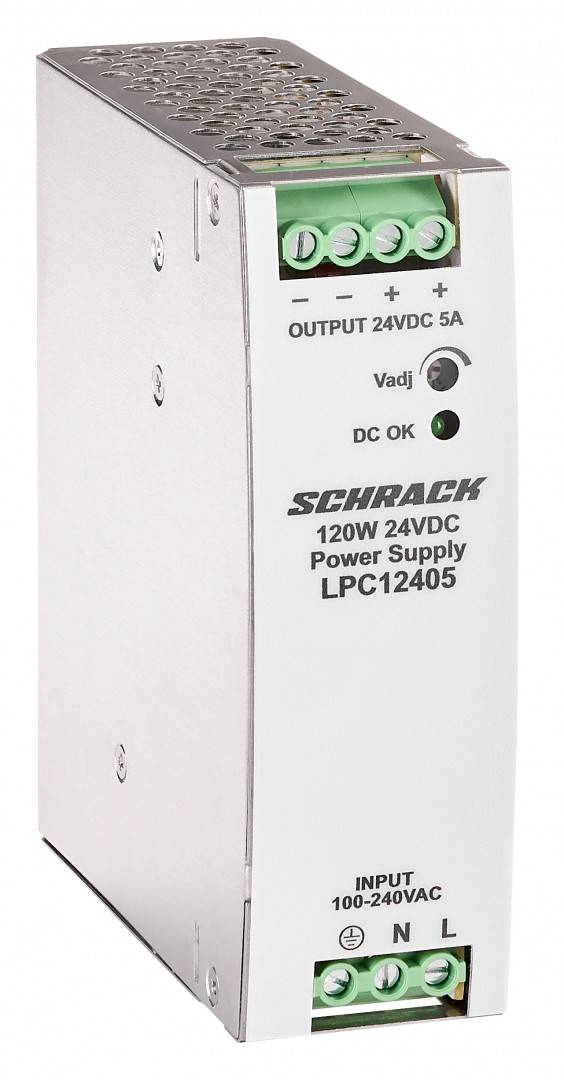

Status LEDs
LED "DC OK"
Curent de scurtcircuit
30 A for 100 ms
disipare
15,00 W
Current consumption
2.8 A (115VAC) / 1.7 A (230VAC)
Putere
120 W
Tensiune nominala
120-230VAC
Standard
EN 62368-1;EN 55032;EN 55035;EN 61000-3-2;EN 61000-3-3;EN 61000-4-2;EN 61000-4-3;EN 61000-4-4;EN 61000-4-5;EN 61000-4-6;EN 61000-4-11
Iesire
##
Hold up time
10ms (115VAC) / 16 ms (230VAC)
Descriere electrica CAD
/, 5A (50°C)
Ripple at nominal ratings
120 mVpp
Forma constructiva
carcasa pentru aparatura modulara
Tensiune intrare AC
90-264 V
Materialul carcasei
Aluminiu;Otel
Redundant parallel connection
Possible with external ORing diode
| Lungime | 40 mm |
| Latime | 113.5 mm |
| Inaltime | 125 mm |
| Greutate | 0.55 kg |
