Specificatii Tehnice
Factor de putere
>0,5
Forma constructiva
carcasa pentru aparatura modulara
Materialul carcasei
Aluminiu;Otel
Temperatura de functionare
-30°C…+70°C (derating -3 W/°C >60°C)
Redundant parallel connection
Possible with external ORing diode
Isolation
Input/output isolation: 4.7 kV AC / 60 s;Input/ground insulation: 2.4 kV AC / 60 s;Output/ground insulation: 0.5 kV AC / 60 s
Frecventa
47-63 Hz
LxBxH mm
32x101x125
disipare
6,00 W
Dimensiuni externe
32 x 125 x 100.5 mm
Versiune
sursa alimentare in comutatie
Tensiune de intrare DC
254-780 V
Terminale externe CAD
1
Conexiune
2,5mmp / 2,5mmp
Adancime montaj
11,50 mm
Curent de scurtcircuit
20 A for 100 ms
Tensiunea de alimentare
12 DC V
Tensiune nominala
1-2x230-400VAC
Current consumption
0.4 A (400VAC) / 0.8 A (230VAC)
Hold up time
10 ms (230VAC) / 20 ms (400VAC)
Masa neta
0,45 kg/m
Standard
EN 61010-1;EN 55032;EN 55035;EN 61000-3-2;EN 61000-3-3;EN 61000-4-2;EN 61000-4-3;EN 61000-4-4;EN 61000-4-5;EN 61000-4-6;EN 61000-4-11
Marime fuzibil
Internal protective fuse: T 4 A;External fuse on AC line: MCB: C-4 A / Fuse: T 4 A
Temperatura maxima a mediului ambiant
70 °C
PREG
2320
Power loss (depending on input voltage)
9 W (230VAC) / 9 W (400VAC)
Technical data
##
Masa aprox.
0,45 kg/km
Incarcare maxima
5 A
grad de protectie
IP20
Grad de poluare
2
COD COMANDA
LPC11205
Toleranta tensiune
6.5 A
Unitate de ambalare
1 m.
Tensiune DC la iesire
12 V
Simbol CAD
T
Tensiune intrare AC
180-550 V
Curent la pornire
50 A (400VAC)
Efficiency (depending on input voltage)
88% (230VAC) / 88% (400VAC)
COD PROMO
6084-0055-28
Fabricant
Schrack
Contacte
dry contact, max. 1 A
Functie
surse alimentare
Categoria de supratensiune
3
PROMO CODE GER INDUSTRY
6084-00049-73
Intrare
##
-
Sommeroffer
Montaj

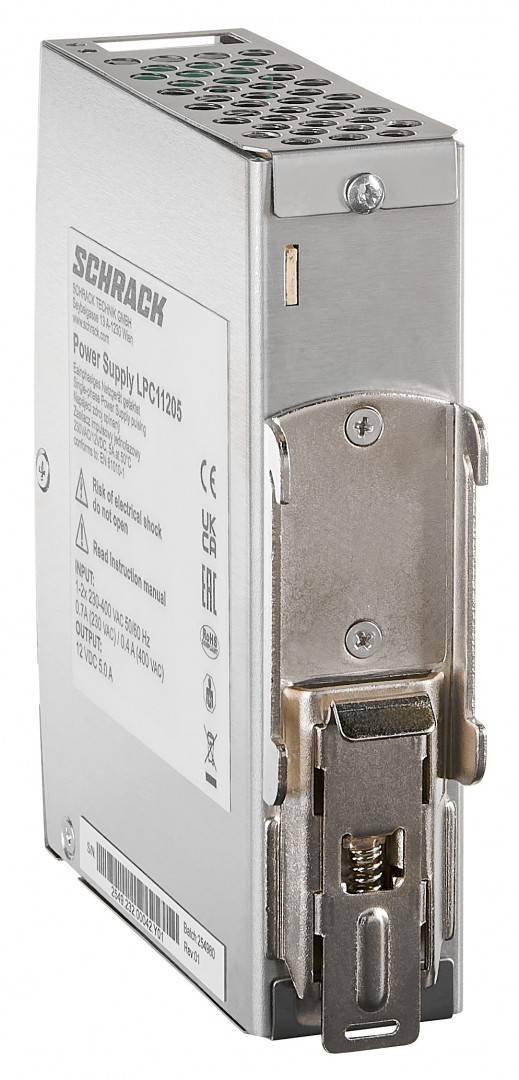

On DIN rail according to EN 60715 (35mm) via quick mounting clip
Temperatura minima a mediului ambiant
-25 °C

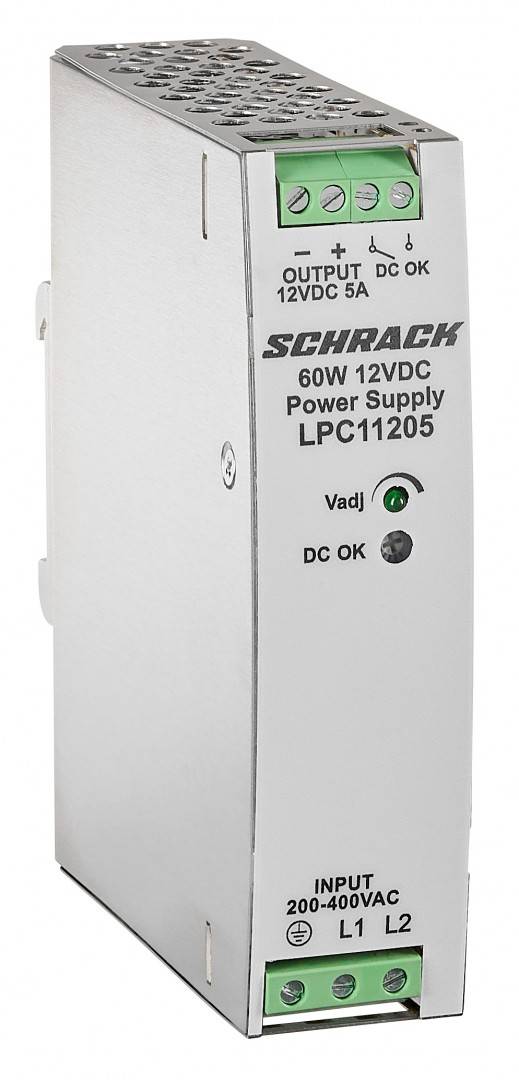

Status LEDs
LED "DC OK"
Ripple at nominal ratings
150 mVpp
PROMO CODE CH
6084-0080-00
Putere
60 W
Iesire
##
Descriere electrica CAD
/, 5A (50°C)
| Lungime | 32 mm |
| Latime | 100.5 mm |
| Inaltime | 125 mm |
| Greutate | 0.45 kg |
