Specificatii Tehnice
Toleranta tensiune
13 A
Frecventa
47-63 Hz
Versiune
sursa alimentare in comutatie
Tensiune de intrare DC
254-780 V
PROMO CODE GER INDUSTRY
9290-00072-19
disipare
17,00 W
Terminale externe CAD
1
Conexiune
2,5mmp / 2,5mmp
Efficiency (depending on input voltage)
89.5% (230VAC) / 90.5% (400VAC)
Tensiunea de alimentare
12 DC V
Tensiune nominala
1-2x230-400VAC
Isolation
Input/output isolation: 3 kV AC / 60 s;Input/ground insulation: 2 kV AC / 60 s;Output/ground insulation: 0.5 kV AC / 60 s
Hold up time
10 ms (230VAC) / 50 ms (400VAC)
Current consumption
0.8 A (400VAC) / 1.2 A (230VAC)
COD COMANDA
LPC11210
Marime fuzibil
Internal protective fuse: T 4 A;External fuse on AC line: MCB: C-4 A / Fuse: T 4 A
Temperatura maxima a mediului ambiant
70 °C
PREG
2320
Technical data
##
Masa neta
0,65 kg/m
grad de protectie
IP20
Grad de poluare
2
Incarcare maxima
10 A
Standard
EN 61010-1;UL61010-1;UL61010-2-201;EN 55032;EN 55035;EN 61000-3-2;EN 61000-3-3;EN 61000-4-2;EN 61000-4-3;EN 61000-4-4;EN 61000-4-5;EN 61000-4-6;EN 61000-4-11
LxBxH mm
40x113x125
Temperatura de functionare
-25°C…+70°C (derating -4,8 W/°C >60°C)
Unitate de ambalare
1 m.
Masa aprox.
0,65 kg/km
Tensiune DC la iesire
12 V
Simbol CAD
T
Tensiune intrare AC
180-550 V
Curent la pornire
50 A (400VAC)
Fabricant
Schrack
Contacte
dry contact, max. 1 A
Functie
surse alimentare
Categoria de supratensiune
3
Intrare
##
-
Sommeroffer
Dimensiuni externe
40 x 125 x 113 mm
Montaj

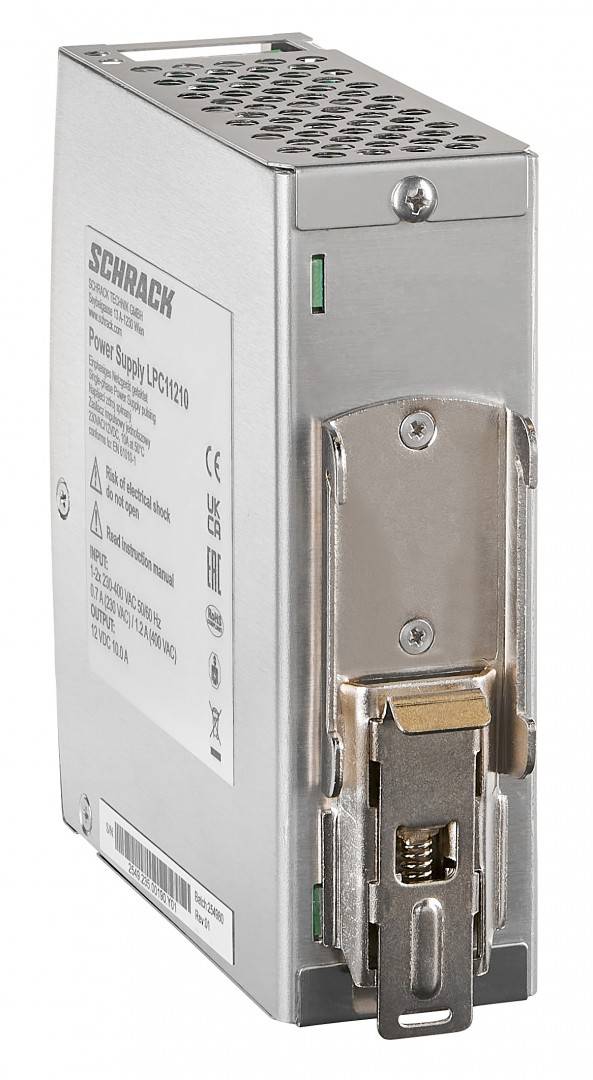

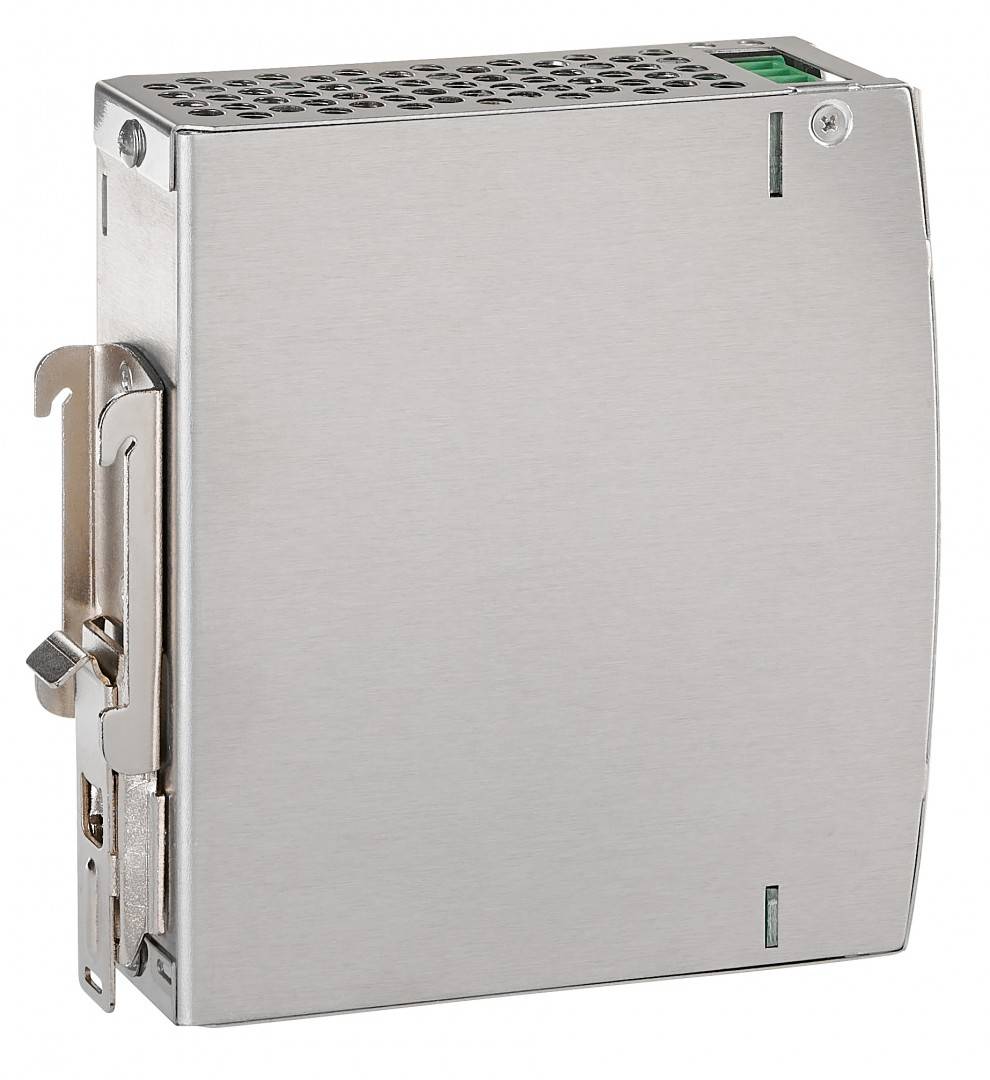

On DIN rail according to EN 60715 (35mm) via quick mounting clip
PROMO CODE CH
9290-0114-76
Temperatura minima a mediului ambiant
-25 °C
Status LEDs

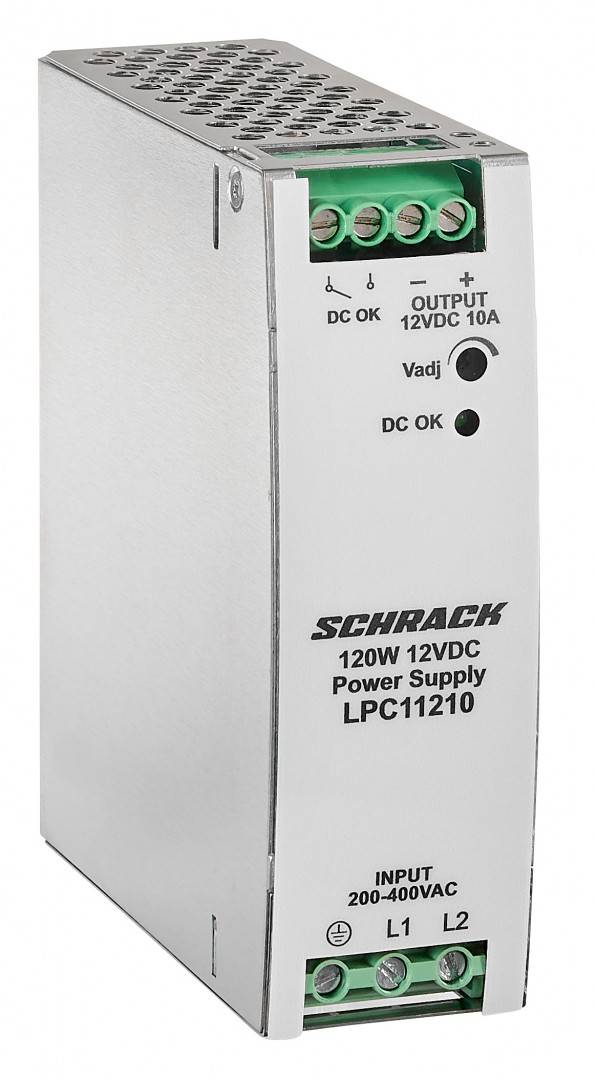

LED "DC OK"
Curent de scurtcircuit
30 A for 100 ms
Power loss (depending on input voltage)
14.5 W (230VAC) / 12 W (400VAC)
Putere
120 W
Iesire
##
Factor de putere
>0,53
Ripple at nominal ratings
120 mVpp
Adancime montaj
14 mm
Forma constructiva
carcasa pentru aparatura modulara
Descriere electrica CAD
/, 10A (50°C)
Materialul carcasei
Aluminiu;Otel
COD PROMO
9290-0078-68
Redundant parallel connection
Possible with external ORing diode
| Lungime | 40 mm |
| Latime | 113 mm |
| Inaltime | 125 mm |
| Greutate | 0.65 kg |
