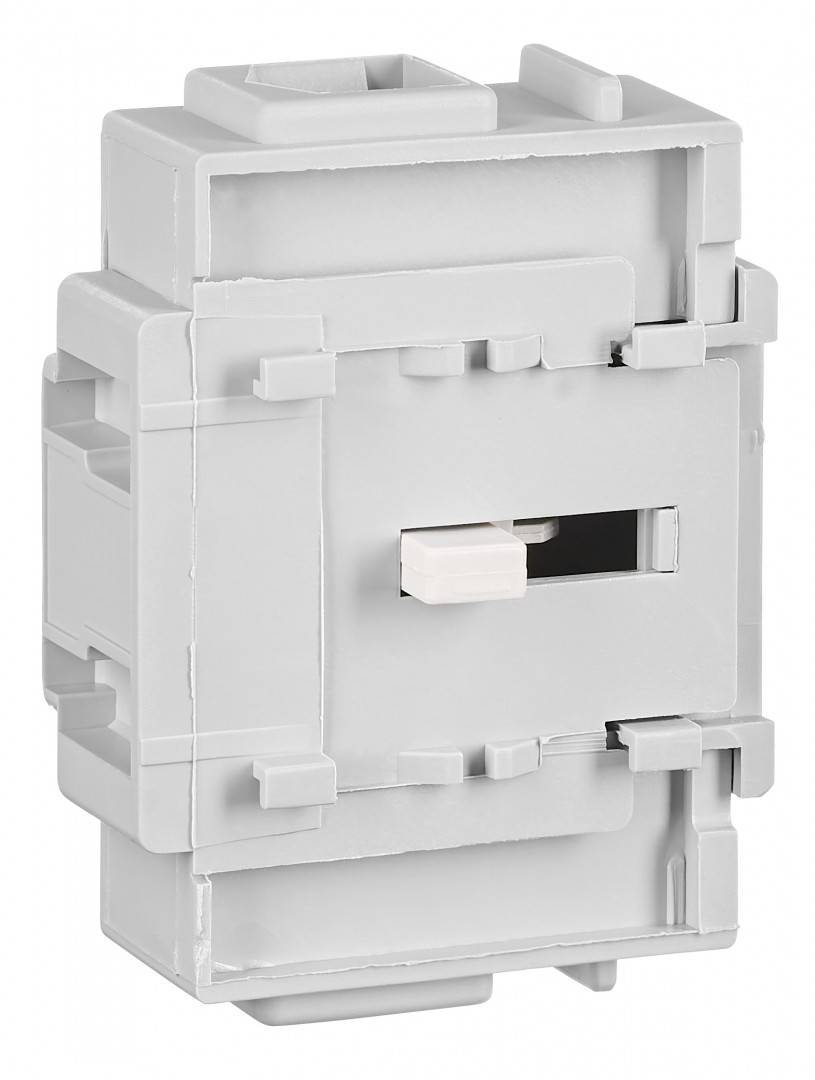

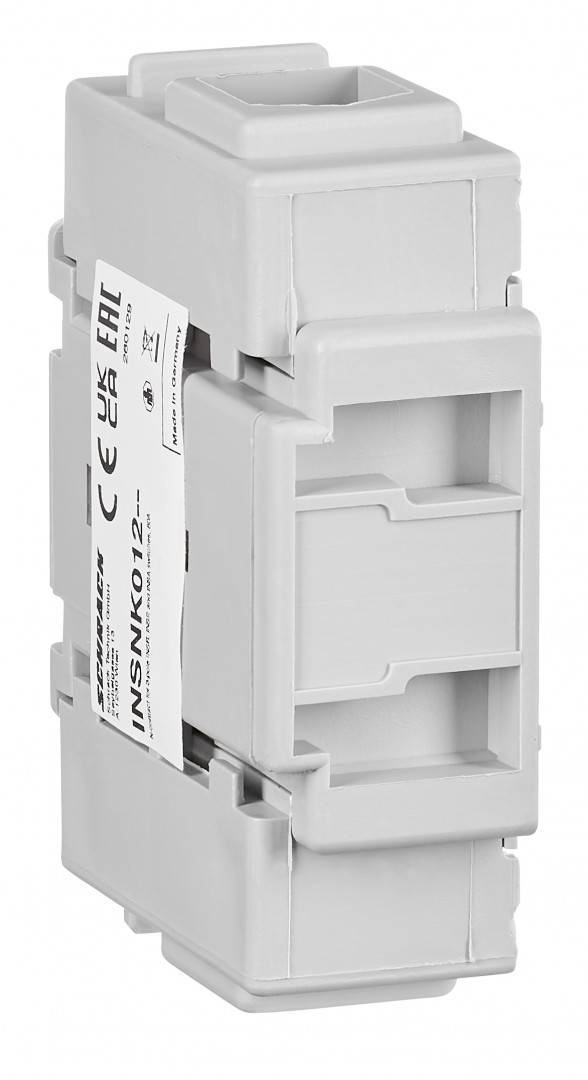

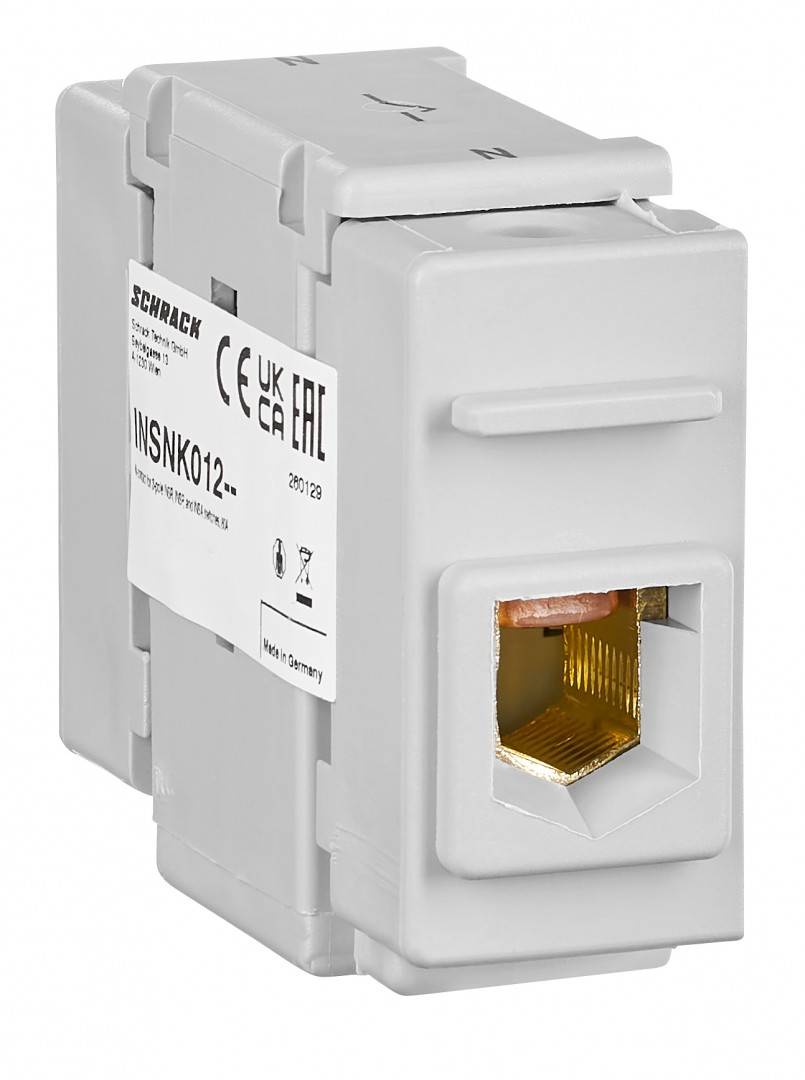

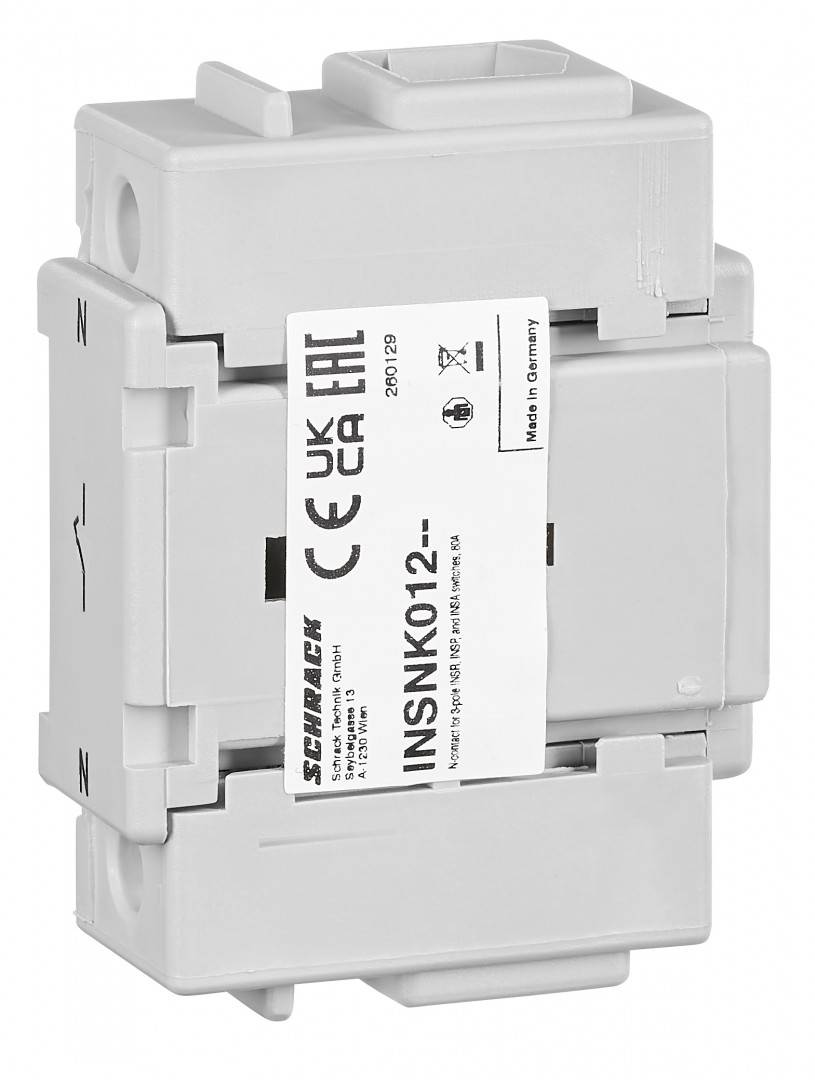

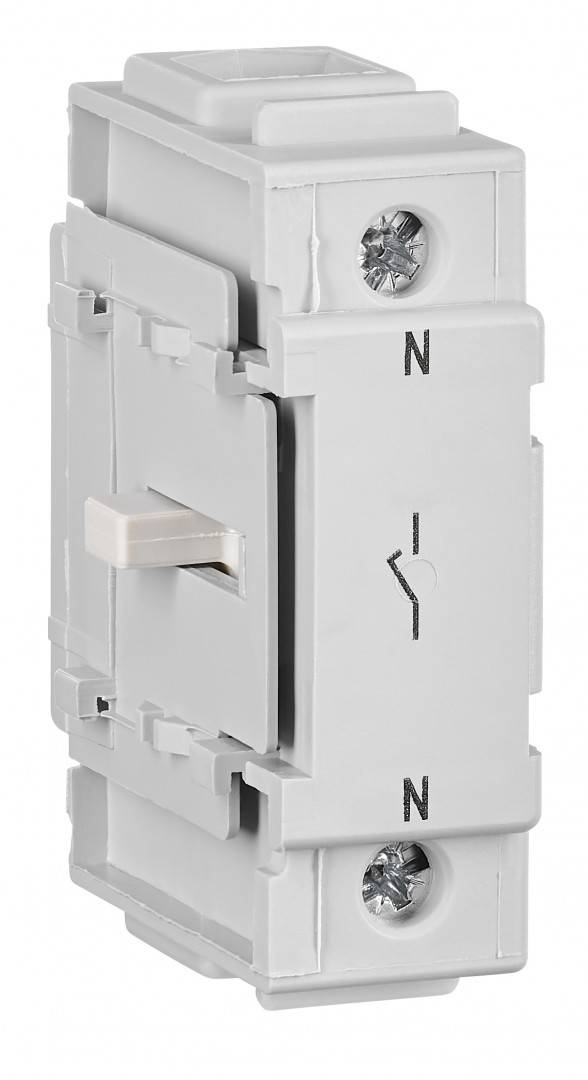

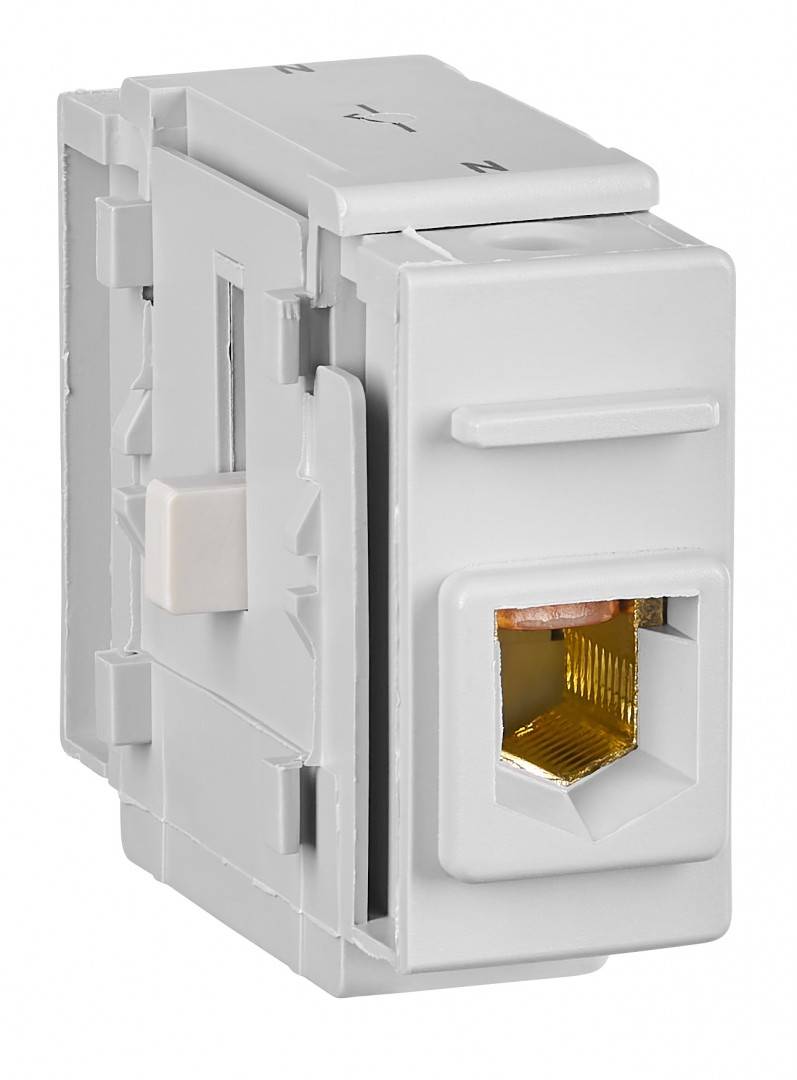

Specificatii Tehnice
disipare
6,00 W
Sectiune conexiune, multifilar
2,5-35 mm²
Curent nominal
80 A
Frecventa
50/60 Hz
Active Power
3x240VAC - 15Hp;3x480VAC - 40Hp;3x600VAC - 50Hp;1x120VAC - 10Hp
Impuls de curent de scurtcircuit admisibil Icw
1000
Curent termic conventional Ith
80 A
Thermal rated continuous current
80 A
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Neutral conductor contacts
Neutral conductor early-make, late-break design (closes before and opens after the phase conductors to prevent voltage displacement);As soon as a 3-pole switch is converted to a 4-pole switch using a neutral conductor contact, NO additional auxiliary contact is permitted to be attached to the neutral conductor contact! For further information, see the data sheet for the respective switch.
Tinere la impuls de tensiune [Uimp]
6000 V
Standard
IEC 60947, EN 60947, VDE 0663
Tip conexiune
UL/CSA - AWG 14-6
Retrofit contacts
##
grad de protectie
IP65 (front), IP10 (output terminals), IP20 (supply terminals with terminal cover and Cable cross-section bigger than 6mm²)
Tensiune nominala de izolatie (Ui)
690 V
Poli
1
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
Versiune
accesorii
COD COMANDA
INSNK012
Tensiune de alimentare AC
600 V
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
Sectiune conexiune, monofilar
2,5-35 mm²
Curent operational
AC-21A - 690V - 80A;AC-23A - 400V - 43A;AC-23A - 690V - 22A;AC-3 - 400V - 43A;AC-3 - 690V - 22A
In conformitate cu UL 508 / CSA
##
Masa neta
0,07 kg/m
Montaj
Montaj aparent
Blocabil
Nu
Temperatura minima a mediului ambiant
-25 °C
Cuplu de strangere
2,50 Nm
Fuzibil max. protectie la scurtcircuit
80
Sectiune conexiune, fir flexibil cu pin
2,5-16 mm²
Temperatura de functionare
-25°C to +55°C
Capacitate de comutare
AC-23A - 400V - 30kW;AC-23A - 690V - 22kW;AC-3 - 400V - 22kW;AC-3 - 690V - 18.5kW
LxBxH mm
64x25x47
Power loss per pole
5,50 W
PREG
2200
Conexiune
##
| Lungime | 64 mm |
| Latime | 25 mm |
| Inaltime | 47 mm |
| Greutate | 0.07 kg |
