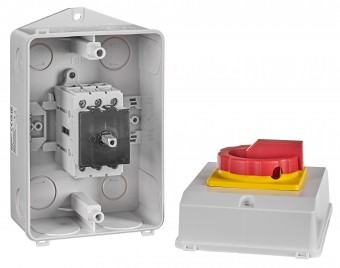

Specificatii Tehnice
Sectiune conexiune, multifilar
2,5-16 mm²
Frecventa
50/60 Hz
Culoare
rosu-galben
Sectiune conexiune, monofilar
2,5-16 mm²
Fuzibil max. protectie la scurtcircuit
50
Impuls de curent de scurtcircuit admisibil Icw
500
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0660
Tinere la impuls de tensiune [Uimp]
6000 V
Curent termic conventional Ith
32 A
Curent nominal
32 A
Versiune

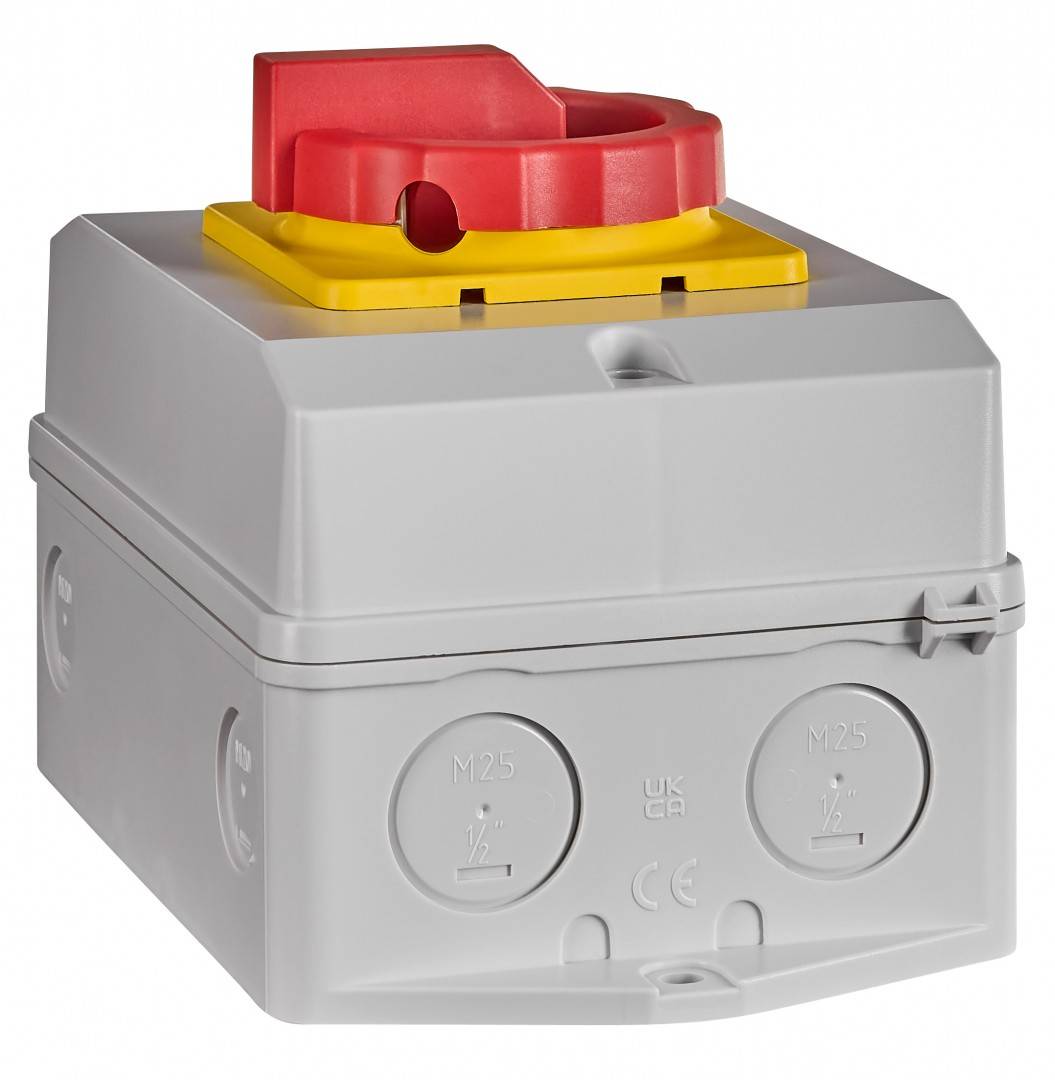

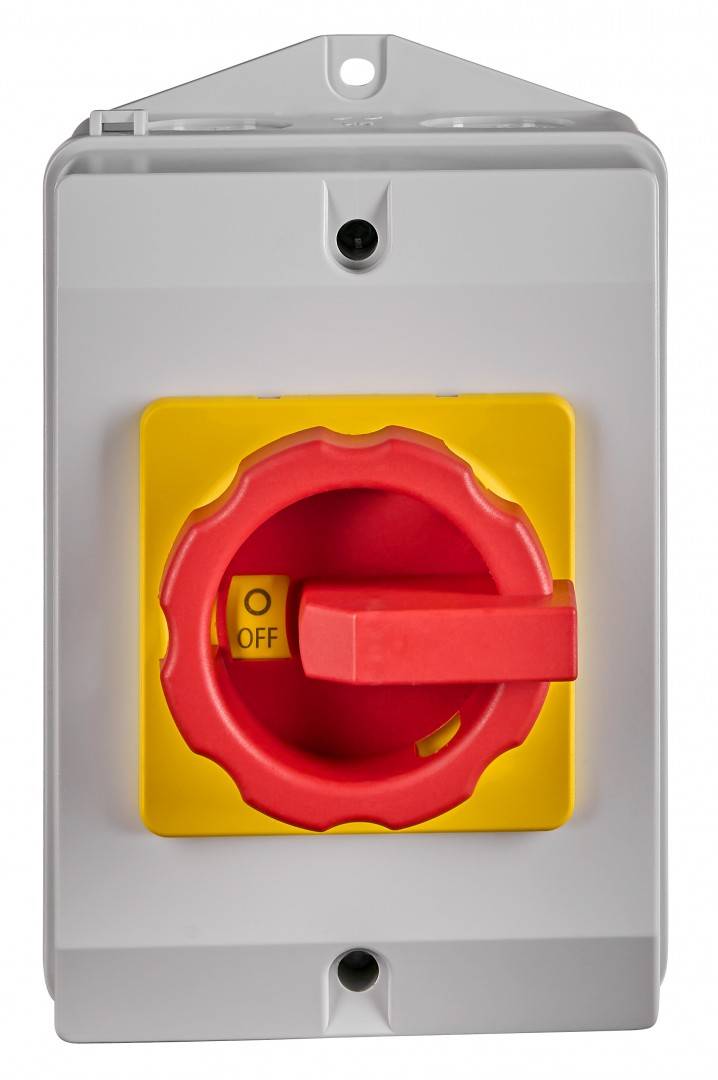

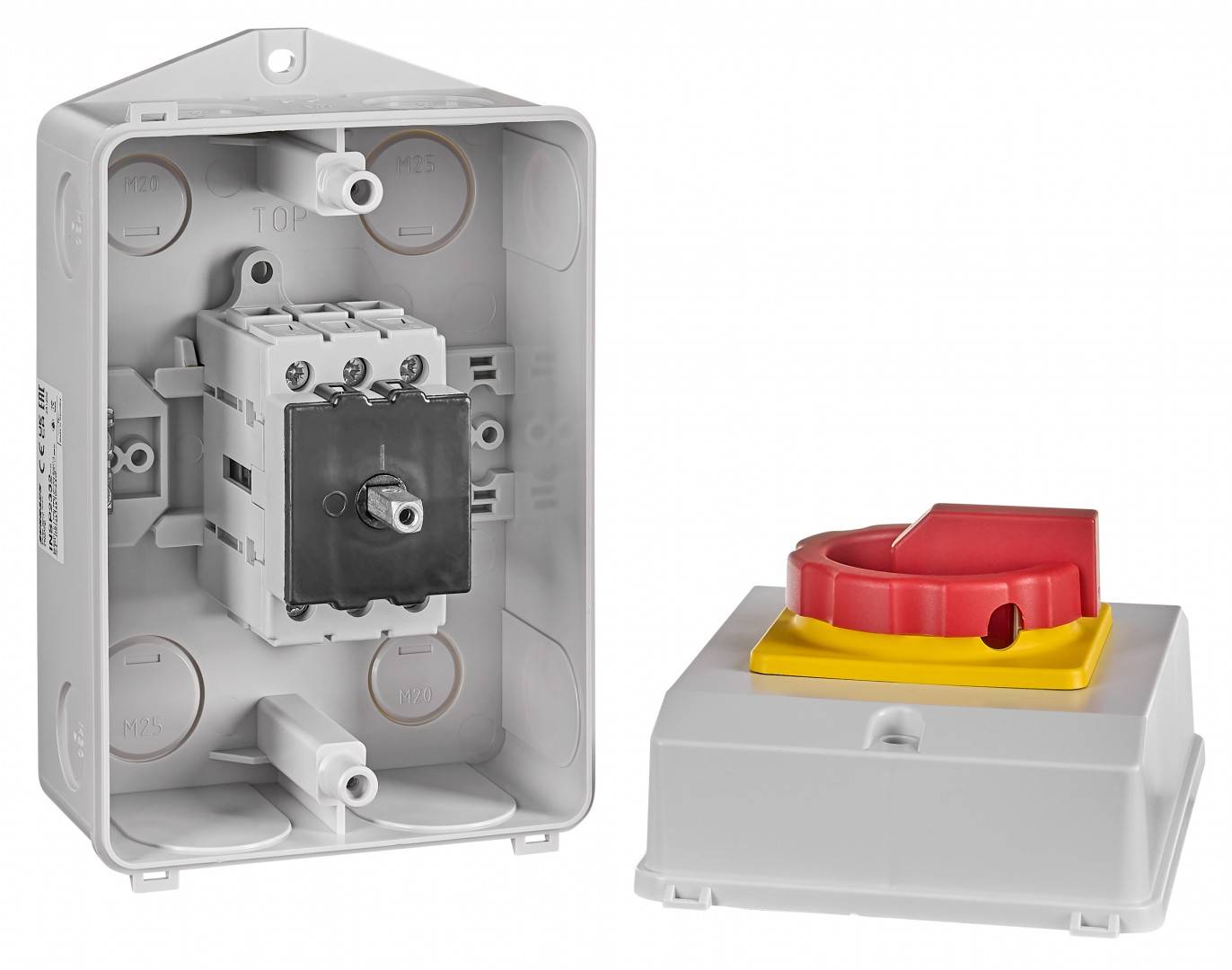

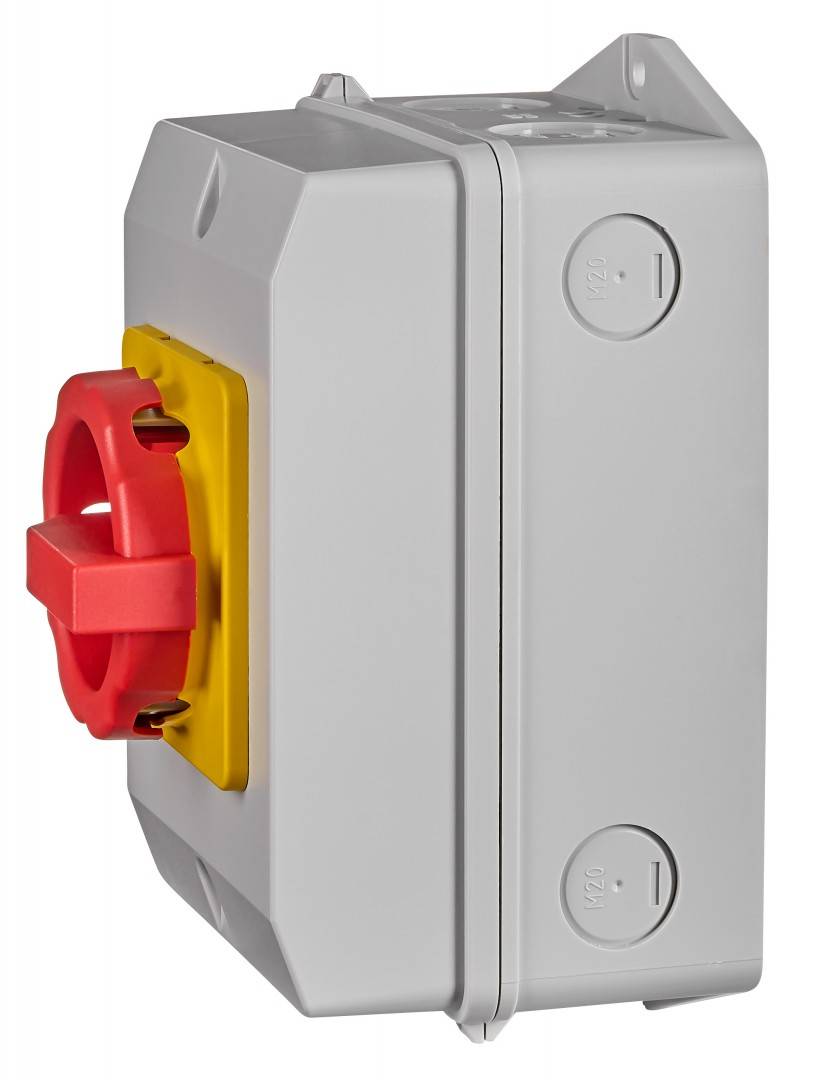

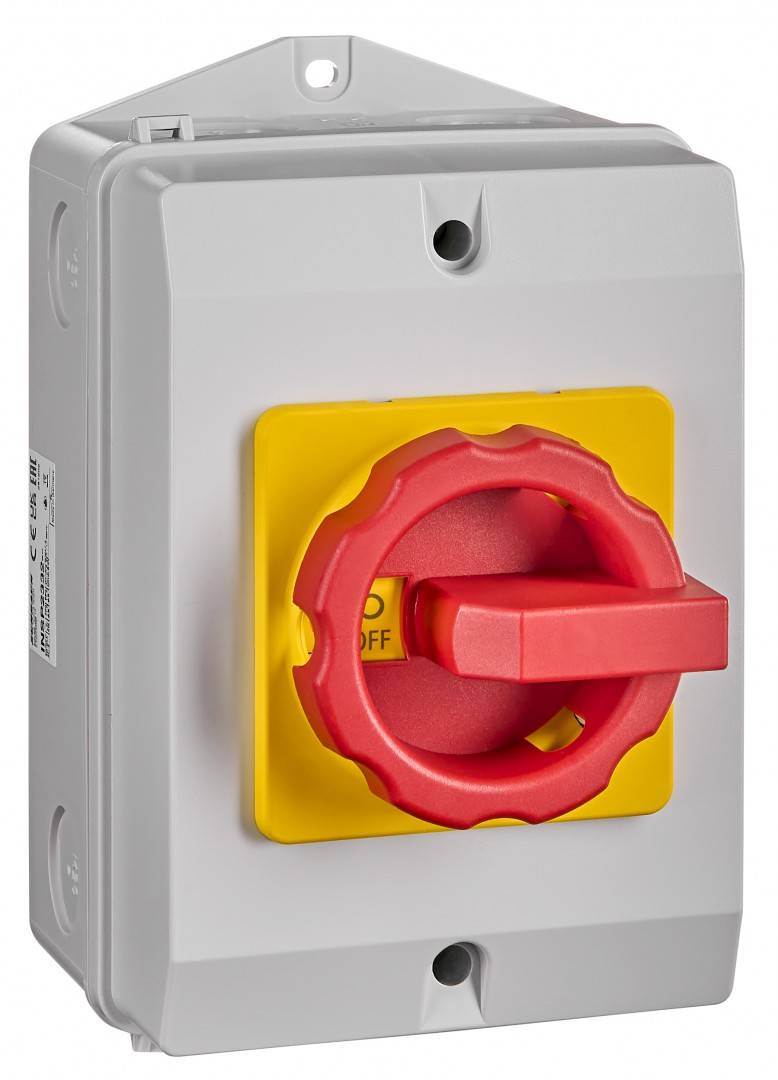

Repair Switch Emergency off
Tip conexiune
UL/CSA - AWG 14-6
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
Tensiune de alimentare AC
600 V
PU
10
Contacte auxiliare
Maximum 2x INSHK001-- permitted. 1x INSHK001-- can be snapped on to the left side of the main contact and 1x INSHK001-- to the right side of the main contact. Maximum configuration 2x NC contact / 2x NO contact. The switching behavior is the same regardless of whether the auxiliary contact is snapped on to the left or right side of the main contact.
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
Poli
3
Power loss per pole
1,50 W
In conformitate cu UL 508 / CSA
##

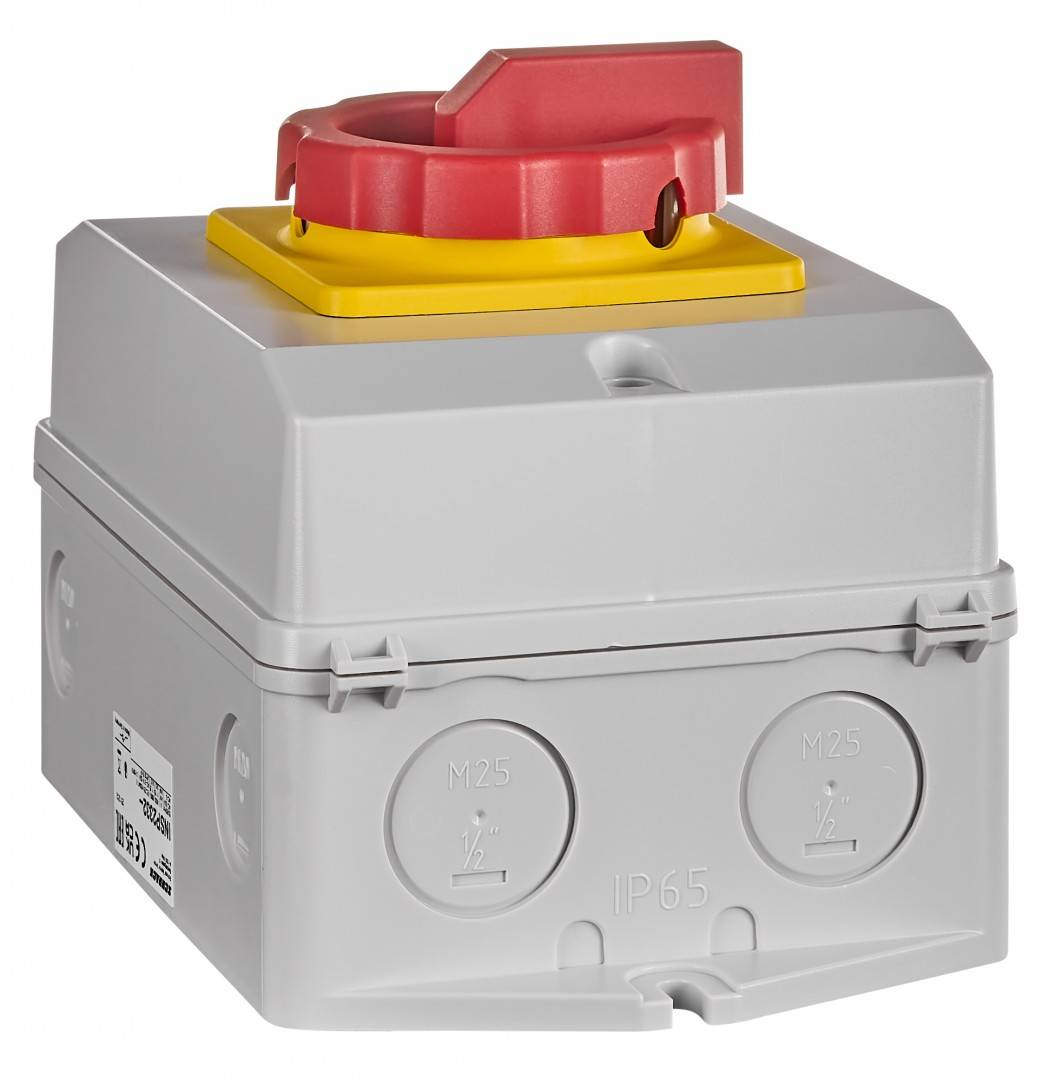

grad de protectie
IP65 (housing), IP20 (terminals)

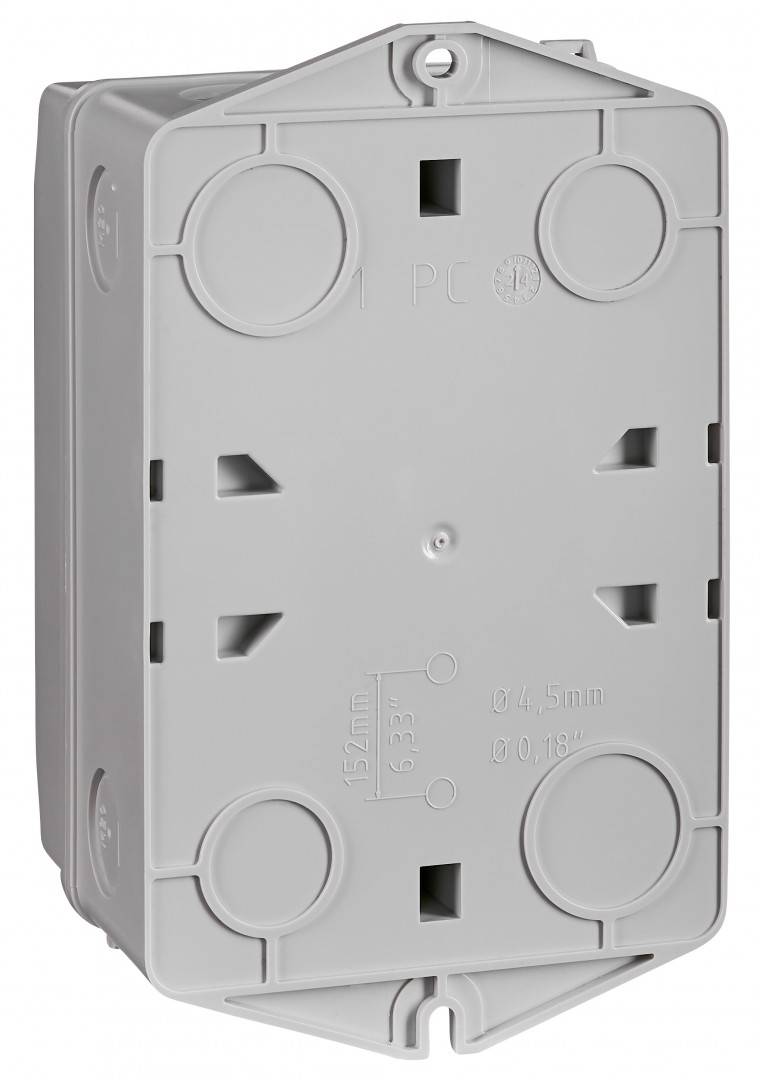

Montaj
Montaj aparent
Masa neta
0,40 kg/m
Accesorii optionale
INSHK001--; INSNK010--
Blocabil
Cu 3 lacate, fiecare cu diametru carlig de 4-8mm
LxBxH mm
115x100x140
Temperatura minima a mediului ambiant
-25 °C

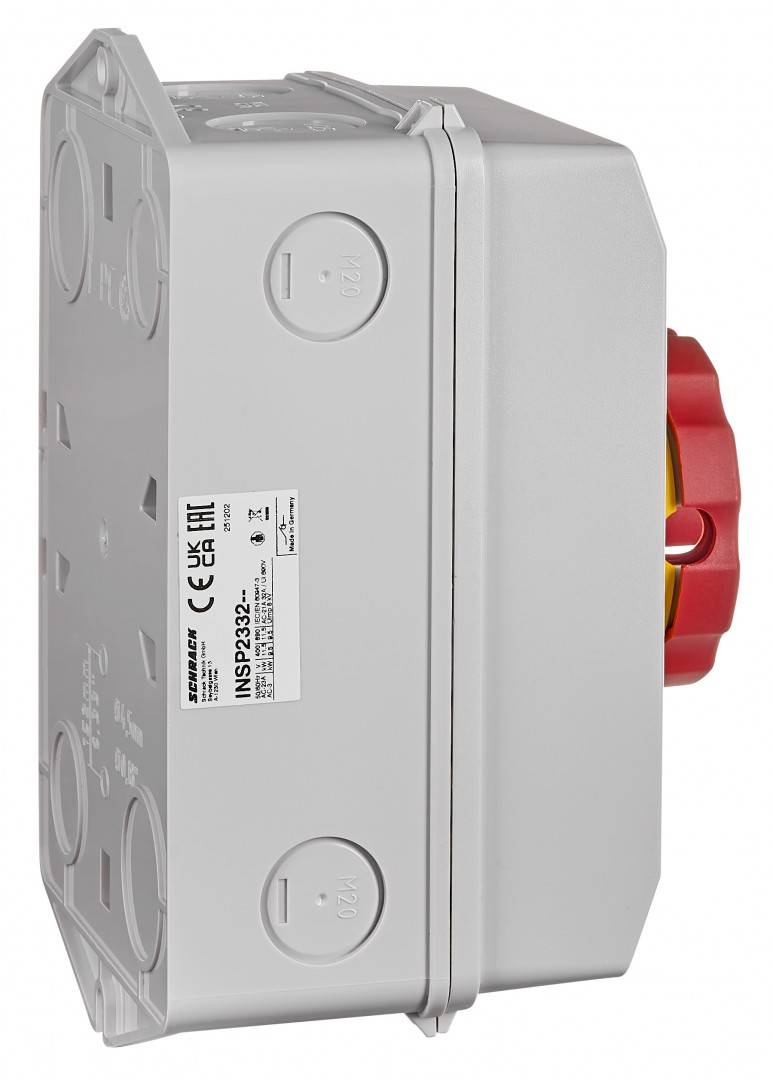

COD COMANDA
INSP2332
Sectiune conexiune, fir flexibil cu pin
2,5-16 mm²
Cuplu de strangere
3 Nm
Active Power
3x120VAC - 3Hp;3x240VAC - 10Hp;3x480VAC - 20Hp;3x600VAC - 22Hp;1x120VAC - 2Hp;1x240VAC - 3Hp
Temperatura de functionare
-25°C to +55°C
Thermal rated continuous current
32 A
Neutral conductor contacts
ATTENTION! If this 3-pole switch is converted to a 4-pole switch using neutral conductor contact INSNK010--, no additional auxiliary contact can be snapped onto the N contact. On the other side, auxiliary contact INSHK001-- can be used as normal. For further details, see Auxiliary contact and N contact overview
Curent operational
AC-21A - 690V - 32A;AC-22A - 690V - 32A;AC-23A - 230V - 22A;AC-23A - 400V - 22A;AC-23A - 690V - 13A;AC-3 - 230V - 20A;AC-3 - 400V - 20A;AC-3 - 690V - 11.5A
Capacitate de comutare
AC-23A - 230V - 6kW;AC-23A - 400V - 11.5kW;AC-23A - 690V - 11.5kW;AC-3 - 230V - 5.5kW;AC-3 - 400V - 9.5kW;AC-3 - 690V - 9.5kW
PREG
2200
Conexiune
##
disipare
1,50 W
| Lungime | 115 mm |
| Latime | 100 mm |
| Inaltime | 140 mm |
| Greutate | 0.4 kg |
