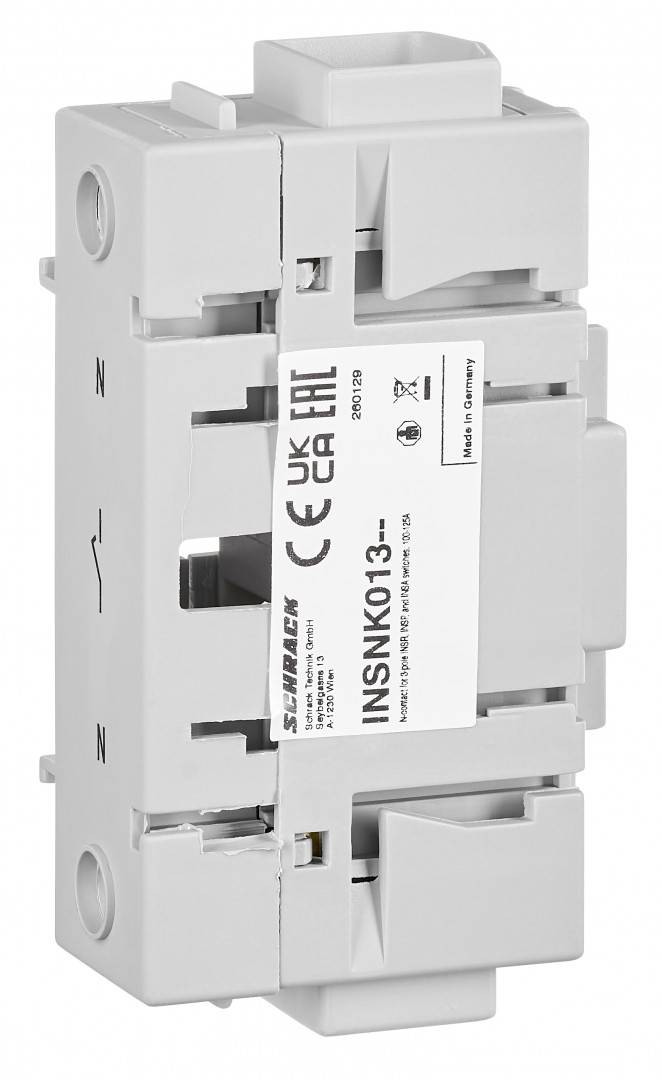

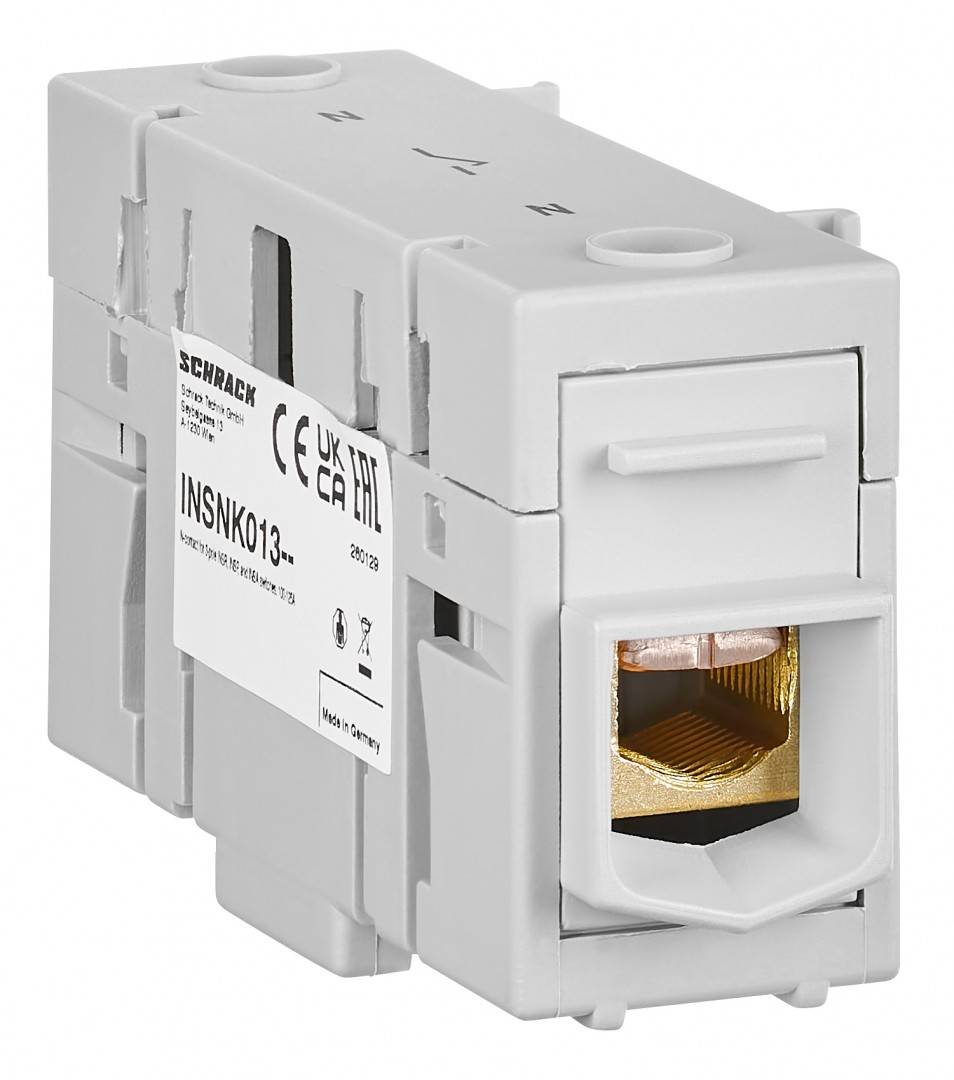

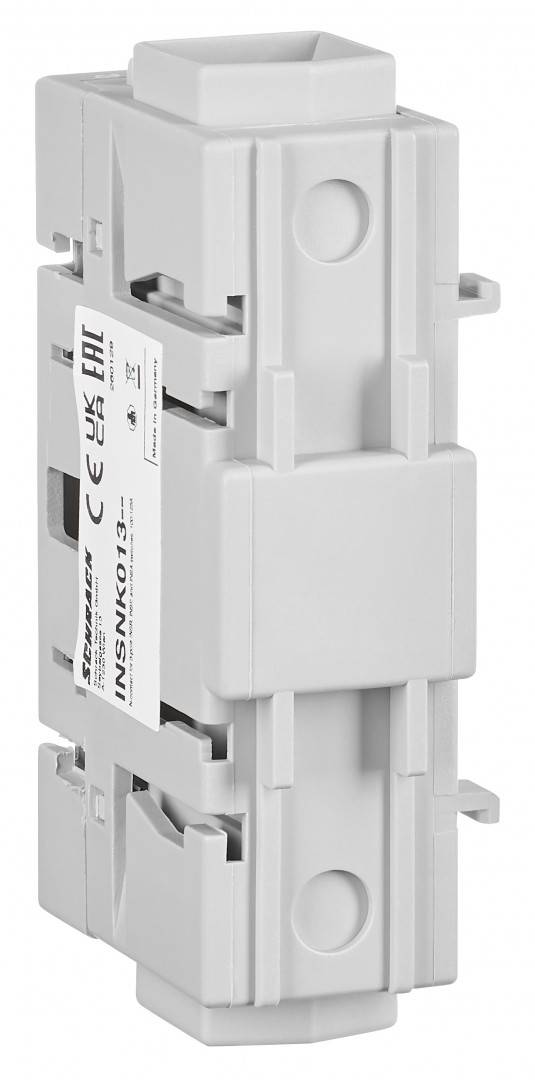

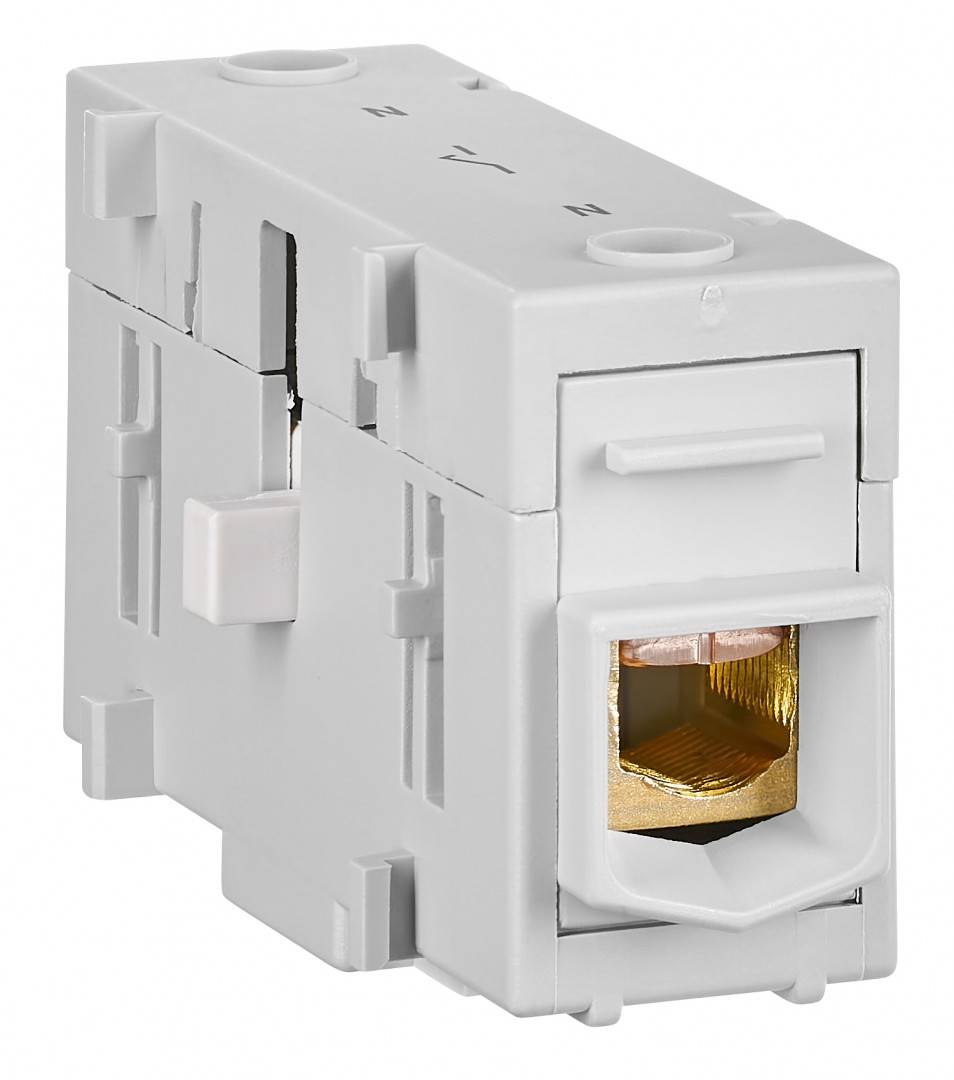

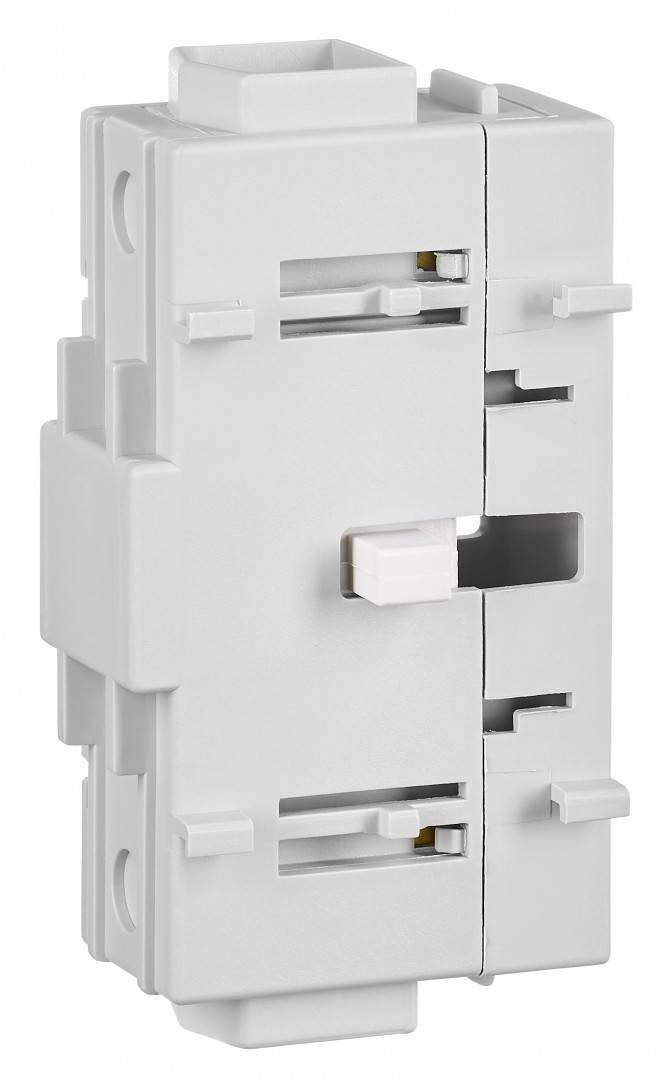

Specificatii Tehnice
Curent nominal
125 A
Frecventa
50/60 Hz
COD COMANDA
INSNK013
Impuls de curent de scurtcircuit admisibil Icw
1000
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V
Standard
IEC 60947, EN 60947, VDE 0664

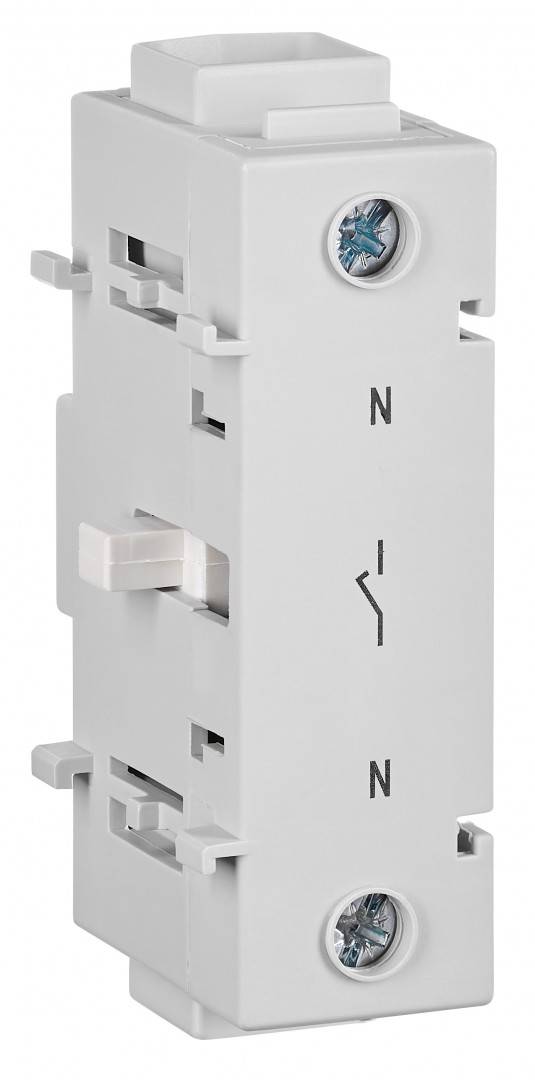

Neutral conductor contacts
Neutral conductor early-make, late-break design (closes before and opens after the phase conductors to prevent voltage displacement);As soon as a 3-pole switch is converted to a 4-pole switch using a neutral conductor contact, NO additional auxiliary contact is permitted to be attached to the neutral conductor contact! For further information, see the data sheet for the respective switch.
Tinere la impuls de tensiune [Uimp]
6000 V
Capacitate de comutare
AC-23A - 230V - 22kW;AC-23A - 400V - 45kW;AC-23A - 690V - 37kW;AC-3 - 230V - 22kW;AC-3 - 400V - 37kW;AC-3 - 690V - 30kW
Curent operational
AC-21A - 690V - 125A;AC-23A - 400V - 84A;AC-23A - 690V - 41A;AC-3 - 400V - 70A;AC-3 - 690V - 35A
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V
Poli
1
grad de protectie
IP65 (front), IP10 (output terminals), IP20 (supply terminals with terminal cover and Cable cross-section bigger than 16mm²)
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Anduranta mecanica
100000 switching cycles
Versiune
accesorii
Sectiune conexiune, multifilar
4-50 mm²
Tensiune de alimentare AC
600 V
Tip conexiune
UL/CSA - AWG 12-1
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
In conformitate cu UL 508 / CSA
##
Montaj
Montaj aparent
Blocabil
Nu
Temperatura minima a mediului ambiant
-25 °C
Masa neta
0,09 kg/m
Thermal rated continuous current
125 A
Cuplu de strangere
3 Nm
Sectiune conexiune, monofilar
4-50 mm²
Temperatura de functionare
-25°C to +55°C
LxBxH mm
83x28x44
disipare
12,00 W
PREG
2200
Conexiune
##
Fuzibil max. protectie la scurtcircuit
125
Power loss per pole
12 W
Sectiune conexiune, fir flexibil cu pin
4-35 mm²
Active Power
3x240VAC - 40Hp;3x480VAC - 75Hp;3x600VAC - 100Hp
Curent termic conventional Ith
125 A
| Lungime | 83 mm |
| Latime | 28 mm |
| Inaltime | 44 mm |
| Greutate | 0.09 kg |
