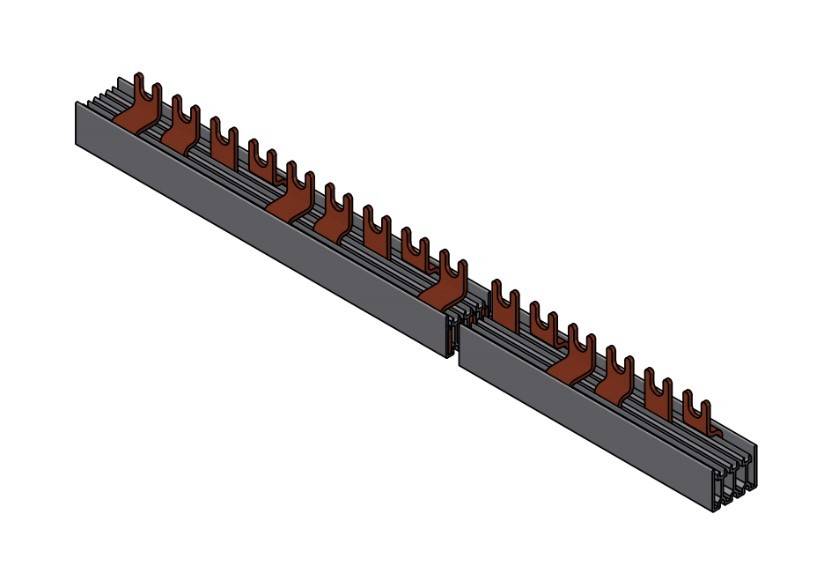

TYTAN T, Busbar C-version 16mm² / MW=17.8mm, 3+N, 1m
Cod produs: BS927146--
Marca: SCHRACK TECHNIK
Pret cu TVA: 367.39 Lei / buc.
|
|
|
|
Comanda instant - TYTAN T, Busbar C-version 16mm² / MW=17.8mm, 3+N, 1m
|
TYTAN T, Busbar C-version 16mm² / MW=17.8mm, 3+N, 1m
|
|
Specificatii Tehnice Masa cupru 1201,0000 gr. Max. current middle 130A Reactia la foc PV/ABS V-0 at 1,5mm according to UL94 Versiune bare Poli 4 Fara halogen Yes COD COMANDA BS927146 Temperatura maxima a mediului ambiant 70 °C Material izolatie PC/ABS(halogen-free) Tracking resistance CTI 600 Descriere de baza Bare Grad de poluare 2 grad de protectie IP20 Max. permissible back-up fuse against short circuit 100A gL A gG Masa neta 0,84 kg/m LxTxH mm 1050x16x32 Tinere la impuls de tensiune [Uimp] 4kV V Material E-Cu-ETP Min. air disdance ≤3,0mm Unitate de ambalare 1 m. Min. creepage distance ≤5,0mm Standard produs EN 61439-1 Max. current beginning 80A PREG 1610 Fabricant Schrack disipare 22,40 W Temperature resistance PVC up to 80°C; PC/ABS up to 90°C °C Temperatura minima a mediului ambiant -35 °C Accesorii bare Tensiunea nominala operationala 240/415 V PU 7 Sectiune 16 mm² Curent nominal de scurtcircuit conditionat ≤50kA Accesorii necesare BSA90118-- | Lungime | 15.8 mm | | Inaltime | 31.5 mm | | Greutate | 0.84 kg |
|
|
|
|
|
