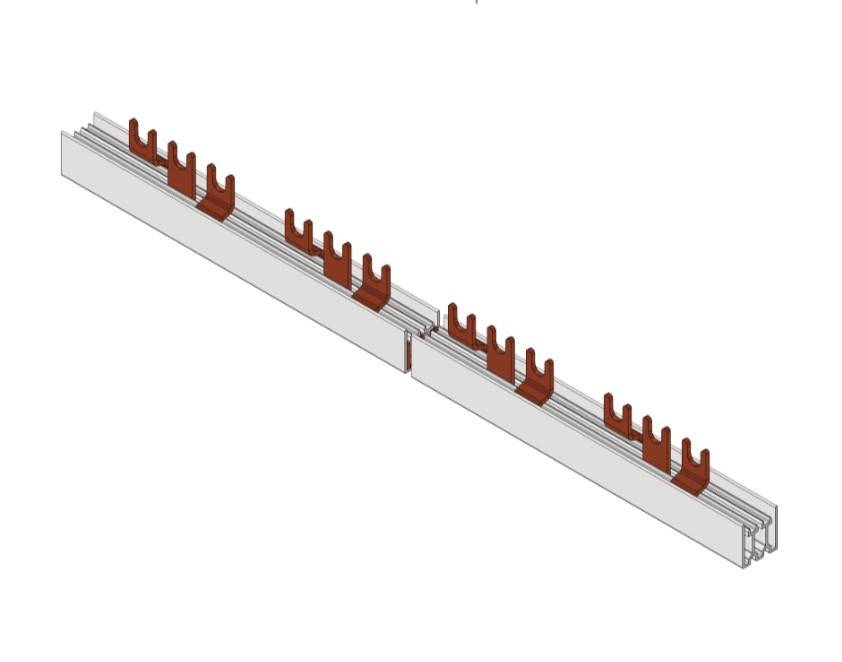

Bareta 3 poli furca 16 mm², pas de 17,8mm, 1m, pt TYTAN T
Cod produs: BS927145--
Marca: SCHRACK TECHNIK
Pret cu TVA: 335.94 Lei / buc.
|
|
|
|
Comanda instant - Bareta 3 poli furca 16 mm², pas de 17,8mm, 1m, pt TYTAN T
|
Bareta 3 poli furca 16 mm², pas de 17,8mm, 1m, pt TYTAN T
|
|
Specificatii Tehnice Max. current middle 130A Reactia la foc PV/ABS V-0 at 1,5mm according to UL94 COD COMANDA BS927145 Versiune bare Fara halogen Yes Temperatura maxima a mediului ambiant 70 °C Tensiune nominala 240/415VAC/DC Material izolatie PC/ABS(halogen-free) Tracking resistance CTI 600 Descriere de baza Bare Grad de poluare 2 grad de protectie IP20 Max. permissible back-up fuse against short circuit 100A gL A gG LxTxH mm 1050x16x32 Tinere la impuls de tensiune [Uimp] 4kV V Material E-Cu-ETP Min. air disdance ≤3,0mm Unitate de ambalare 1 m. Min. creepage distance ≤5,0mm Standard produs EN 61439-1 Accesorii necesare BSA90117-A PU 10 Max. current beginning 80A PREG 1610 Poli 3 Fabricant Schrack disipare 22,40 W Temperature resistance PVC up to 80°C; PC/ABS up to 90°C °C Temperatura minima a mediului ambiant -35 °C Categoria de supratensiune 3 Accesorii bare Tensiunea nominala operationala 240/415 V Masa neta 2,45 kg/m Masa cupru 1283,0000 gr. Sectiune 16 mm² Curent nominal de scurtcircuit conditionat ≤50kA | Lungime | 15.8 mm | | Inaltime | 31.5 mm | | Greutate | 2.45 kg |
|
|
|
|
|
