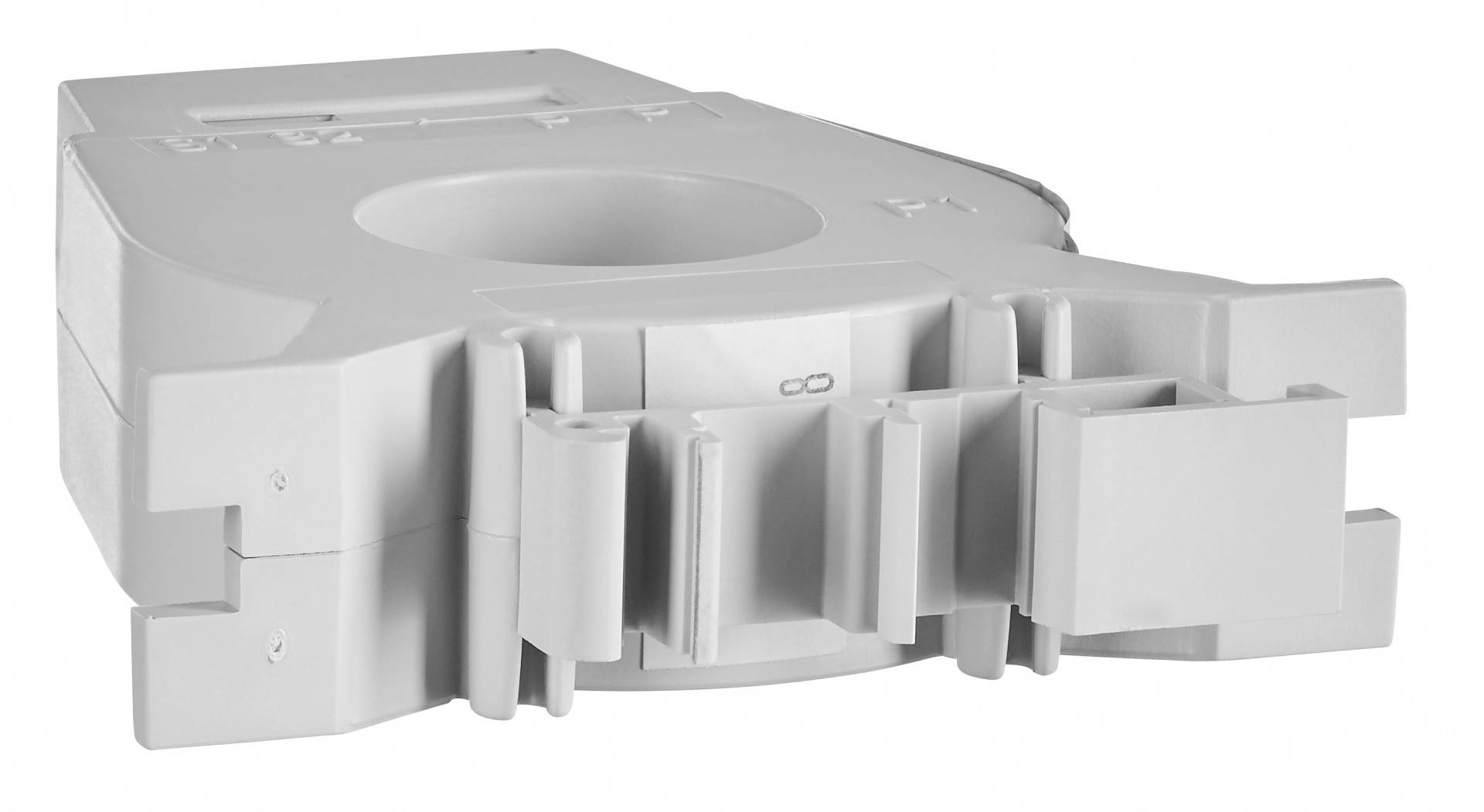

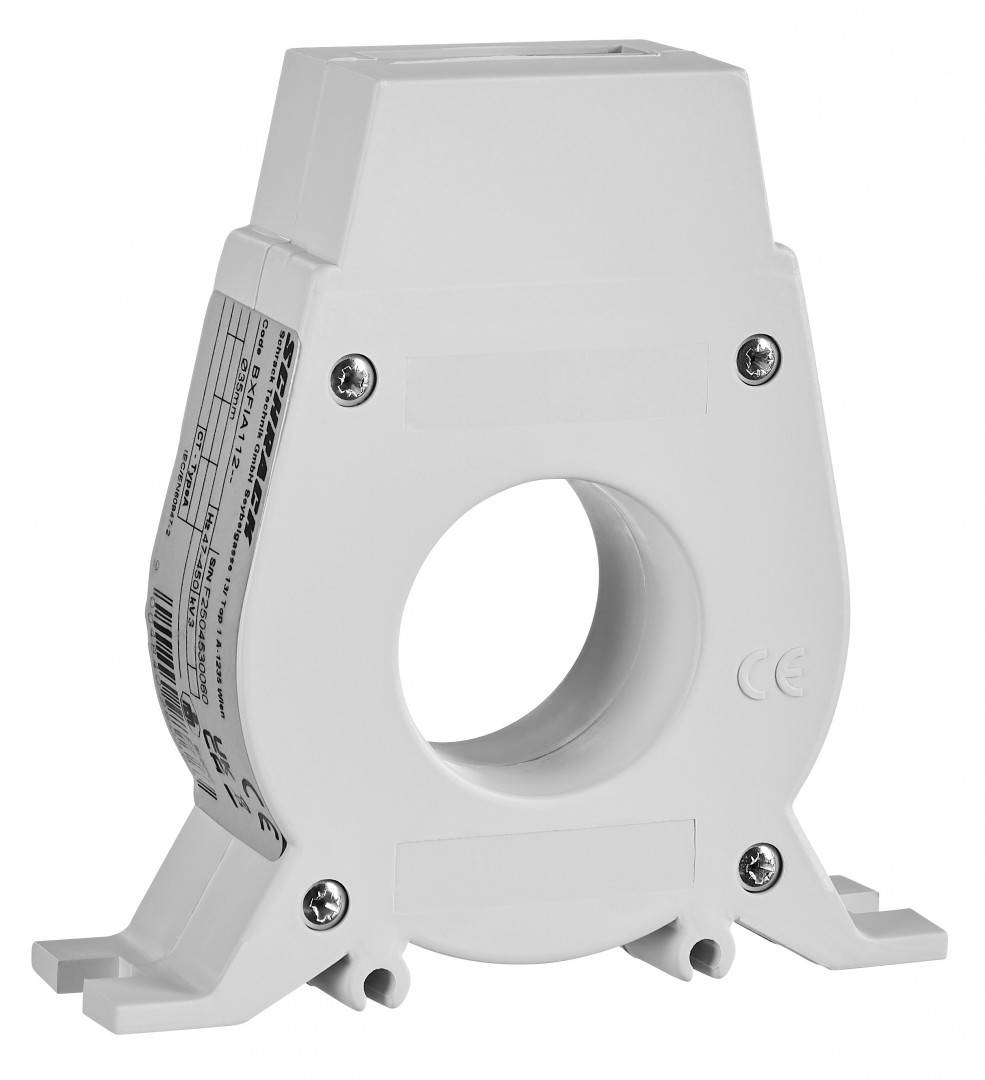

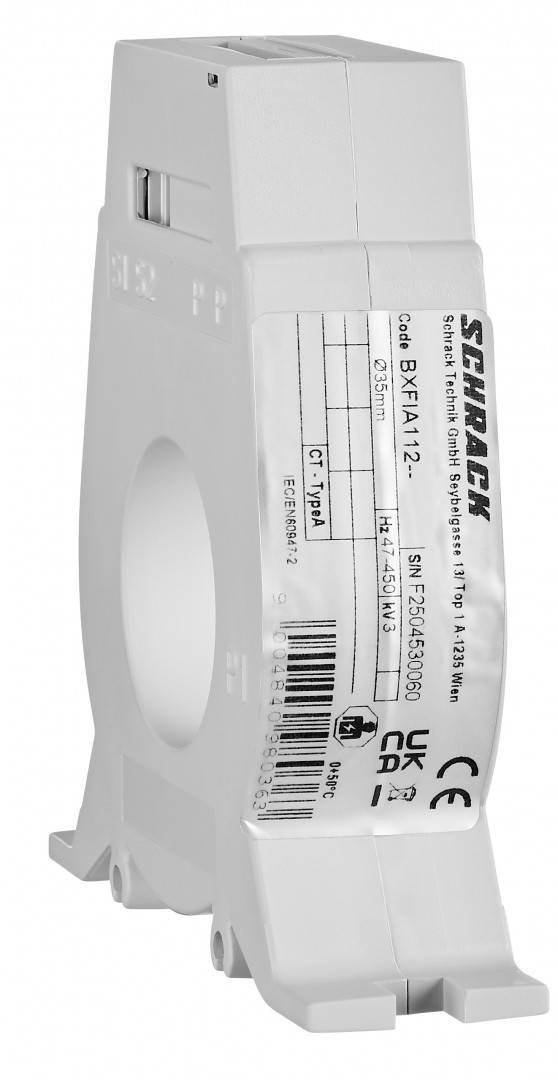

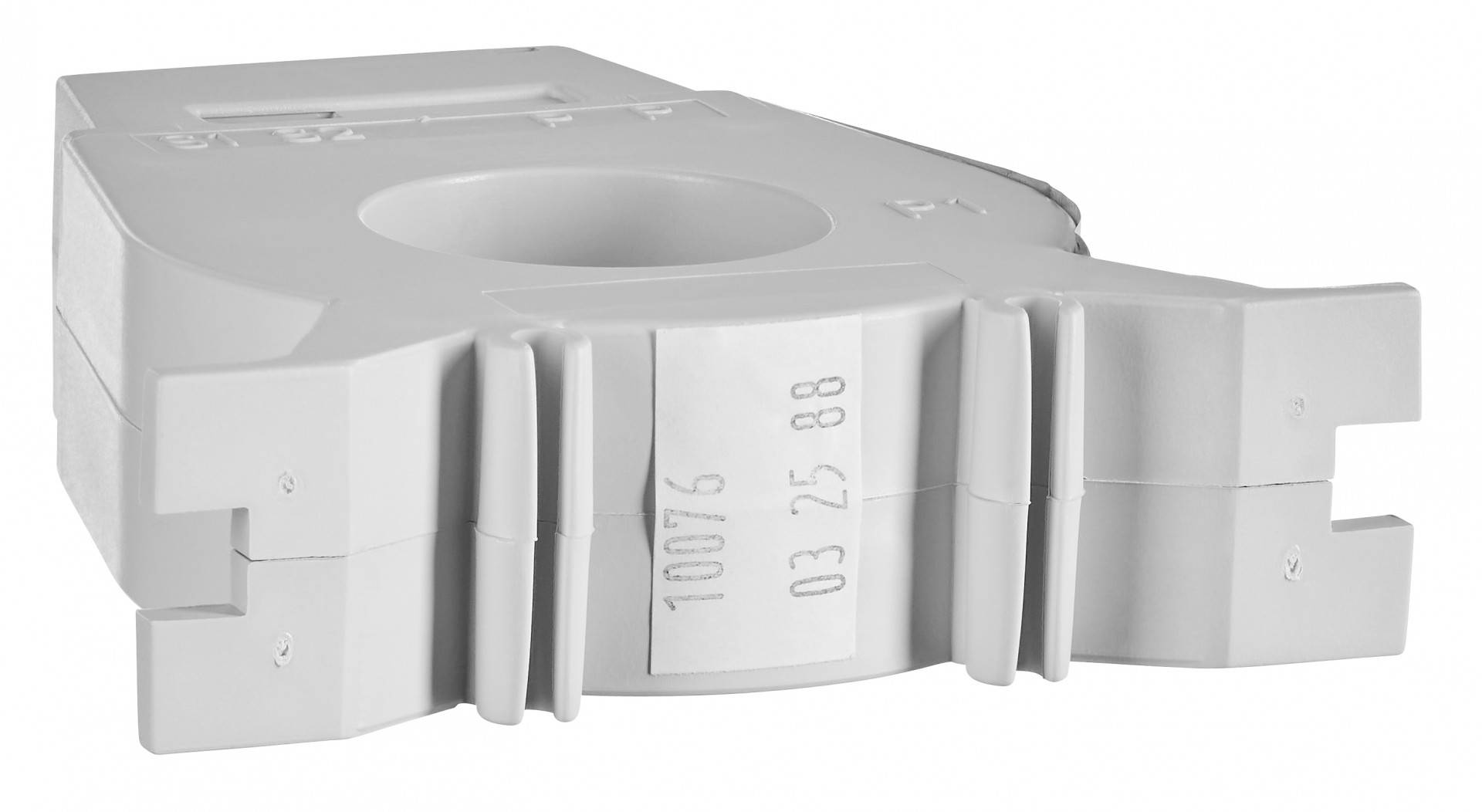

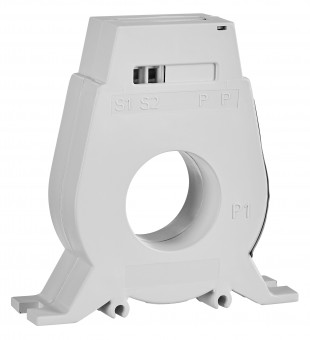

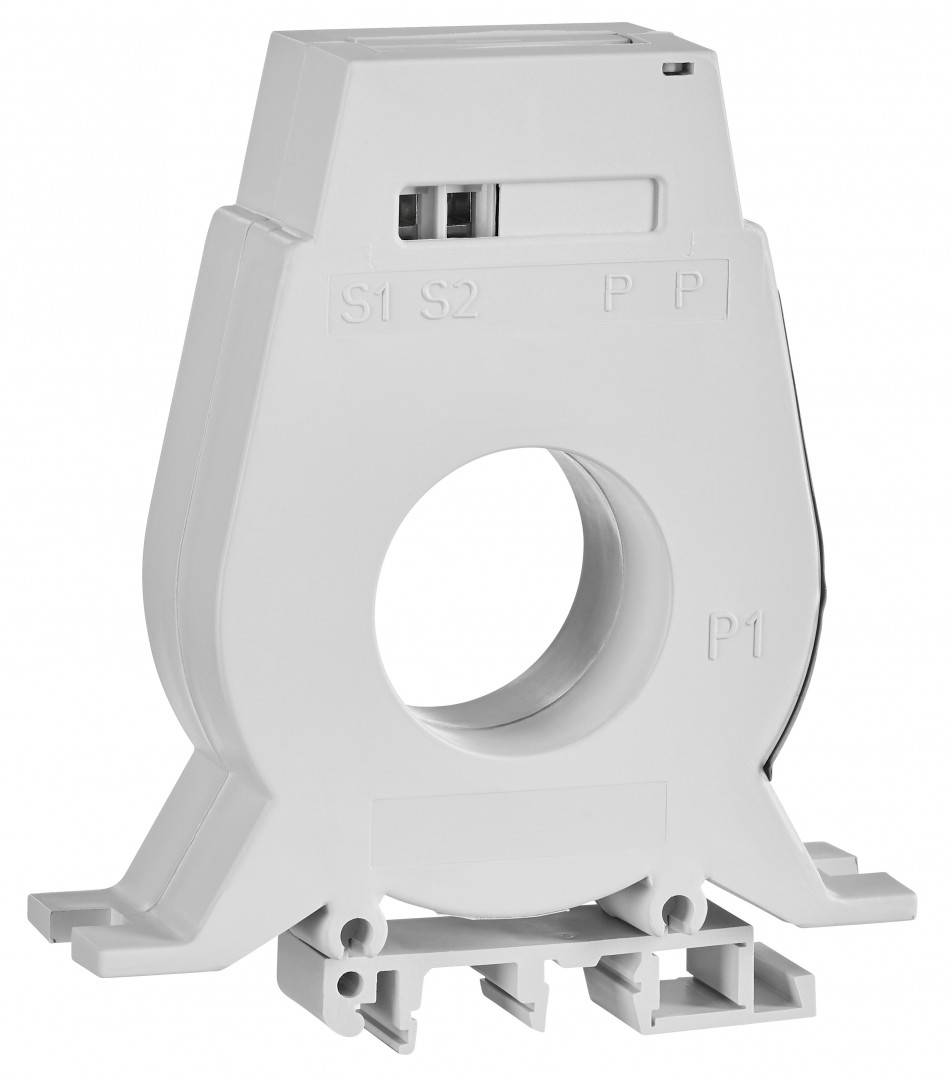

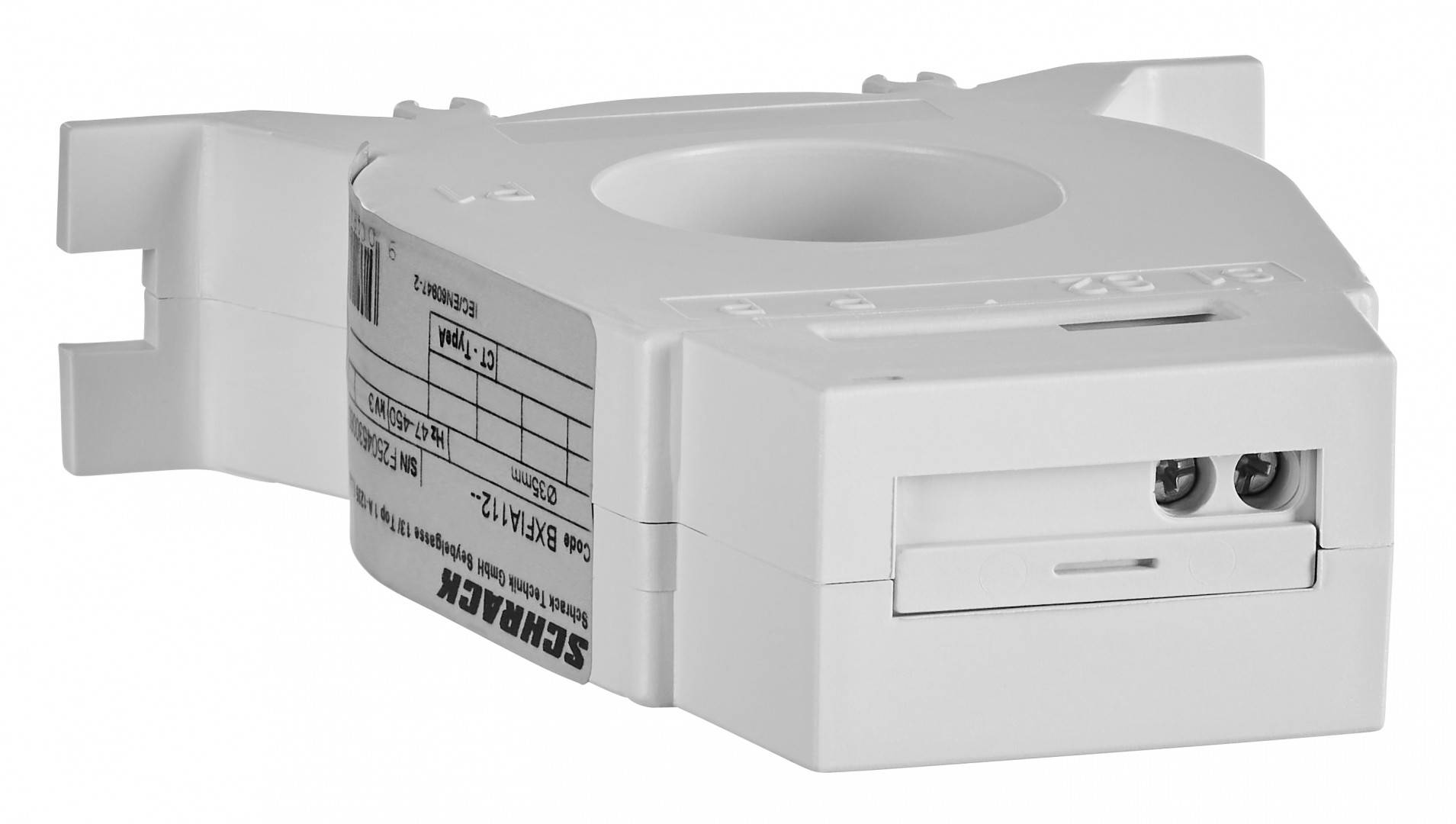

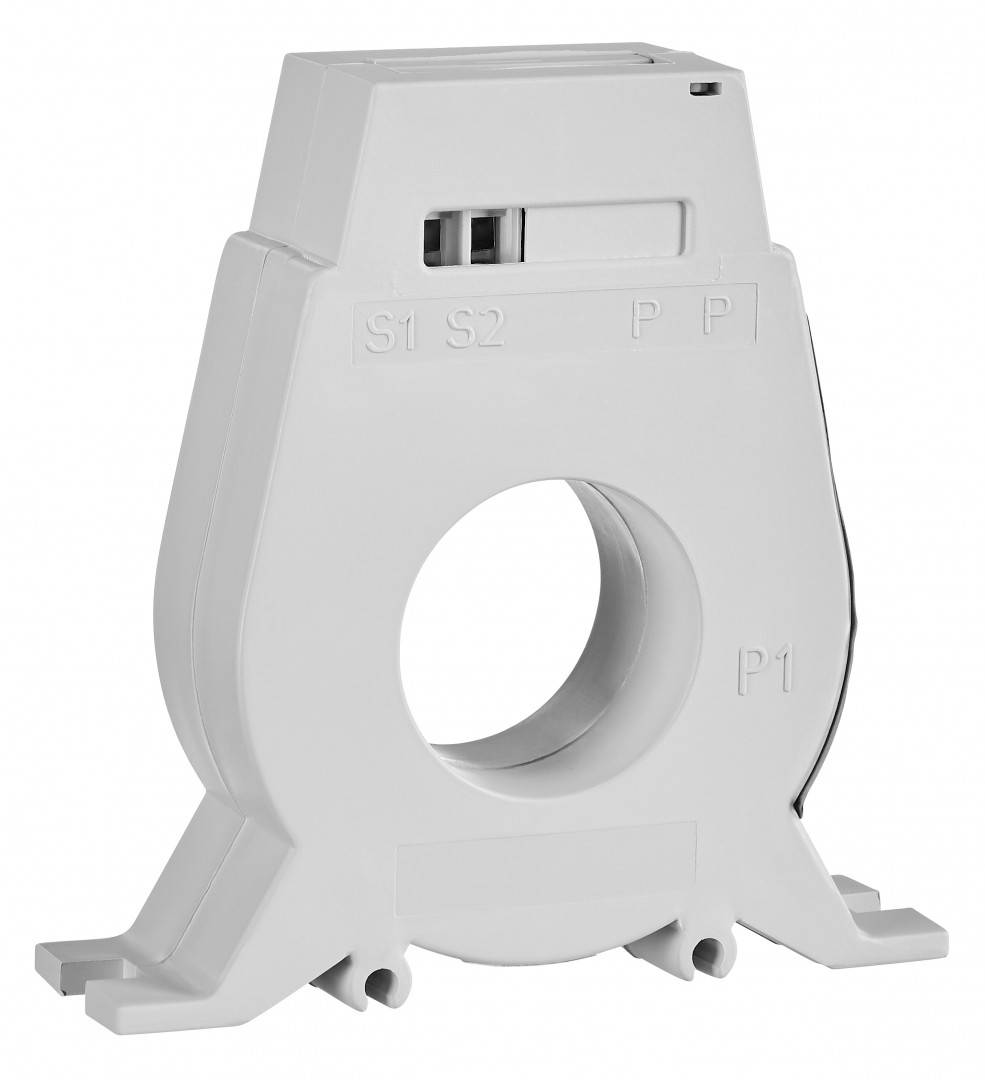

Transformator pentru releu diferential tip A, diametru 35mm
Cod produs: BXFIA112--
Marca: SCHRACK TECHNIK
Pret cu TVA: 280.25 Lei / buc.
|
|
|
|
|
|
Comanda instant - Transformator pentru releu diferential tip A, diametru 35mm
|
Transformator pentru releu diferential tip A, diametru 35mm
|
|
Specificatii Tehnice Diametru 35 mm Primary currents (A) max. 250 PREG 2500 Masa neta 0,17 kg/m Standard EN 60947-2 Material Self-extinguishing thermoplastic (UL 94-V0) Gama de temperatura - Functionare 0 bis +50 °C grad de protectie IP20 LxBxH mm 28x100x102 Temperatura maxima a mediului ambiant 50 °C Terminal type Screw terminal Technical data Minimum residual current: 0.03A (Value only applies if the cables are positioned exactly in the center of the transformer);Nominal frequency: 47 - 450Hz;Operating frequency: 25Hz - 10kHz, 1 min;Insulation test voltage: 2 kV R.M.S 50 Hz/1min;Installation category: CAT III 600V reinforced;Short-time overcurrent: 6x In (2 sec.) Unitate de ambalare 1 m. Temperatura minima a mediului ambiant -10 °C Accesorii optionale BXFIA101-- Accesorii necesare BXFIA100-- Gama de temperatura - Transport/Depozitare -20 la +70 °C disipare 0,05 W COD COMANDA BXFIA112 | Lungime | 28 mm | | Latime | 100 mm | | Inaltime | 102 mm | | Greutate | 0.17 kg |
|
|
|
|
|
