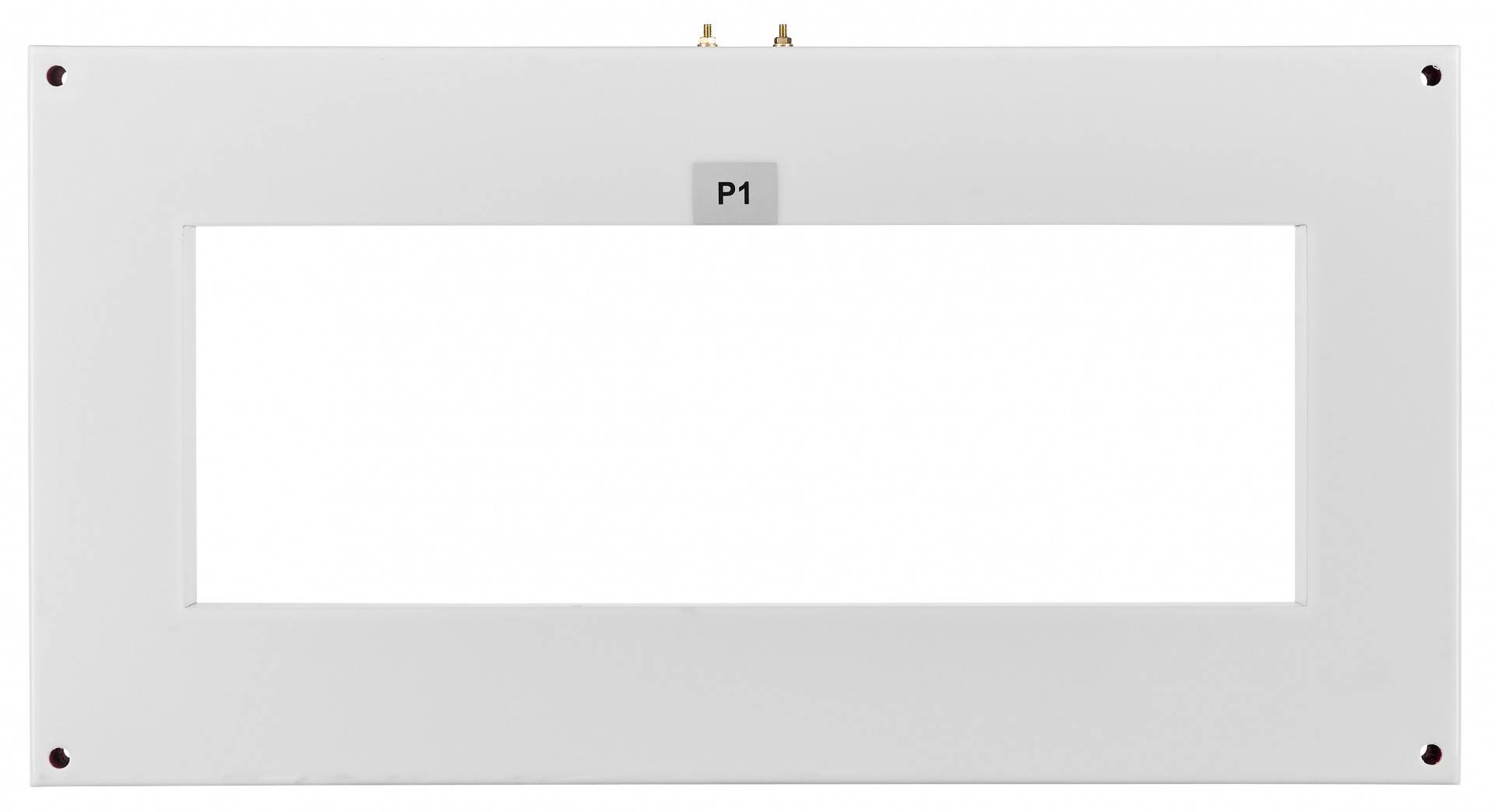

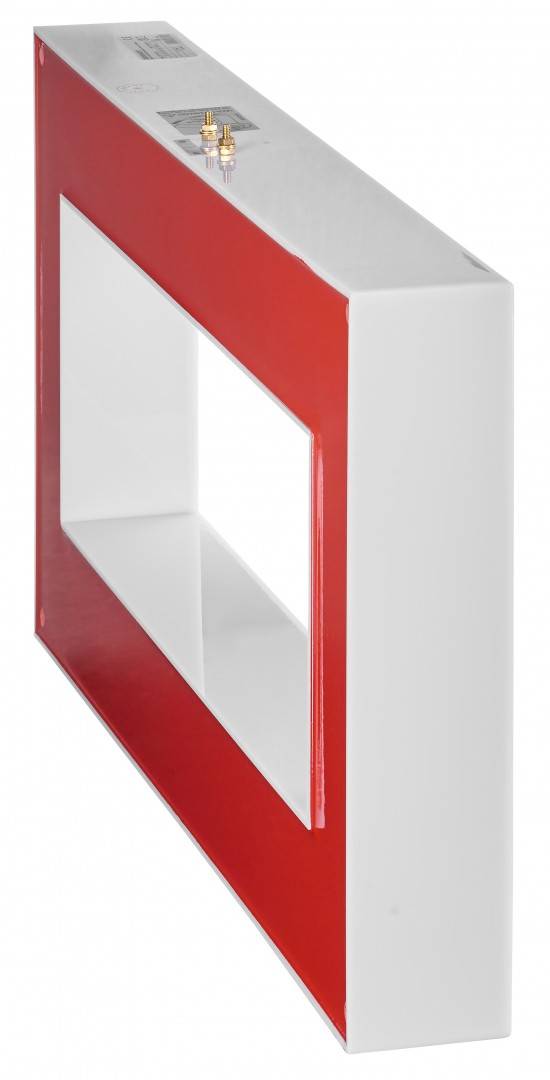

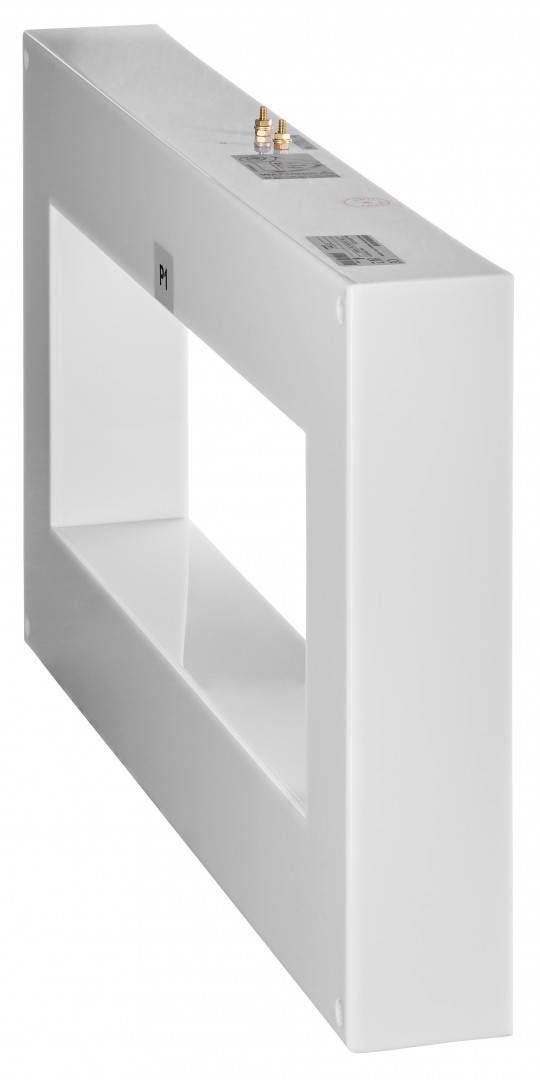

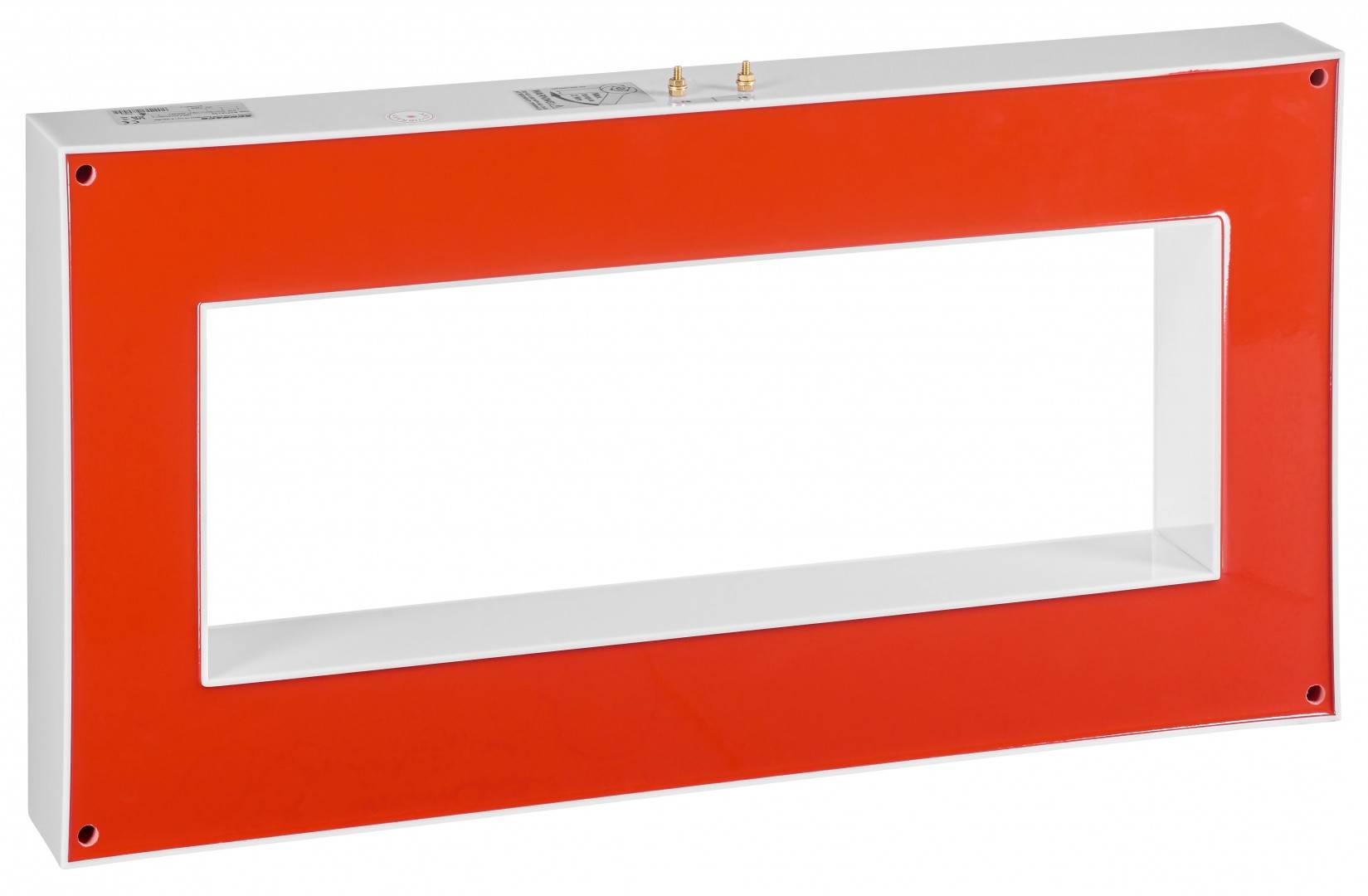

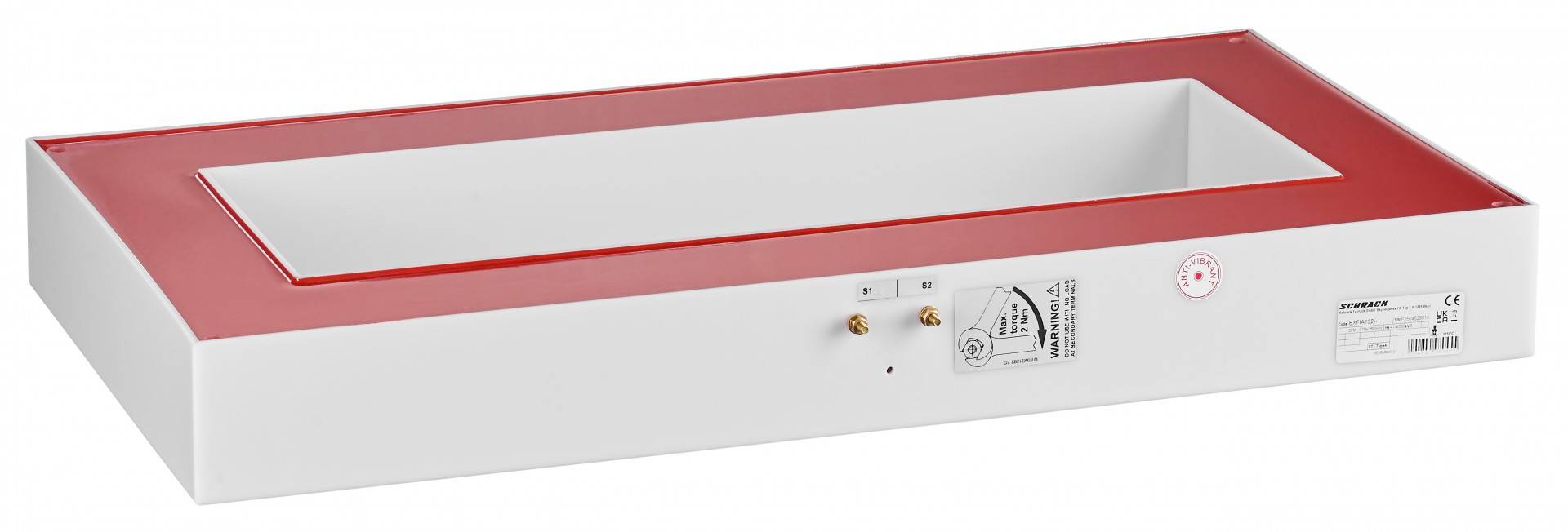

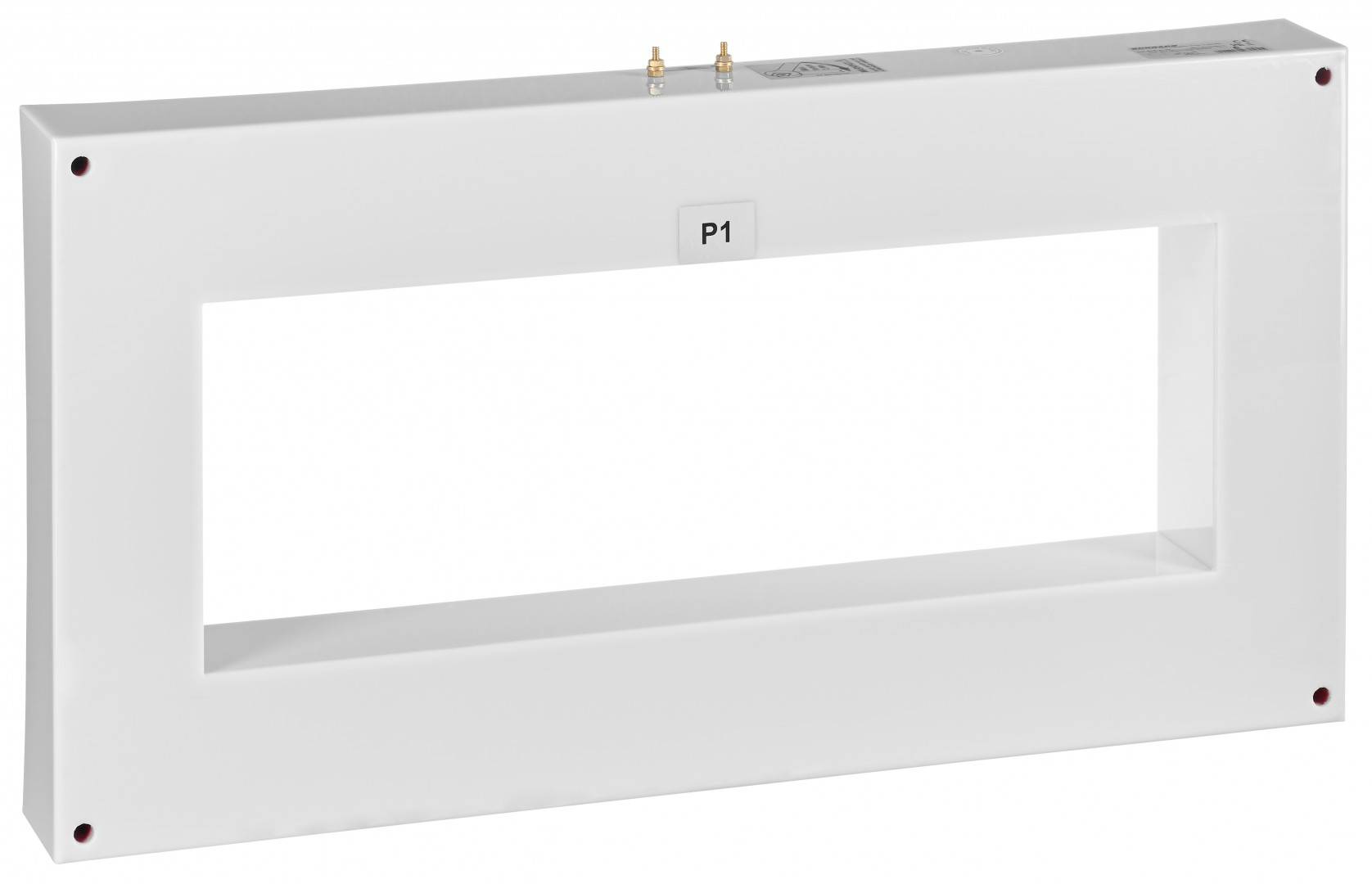

Transformator pentru releu diferential tip A, 470x160mm
Cod produs: BXFIA132--
Marca: SCHRACK TECHNIK
Pret cu TVA: 18807.39 Lei / buc.
|
|
|
|
|
|
Comanda instant - Transformator pentru releu diferential tip A, 470x160mm
|
Transformator pentru releu diferential tip A, 470x160mm
|
|
Specificatii Tehnice PREG 2500 Standard EN 60947-2 LxBxH mm 80x600x320 Technical data Minimum residual current: 1A (Value only applies if the cables are positioned exactly in the center of the transformer);Nominal frequency: 47 - 450Hz;Operating frequency: 25Hz - 10kHz, 1 min;Insulation test voltage: 2 kV R.M.S 50 Hz/1min;Installation category: CAT III 600V reinforced;Short-time overcurrent: 6x In (2 sec.) Primary currents (A) max. 3000 Material Self-extinguishing thermoplastic (UL 94-V0) Decupaj mm 470x160 mm Gama de temperatura - Functionare 0 bis +50 °C grad de protectie IP20 Temperatura maxima a mediului ambiant 50 °C Terminal type Screw terminal Masa neta 19,40 kg/m Unitate de ambalare 1 m. COD COMANDA BXFIA132 Temperatura minima a mediului ambiant -10 °C Accesorii optionale BXFIA101-- Accesorii necesare BXFIA100-- Gama de temperatura - Transport/Depozitare -20 la +70 °C disipare 0,05 W DECUPAJ mm 470x160 | Lungime | 80 mm | | Latime | 600 mm | | Inaltime | 320 mm | | Greutate | 19.4 kg |
|
|
|
|
|
