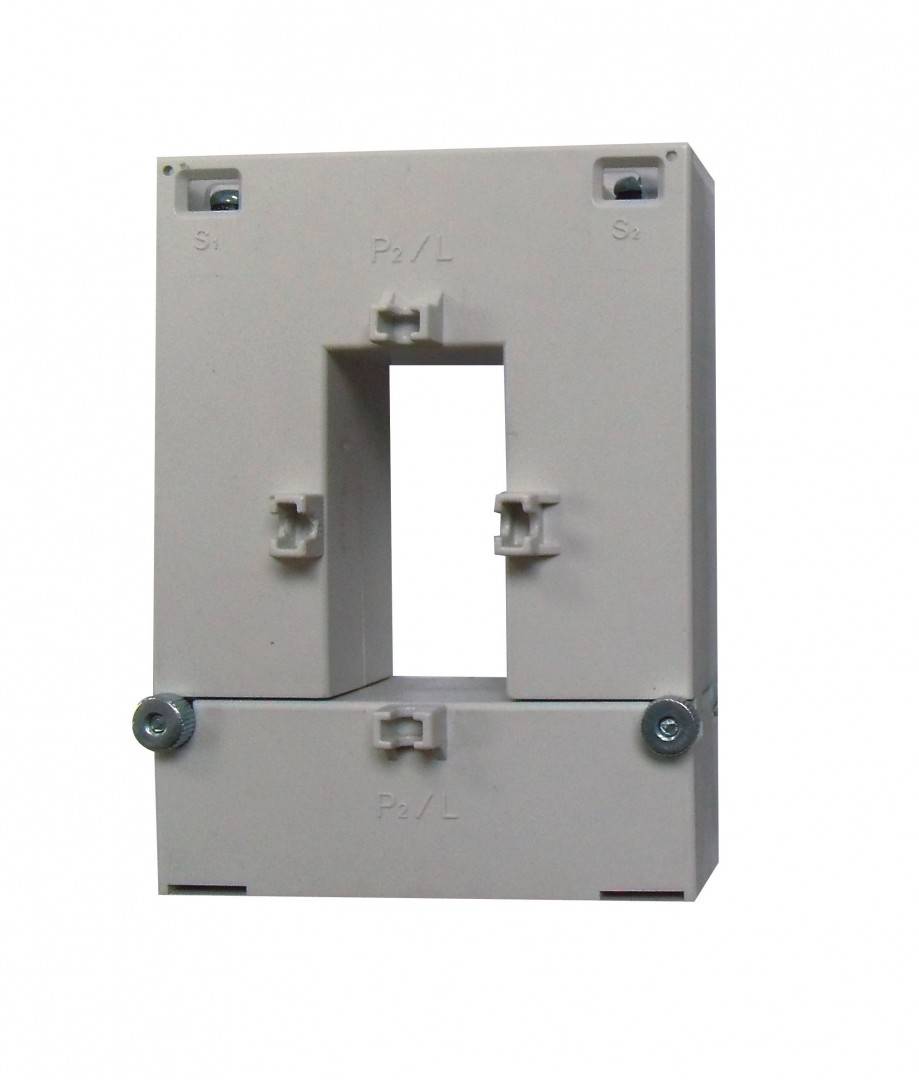

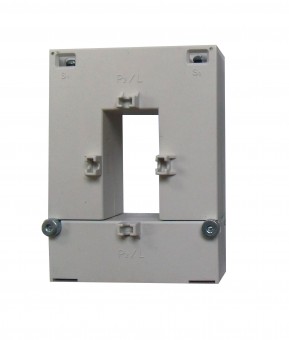

Transformator de curent demontabil 600/5A, 60x30mm
Cod produs: MG968600--
Marca: SCHRACK TECHNIK
Pret cu TVA: 684.21 Lei / buc.
|
|
|
|
Comanda instant - Transformator de curent demontabil 600/5A, 60x30mm
|
Transformator de curent demontabil 600/5A, 60x30mm
|
|
Specificatii Tehnice Carcasa ## Bare colectoare maxim 60x30 Nota Simple installation of a current transformer in an existing low-voltage system COD COMANDA MG968600 Terminale externe CAD 1 Accesorii optionale MGX20006--;MGX20306--;MGX20406-- Intended use for cables up to diameter 30mm;for copper bars up to 60 x 30mm COD PROMO 5987-0069-85 Clasa de precizie ## Rated frequency 50-60 Hz Rated current primary side Ipr 600 A Descriere electrica CAD 600/5A Short-time current Ith < 60Ipr DESCRIERE2 Transformator de curent demontabil 600/5A, 60x30 mm Numar articol Hlief MG968600-- Tip Transformatoare cu miez demontabil Clasa 0,5 Diametru maxim conductor 30 mm Temperatura maxima a mediului ambiant 55 °C Unitate de ambalare 1 m. Thermal class A Max. Operating voltage Um 0.72kV r.m.s. HxBxT mm 34x100x136 Masa neta 0,90 kg/m Curent primar 600 A Fabricant Schrack Metoda de montaj Montaj cu surub Temperatura minima a mediului ambiant -25 °C Materialul carcasei Plastic, cu autostingere Insulation requirements ## Isolation test voltage 3 kV R.M.S. 50 Hz/1min PROMO CODE CH 5987-0115-56 Simbol CAD P Safety factor ≤ 5 LxIxA mm 100x34x136 Curent nominal dinamic Idyn 2,5Ith PROMO CODE GER INDUSTRY 5987-00062-67 Rated current secondary side Isr 5A disipare 8,50 W Ardere Class 0.5 (5VA);Class 1 (7.5VA);Class 3 (20VA) PREG 2330 | Lungime | 136 mm | | Latime | 100 mm | | Inaltime | 34 mm | | Greutate | 0.9 kg |
|
|
|
|
|
