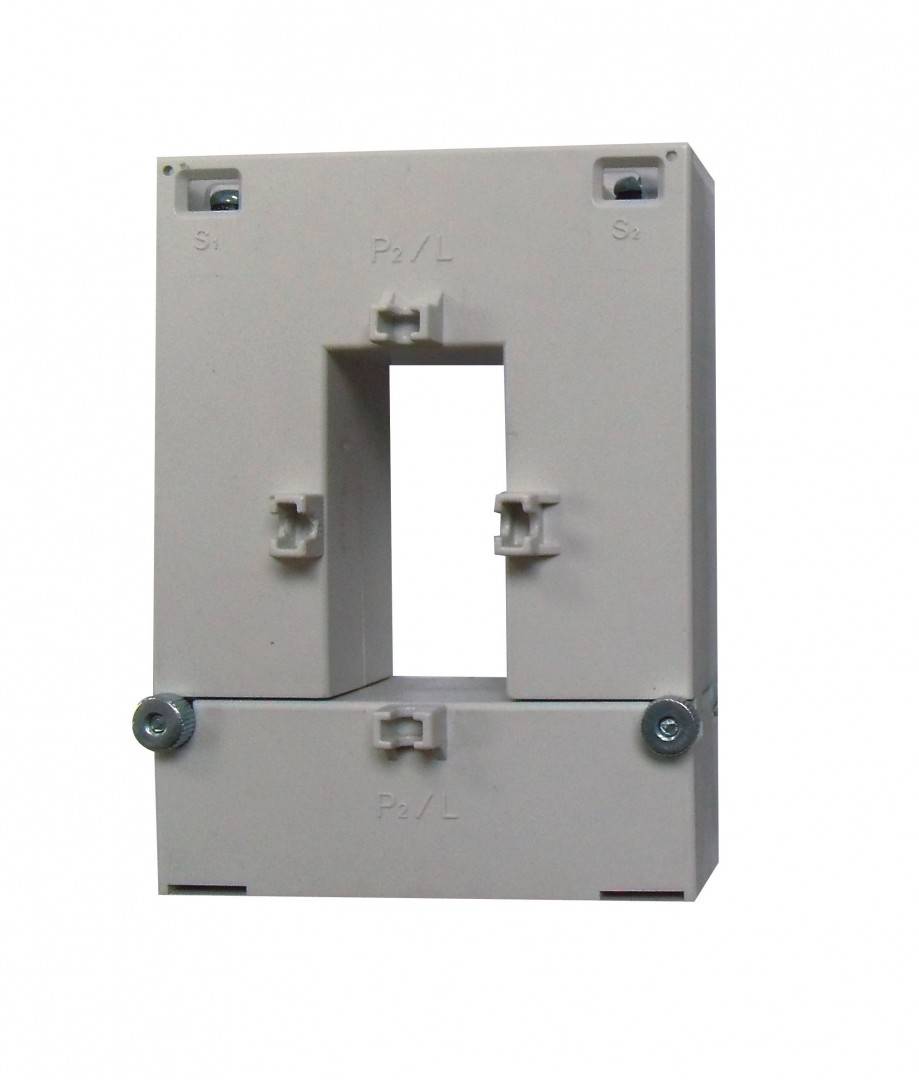

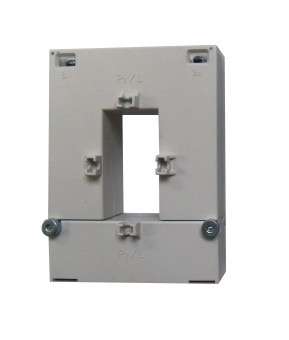

Transformator de curent demontabil 250/5A, 30x20mm
Cod produs: MG967250--
Marca: SCHRACK TECHNIK
Pret cu TVA: 630.33 Lei / buc.
|
|
|
|
Comanda instant - Transformator de curent demontabil 250/5A, 30x20mm
|
Transformator de curent demontabil 250/5A, 30x20mm
|
|
Specificatii Tehnice Curent nominal dinamic Idyn 2,5Ith Rated current secondary side Isr 5A Clasa 1 PREG 2330 DESCRIERE2 Transformator de curent demontabil 250/5A, 30x20 mm Carcasa ## HxBxT mm 34x90x106 disipare 6,00 W Curent primar 250 A COD PROMO 5963-0064-35 Nota Simple installation of a current transformer in an existing low-voltage system Terminale externe CAD 1 Numar articol Hlief MG967250-- Bare colectoare maxim 30x20 Accesorii optionale MGX20006--;MGX20306--;MGX20406-- Clasa de precizie ## Diametru maxim conductor 20 mm Rated frequency 50-60 Hz Rated current primary side Ipr 250 A Short-time current Ith < 60Ipr Ardere Class 1 (3.75VA);Class 3 (5VA) Tip Transformatoare cu miez demontabil Temperatura maxima a mediului ambiant 55 °C Unitate de ambalare 1 m. Thermal class A Max. Operating voltage Um 0.72kV r.m.s. COD COMANDA MG967250 Fabricant Schrack Metoda de montaj Montaj cu surub Descriere electrica CAD 250/5A Masa neta 0,70 kg/m Temperatura minima a mediului ambiant -25 °C Materialul carcasei Plastic, cu autostingere Insulation requirements ## Intended use for cables up to diameter 20mm;for copper bars up to 30 x 20mm Isolation test voltage 3 kV R.M.S. 50 Hz/1min Simbol CAD P Safety factor ≤ 5 PROMO CODE CH 5963-0106-44 PROMO CODE GER INDUSTRY 5963-00057-73 LxIxA mm 90x34x106 | Lungime | 106 mm | | Latime | 90 mm | | Inaltime | 34 mm | | Greutate | 0.7 kg |
|
|
|
|
|
