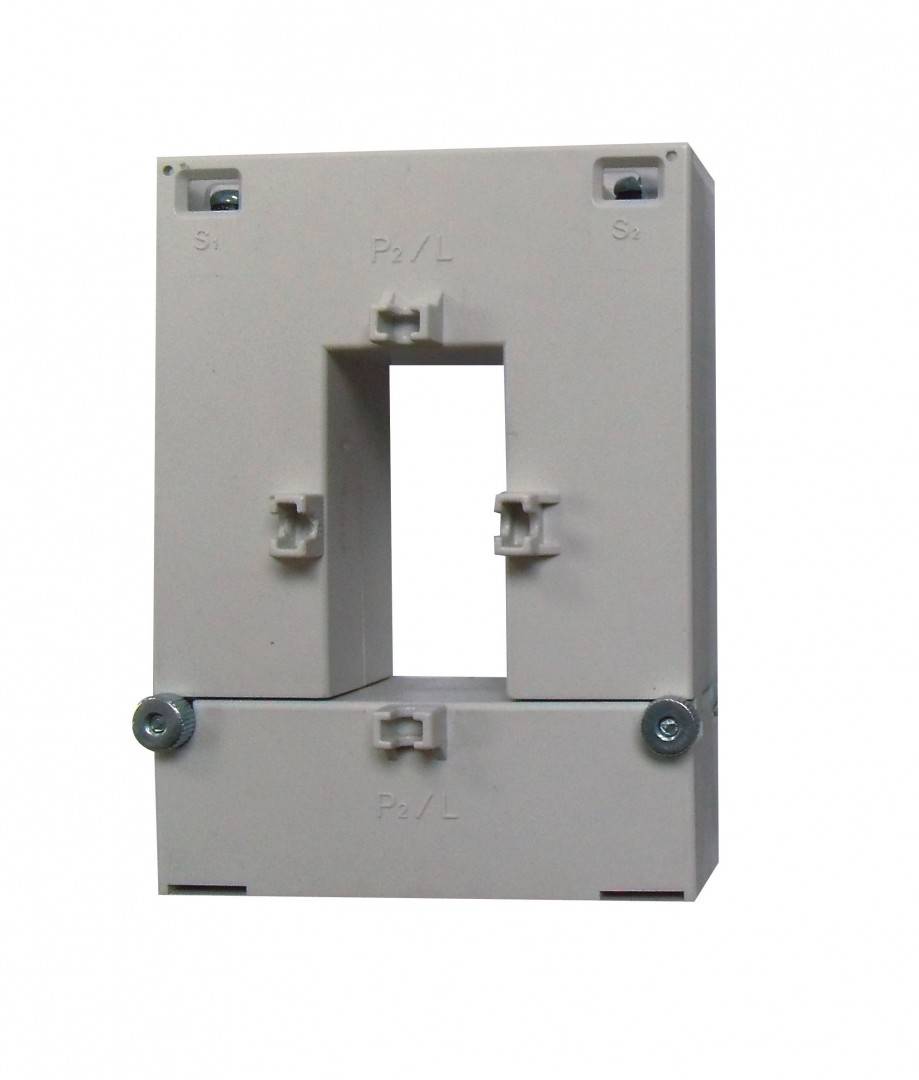

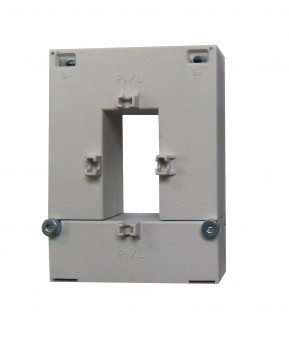

Transformator de curent demontabil 150/5A, 30x20mm
Cod produs: MG967150--
Marca: SCHRACK TECHNIK
Pret cu TVA: 630.33 Lei / buc.
|
|
|
|
Comanda instant - Transformator de curent demontabil 150/5A, 30x20mm
|
Transformator de curent demontabil 150/5A, 30x20mm
|
|
Specificatii Tehnice PREG 2330 Descriere electrica CAD 150/5A Carcasa ## HxBxT mm 34x90x106 disipare 6,00 W Nota Simple installation of a current transformer in an existing low-voltage system Terminale externe CAD 1 Bare colectoare maxim 30x20 Accesorii optionale MGX20006--;MGX20306--;MGX20406-- Ardere Class 3 (3.75VA) Clasa de precizie ## Diametru maxim conductor 20 mm Rated frequency 50-60 Hz PROMO CODE CH 5956-0106-44 COD PROMO 5956-0064-35 Short-time current Ith < 60Ipr COD COMANDA MG967150 Tip Transformatoare cu miez demontabil Temperatura maxima a mediului ambiant 55 °C Unitate de ambalare 1 m. Thermal class A Max. Operating voltage Um 0.72kV r.m.s. Rated current primary side Ipr 150 A Fabricant Schrack Metoda de montaj Montaj cu surub DESCRIERE2 Transformator de curent demontabil 150/5A, 30x20 mm Masa neta 0,70 kg/m Temperatura minima a mediului ambiant -25 °C Materialul carcasei Plastic, cu autostingere Insulation requirements ## Numar articol Hlief MG967150-- Intended use for cables up to diameter 20mm;for copper bars up to 30 x 20mm Isolation test voltage 3 kV R.M.S. 50 Hz/1min Clasa 3 Simbol CAD P Safety factor ≤ 5 PROMO CODE GER INDUSTRY 5956-00057-73 LxIxA mm 90x34x106 Curent primar 150 A Curent nominal dinamic Idyn 2,5Ith Rated current secondary side Isr 5A | Lungime | 106 mm | | Latime | 90 mm | | Inaltime | 34 mm | | Greutate | 0.7 kg |
|
|
|
|
|
