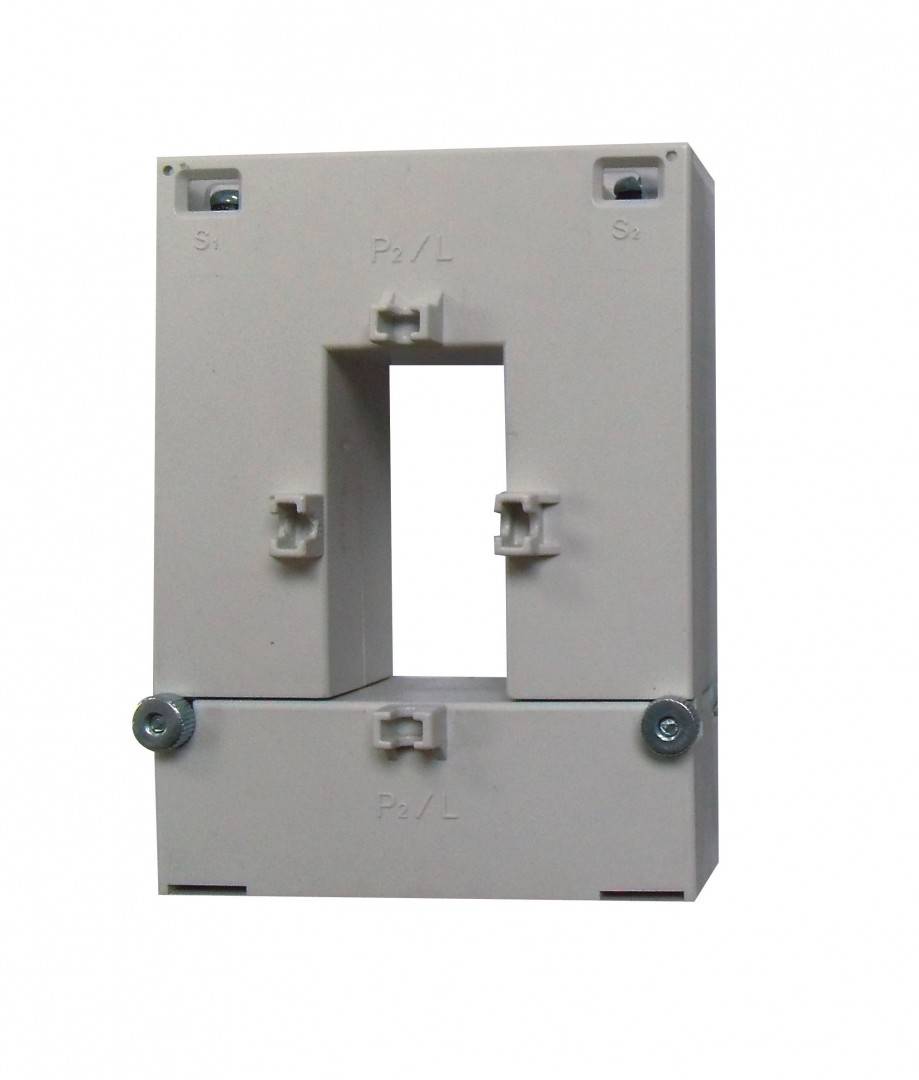

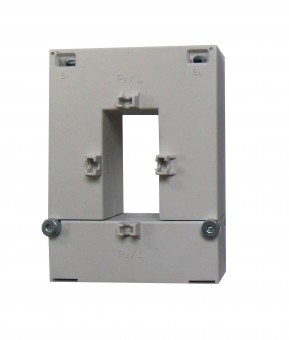

Transformator de curent demontabil 100/5A, 30x20mm
Cod produs: MG967100--
Marca: SCHRACK TECHNIK
Pret cu TVA: 630.33 Lei / buc.
|
|
|
|
Comanda instant - Transformator de curent demontabil 100/5A, 30x20mm
|
Transformator de curent demontabil 100/5A, 30x20mm
|
|
Specificatii Tehnice PREG 2330 Carcasa ## HxBxT mm 34x90x106 disipare 6,00 W Nota Simple installation of a current transformer in an existing low-voltage system Terminale externe CAD 1 Ardere Class 3 (3VA) Bare colectoare maxim 30x20 Accesorii optionale MGX20006--;MGX20306--;MGX20406-- Clasa de precizie ## Diametru maxim conductor 20 mm Rated frequency 50-60 Hz COD PROMO 5949-0064-35 Short-time current Ith < 60Ipr Tip Transformatoare cu miez demontabil COD COMANDA MG967100 Temperatura maxima a mediului ambiant 55 °C Unitate de ambalare 1 m. Thermal class A Max. Operating voltage Um 0.72kV r.m.s. Fabricant Schrack Metoda de montaj Montaj cu surub PROMO CODE CH 5949-0106-44 Descriere electrica CAD 100/5A Masa neta 0,70 kg/m Temperatura minima a mediului ambiant -25 °C Materialul carcasei Plastic, cu autostingere Insulation requirements ## PROMO CODE GER INDUSTRY 5949-00057-73 Numar articol Hlief MG967100-- Intended use for cables up to diameter 20mm;for copper bars up to 30 x 20mm Isolation test voltage 3 kV R.M.S. 50 Hz/1min Clasa 3 Simbol CAD P Safety factor ≤ 5 Curent primar 100 A DESCRIERE2 Transformator de curent demontabil 100/5A, 30x20 mm LxIxA mm 90x34x106 Rated current primary side Ipr 100 A Curent nominal dinamic Idyn 2,5Ith Rated current secondary side Isr 5A | Lungime | 106 mm | | Latime | 90 mm | | Inaltime | 34 mm | | Greutate | 0.7 kg |
|
|
|
|
|
