Specificatii Tehnice
disipare
23,00 W
COD PROMO
6948-0059-51
PREG
2330
Carcasa
##
Ardere
Class 0.5 (30VA);Class 1 (50VA);Class 3 (60VA)
Winding secondary side
Screw terminals M4
LxIxA mm
125x87x160
HxBxT mm
87x125x160
Terminale externe CAD
1
Rated current primary side Ipr
4000 A
Accesorii optionale
MGX20006--;MGX20306--;MGX20406--
Clasa de precizie
##
Standard produs
EN 61869-2;BS3938;BS7626
DECUPAJ mm
125x50
Intended use
for copper bars up to 125 x 50mm
PU
3
Masa neta
1,30 kg/m
Clasa
0,5
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
Materialul carcasei
Policarbonat, cu autostingere;Clasa V0 conform cu UL-94
Bare colectoare maxim
125x50
Decupaj mm
125x50 mm
Fabricant
Schrack
Nota
The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side.
Temperatura minima a mediului ambiant
-25 °C
Descriere electrica CAD

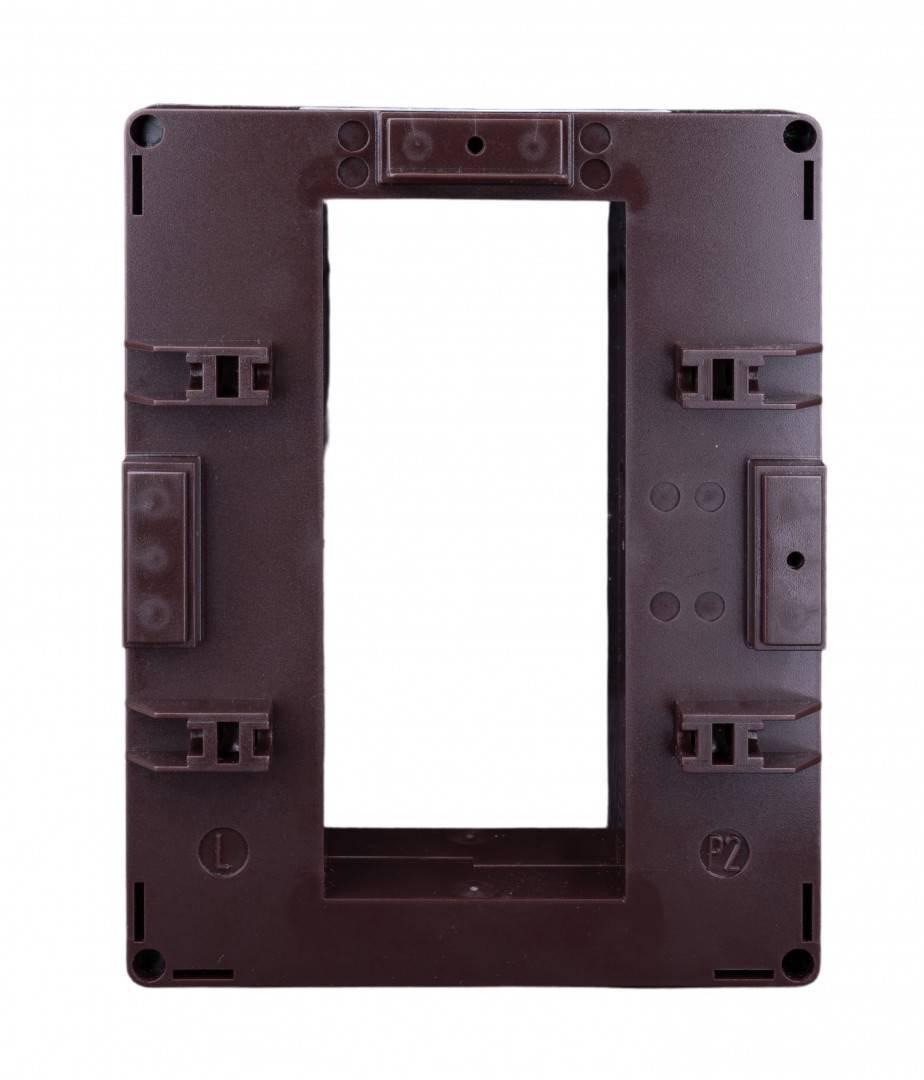

4000/5A, 125x50mm
grad de protectie
IP00 terminals;IP20 with terminal cover
Simbol CAD
P
PROMO CODE CH
6948-0098-88
PROMO CODE GER INDUSTRY
6948-00070-26
Masa g
1300
COD COMANDA
MG959400-A
Rated frequency
50 Hz
Specifications
##
Montaj
by fixing screws on the busbar
Tip
Prin transformator de curent
Conexiune
##
Curent primar
4000 A
Rated current secondary side Isr
5A
| Lungime | 160 mm |
| Latime | 125 mm |
| Inaltime | 87 mm |
| Greutate | 1.3 kg |
