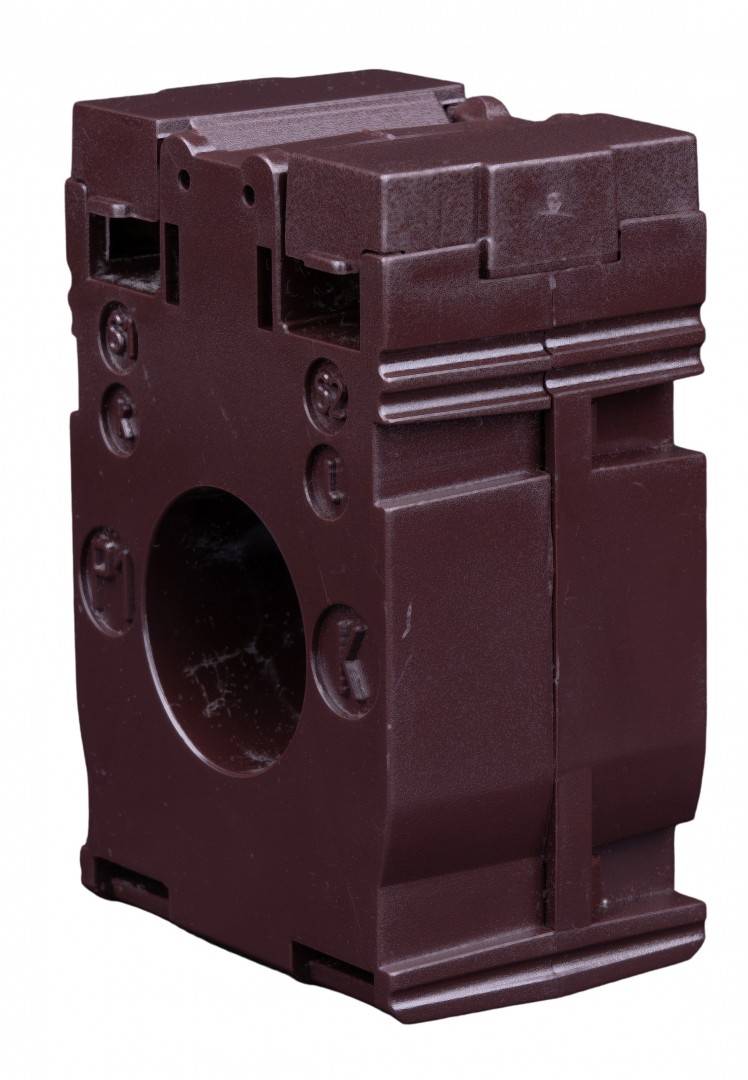

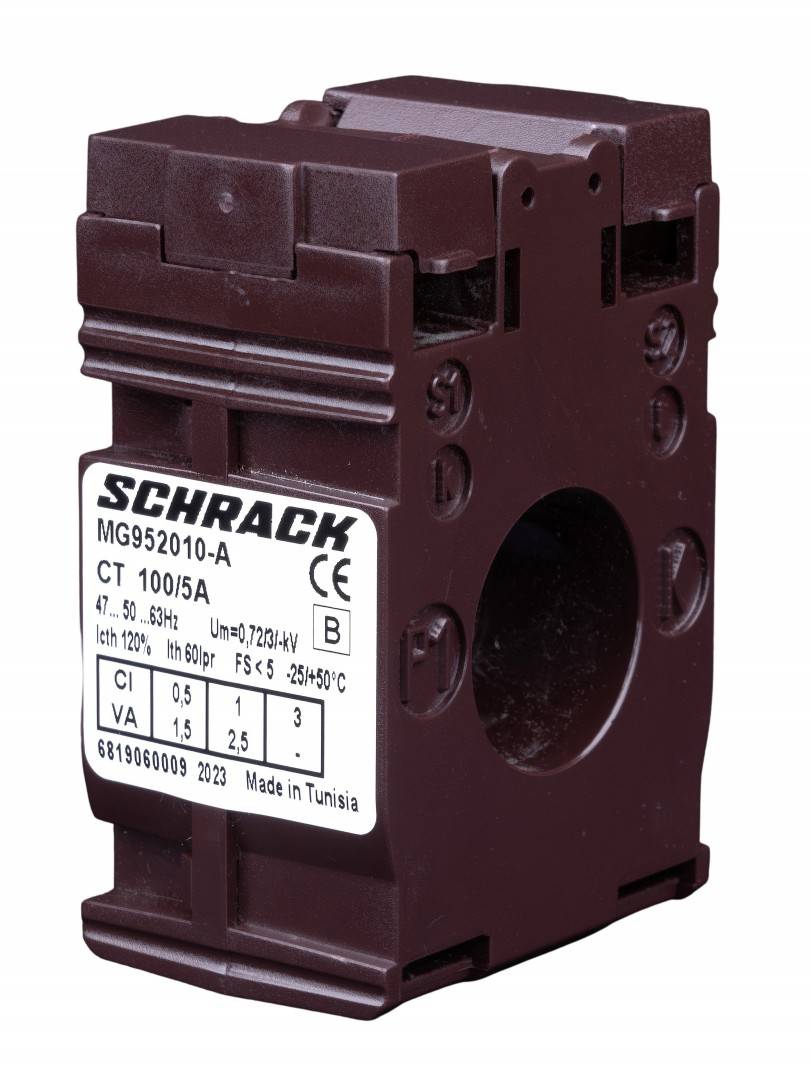

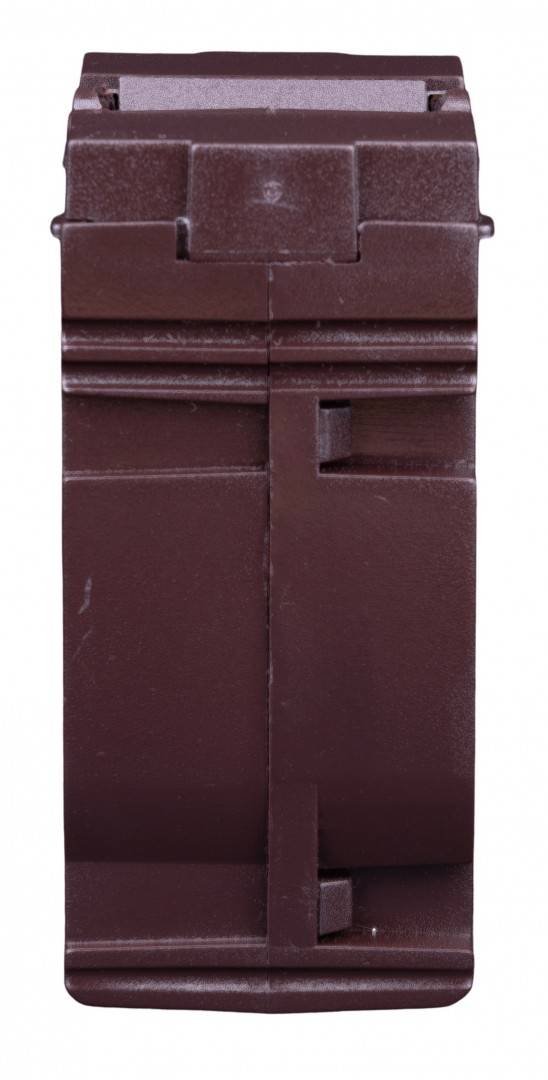

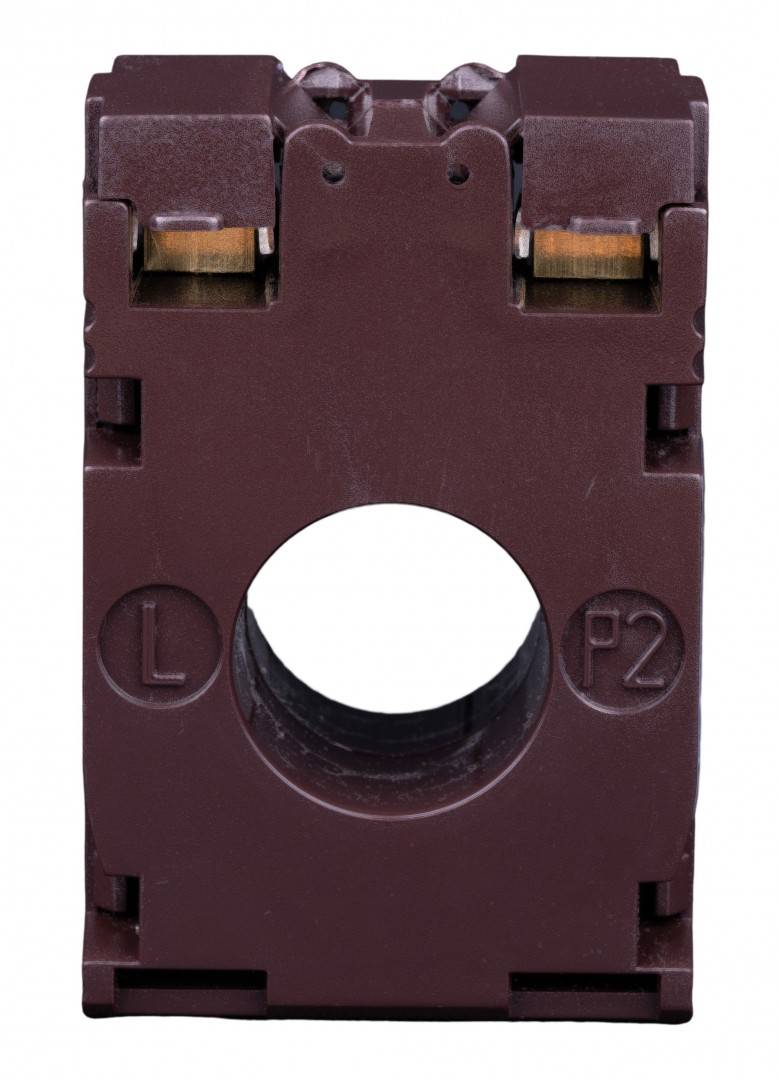

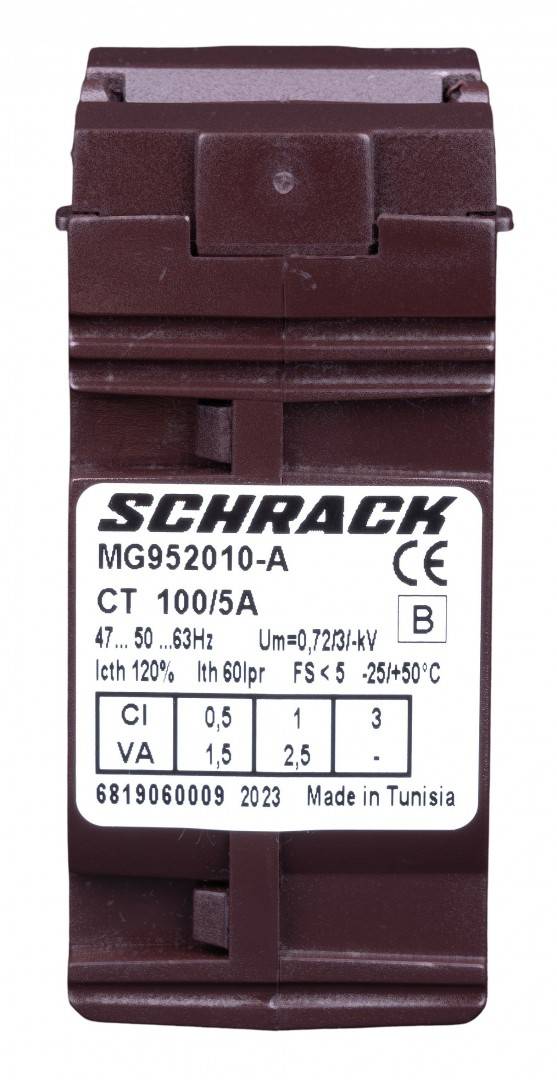

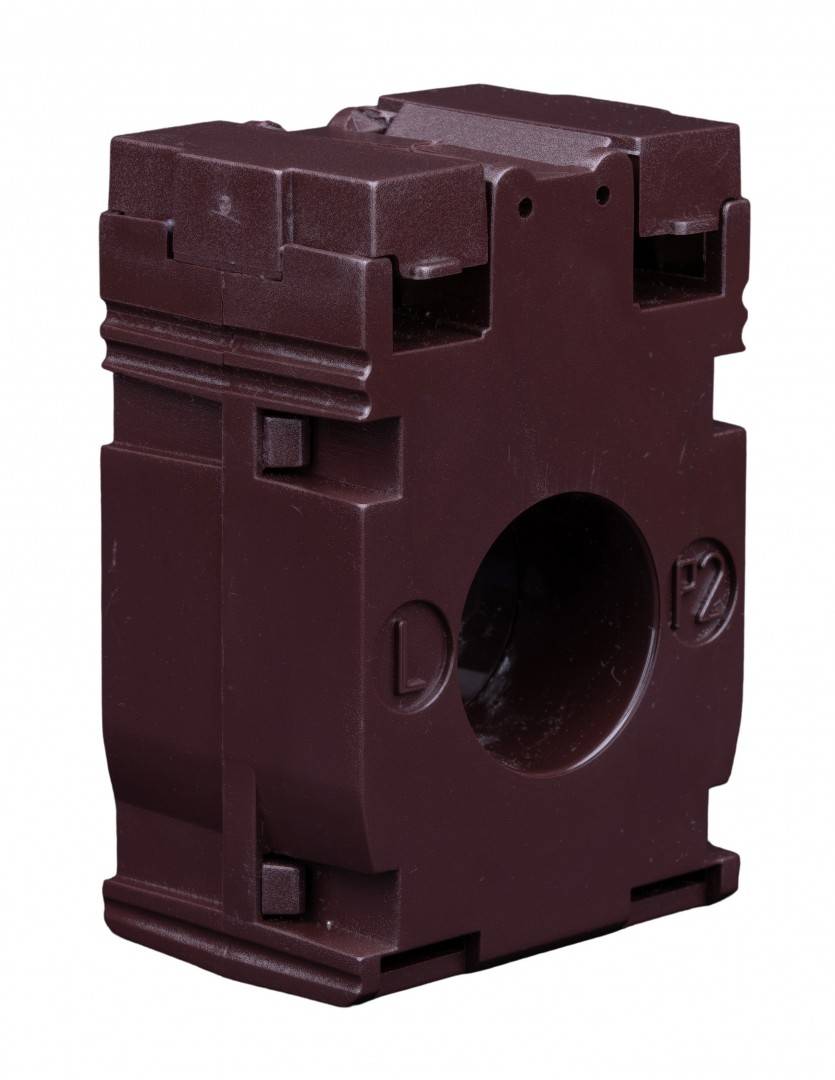

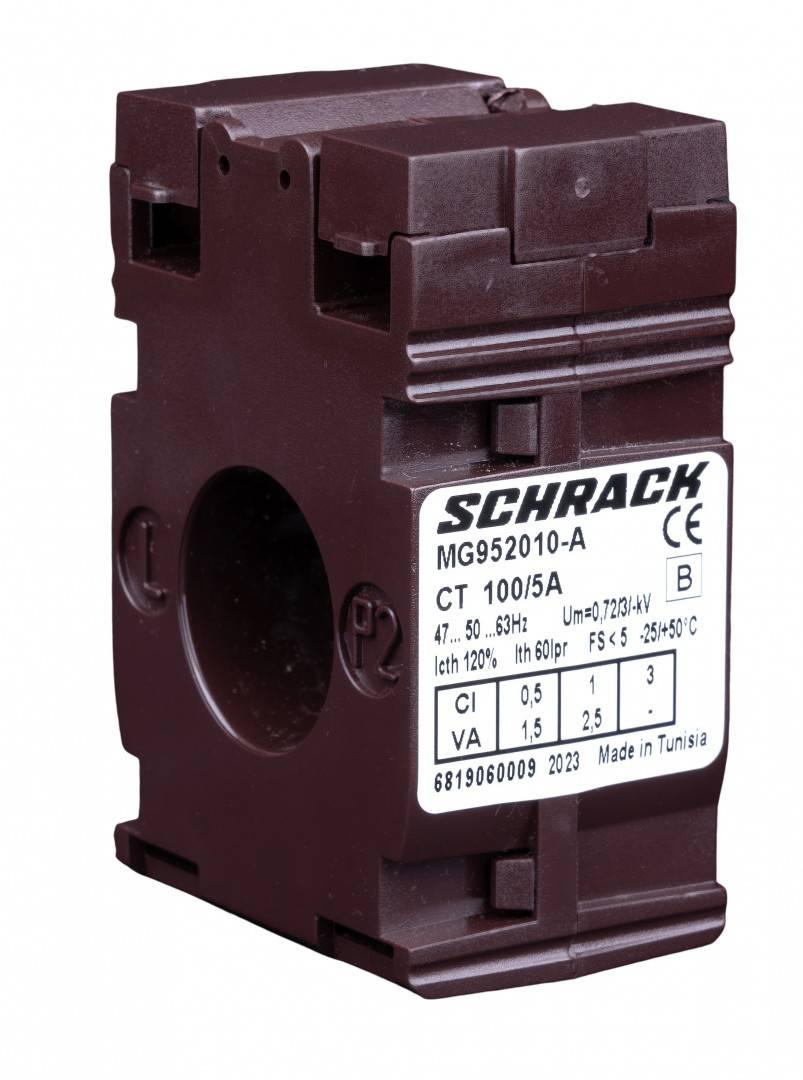

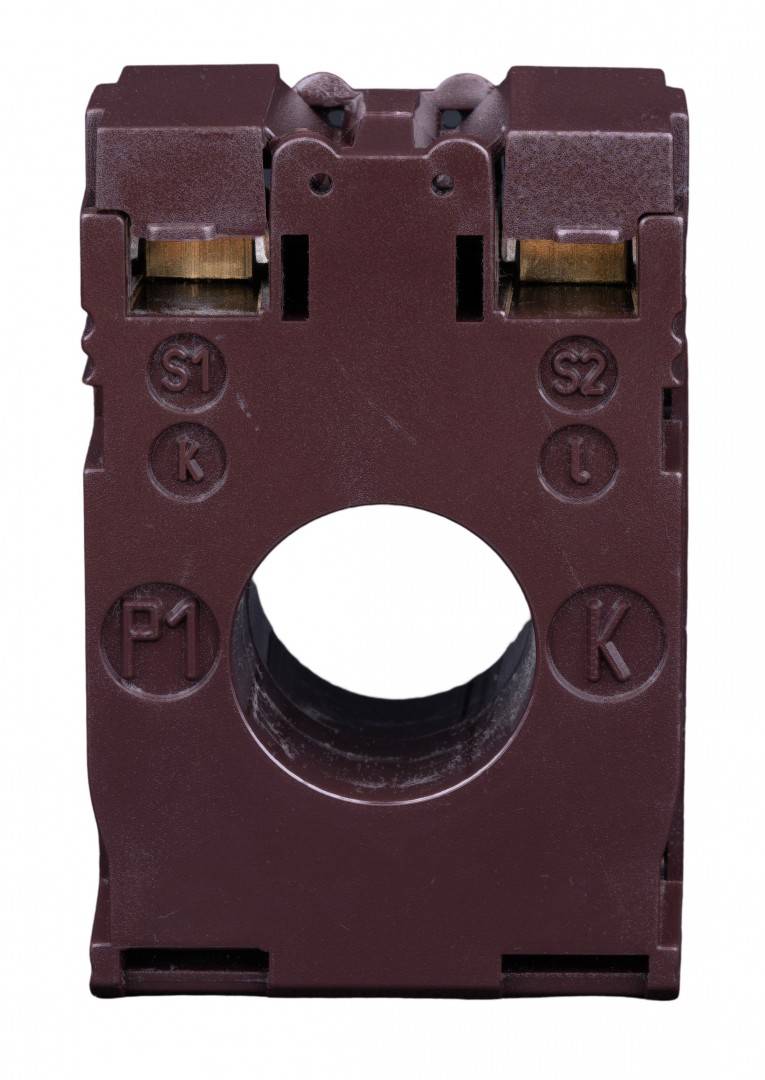

Transformator de curent 100/5A, D=21mm, clasa 0,5
Cod produs: MG952010-A
Marca: SCHRACK TECHNIK
Pret cu TVA: 70.83 Lei / buc.
|
|
|
|
|
|
Comanda instant - Transformator de curent 100/5A, D=21mm, clasa 0,5
|
Transformator de curent 100/5A, D=21mm, clasa 0,5
|
|
Specificatii Tehnice Carcasa ## Decupaj mm Ø25 mm DECUPAJ mm Ø25 Temperatura maxima a mediului ambiant 60 °C Masa g 180 Diametru maxim conductor 21 mm Accesorii optionale MGX20006--;MGX20306--;MGX20406-- Clasa de precizie ## Masa neta 0,18 kg/m Standard produs EN 61869-2;BS3938;BS7626 COD PROMO 7112-0008-55 grad de protectie IP20 Ardere Class 0.5 (1.5VA);Class 1 (2.5VA) Clasa 0,5 Unitate de ambalare 1 m. Winding secondary side max. 2 separate wires 2,5mm²;Screw terminals Intended use for cables up to diameter 21mm COD COMANDA MG952010-A Materialul carcasei Policarbonat, cu autostingere;Clasa V0 conform cu UL-94 Fabricant Schrack Nota The converter is not allowed to be operated with open secondary side, because this leads to a dangerous overvoltage at the secondary side and overheating of the converter!!! (EN60044-1/A2);Therefore, when disconnecting the measuring device, meter or power analyzer, short-circuit the secondary side. PROMO CODE CH 7112-0014-13 disipare 3,00 W PROMO CODE GER INDUSTRY 7112-00007-26 Descriere electrica CAD 100/5A Temperatura minima a mediului ambiant -25 °C Simbol CAD P Tip Transformator de curent pentru cabluri Curent primar 100 A Specifications ## Rated current primary side Ipr 100 A LxBxH mm 30x44x65 Conexiune ## Rated current secondary side Isr 5A PREG 2330 | Lungime | 30 mm | | Latime | 44 mm | | Inaltime | 65 mm | | Greutate | 0.18 kg |
|
|
|
|
|
