Specificatii Tehnice
Gama de temperatura - Functionare
-15 to +50 °C
Standard produs
EN 61869-2
Nota
Due to dangerous overvoltage and overheating, the Current Transformator is not allowed to be operated with open secondary Side. (EN 60044-1 /A2) As soon as the Measurement Device, the Energy Counter or the Net Analyzer is disconnected, the secondary Side has to be shortcutted!
Specifications
##
Isolation
Class B (EN60044-1);Class E (EN60044-1)
Materialul carcasei
Policarbonat, cu autostingere
Conexiune
##
DECUPAJ mm
24x24
Curent nominal dinamic Idyn
2,5Ith
Intended use
for cables up to diameter 24mm
COD COMANDA
MG922020
Rated current secondary side Isr
5A
Eroare curent de sarcina
Pentru clasa 1 si 5% In: ±3%;Pentru clasa 1 si 20% In: ±1.5%;Pentru clasa 1 si 100% In: ±1%;Pentru clasa 1 si 120% In: ±1%;Pentru clasa 1 si 150% In: ±1%
Versiune
Dry type transformer, air insulation
Clasa
1
Reference temperature
23°C ±1°C °C
PREG
2330
Carcasa
##
Decupaj mm
24x24 mm
LxBxH mm
35x46x65
Clasa de precizie
##
Thermal rated continuous current according to EN60044-1
##
Metoda de montaj
Prin pini
Categorie produs
Normal installation (DIN EN 61869-2)
grad de protectie
IP20
Tip

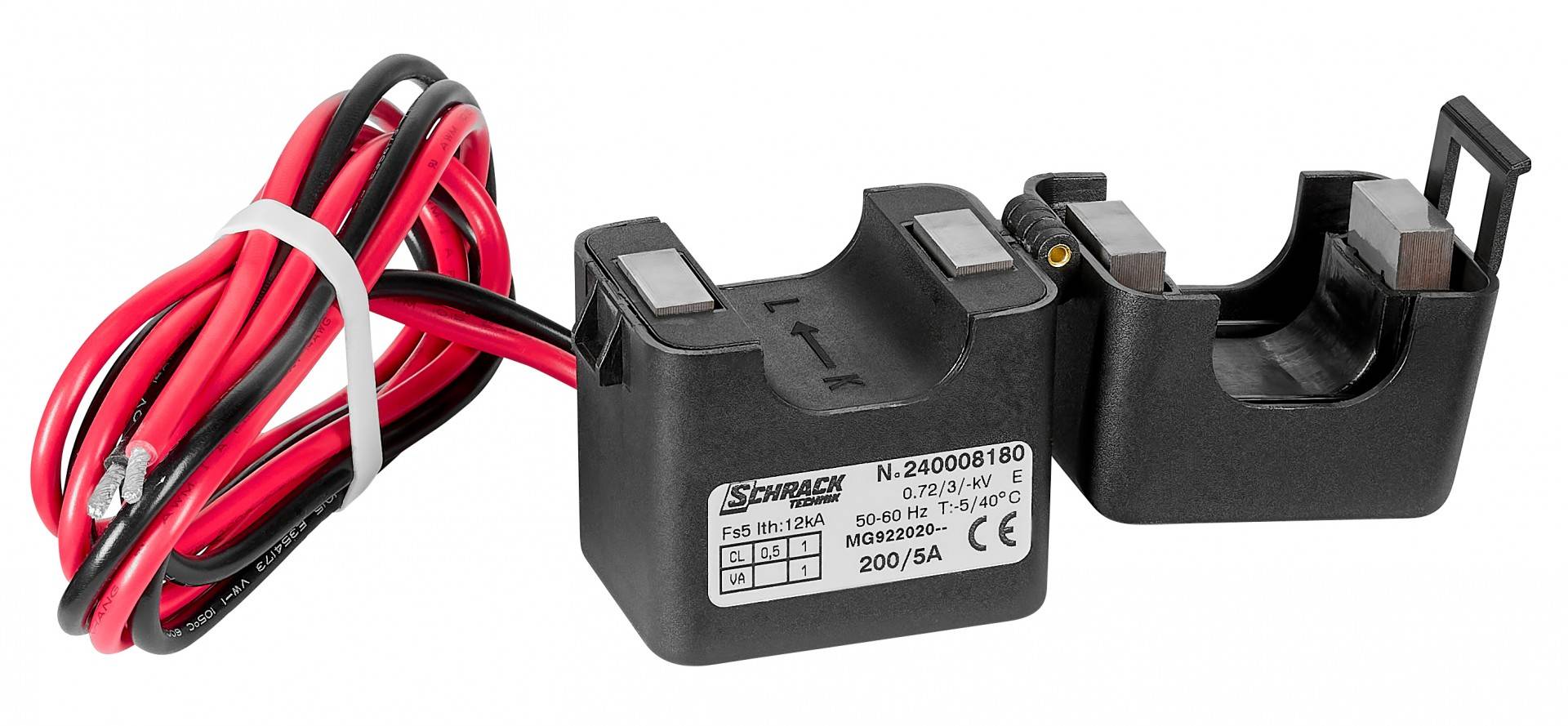

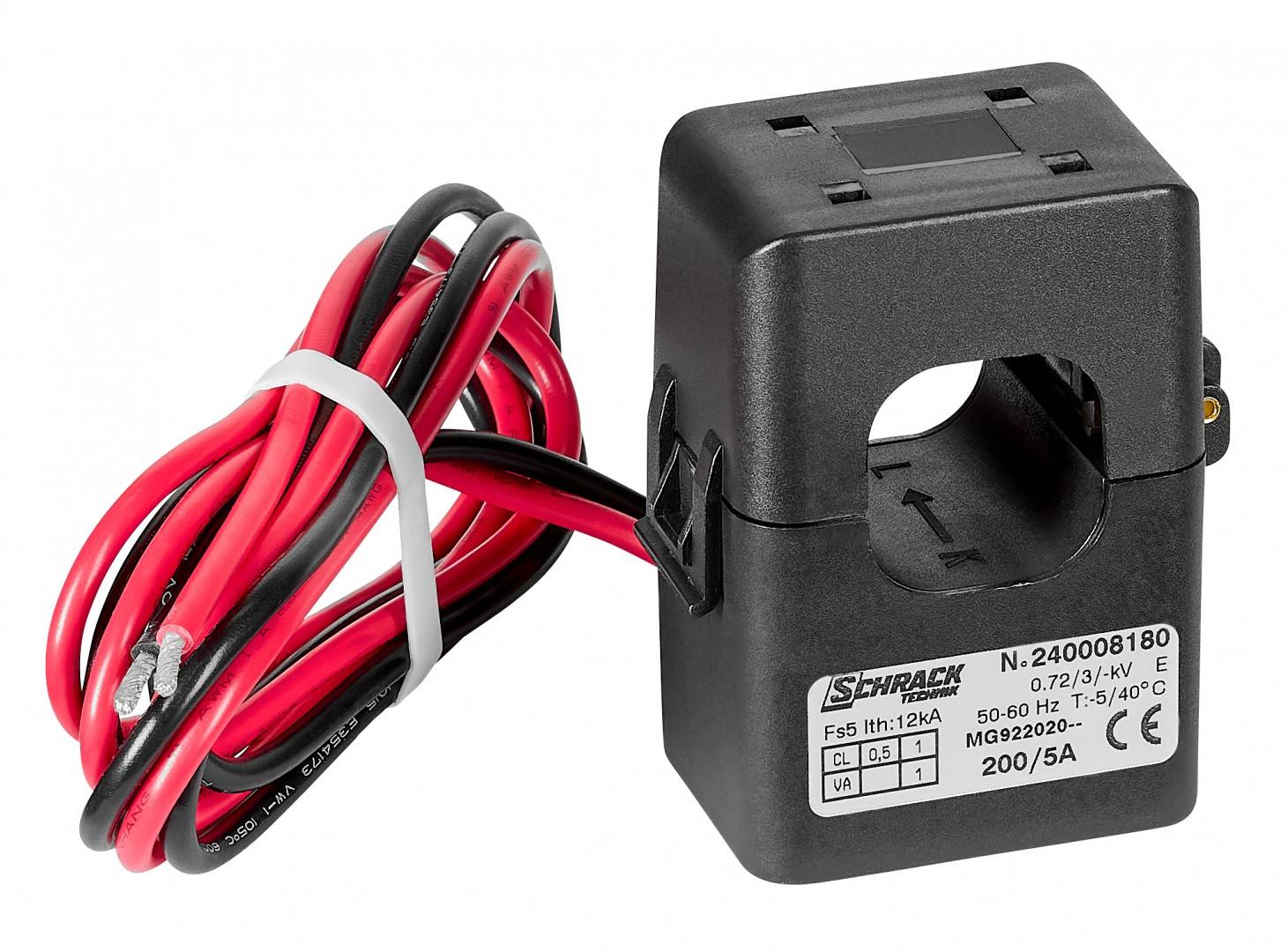

Transformator cu miez demontabil pentru cabluri
Short-time current Ith
< 60Ipr
Gama de temperatura - Transport/Depozitare
-25 to +75 °C
Conditii de lucru
##
Curent primar
200 A
Rated current primary side Ipr
200 A
Diametru maxim conductor
24 mm
Ardere
Class 1 (1VA)
Masa neta
0,24 kg/m
Unitate de ambalare
1 m.
Max. Operating voltage Um
0.72kV r.m.s.
Temperatura maxima a mediului ambiant
75 °C
Cablu de alimentare
lungime 100cm;sectiune 14AWG / 2.08mm²
Winding primary side
Cable and busbar feedthrough
disipare
1,00 W
Accesorii optionale
MGF39000--;MGF37900--;MGX20006--;MGX20406--
Temperatura minima a mediului ambiant
-25 °C
Insulation requirements
##
Isolation test voltage
3 kV R.M.S. 50 Hz/1min
Masa g
240
Rated frequency
50-60Hz Hz
| Lungime | 35 mm |
| Latime | 46 mm |
| Inaltime | 65.4 mm |
| Greutate | 0.24 kg |
