Specificatii Tehnice
Gama de temperatura - Functionare
-15 to +50 °C
Standard produs
EN 61869-2
Nota
Due to dangerous overvoltage and overheating, the Current Transformator is not allowed to be operated with open secondary Side. (EN 60044-1 /A2) As soon as the Measurement Device, the Energy Counter or the Net Analyzer is disconnected, the secondary Side has to be shortcutted!
Specifications
##
Isolation
Class B (EN60044-1);Class E (EN60044-1)
Curent primar
150 A
Materialul carcasei
Policarbonat, cu autostingere
Conexiune
##
DECUPAJ mm
24x24
Curent nominal dinamic Idyn
2,5Ith
Intended use
for cables up to diameter 24mm
Rated current secondary side Isr
5A
Eroare curent de sarcina
Pentru clasa 1 si 5% In: ±3%;Pentru clasa 1 si 20% In: ±1.5%;Pentru clasa 1 si 100% In: ±1%;Pentru clasa 1 si 120% In: ±1%;Pentru clasa 1 si 150% In: ±1%
Versiune
Dry type transformer, air insulation
Clasa
1
Reference temperature
23°C ±1°C °C
PREG
2330
Carcasa
##
Decupaj mm
24x24 mm
LxBxH mm
35x46x65
Clasa de precizie
##
Thermal rated continuous current according to EN60044-1
##
Metoda de montaj
Prin pini
Categorie produs
Normal installation (DIN EN 61869-2)
COD COMANDA
MG922015
grad de protectie
IP20
Tip

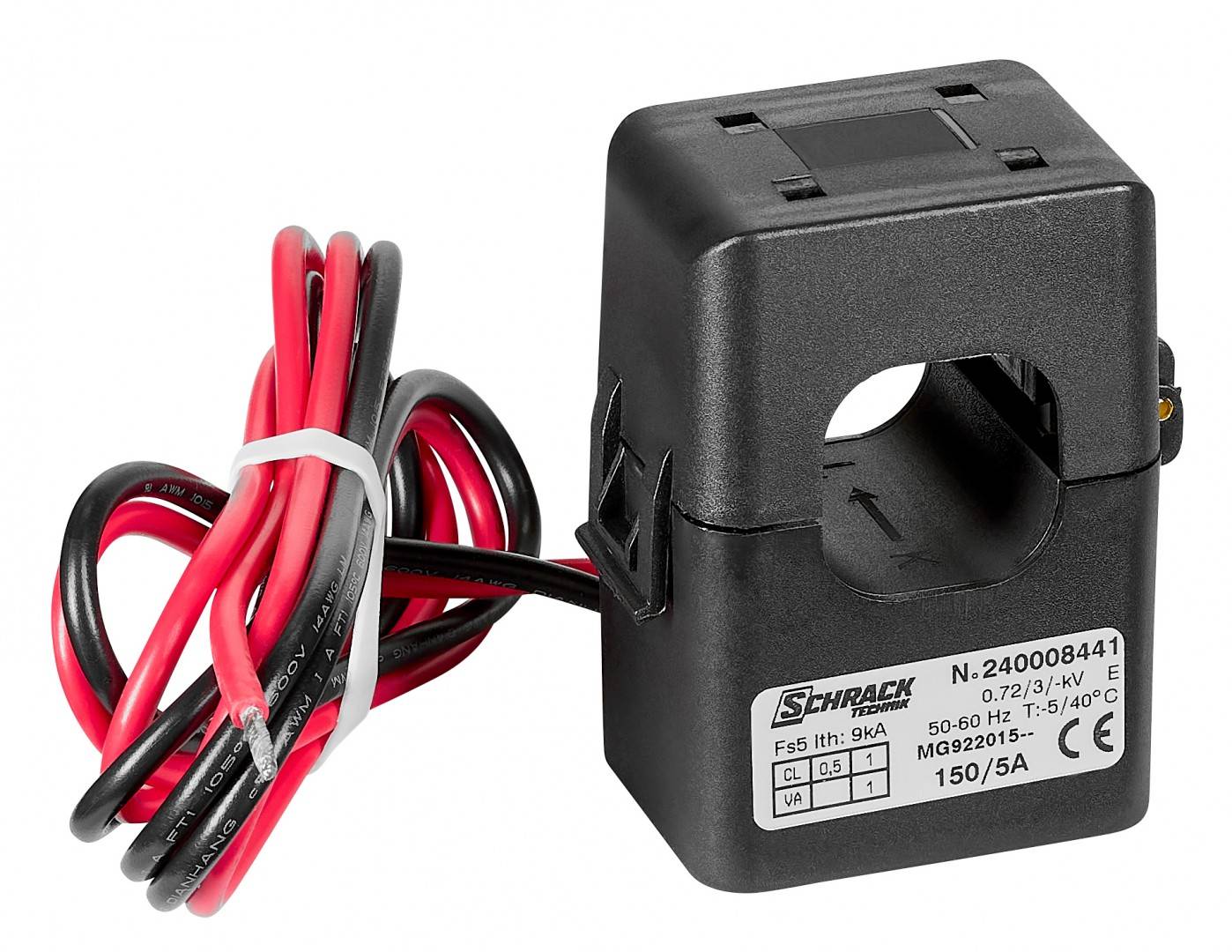

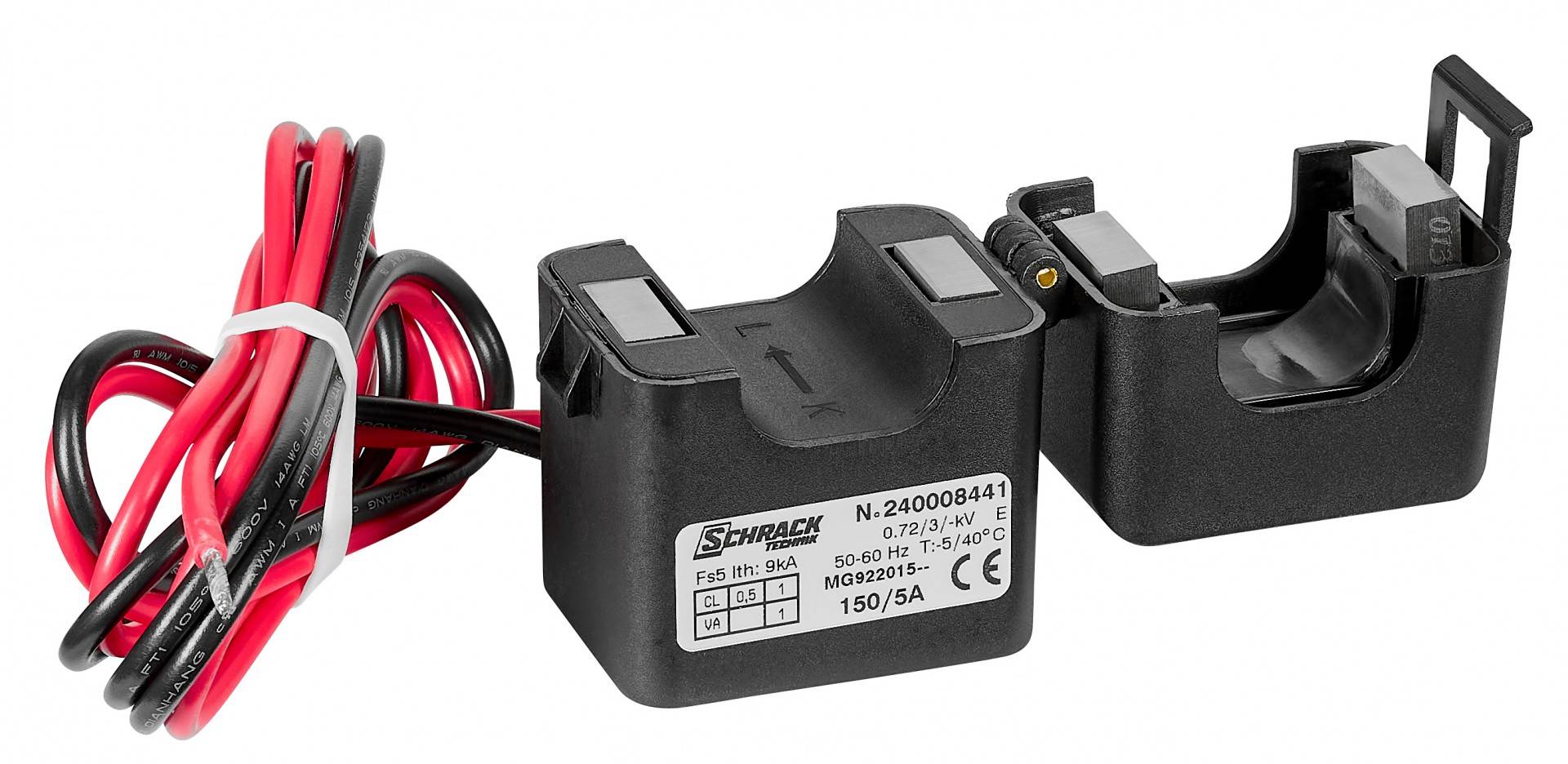

Transformator cu miez demontabil pentru cabluri
Short-time current Ith
< 60Ipr
Gama de temperatura - Transport/Depozitare
-25 to +75 °C
Conditii de lucru
##
Diametru maxim conductor
24 mm
Ardere
Class 1 (1VA)
Masa neta
0,24 kg/m
Unitate de ambalare
1 m.
Max. Operating voltage Um
0.72kV r.m.s.
Rated current primary side Ipr
150 A
Temperatura maxima a mediului ambiant
75 °C
Cablu de alimentare
lungime 100cm;sectiune 14AWG / 2.08mm²
Winding primary side
Cable and busbar feedthrough
disipare
1,00 W
Accesorii optionale
MGF39000--;MGF37900--;MGX20006--;MGX20406--
Temperatura minima a mediului ambiant
-25 °C
Insulation requirements
##
Isolation test voltage
3 kV R.M.S. 50 Hz/1min
Masa g
240
Rated frequency
50-60Hz Hz
| Lungime | 35 mm |
| Latime | 46 mm |
| Inaltime | 65.4 mm |
| Greutate | 0.24 kg |
