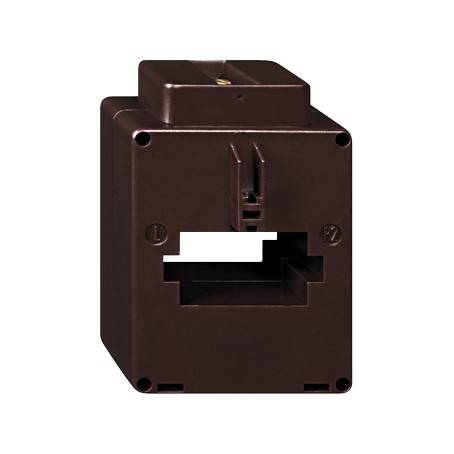

Transformator calibrat de curent 400/5A pt.bara 40x10mm

##

2,5Ith

5A

Dry type transformer, air insulation

23°C ±1°C °C

MG960040--

2330

##

≤ 30°C

MG960040

40x10

11,50 W

calibratable

Calibrated and listed by the Austrian Federal Office of Metrology and Verification (BEV) as a billing current transformer and can therefore be calibrated.;The transformers are not included in the MID directive, which means that the national BEV standard applies here.;If current transformers are used with energy meters for official billing purposes, only devices approved and calibrated in accordance with the calibration law should be used.

0,42 kg/m

8099-0034-10

70x95x45

47 - 63Hz

1

95x70x45

Class B (EN60044-1)

MGX20006--;MGX20306--;MGX20406--

400 A

400/5A

##

IP20

TH35-15 (EN60715)

< 60Ipr

##

-40 to +85 °C

0,5

Montare cu inclichetare pentru sina 35 mm;Montaj cu suruburi pe perete

Normal installation (EN60044-1)

1 m.

0.72kV r.m.s.

51 Hz

Policarbonat, cu autostingere;Clasa V0 conform cu UL-94

Transformatoare calibrabile

-25 la +50 °C

Schrack

Winding primary side P1(K) - P2(L);Winding secondary side s1(k) - s2(l)

-25 °C

##

8099-0020-61

for copper bars up to 40 x 10mm;for cables up to diameter 35mm

85 °C

3 kV R.M.S. 50 Hz/1min

P

≤ 5

400 A
