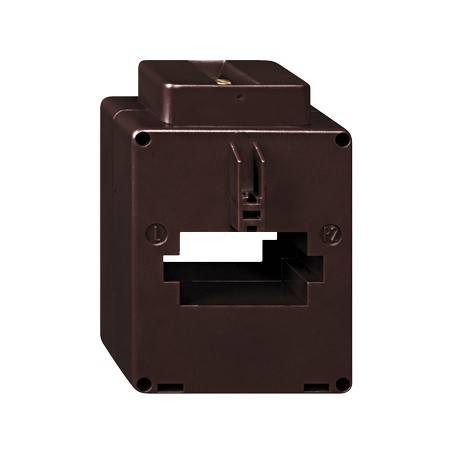

Transformator calibrat de curent 150/5A pt.bara 40x10mm

150 A

for copper bars up to 30 x 10mm;for cables up to diameter 30mm

##

2,5Ith

5A

Dry type transformer, air insulation

23°C ±1°C °C

2330

150/5A

##

≤ 30°C

8129-0019-87

11,50 W

calibratable

Calibrated and listed by the Austrian Federal Office of Metrology and Verification (BEV) as a billing current transformer and can therefore be calibrated.;The transformers are not included in the MID directive, which means that the national BEV standard applies here.;If current transformers are used with energy meters for official billing purposes, only devices approved and calibrated in accordance with the calibration law should be used.

MG960015

47 - 63Hz

1

Class B (EN60044-1)

MG960015--

MGX20006--;MGX20306--;MGX20406--

##

IP20

TH35-15 (EN60715)

< 60Ipr

##

-40 to +85 °C

0,5

8129-0032-88

Montare cu inclichetare pentru sina 35 mm;Montaj cu suruburi pe perete

Normal installation (EN60044-1)

1 m.

0.72kV r.m.s.

150 A

Policarbonat, cu autostingere;Clasa V0 conform cu UL-94

Transformatoare calibrabile

107x77x63

-25 la +50 °C

Schrack

Winding primary side P1(K) - P2(L);Winding secondary side s1(k) - s2(l)

-25 °C

##

Class 0.5 (2.5VA)

0,43 kg/m

85 °C

3 kV R.M.S. 50 Hz/1min

P

≤ 5

30x10

50 Hz
