Specificatii Tehnice
LxBxH mm
127x65x173
Temperatura maxima a mediului ambiant
60 °C
Masa neta
0,97 kg/m
Curent primar
2500 A
Gama de temperatura - Functionare
-5 la +40 °C
Decupaj mm
100x50 mm
Clasa de precizie
##
Thermal rated continuous current according to EN60044-1
##
grad de protectie
IP20
Short-time current Ith
< 60Ipr
Eroare curent de sarcina
Pentru clasa 0.5 si 5% In: ±1.5%;Pentru clasa 0.5 si 20% In: ±0.75%;Pentru clasa 0.5 si 100% In: ±0.5%;Pentru clasa 0.5 si 120% In: ±0.5%
Conditii de lucru
##
Clasa
0,5
Unitate de ambalare
1 m.
Max. Operating voltage Um
0.72kV r.m.s.
Rated current primary side Ipr
2500 A
COD COMANDA
MGC59250
disipare
10,00 W
Ardere
Class 0.5 (15VA)
Bare colectoare maxim
100x50mm
Cuplu de strangere
2 Nm
Isolation
Class B (EN/IEC 61869-1, 61869-2)
Temperatura minima a mediului ambiant
-25 °C
Insulation requirements
##
PU
12
Isolation test voltage
3 kV R.M.S. 50 Hz/1min
Rated frequency
50-60Hz Hz
DECUPAJ mm
100x50
Intended use
for copper bars up to 100 x 50mm
Standard produs
EN 61869-2
Nota
Due to dangerous overvoltage and overheating, the Current Transformator is not allowed to be operated with open secondary Side. (EN 60044-1 /A2) As soon as the Measurement Device, the Energy Counter or the Net Analyzer is disconnected, the secondary Side has to be shortcutted!
Specifications
##
Tip

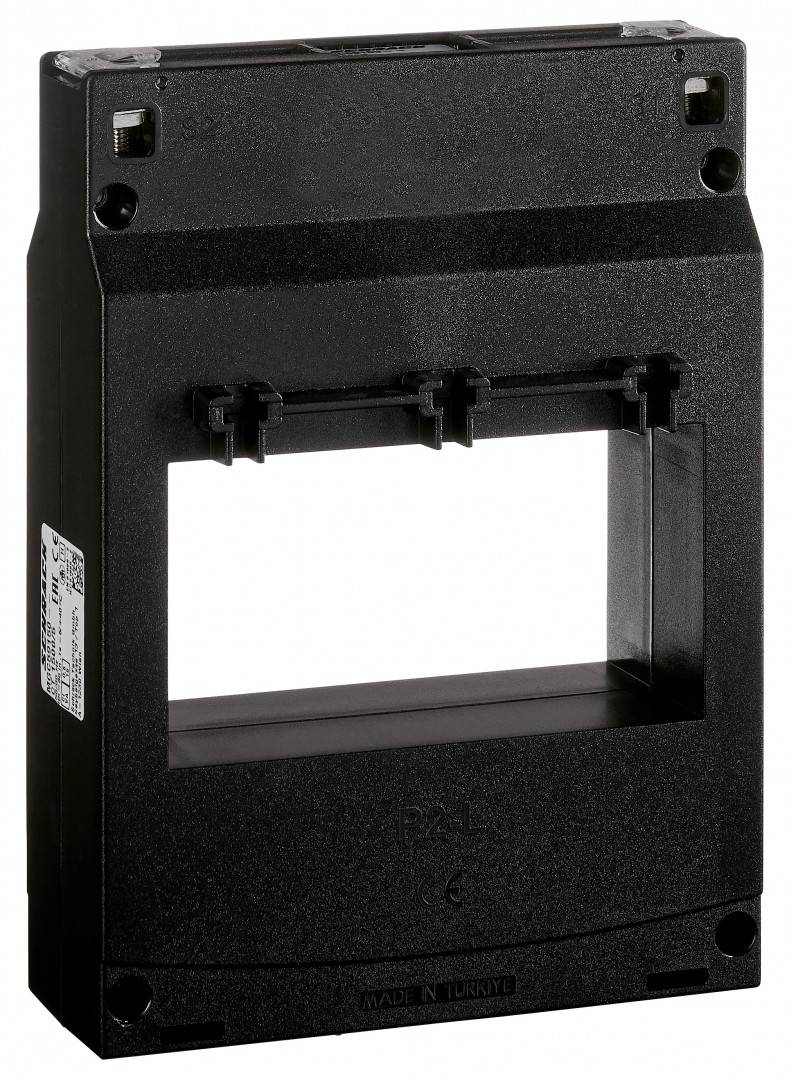

Prin transformator de curent
Materialul carcasei
Policarbonat, cu autostingere
Curent nominal dinamic Idyn
2,5Ith
Gama de temperatura - Transport/Depozitare
-25 to +60 °C
Rated current secondary side Isr
5A
Reference temperature
23°C ±1°C °C
PREG
2330
| Lungime | 127 mm |
| Latime | 65.1 mm |
| Inaltime | 173 mm |
| Greutate | 0.97 kg |
