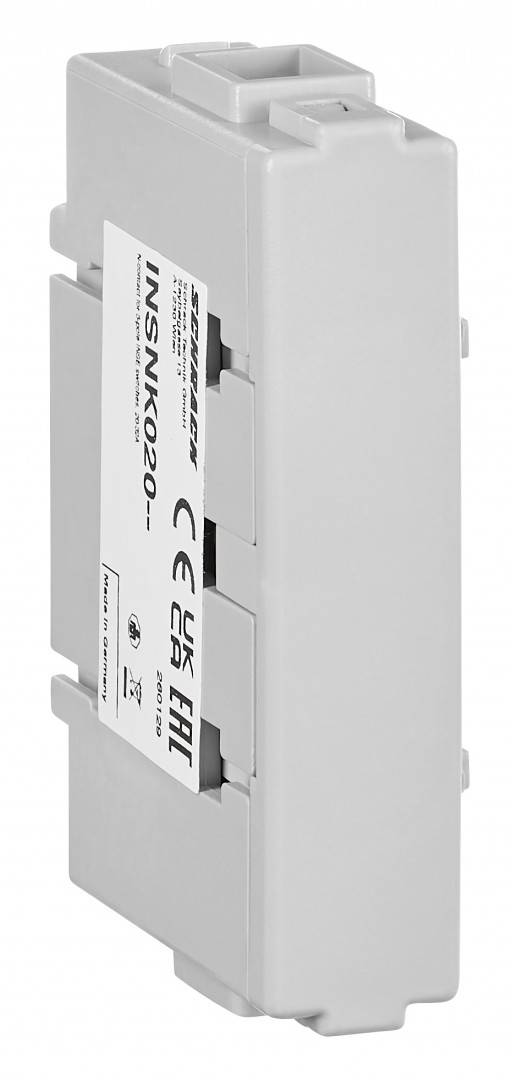

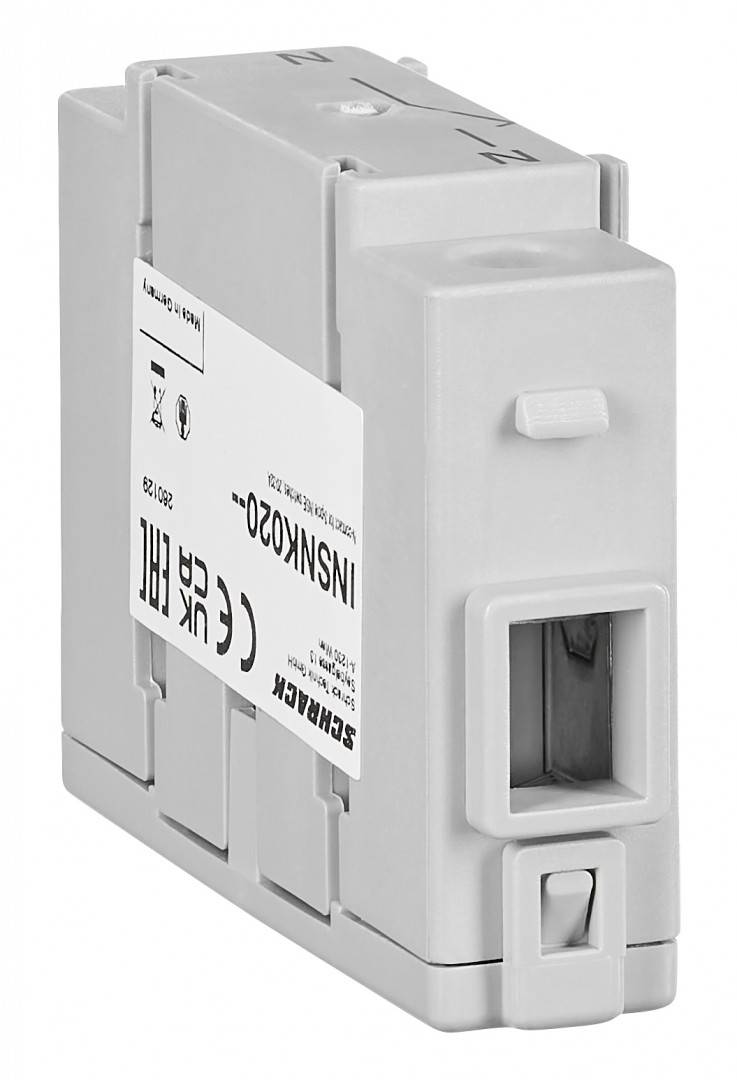

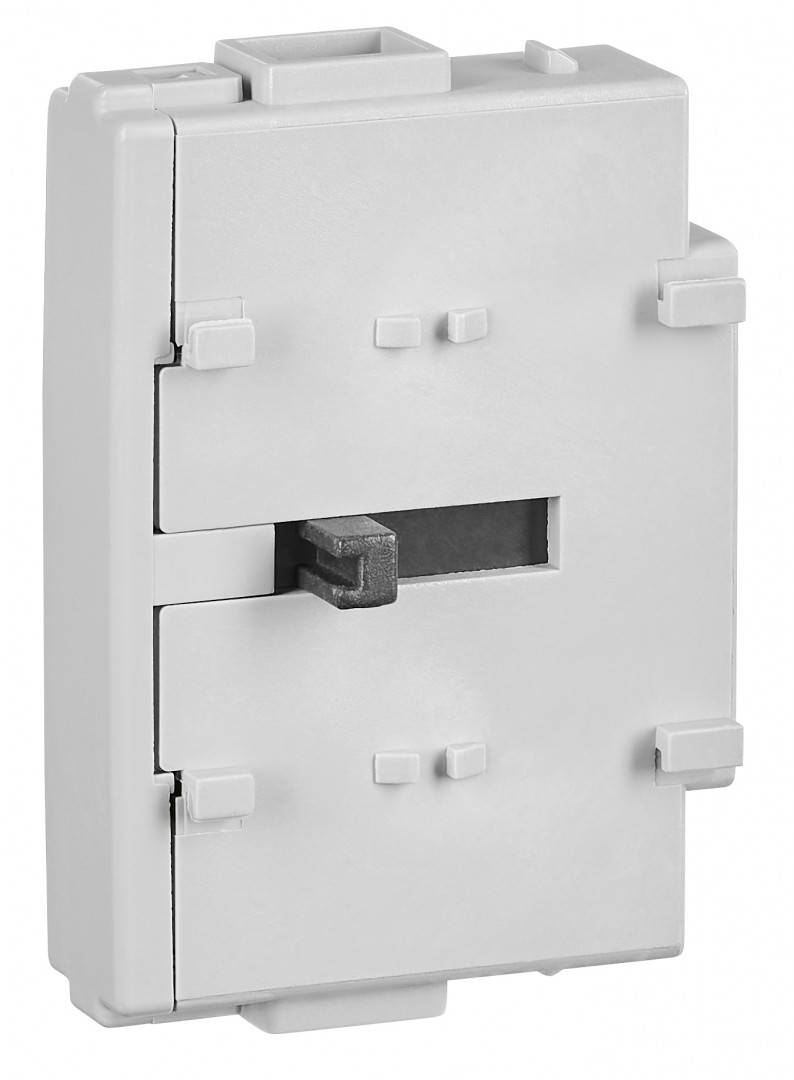

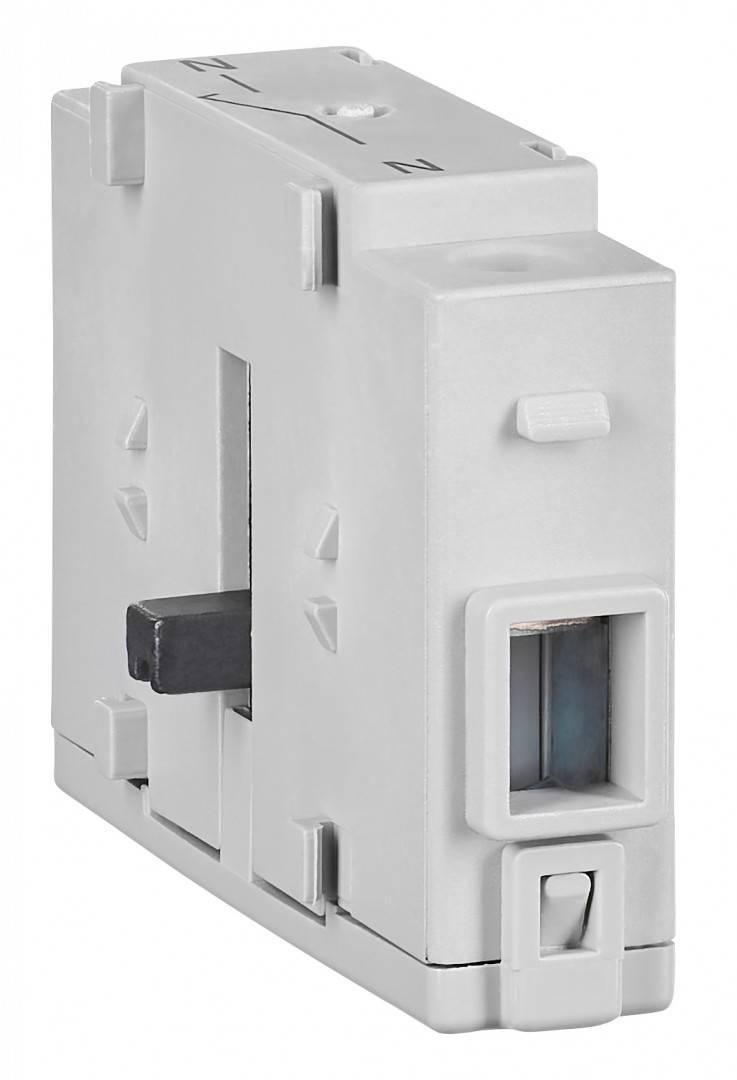

Specificatii Tehnice
Sectiune conexiune, multifilar
2,5-16 mm²
Frecventa
50/60 Hz
Standard
IEC 60947, EN 60947, VDE 0665
Sectiune conexiune, monofilar
2,5-16 mm²
Fuzibil max. protectie la scurtcircuit
50
Impuls de curent de scurtcircuit admisibil Icw
500
Curent nominal de scurtcircuit conditionat
10kA @ 440V / 6kA @ 690V

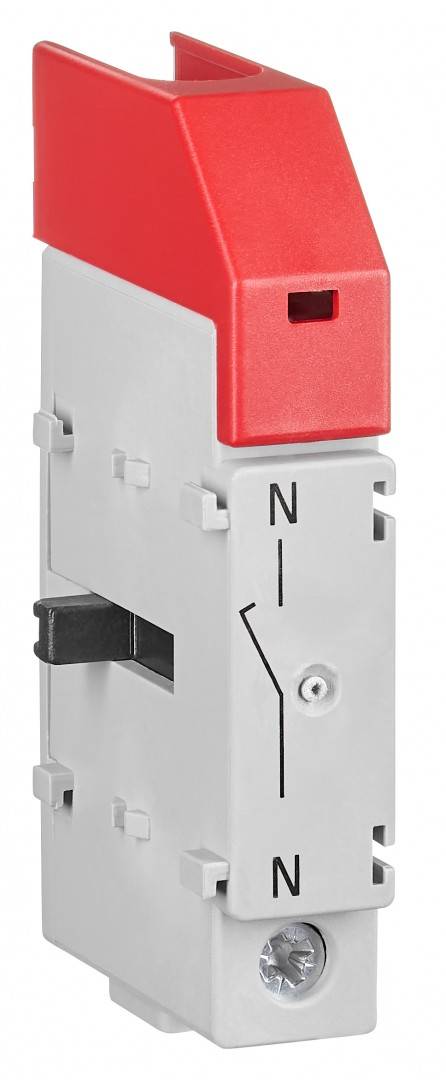

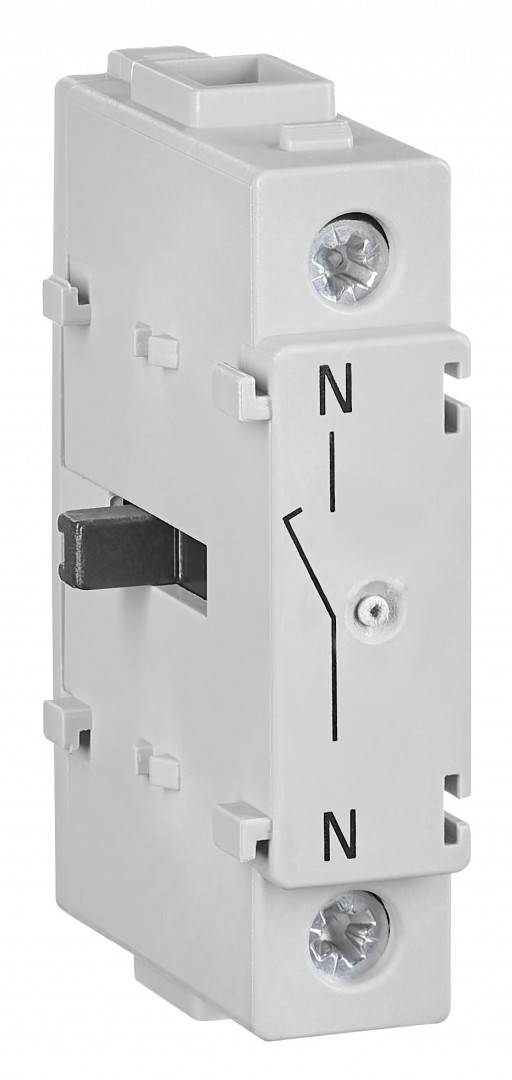

Neutral conductor contacts
Neutral conductor early-make, late-break design (closes before and opens after the phase conductors to prevent voltage displacement);As soon as a 3-pole switch is converted to a 4-pole switch using a neutral conductor contact, NO additional auxiliary contact is permitted to be attached to the neutral conductor contact! For further information, see the data sheet for the respective switch.
Tinere la impuls de tensiune [Uimp]
6000 V
Curent termic conventional Ith
32 A
Curent nominal
32 A
Tip conexiune
UL/CSA - AWG 14-6
Retrofit contacts
##
Tensiune nominala de izolatie (Ui)
690 V
Poli
1

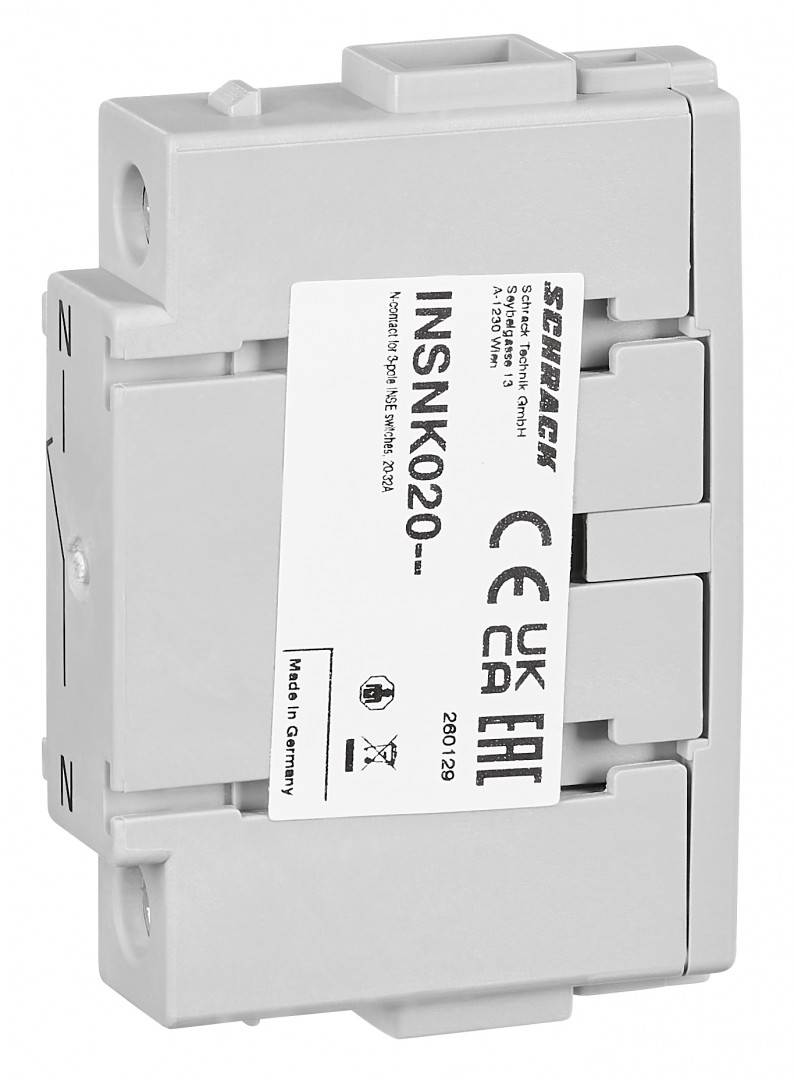

COD COMANDA
INSNK020
Temperatura maxima a mediului ambiant
55 °C
Unitate de ambalare
1 m.
grad de protectie
IP65 (front), IP20 (terminals)
Anduranta mecanica
100000 switching cycles
Versiune
accesorii
Masa neta
0,04 kg/m
Tensiune de alimentare AC
600 V
Protectie impotriva contactului direct
Protectie degete si dosul palmei conform VDE 0106 partea 100
Power loss per pole
1,50 W
In conformitate cu UL 508 / CSA
##
LxBxH mm
73x18x44
Montaj
Montaj aparent
Blocabil
Nu
Temperatura minima a mediului ambiant
-25 °C
Sectiune conexiune, fir flexibil cu pin
2,5-16 mm²
Cuplu de strangere
3 Nm
Active Power
3x120VAC - 3Hp;3x240VAC - 10Hp;3x480VAC - 20Hp;3x600VAC - 22Hp;1x120VAC - 2Hp;1x240VAC - 3Hp
Temperatura de functionare
-25°C to +55°C
Thermal rated continuous current
32 A
Curent operational
AC-21A - 690V - 32A;AC-22A - 690V - 32A;AC-23A - 230V - 22A;AC-23A - 400V - 22A;AC-23A - 690V - 13A;AC-3 - 230V - 20A;AC-3 - 400V - 20A;AC-3 - 690V - 11.5A
Capacitate de comutare
AC-23A - 230V - 6kW;AC-23A - 400V - 11.5kW;AC-23A - 690V - 11.5kW;AC-3 - 230V - 5.5kW;AC-3 - 400V - 9.5kW;AC-3 - 690V - 9.5kW
PREG
2200
Conexiune
##
disipare
1,50 W
| Lungime | 73 mm |
| Latime | 18.3 mm |
| Inaltime | 44 mm |
| Greutate | 0.04 kg |
