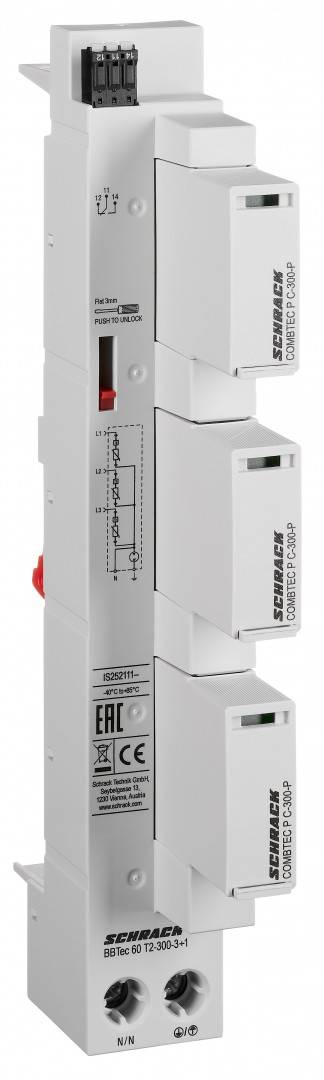

Surge Arrester for 60mm System 3+0 AX, TN-C, Class 2(C)
Cod produs: IS232211--
Marca: SCHRACK TECHNIK
Pret cu TVA: 1266.29 Lei / buc.
|
|
|
|
Comanda instant - Surge Arrester for 60mm System 3+0 AX, TN-C, Class 2(C)
|
Surge Arrester for 60mm System 3+0 AX, TN-C, Class 2(C)
|
|
Specificatii Tehnice PREG 1400 TOV SafeFail 120min (L-N) 442 V disipare 0,16 W Leakage current free Yes PU 20 Tensiune nominala 240VAC Timp de raspuns <25 ns Simbol CAD F Unitate de ambalare 1 m. Fabricant Schrack Curent descarcat maxim 50 kA COD COMANDA IS232211 Masa neta 0,44 kg/m Clasa de protectie TII/C Temperatura maxima a mediului ambiant 85 °C Circuit 3+0 Nivel de protectie 1,5 kV TOV Withstand 5s (L-N) 337 V Overcurrent Protection (max) 315 A gG Temperatura minima a mediului ambiant -40 °C LxBxH mm 245x36x107 Curent descarcare nominal 20 kA Rezistenta la scurtcircuit 25 kA Contact semnalizare da Tensiune nominala maxima AC 300 VAC | Lungime | 244.5 mm | | Latime | 36 mm | | Inaltime | 106.9 mm | | Greutate | 0.44 kg |
|
|
|
|
|
