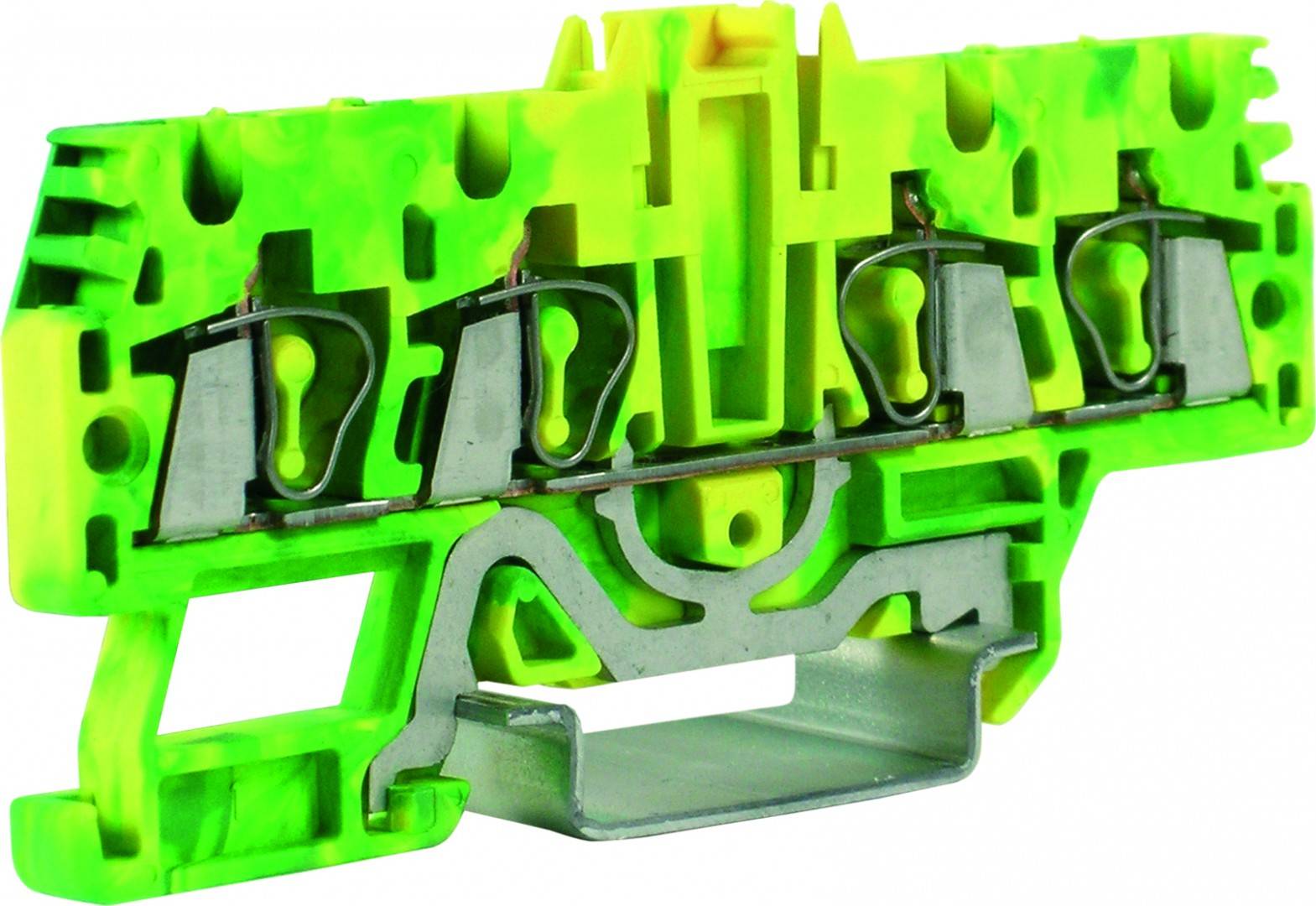

Spring clamp terminal HTE.2/2+2 green/yellow, 2.5 mm²
Cod produs: IK222402--
Marca: SCHRACK TECHNIK
Pret cu TVA: 18.54 Lei / buc.
|
|
|
|
Comanda instant - Spring clamp terminal HTE.2/2+2 green/yellow, 2.5 mm²
|
Spring clamp terminal HTE.2/2+2 green/yellow, 2.5 mm²
|
|
Specificatii Tehnice Sectiune maxima, conductor solid 4 mm² PREG 1660 Conductor multifilar pana la 10mm² mm² Sectiune minima, conductor solid 0,2 mm² Sistem cleme sir elastice Conductor multifilar sertizat cu bucsa pana la 6mm² mm² Conductor masiv pana la 4mm² mm² Sectiune maxima, conductor flexibil 4 mm² Unitate de ambalare 1 m. Descriere de baza Clema Masa neta 0,01 kg/m COD COMANDA IK222402 Sectiune minima, conductor flexibil 0,2 mm² Versiune clema trecere Sectiune 2.5 mm² Max. cross section, flexible wire with ferrule 2,50 mm² PU 60 Descriere electrica CAD 2,5mm² Simbol CAD X Culoare Verde/galben LxBxH mm 41x5x82 | Lungime | 41 mm | | Latime | 5.2 mm | | Inaltime | 82 mm | | Greutate | 0.01 kg |
|
|
|
|
|
