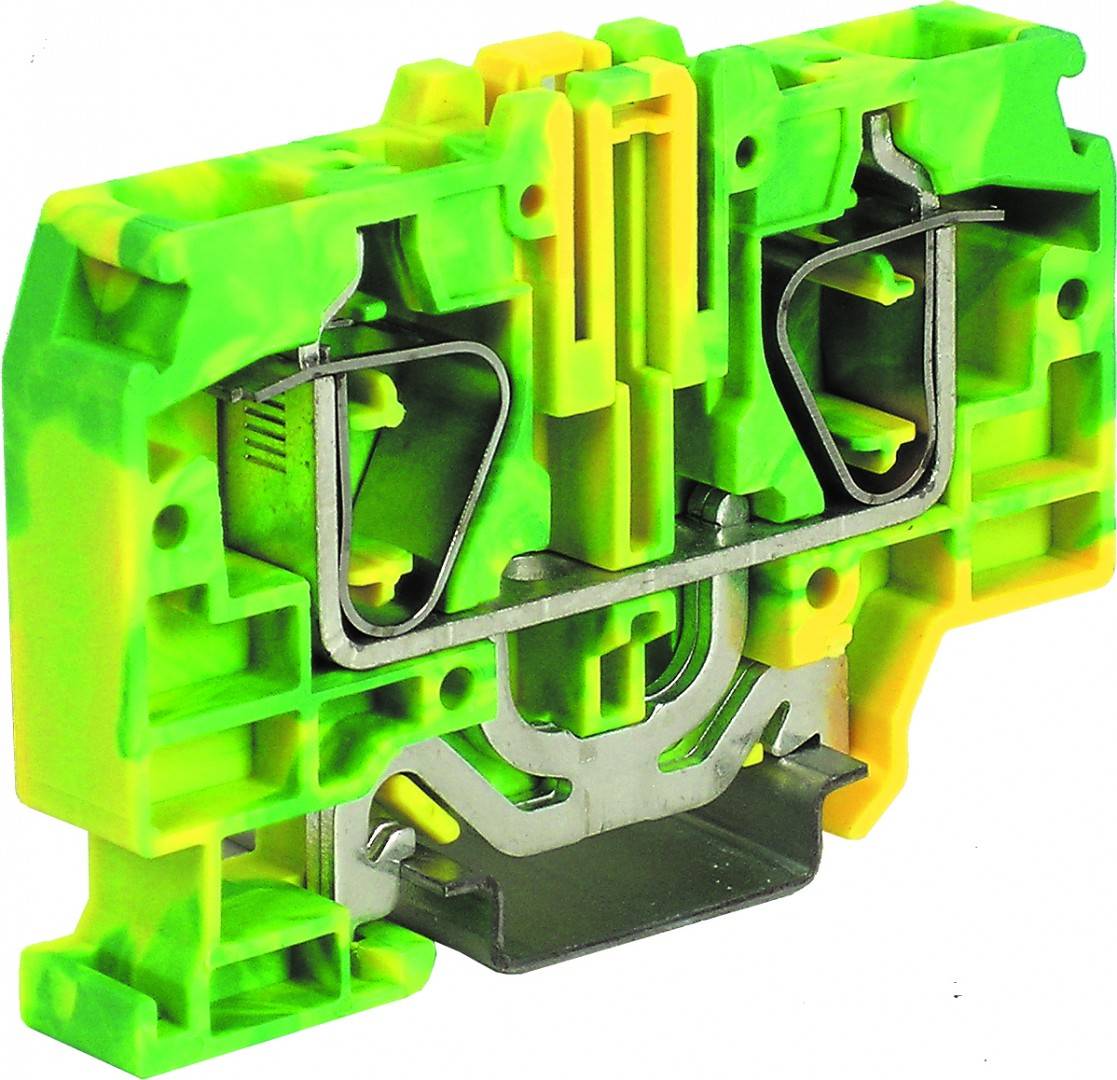

Spring clamp terminal HTE.16 green/yellow, 16 mm²
Cod produs: IK222016--
Marca: SCHRACK TECHNIK
Pret cu TVA: 28.93 Lei / buc.
|
|
|
|
Comanda instant - Spring clamp terminal HTE.16 green/yellow, 16 mm²
|
Spring clamp terminal HTE.16 green/yellow, 16 mm²
|
|
Specificatii Tehnice COD COMANDA IK222016 Max. cross section, flexible wire with ferrule 16 mm² Sectiune minima, conductor solid 1,50 mm² PREG 1660 Descriere electrica CAD 16mm² Sistem cleme sir elastice LxBxH mm 56x12x80 Conductor multifilar sertizat cu bucsa pana la 16mm² mm² Unitate de ambalare 1 m. Masa neta 0,04 kg/m Descriere de baza Clema Sectiune minima, conductor flexibil 0,2 mm² Versiune clema trecere Conductor masiv pana la 25mm² mm² Sectiune maxima, conductor solid 25 mm² Conductor multifilar pana la 25mm² mm² Sectiune 6 mm² Sectiune maxima, conductor flexibil 25 mm² PU 30 Simbol CAD X Culoare Verde/galben | Lungime | 56 mm | | Latime | 12 mm | | Inaltime | 80 mm | | Greutate | 0.04 kg |
|
|
|
|
|
