Specificatii Tehnice
Voltage proof - contact-shield
≥ 1500 (DC) V
Carcasa
Zinc turnat
Format SCHRACK
SFB
Finisare IDC
min. 3-6 µm (120-240µin) Sn
Suprafata de contact
1,27µm / 50µin Au
Impedanta de transfer
@ 1 MHz = ≤ 100mΩ
@ 10 MHz = ≤ 200mΩ
@ 80 MHz = ≤ 1600mΩ
Masa neta
0,74 kg/m
COD PROMO
6437-0063-08
Clasa
EA acc. to ISO/IEC 11801 Amendment 1/2 Link length typ 2m, in combination with a CP cable: CP-Linkt typ. ≥10m 10GbE is supported
LxBxH mm
35x14x21
Finisaj PCB
HAL fara plumb
Temperatura maxima a mediului ambiant
70 °C
Porturi
1
Impachetare
Biodegradabil
PU
20
Material de contact
Otel elastic
Placa suport contact
PC galben (RAL1021)
Protectie la patrunderea apei
IPX0
PROMO CODE CH
6437-0096-04
RoHS
Conform cu directiva EU 2002/95/EC
Masca de protectie la praf
Policarbonat transparent
Forta de insertie
≤ 30 N
Reducerea tensiunii
Zinc turnat
Unitate de ambalare
1 m.
PCB
FR4
Categorie
Cat.6a/10GB
Fabricant
Schrack
Protectie la patrunderea corpurilor straine
IP2X
Conector standard
IEC 60603-7-51
Stabilitate dielectrica contact-contact
≥ 1000 (DC) V
Ecranaj
ecranat
Diametru conductor
solid 0,51-0,65mm
AWG24/1 - AWG 22/1
Diametru de izolare
5 - 9 mm

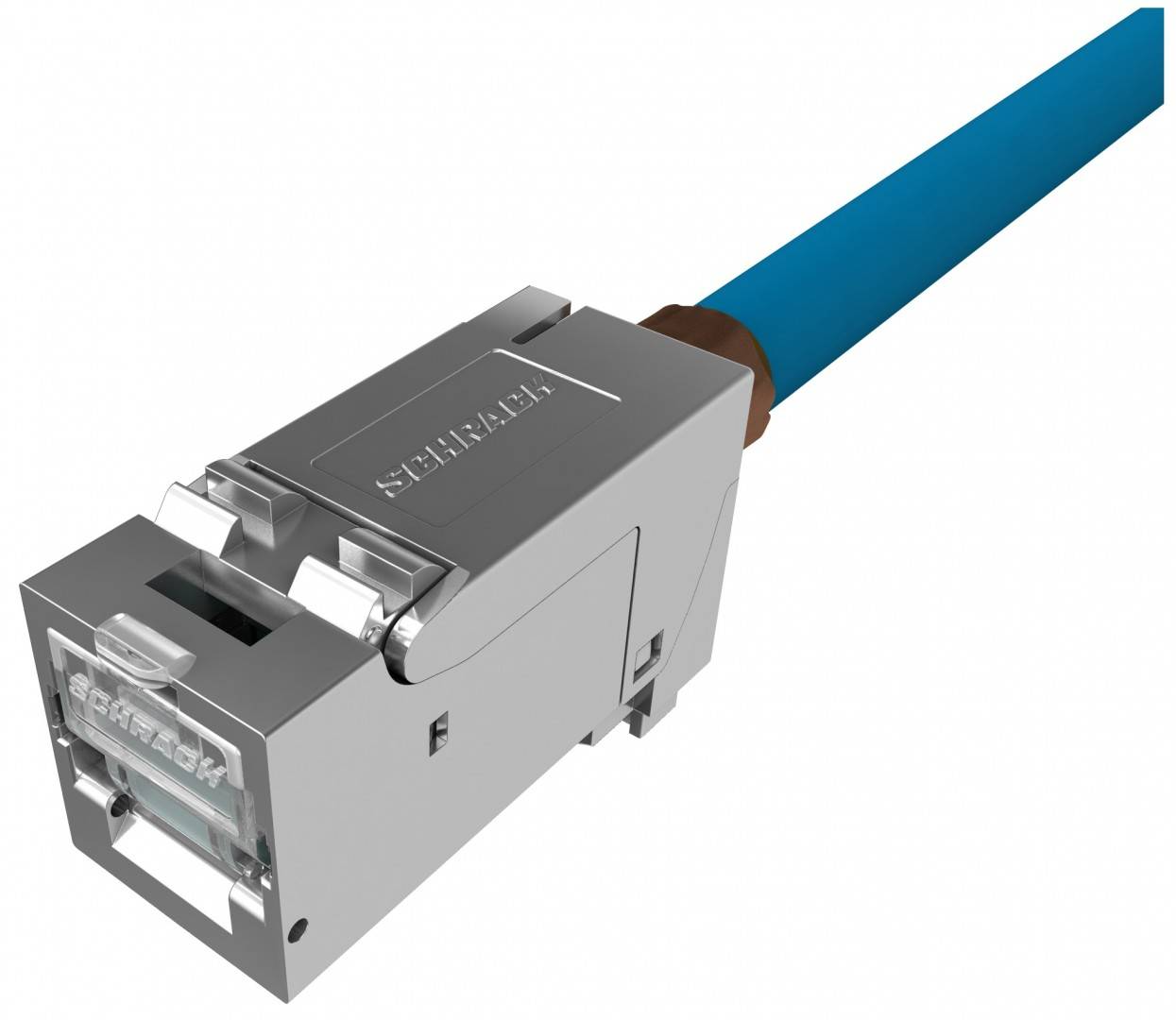

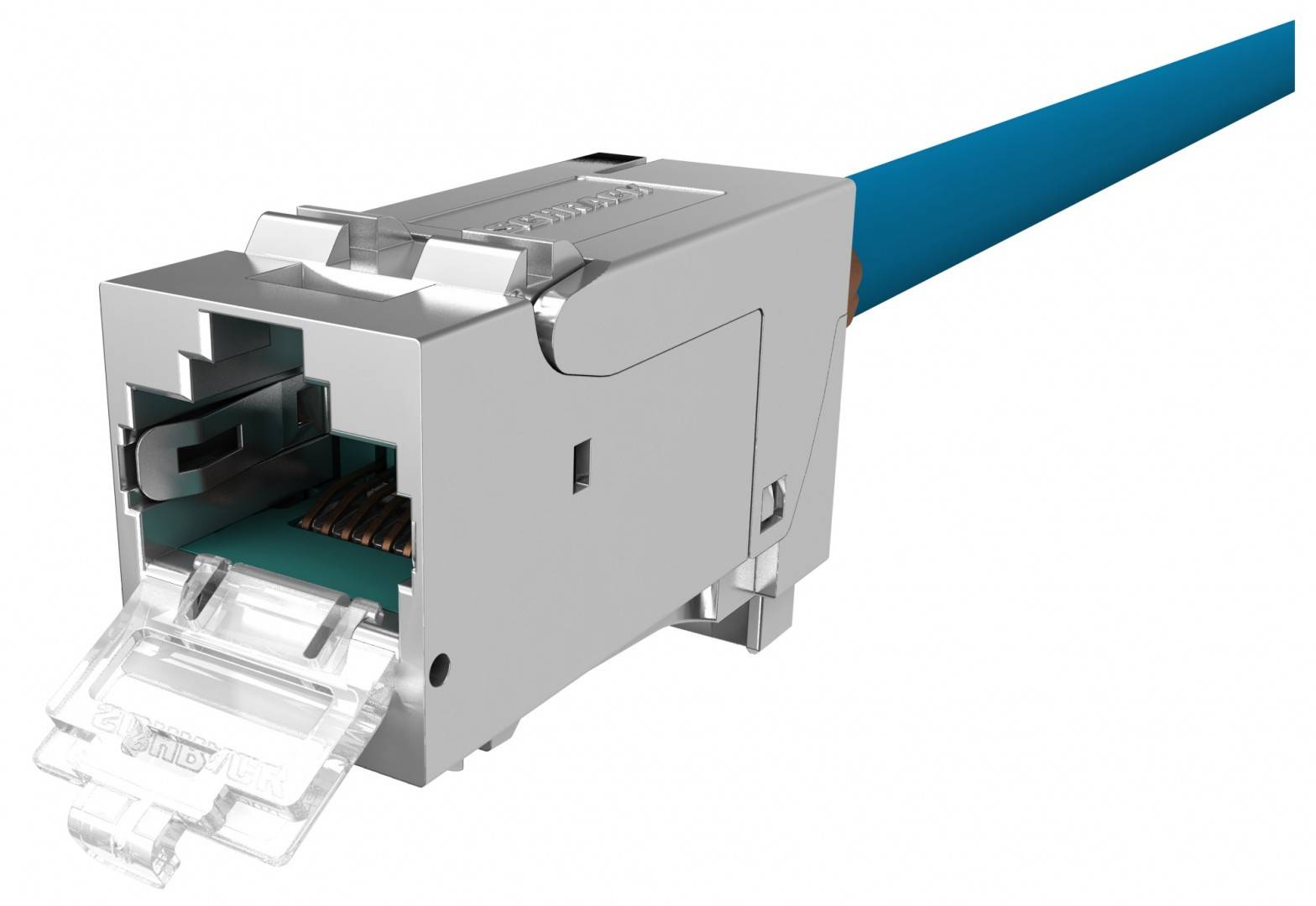

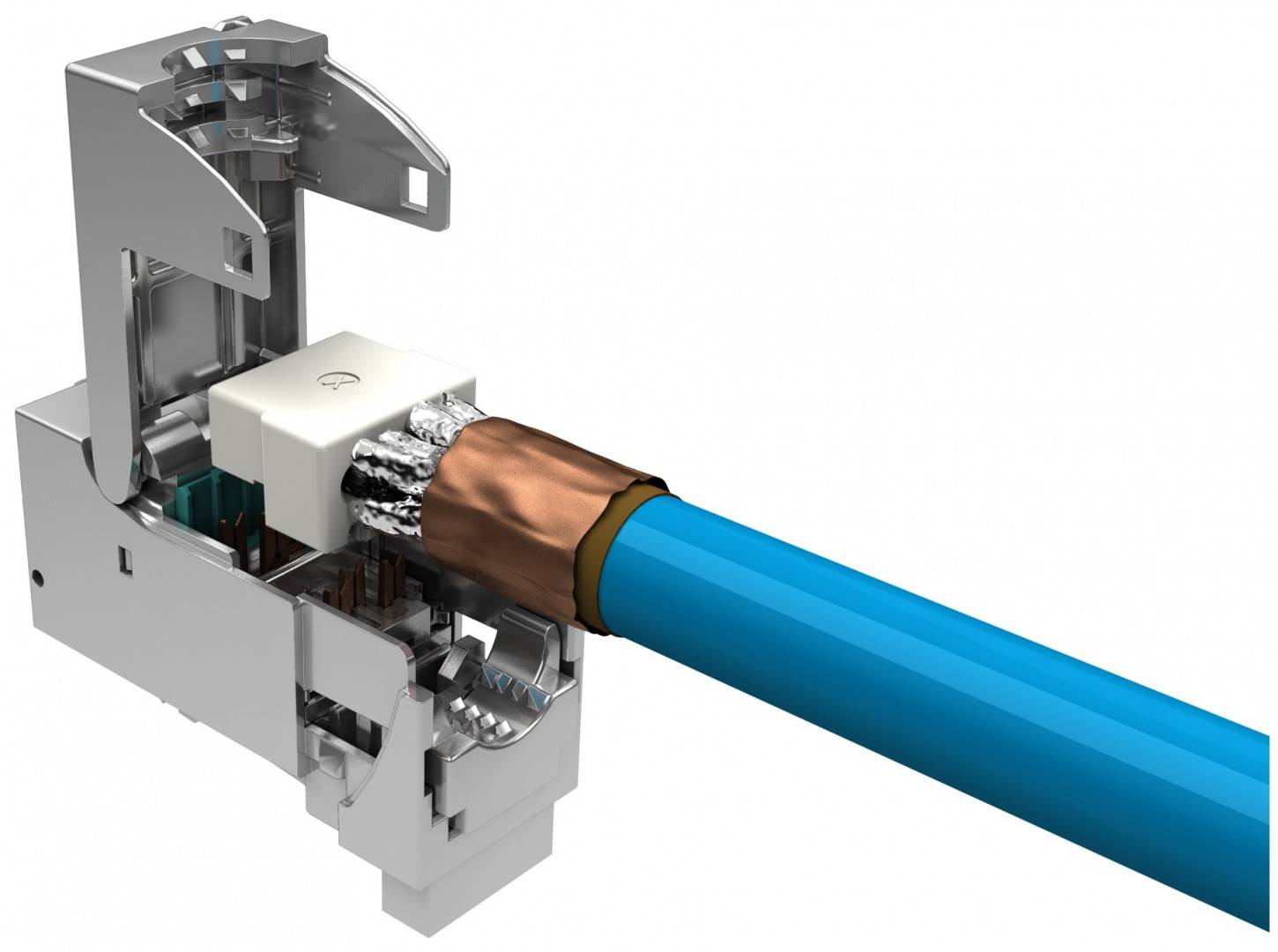

Produs
Modul conector

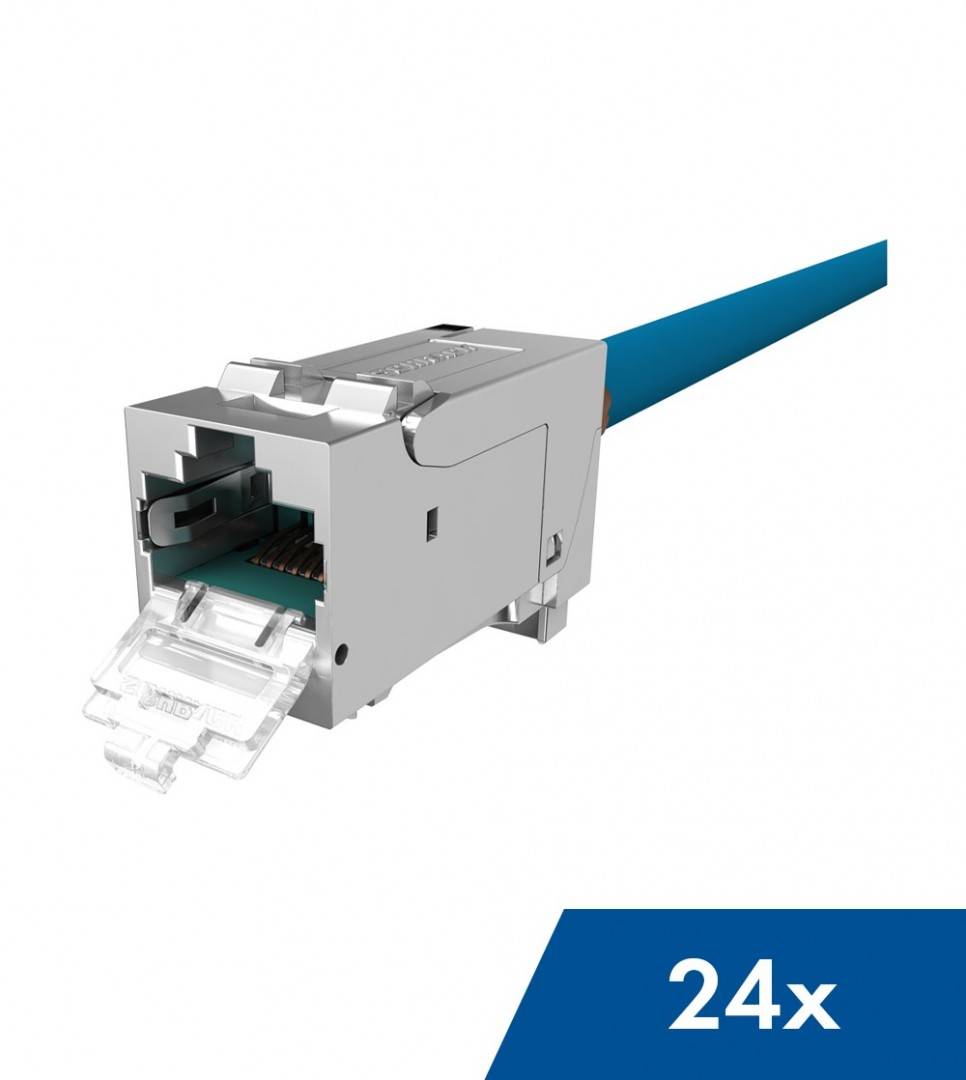

Buc/Pachet
24
Carcasa de izolare
Verde deschis (RAL6027)
Reutilizabil (Modul)
≤ 5 cicluri cu acelasi diametru
4PPoE
Da
Rezistenta izolatie
≥ 500MΩ MΩ*km
Cicluri de conectare
≥ 2500
Temperatura minima a mediului ambiant
-40 °C
Rezistenta de contact
≤ 20 mΩ
IDC
CuNi2Si
Accesorii optionale
HSPTOOL1--;HTOOL00012;HTOOL00002;HTOOL00005;HSEKB0020-;HSEKB1800-;HSEKP422HP;HSEKP422HK;HSKP423PP1;HSEKP423HA;HSEKF423CA;HSER0240GZ;HSER0240GS;HSED02UW2S;HSED02UWBS;HSED02UMBV;EV104314--;EV104312;EV105301--;H6GTG01K0G;H6GTG02K0G;H6GTG03K0G;H6GTG05K0G;
COD COMANDA
HSPMRJ6G2A
PREG
5100
Suprafata
nichel placat
Ecranaj
Otel inoxidabil
| Lungime | 35 mm |
| Latime | 14.4 mm |
| Inaltime | 21.1 mm |
| Greutate | 0.74 kg |
