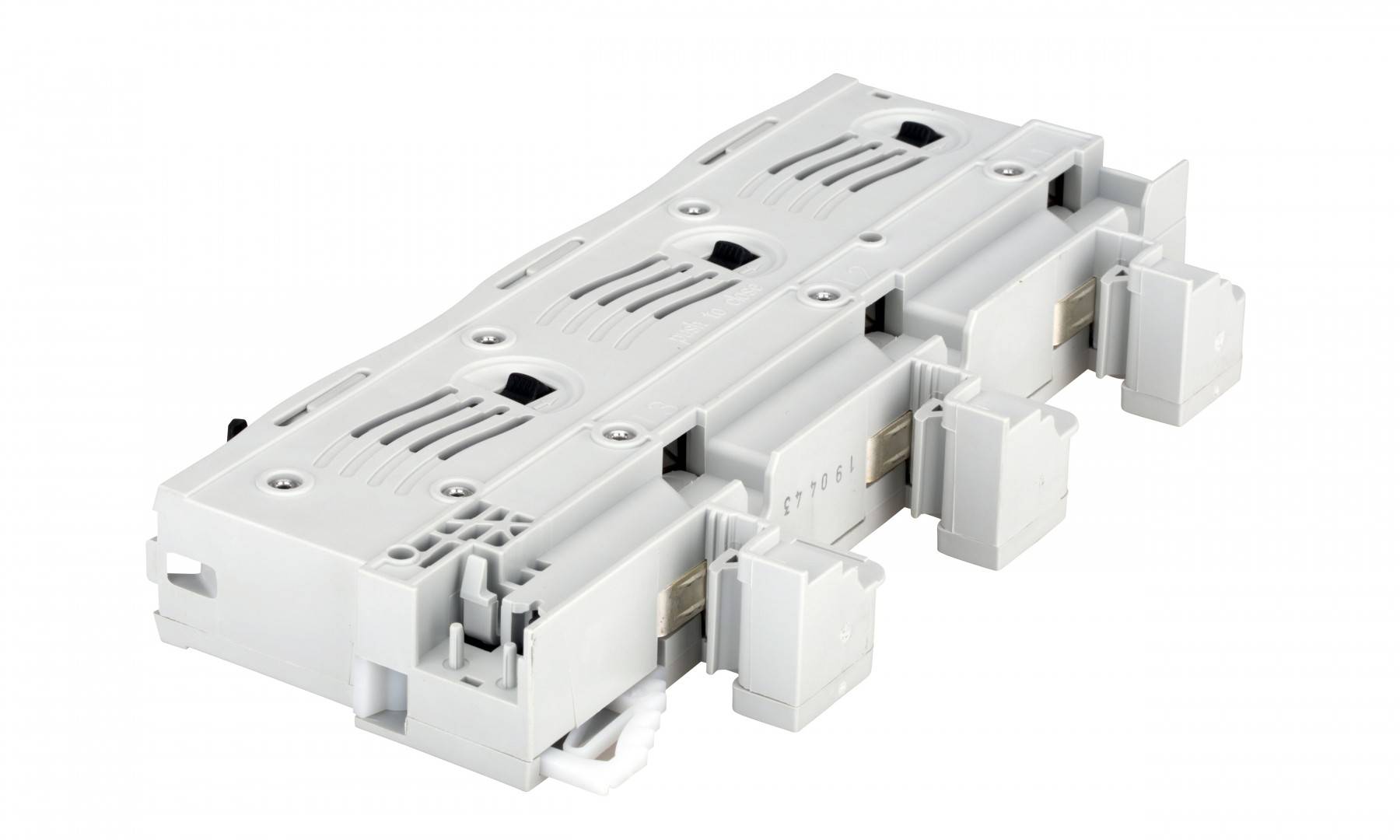

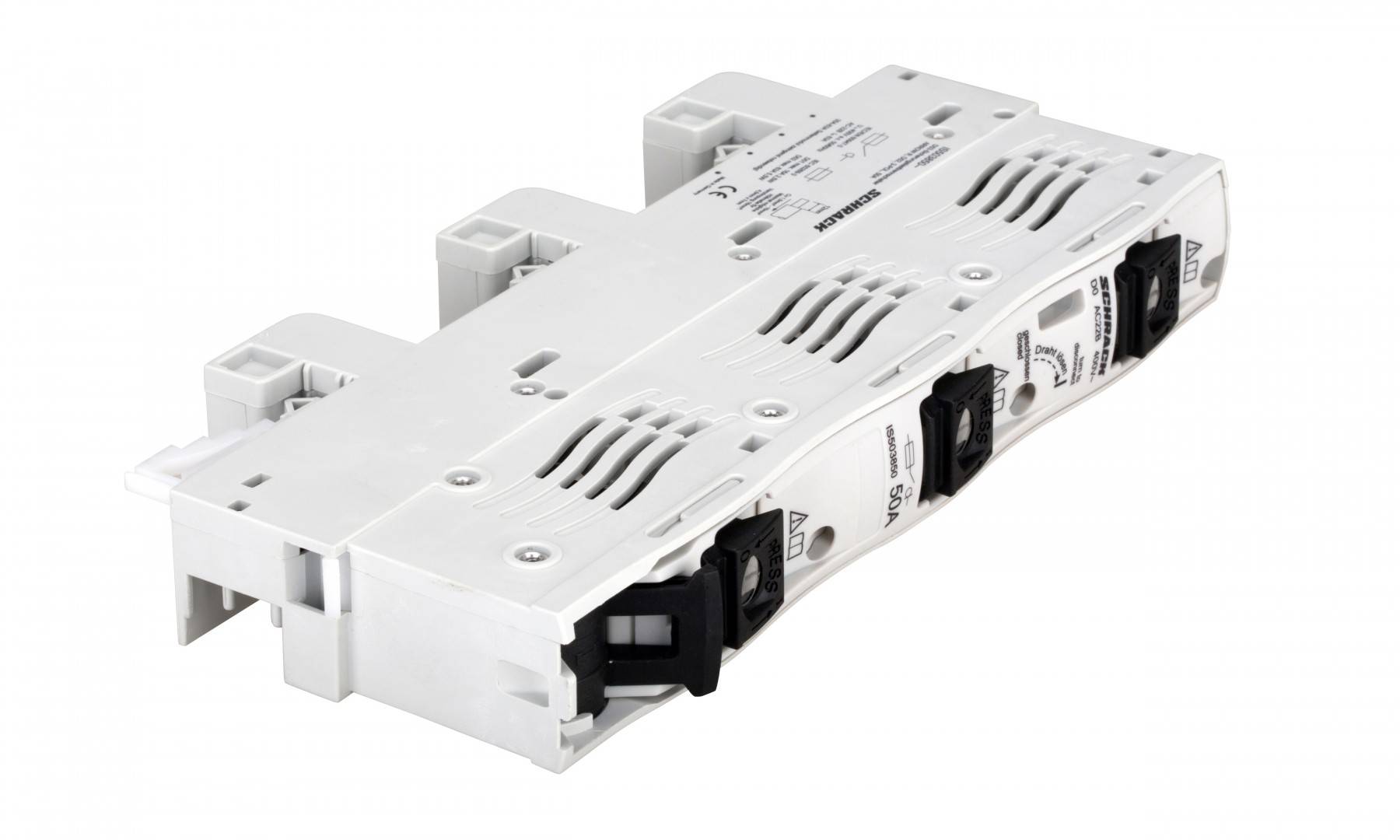

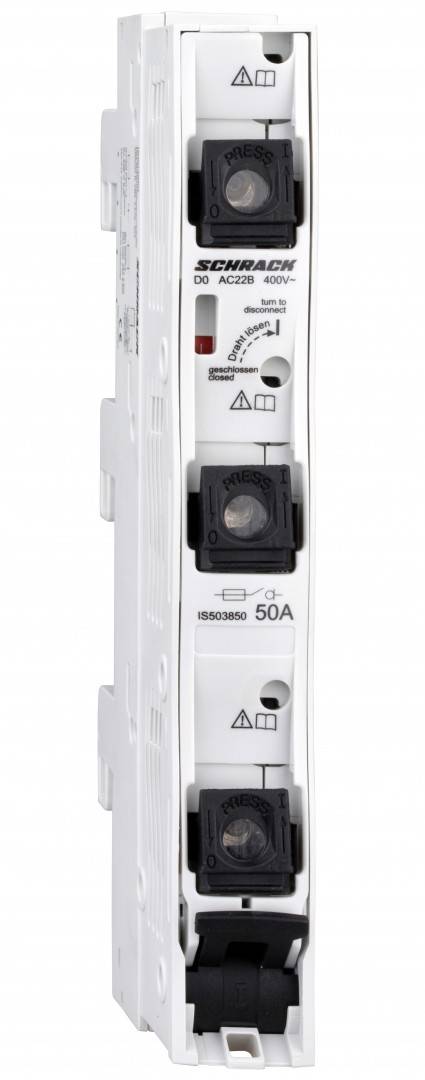

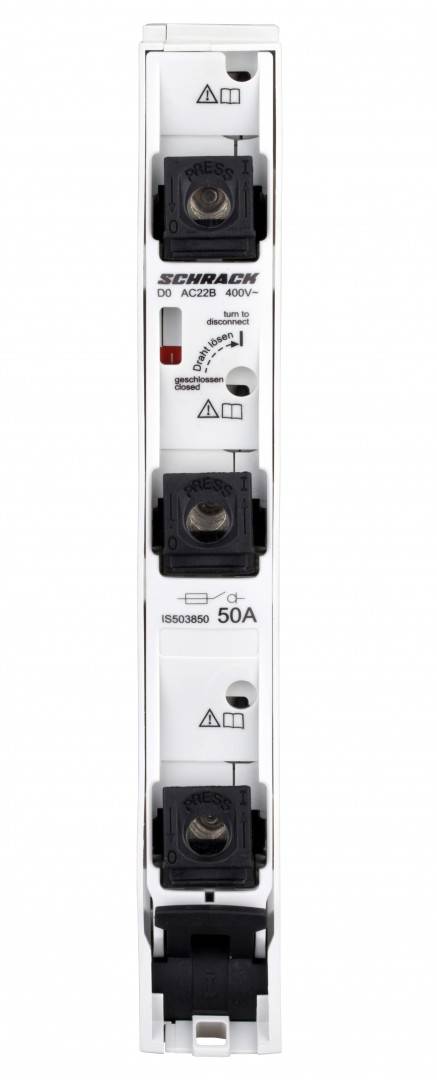

Separator de sarcina ARROW R, 3 poli, 50A, D02, complet
Cod produs: IS503850--
Marca: SCHRACK TECHNIK
Pret cu TVA: 342.32 Lei / buc.
|
|
|
|
|
|
Comanda instant - Separator de sarcina ARROW R, 3 poli, 50A, D02, complet
|
Separator de sarcina ARROW R, 3 poli, 50A, D02, complet
|
|
Specificatii Tehnice Marime fuzibil 40-63A Masa cupru 82,0000 gr. Serie ARROW R Caracteristici inel de calibrare fixa Curent nominal 50 A Descriere electrica CAD 50A DESCRIERE2 Separator de sarcina ARROW R, 3 poli, 50A, D02, complet, pentru sistem de 60 mm LxIxA mm 27x200x104 Simbol CAD F Temperatura maxima a mediului ambiant 55 °C Unitate de ambalare 1 m. Masa neta 0,90 kg/m Selectivitate AM618102--; AM618104--; AM618106--; AM618206--; AM618306--; AM618506--; AM618606--; AM618806--; AM618110--; AM618210--; AM618310--; AM618410--; AM618510--; AM618610--; AM618810--; AM618116--; AM618216--; AM618316--; AM618416--; AM618516--; AM618616--; AM618816--; AM618120--; AM618220--; AM618320--; AM618420--; AM618520--; AM618620--; AM618820--; AM618125--; AM618225--; AM618325--; AM618425--; AM618525--; AM618625--; AM618825--; AM617102--; AM617104--; AM617106--; AM617206--; AM617306--; AM617506--; AM617606--; AM617806--; AM617110--; AM617210--; AM617310--; AM617410--; AM617510--; AM617610--; AM617810--; AM617116--; AM617216--; AM617316--; AM617416--; AM617516--; AM617616--; AM617816--; AM617120--; AM617220--; AM617320--; AM617420--; AM617520--; AM617620--; AM617820--; AM617125--; AM617225--; AM617325--; AM617425--; AM617525--; AM617625--; AM617825--; AM018102--; AM018202--; AM018302--; AM018104--; AM018204--; AM018304--; AM018106--; AM018206--; AM018306--; AM018110--; AM018210--; AM018310--; AM018116--; AM018216--; AM018316--; AM018120--; AM018220--; AM018320--; AM018125--; AM018225--; AM018325--; AM017102--; AM017202--; AM017302--; AM017104--; AM017204--; AM017304--; AM017106--; AM017206--; AM017306--; AM017606--; AM017806--; AM017110--; AM017210--; AM017310--; AM017610--; AM017810--; AM017116--; AM017216--; AM017316--; AM017616--; AM017816--; AM017120--; AM017220--; AM017320--; AM017620--; AM017820--; AM017125--; AM017225--; AM017325--; AM017625--; AM017825-- Fabricant Schrack Poli 3 Temperatura minima a mediului ambiant -25 °C Descriere de baza Siguranta fuzibila Componente sistem D02 neozed Accesorii necesare IS503899-- Dimensiune 20x5mm;20x10mm;30x5mm;30x10mm COD COMANDA IS503850 PREG 1600 disipare 22,00 W HxBxT mm 200x27x104 Sistem 60mm Versiune separator D02-60mm | Lungime | 103.5 mm | | Latime | 27 mm | | Inaltime | 200 mm | | Greutate | 0.9 kg |
|
|
|
|
|
