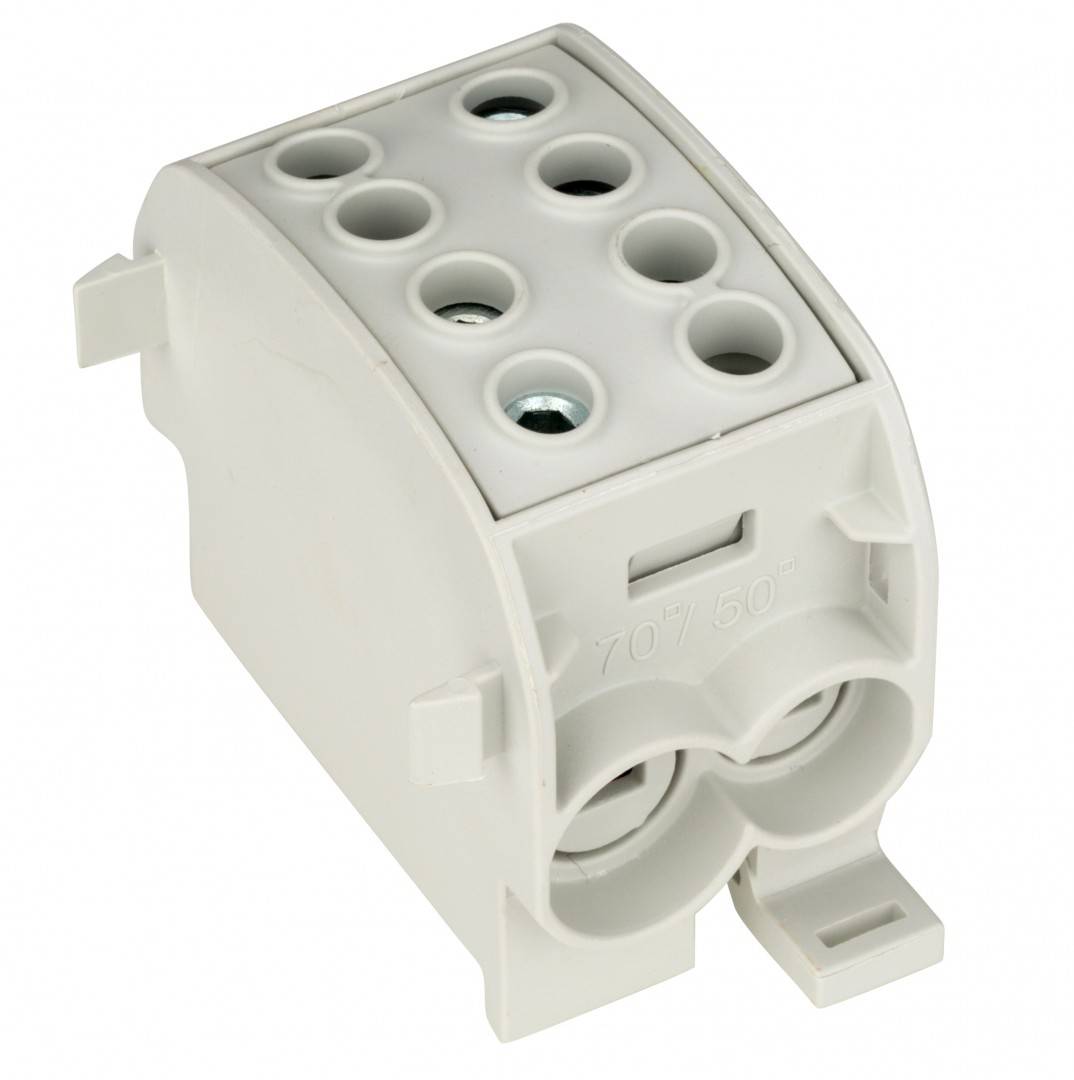

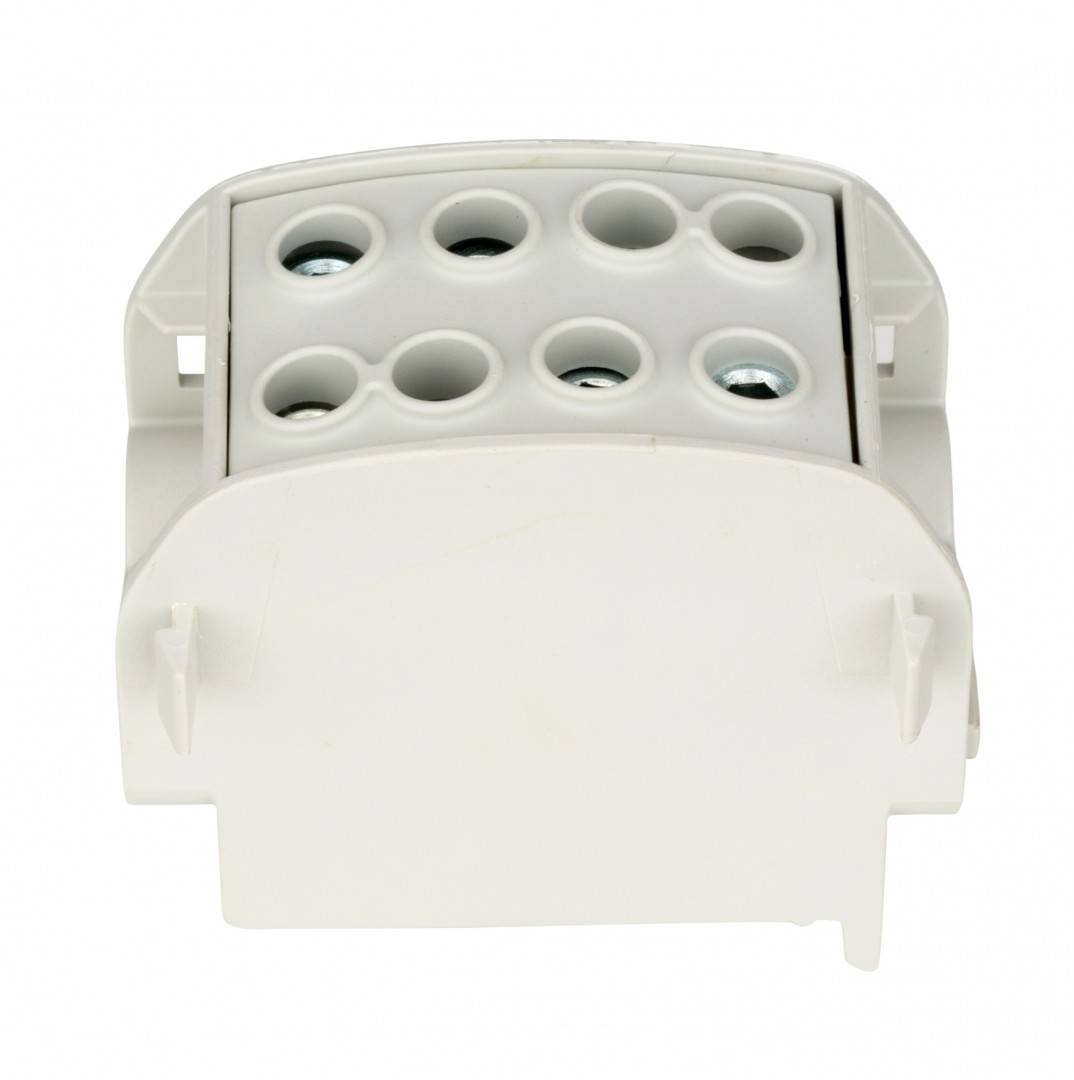

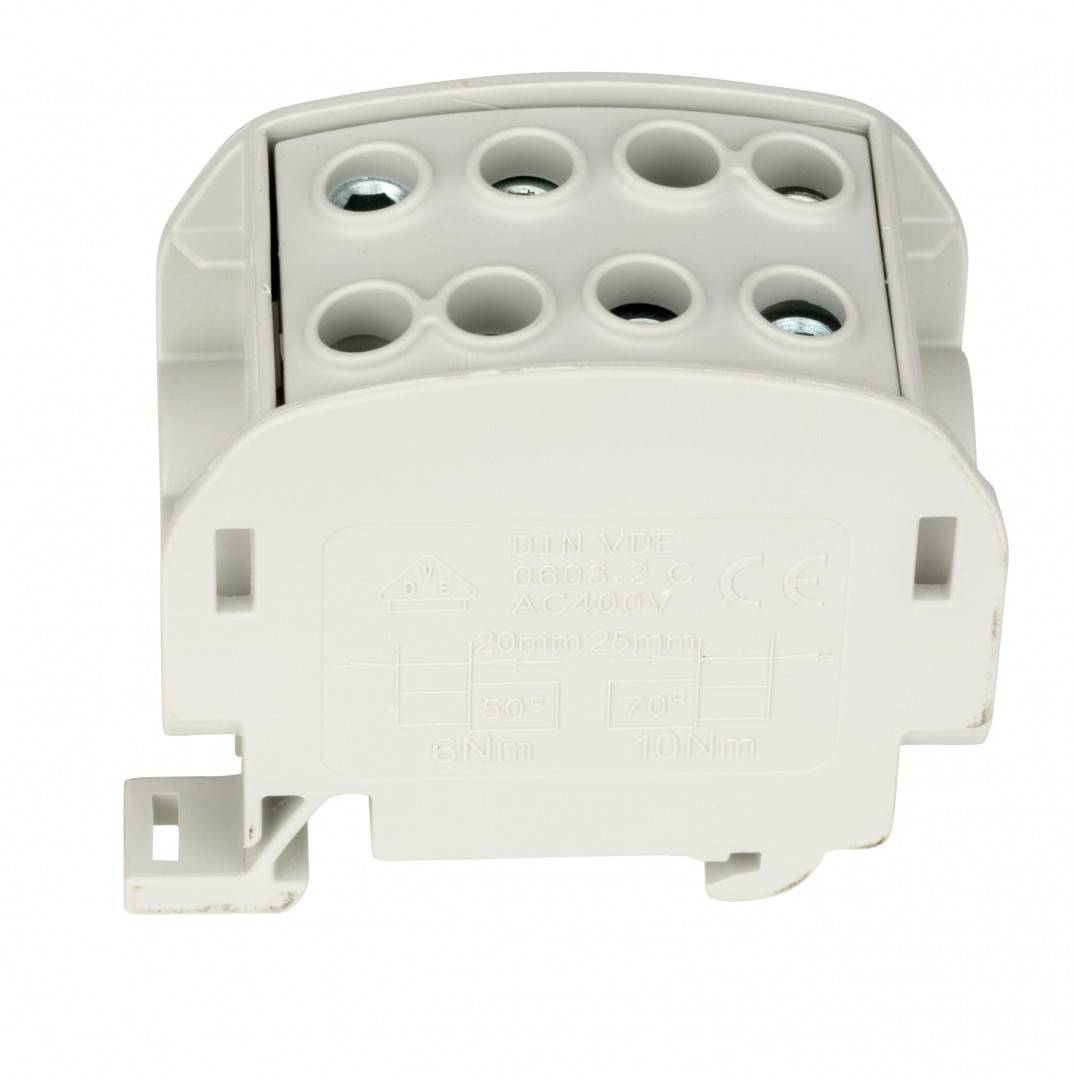

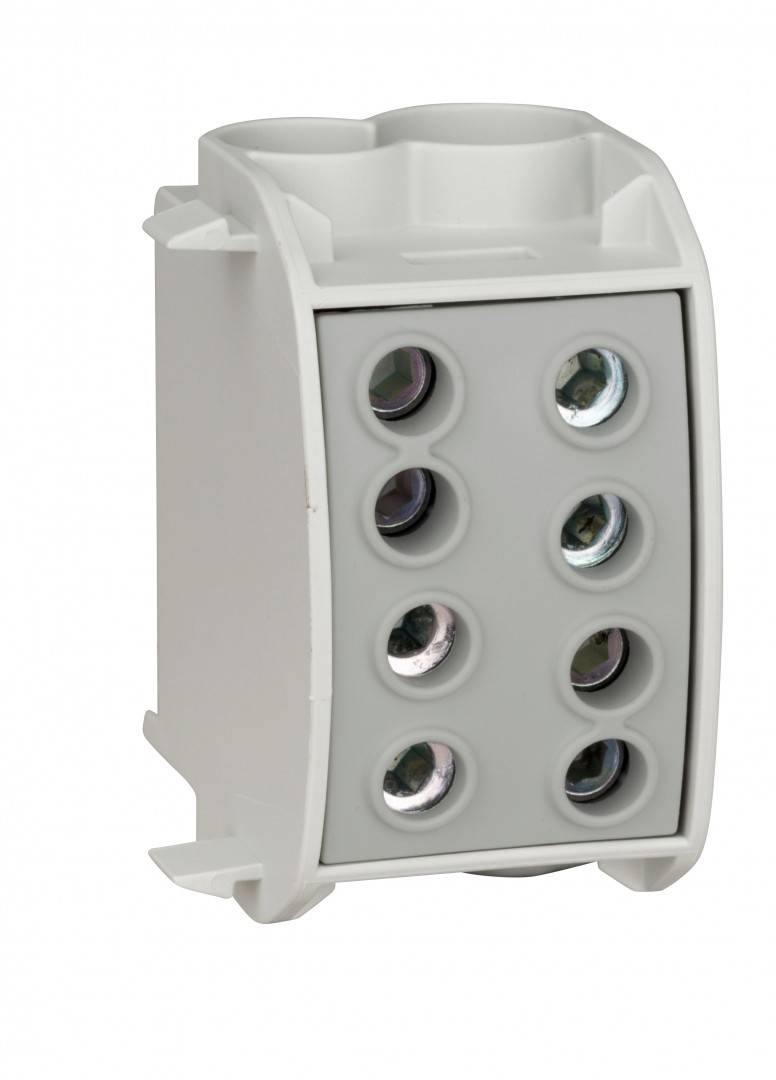

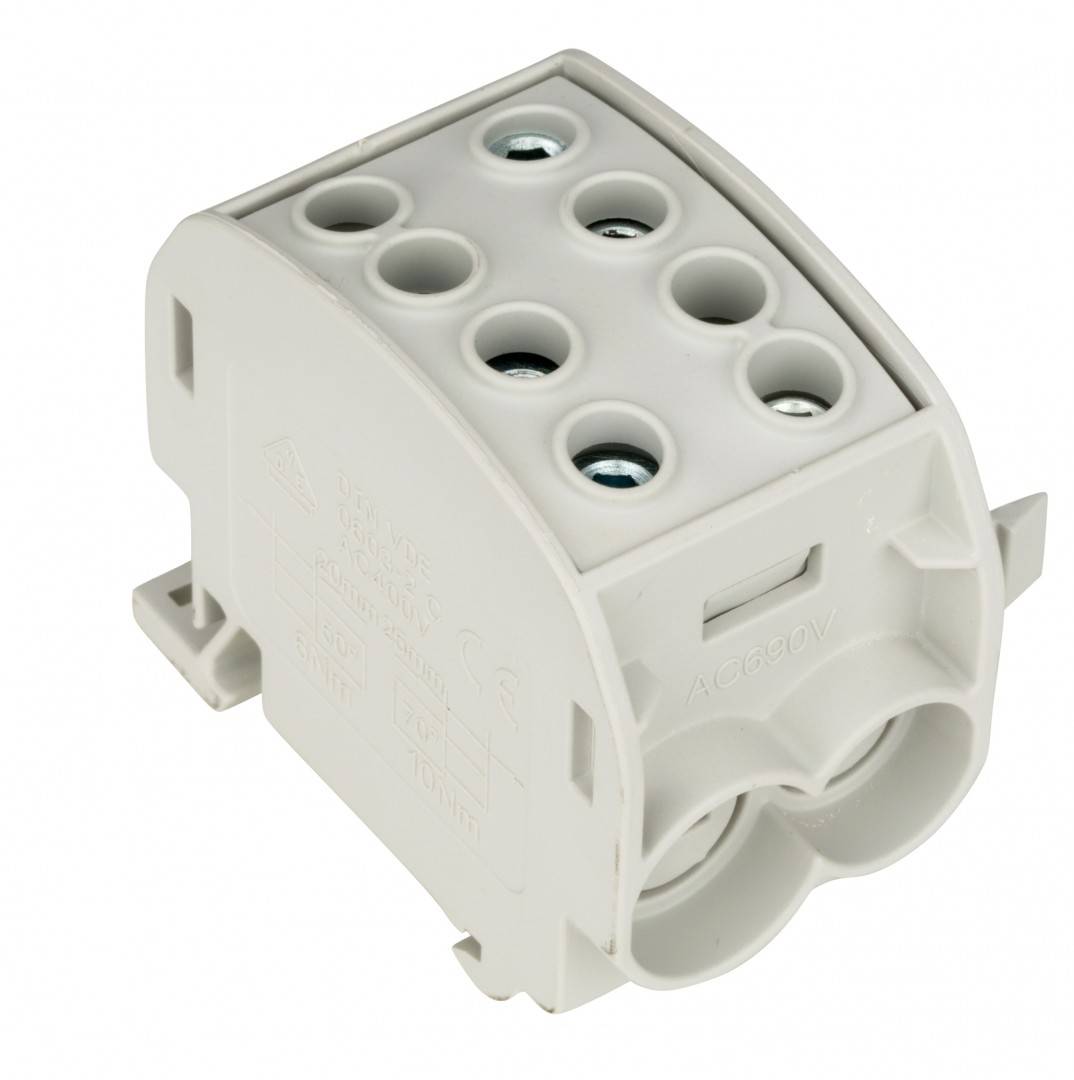

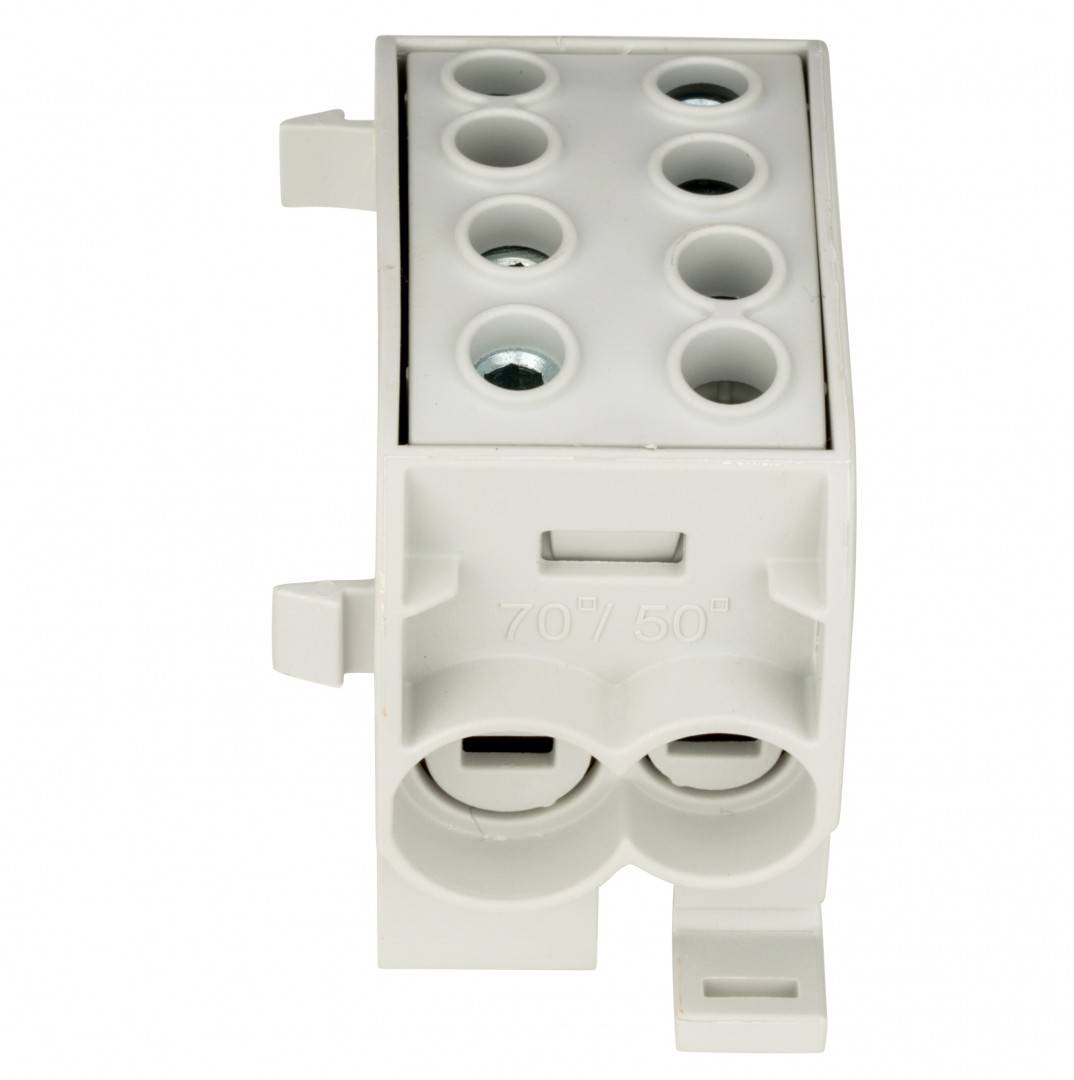

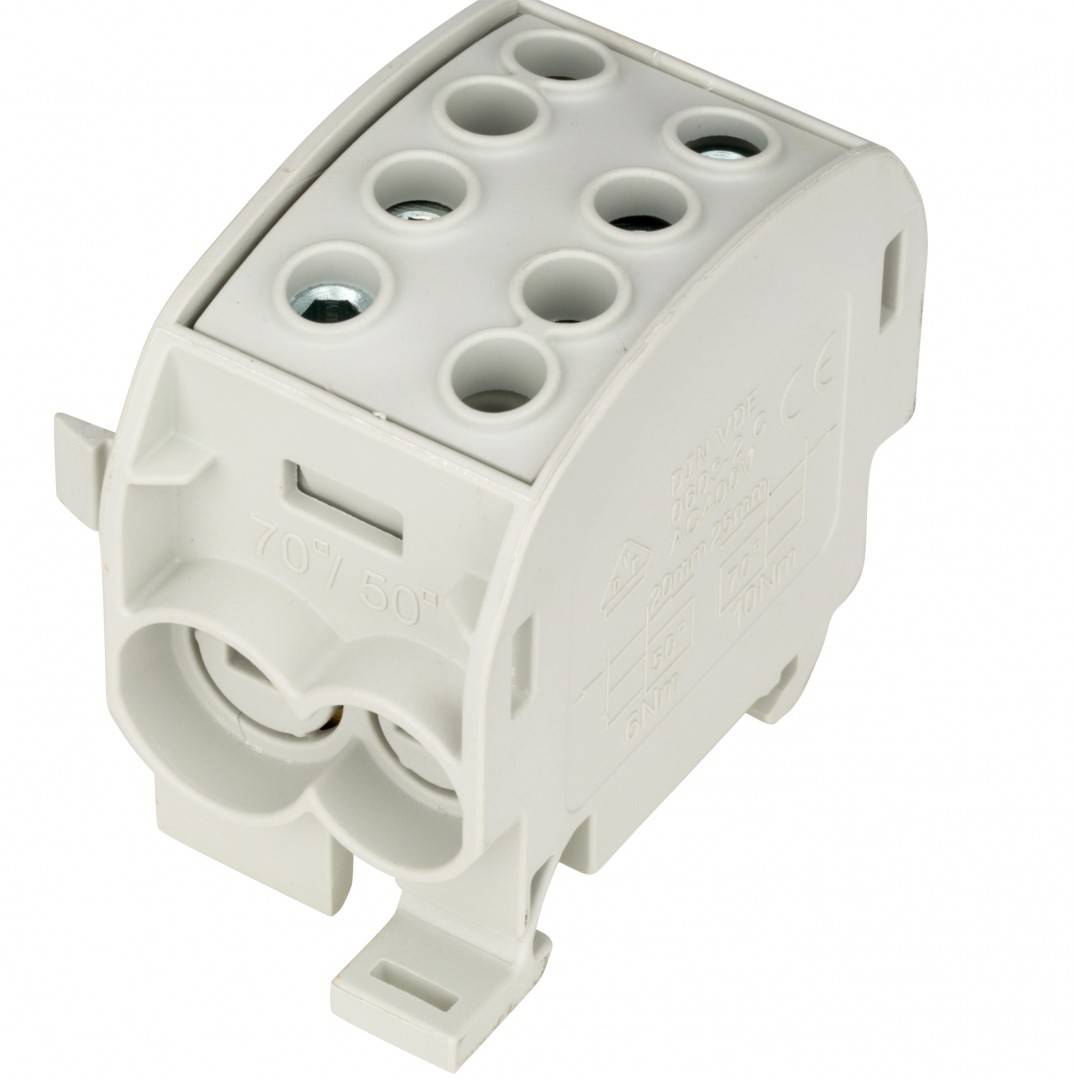

Clema derivatie, 70mm², 1p., gri
Cod produs: IK026310--
Marca: SCHRACK TECHNIK
Pret cu TVA: 71.01 Lei / buc.
|
|
|
|
|
|
Comanda instant - Clema derivatie, 70mm², 1p., gri
|
Clema derivatie, 70mm², 1p., gri
|
|
Specificatii Tehnice Cablu alimentare max.70mm² Masa neta 0,17 kg/m Poli 1pol LxIxA mm 40x63x49 Descriere electrica CAD ${pole}/${zugänge} Temperatura maxima a mediului ambiant 70 °C Culoare Gri Terminal element Brass (CuZn39Pb2) PU 3 Current carrying capacity 300A (2x50mm²); 192A (1x70mm²) A Unitate de ambalare 1 m. Dimensiuni 1 polig: 40mm x 53,3mm x 63mm mm Descriere de baza Clema Versiune Executive branch terminal (isolated) Fabricant Schrack PREG 1620 Cleme de derivatie 50mmp 1p. 2 deriv. Temperatura minima a mediului ambiant -35 °C disipare 2,10 W PROMO CODE CH 0059-0014-36 COD PROMO 0059-0008-89 Reactia la foc Self-extinguishing Material de conexiune cupru Tensiune nominala 1000VAC/VDC Standard produs IEC60947-7-1 Carcasa PA 6 (halogen-free) COD COMANDA IK026310 Simbol CAD X Cleme de derivatie 70mmp 1p. 2 deriv. HxBxT mm 63x40x49 Screws Steel, Zn thick-film passivated | Lungime | 48.7 mm | | Latime | 40 mm | | Inaltime | 63 mm | | Greutate | 0.17 kg |
|
|
|
|
|
