Specificatii Tehnice
Standard
EN 61008-1;IEC 61008-1
Simbol CAD
Q
Rated sensitivity IΔn
10 mA
COD COMANDA
AR602201
Masa neta
0,21 kg/m
Insulation voltage
500 V
Rated frequency
50/ 60 Hz
Temperatura maxima a mediului ambiant
60 °C
Rezistenta la scurtcircuit
6 kA
Accesorii optionale
BSB00111-A;BSB00112--;BSA90161--;BSA90154--;BSA90162--
Non-tripping residual current
≤0;5 IΔn
Max. permissible back-up fuse against short circuit
63 A gG
Stabilitate la impuls de tensiune Uimp
6kV
Categorie produs
AC (sensibil la curent alternativ)
grad de protectie
IP20
Grad de poluare
2
Descriere electrica CAD
${stromstärke}/${pole}/${auslösestrom}
Afisaj
rosu daca e declansat
PREG
1380
LxBxH mm
50x36x84
Unitate de ambalare
1 m.
Serie
AMPARO
Tensiune dielectrica de test la frecventa industriala
2500 V
Cuplu
2.5 Nm
Capacitate de rupere nominala
6 kA
PU
90
Terminal type
Lift clamp cable / pin busbar
Fabricant
Schrack
Durata de viata electrica
2000 Operations
Montaj
On DIN rail according to EN 60715 (35mm) via quick mounting clip
Valoare curent de defect
10 mA
Temperatura minima a mediului ambiant
-25 °C
disipare
7,00 W
Curent nominal
25 A
Capacitate nominala de rupere Im
500 A
Tip
fara temporizare
Poli
N+1
Standard produs
EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017;EN 61008-2-1:1994 + A11:1998;IEC 61008-1;IEC 61008-2-1;AS/NZS 61008.1
Descriere de baza

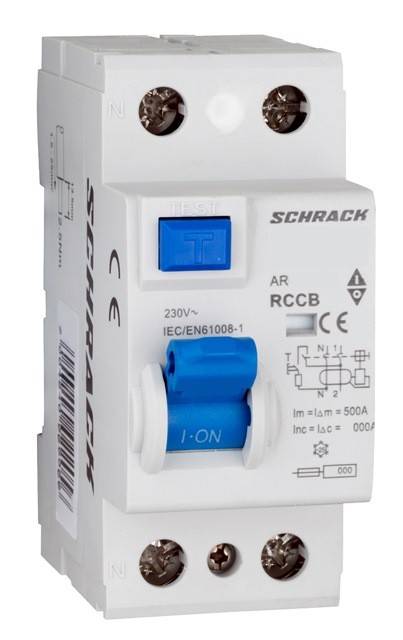

Intreruptor diferential
Curent nominal
25 A
Durata de viata mecanica
2000 Operations
Material conductor
Copper
Tensiune nominala
230V-AC
Timp de declansare instantaneu
IΔn: ≤300ms;2 x IΔn: ≤150ms;≥5 x IΔn: ≤40ms
Max. allowed back-up fuse against thermal overload
25A: 16A gG
| Lungime | 49.5 mm |
| Latime | 36 mm |
| Inaltime | 84 mm |
| Greutate | 0.21 kg |
