Specificatii Tehnice
COD COMANDA
AR874130

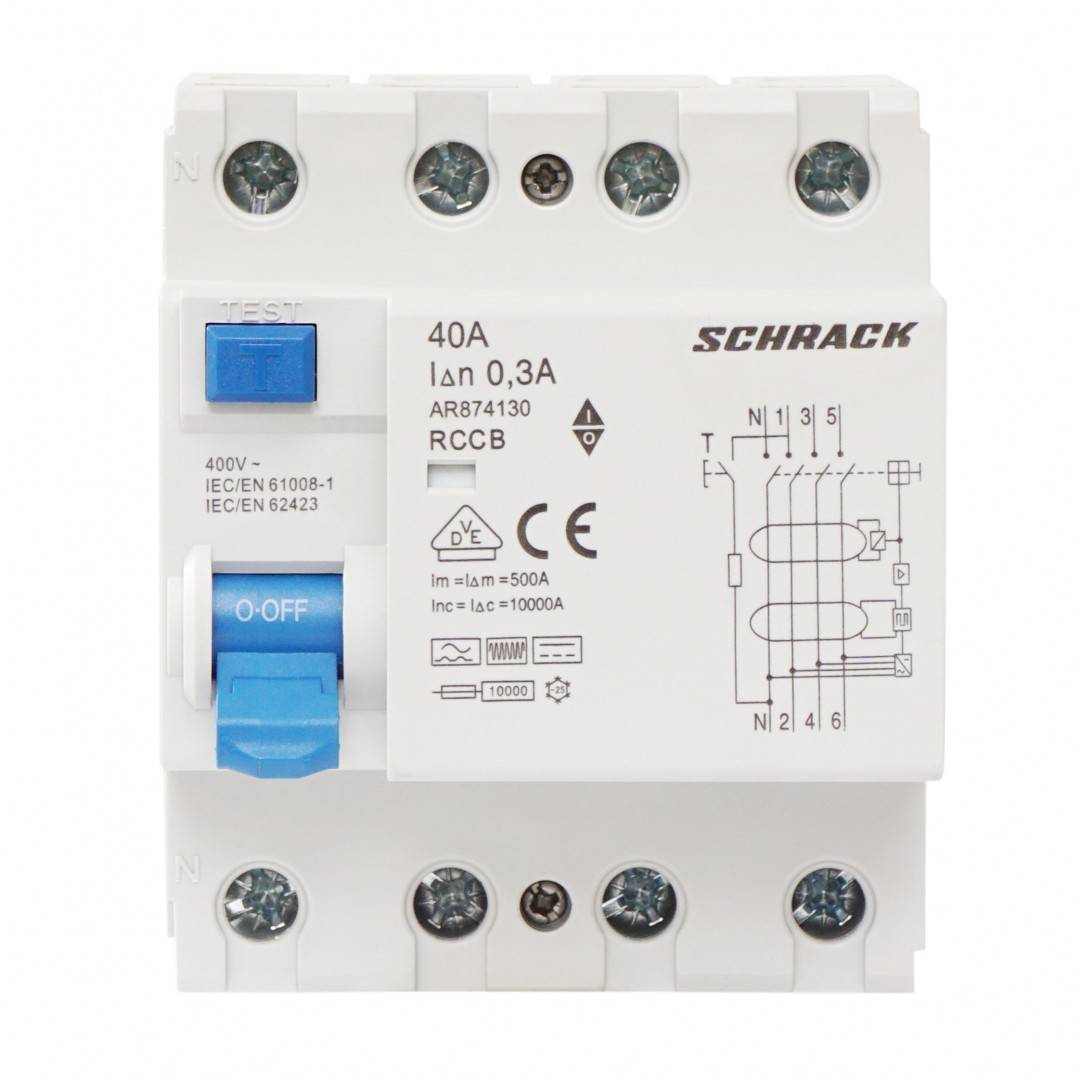

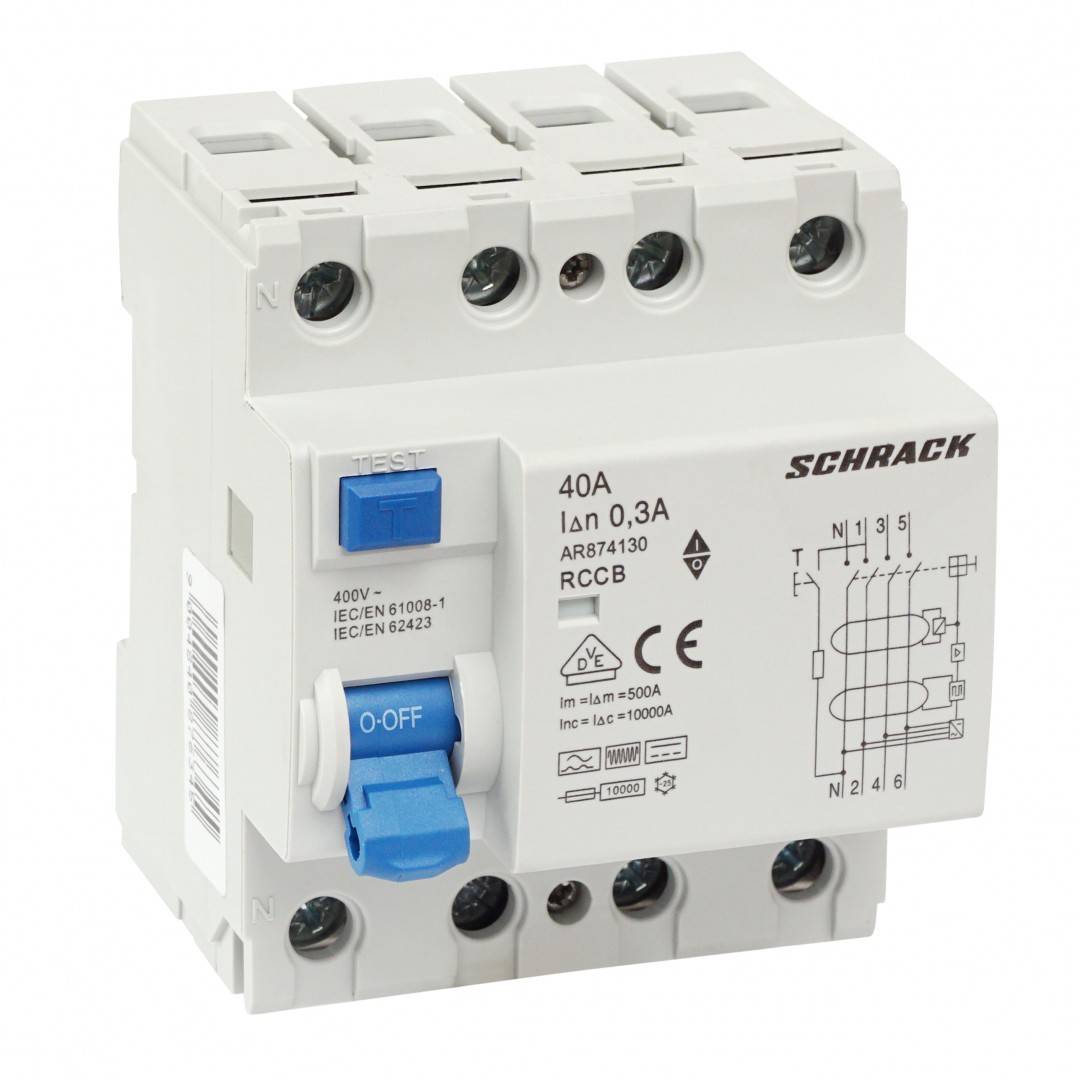

Descriere de baza
Intreruptor diferential
Conductor masiv
2.5 - 35 mm²
Max. allowed back-up fuse against thermal overload
40A: 25A gG
Material conductor
Copper
Timp de declansare instantaneu
IΔn: ≤300ms;2 x IΔn: ≤150ms;≥5 x IΔn: ≤40ms
Durata de viata mecanica
10000 Operations
PROMO CODE CH
6345-0349-83
Curent nominal
40 A
Stabilitate la impuls de tensiune Uimp
4kV
Terminal type
Double Mouth Lift Clamp with Back clamps Protection
Tensiune nominala
230/400V AC 4-polig
COD PROMO
6345-0167-12
Simbol CAD
Q
Insulation voltage
500 V
Rated frequency
50/ 60 Hz
Standard produs
EN 61008-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2017;EN 61008-2-1:1994 + A11:1998;EN 62423:2012
Temperatura maxima a mediului ambiant
60 °C
PROMO CODE GER
6345-0373-63
disipare
12,88 W
Masa neta
0,37 kg/m
PROMO CODE GER INDUSTRY
6345-00317-98
Max. permissible back-up fuse against short circuit
63 A gG
Descriere electrica CAD
40A/4/300mA
Terminal cross section
2,5 - 35 mm²
LxBxH mm
50x72x84
Capacitate de rupere nominala
10 kA
grad de protectie
IP20
Grad de poluare
2
Afisaj
rosu daca e declansat
Cuplu maxim
2,50 Nm
PREG
1380
Unitate de ambalare
1 m.
PU
45
Serie
AMPARO
Tensiune dielectrica de test la frecventa industriala
2500 V
Cuplu
2.5 Nm
Temperatura ambianta pentru montaj deschis
-25°C bis +40°C °C
Standard
EN 61008-1;IEC 61008-1;EN 62423;IEC 62423
Non-tripping residual current
≤0,5 IΔn
Fabricant
Schrack
Rated sensitivity IΔn
300 mA
Rezistenta la scurtcircuit
10 kA
Durata de viata electrica
2000 Operations

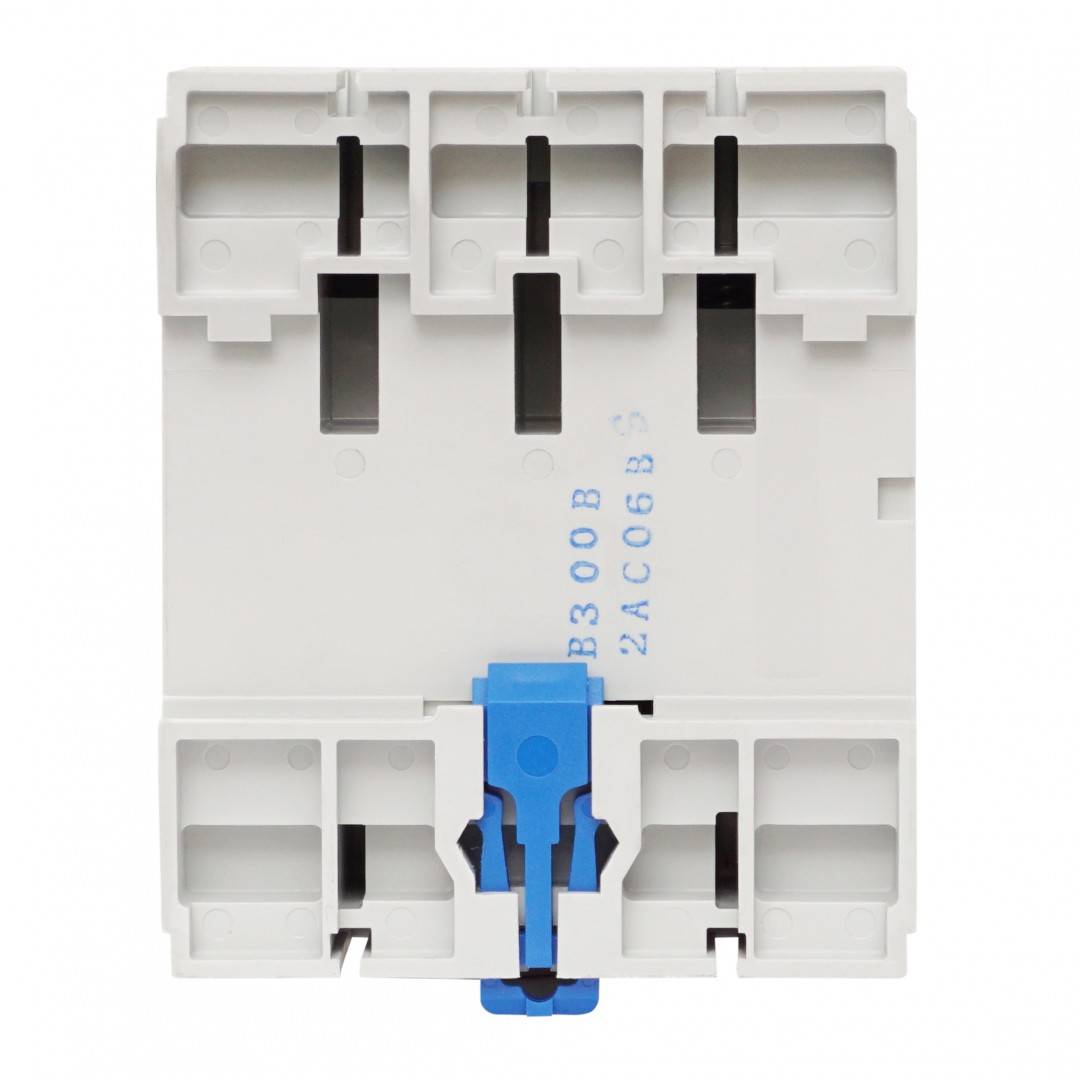

Montaj
On DIN rail according to EN 60715 (35mm) via quick mounting clip
Temperatura minima a mediului ambiant
-25 °C
Curent nominal
40 A
Categorie produs
tip B (sensibil la curent continuu si pulsatoriu)
Capacitate nominala de rupere Im
500 A
Tip
fara temporizare
Valoare curent de defect
300 mA
Poli
N+3
Accesorii optionale
AM900003--;BSA90157--;BSA90158--;BSA90159--
| Lungime | 49.5 mm |
| Latime | 72 mm |
| Inaltime | 84 mm |
| Greutate | 0.37 kg |
