Specificatii Tehnice
Material conductor
Copper
Durata de viata mecanica
10000 Operations
Conductor masiv
25 mm²
Stabilitate la impuls de tensiune Uimp
4kV
COD PROMO
6779-0030-92
Terminal type
Double funtion clamp / pin and fork busbar
disipare
13,80 W
Standard produs
EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016;EN 61009-2-1:1994 + A11:1998;IEC 61009-1;IEC 61009-2-1
Capacitate nominala de rupere Im
3000 A
Masa neta
0,42 kg/m
Rated frequency
50/ 60 Hz
Insulation voltage
500 V
Temperatura maxima a mediului ambiant
60 °C
PROMO CODE CH
6779-0064-73
Rezistenta la scurtcircuit
6 kA
Tensiune dielectrica de test la frecventa industriala
2000 V
Categorie produs
A (sensibil la curent alternativ si pulsatoriu)
Max. permissible back-up fuse against short circuit
63 A gG
Descriere de baza

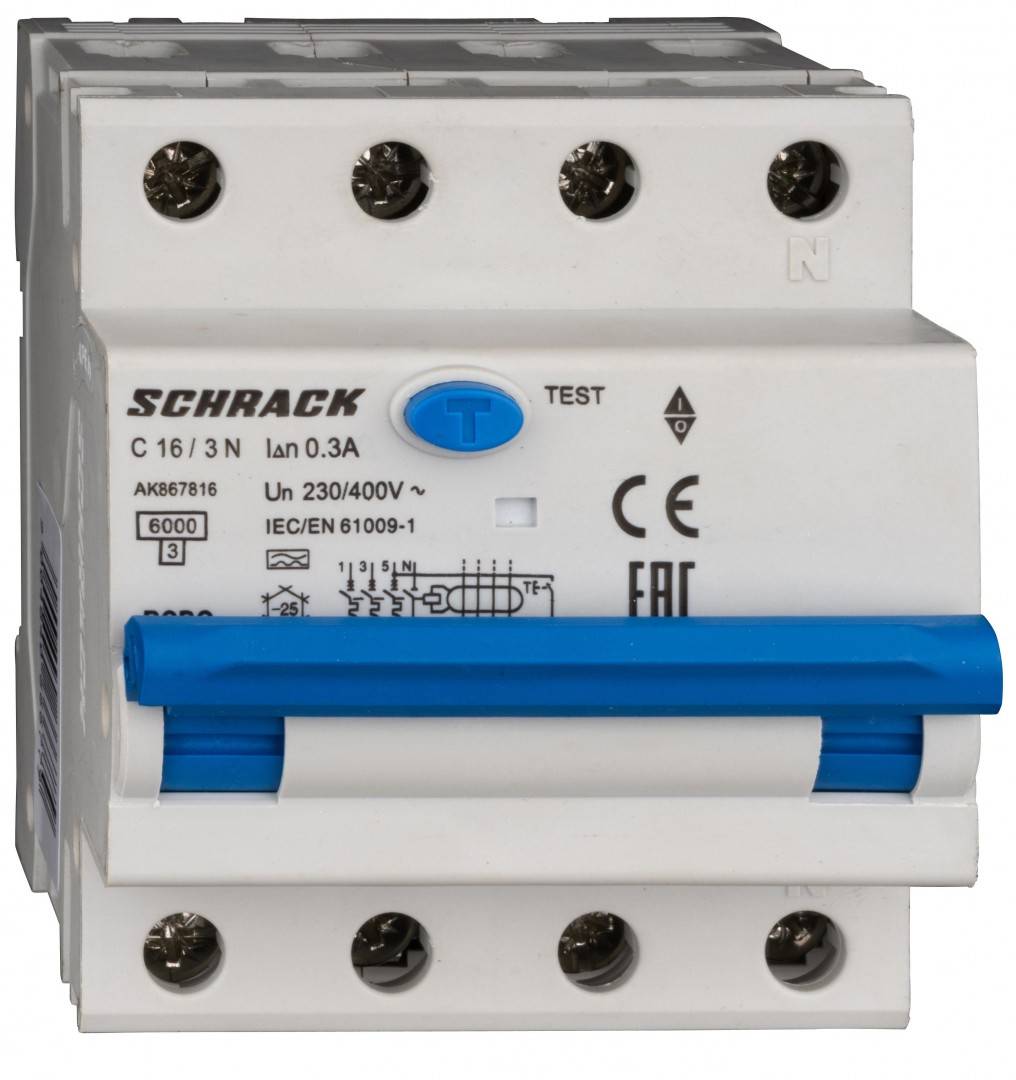

Intreruptor automat modular combinat
Curent nominal
16 A
Descriere electrica CAD
C/16A/3+N//A
Timp de declansare instantaneu
≤0,1s
Grad de poluare
2
grad de protectie
IP20
LxIxA mm
71x85x77
Curent nominal
16 A
Terminal cross section
1-25 mm²
Tensiune nominala
230/400 V AC
PREG
1380
Temperatura ambianta pentru montaj deschis
-25°C bis +60 °C
Simbol CAD
F
Clamp size for busbar
10 mm²
Unitate de ambalare
1 m.
Accesorii optionale
AM900099--
PU
45
Serie
AMPARO
Capacitate de rupere nominala
6 kA
Cuplu
2 Nm
Standard
EN 61009
Reference temperature
30 °C
Fabricant
Schrack
Rated sensitivity IΔn
300 mA
HxBxT mm
85x71x77
Caracteristica declansare
C
COD COMANDA
AK867816
Conexiune
ambele parti
Durata de viata electrica
2000 Operations
Montaj
On DIN rail according to EN 60715 (35mm) via quick mounting clip
Temperatura minima a mediului ambiant
-25 °C
Energy limiting class
3
Alimentare
prin 2 parti
Poli
3+N
Cuplu maxim
2 Nm
Tip
fara temporizare
PROMO CODE GER
6779-0043-58
Contact setting display
Yes
| Lungime | 77 mm |
| Latime | 71 mm |
| Inaltime | 85 mm |
| Greutate | 0.42 kg |
