Specificatii Tehnice
Terminal type
Double funtion clamp / pin and fork busbar
disipare
13,80 W
Standard produs
EN 61009-1:2012 + A1:2014 + A2:2014 + A11:2015 + A12:2016;EN 61009-2-1:1994 + A11:1998;IEC 61009-1;IEC 61009-2-1
Capacitate nominala de rupere Im
3000 A
Masa neta
0,42 kg/m
Rated frequency
50/ 60 Hz
Insulation voltage
500 V
Temperatura maxima a mediului ambiant
60 °C
Rezistenta la scurtcircuit
6 kA
Tensiune dielectrica de test la frecventa industriala
2000 V
Categorie produs
A (sensibil la curent alternativ si pulsatoriu)
Max. permissible back-up fuse against short circuit
63 A gG

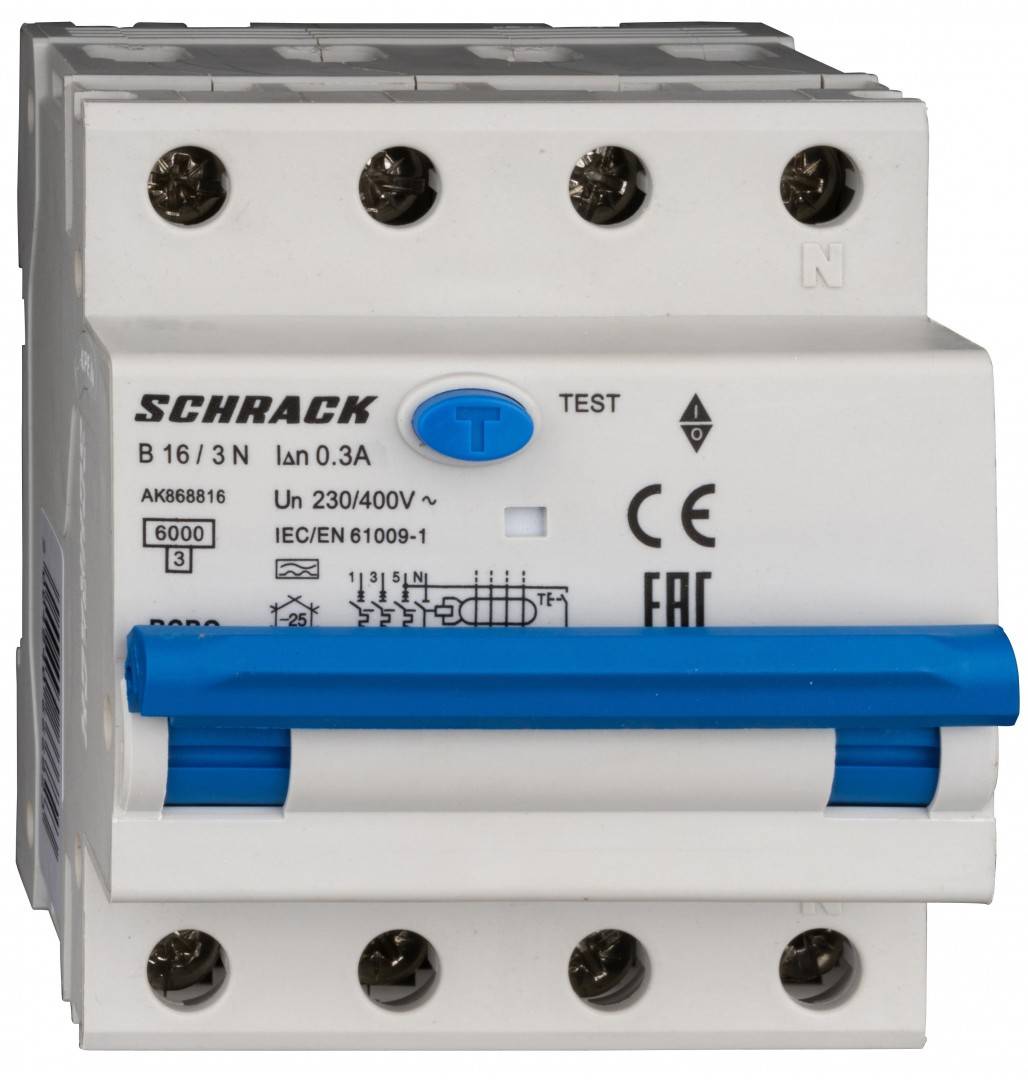

Descriere de baza
Intreruptor automat modular combinat
Curent nominal
16 A
Caracteristica declansare
B
Timp de declansare instantaneu
≤0,1s
PROMO CODE CH
6823-0064-73
Grad de poluare
2
grad de protectie
IP20
LxIxA mm
71x85x77
Curent nominal
16 A
Terminal cross section
1-25 mm²
Tensiune nominala
230/400 V AC
PREG
1380
Temperatura ambianta pentru montaj deschis
-25°C bis +60 °C
Simbol CAD
F
COD PROMO
6823-0030-92
Clamp size for busbar
10 mm²
Unitate de ambalare
1 m.
Accesorii optionale
AM900099--
PU
45
Serie
AMPARO
Descriere electrica CAD
B/16A/3+N//A
Capacitate de rupere nominala
6 kA
Cuplu
2 Nm
PROMO CODE GER
6823-0043-58
Standard
EN 61009
Reference temperature
30 °C
Fabricant
Schrack
Rated sensitivity IΔn
300 mA
HxBxT mm
85x71x77
Conexiune
ambele parti
Durata de viata electrica
2000 Operations
Montaj
On DIN rail according to EN 60715 (35mm) via quick mounting clip
Temperatura minima a mediului ambiant
-25 °C
Energy limiting class
3
Alimentare
prin 2 parti
Poli
3+N
Cuplu maxim
2 Nm
Tip
fara temporizare
COD COMANDA
AK868816
Contact setting display
Yes
Material conductor
Copper
Durata de viata mecanica
10000 Operations
Conductor masiv
25 mm²
Stabilitate la impuls de tensiune Uimp
4kV
| Lungime | 77 mm |
| Latime | 71 mm |
| Inaltime | 85 mm |
| Greutate | 0.42 kg |
